Crown (Middleby) | SKU: EC-6TW-2

Crown (Middleby) EC-6TW-2 Steam Kettles

Name: Crown (Middleby) EC-6TW-2 Steam Kettles
Brand: Crown (Middleby)
SKU: EC-6TW-2
Price: 20819.00 USD
Availability: InStock

$20,819.00

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Ec-6tw-2 with sd-48 stand Installation & operation manual Middleby financial flyer Parts list Crown steam group letter Warranty sheet

Description

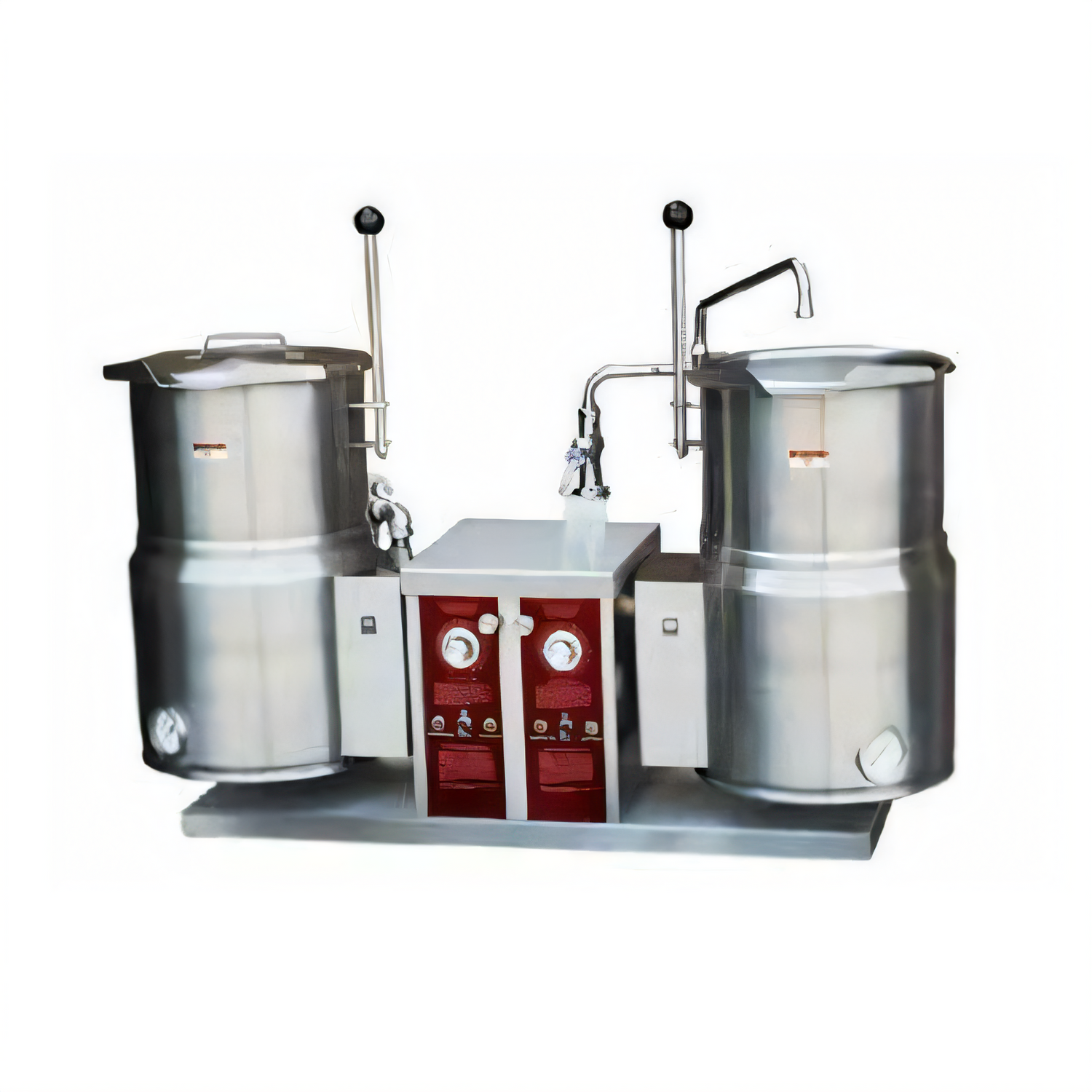

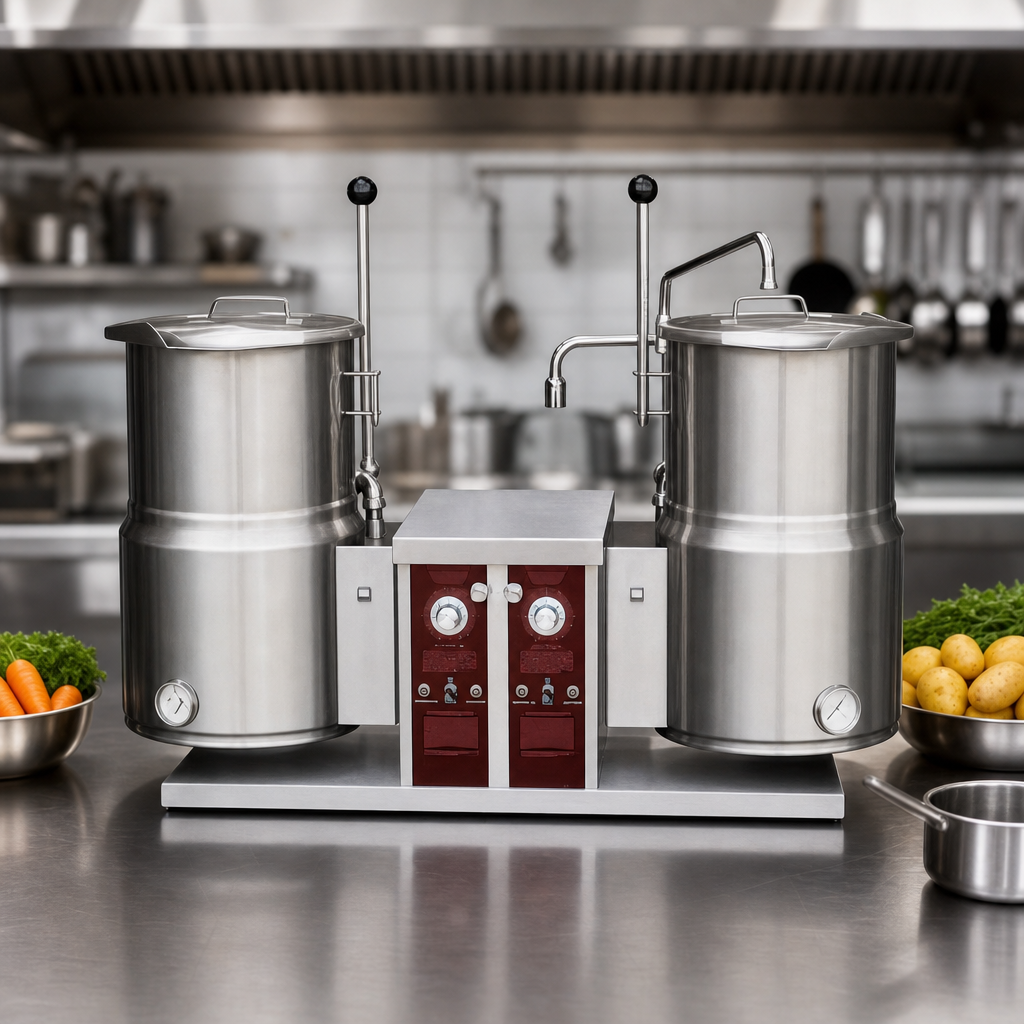

Crown EC-6TW-2 Twin 6 Gallon Electric Counter Tilting Kettle

Self-generating steam • Counter-top • 2/3 jacket • 50 PSI

Double your production without doubling your footprint. The Crown EC-6TW-2 puts two independently controlled 6-gallon kettles on a single compact base, giving busy kitchens rapid, even steam-jacketed cooking up to 285 °F (140 °C) with the convenience of electric power.

Key advantages

Two 6 gal / 23 L kettles – 12 gal (46 L) total batch capacity
Self-contained, self-generating closed steam system – no external boiler

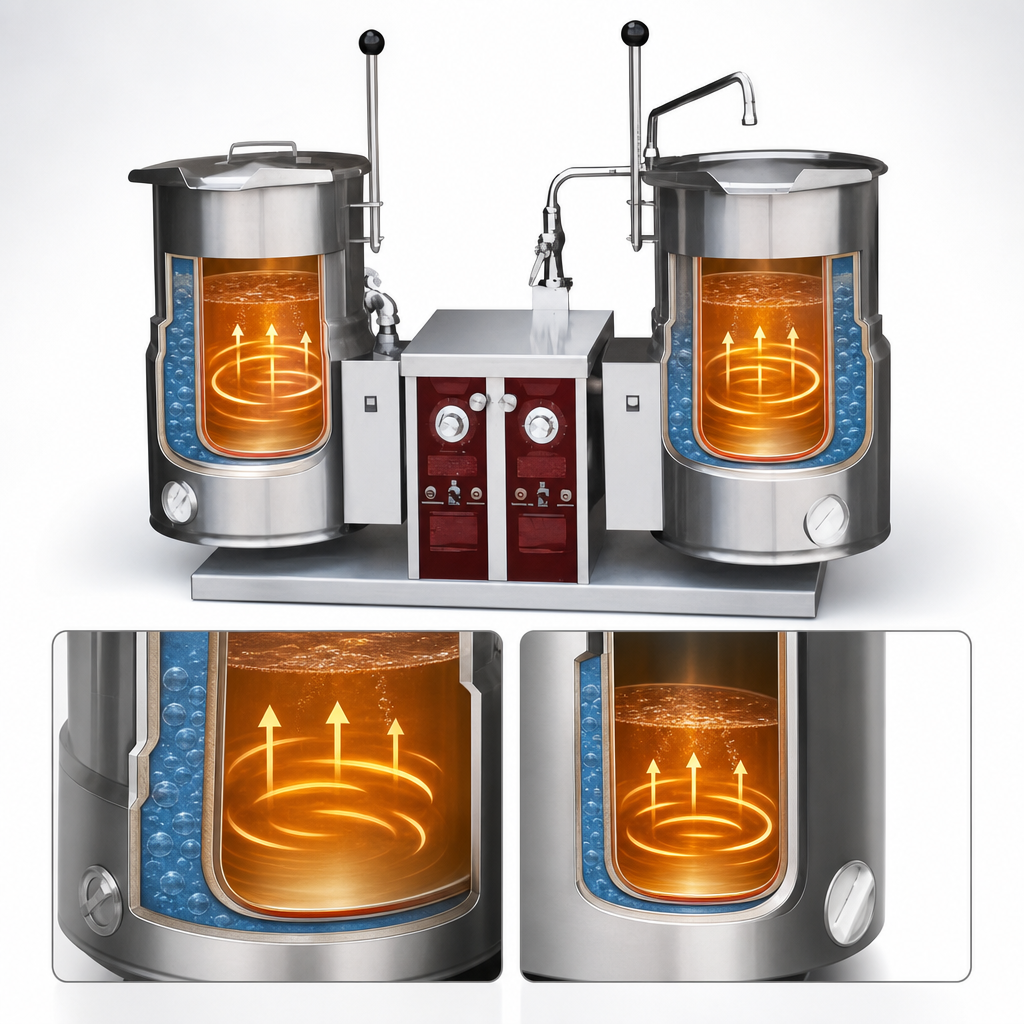

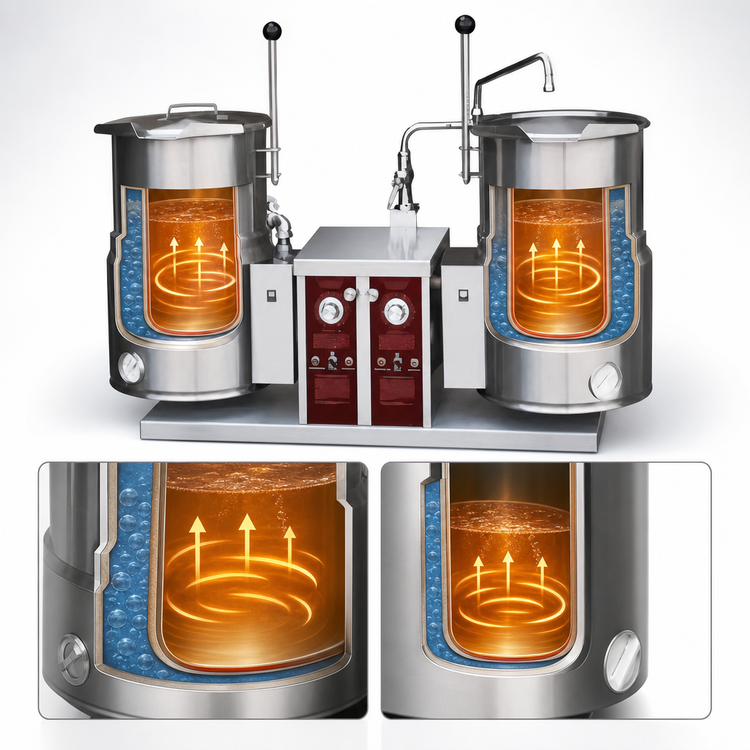

Durable 2/3 steam jacket rated 50 PSI (345 kPa) for higher cooking temperatures
316 SS liner resists acidic foods; 304 SS exterior with #4 sanitary finish
Integrated solid-state thermostat (165 °F – 285 °F) with red temperature pilot light
Low-water cut-off with amber warning light protects elements
ASME relief valve, pressure/vacuum gauge & air vent for operator safety
Right-side lever tilt & “Clean-Lock” holds kettle at 0° or 105° for safe draining
Removable plug-in heating elements for fast service access
Factory-installed faucet bracket – ready for optional single or double swing spouts
Water-resistant console & trunnion housing built for harsh commercial environments
Certified cCSAus, NSF, and ASME – ships fully pressure tested & sealed

At-a-glance specifications

Model	EC-6TW-2
Kettle capacity	2 × 6 gal (2 × 23 L)
Jacket design	2/3 steam jacket, 316 SS liner
Operating pressure	50 PSI / 345 kPa
Temperature range	165 °F – 285 °F (74 °C – 140 °C)
Heat input	15 kW total
Electrical options	208, 220 or 240 V 1φ/3φ 380/220 V 3φ, 4-wire 415/240 V 3φ, 4-wire
Amps per line (3φ)	41.6 A @ 208 V • 39.4 A @ 220 V • 36.2 A @ 240 V
Controls	On/Off switch, solid-state thermostat, pressure gauge, pilot lights
Interior / exterior	316 SS / 304 SS
Shipping weight	260 lb (118 kg)
Unit dimensions (W×D×H)	36.0 × 27.0 × 44.4 in (914 × 686 × 1127 mm)
Clearances	3 in (76 mm) both sides • 2.5 in (64 mm) rear
Certifications	cCSAus • NSF • ASME code stamped • National Board registered

Included with your kettle

Factory-sealed distilled water charge
Faucet mounting bracket
Removable tilt handles with heat-proof knobs
Comprehensive operator / parts manual

Popular add-ons (sold separately)

Single or double pantry faucets with 18″ dual-joint swing spouts
One-piece lift-off stainless steel covers
Stainless wire baskets & pour-lip strainers
21″ high open stand with slide-out drain drawers (model SD-48 for 6 gal)
Etched gallon or litre graduations & contour measuring strips

Installation note: This equipment is intended for commercial use only. A licensed electrician must connect the kettle to a properly sized branch circuit in accordance with local codes.

Need financing? Ask about Middleby Equipment Financing for fast approvals and affordable monthly payments.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

33.5in

Width

44.38in

Depth

15.25in

Shipping Weight

260.0lbs

Capacity

6 gal = 24 qt

Kettle Liner

316 stainless steel

Support location

right

Kettle Jacket

partial jacket

Tilt type

arm

Specifications

Twin Tilting Kettles, electric, countertop, 6 gallon capacity, (2) 2/3 jacket, solid state thermostat, safety relief valve, low water level cut-off & indicator, pressure gauge, console with lever tilt on right, faucet bracket, removable elements, 316 stainless steel interior liner, 304 stainless steel exterior, cCSAus, NSF
