Crown (Middleby)  |  SKU: EC-20T

Crown (Middleby) EC-20T Steam Kettles

$20,557.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation manual Middleby financial flyer Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

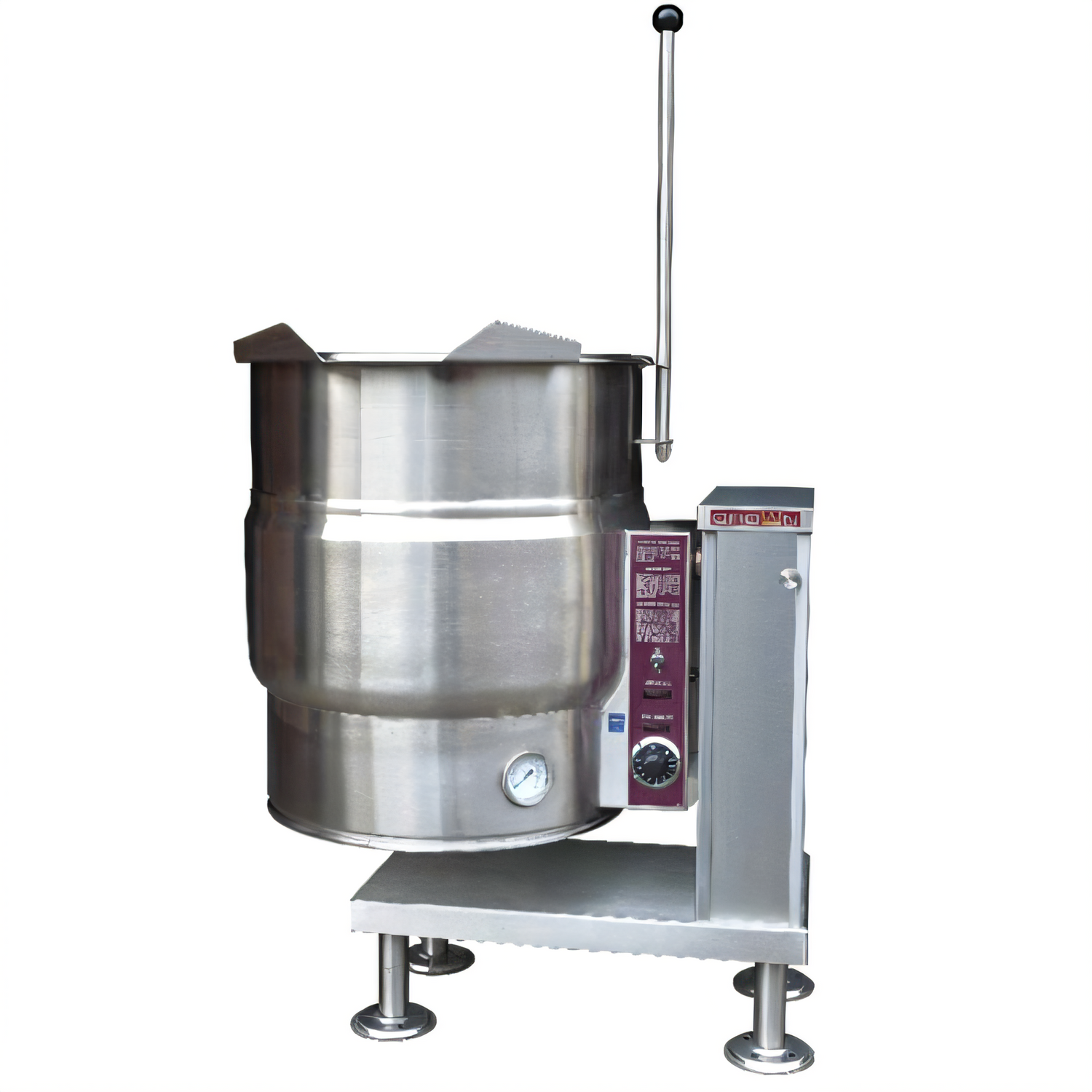

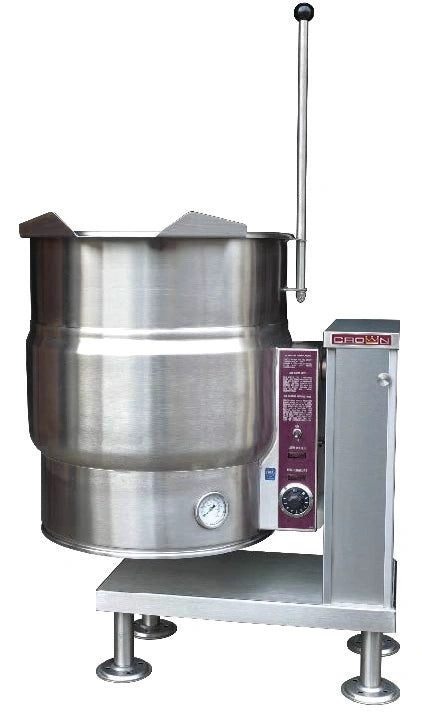

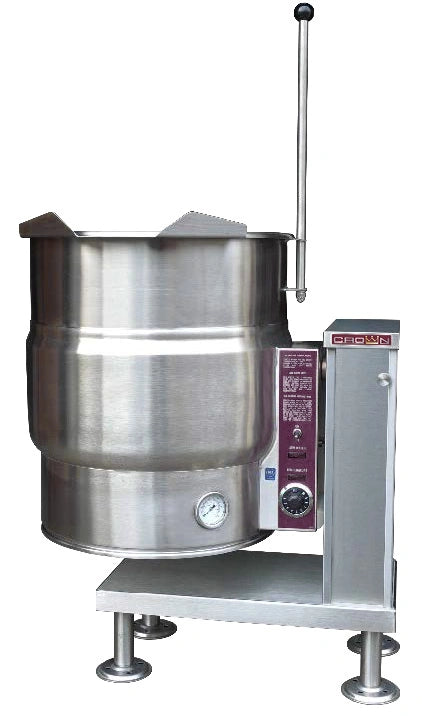

Crown EC-20T 20 Gallon Electric Tilting Kettle

Self-generating steam • Floor model • 12 kW

Move high-volume production out of stock pots and into a purpose-built solution. The Crown EC-20T delivers fast, even heat, effortless tilting and rock-solid construction—everything busy kitchens need for soups, sauces, stocks, pasta, porridge, chili and more.

Why You’ll Love It
  • 20 gal / 76 L capacity—yield up to 160 8-oz portions per batch.
  • 2/3-jacketed, self-contained steam system reaches 50 PSI for higher cooking temperatures (165 – 285 °F).

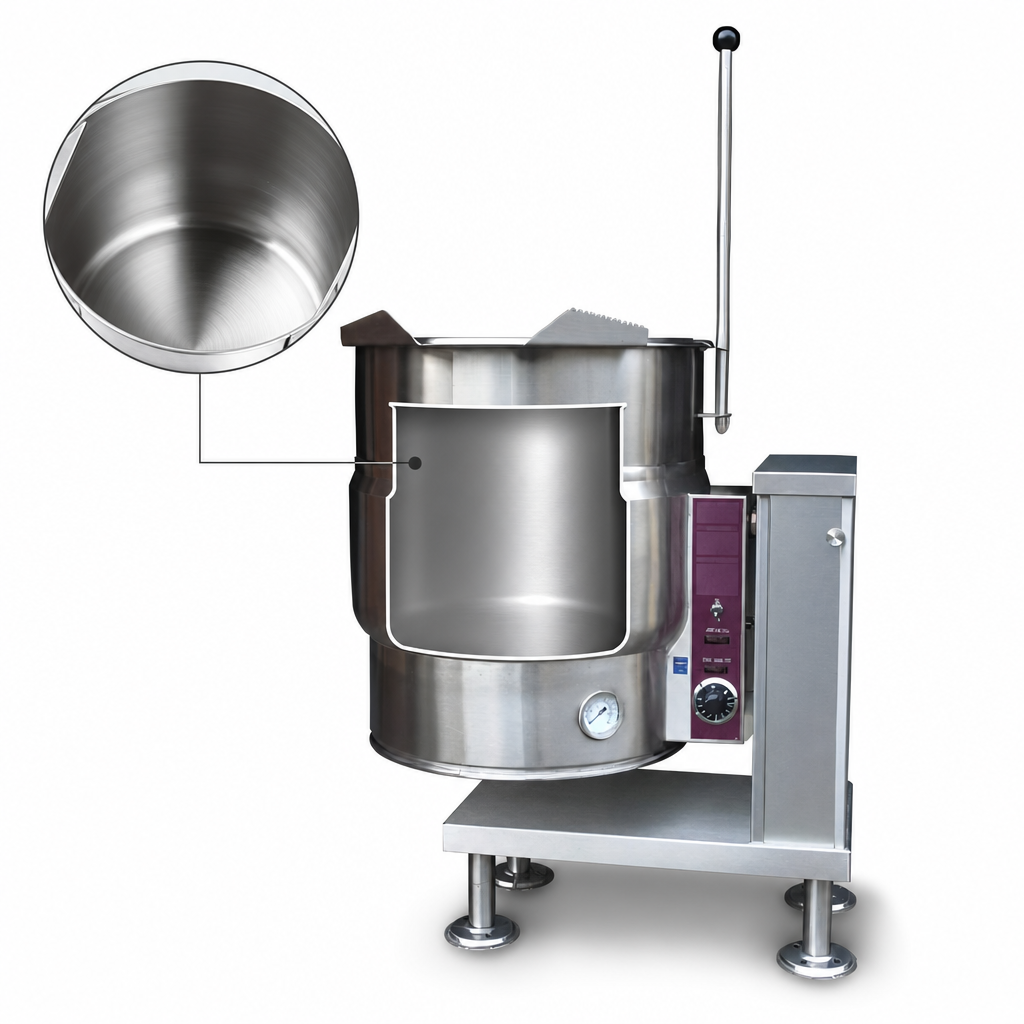

  • Rugged 316 SS interior liner resists acidic foods; 304 SS exterior with satin finish looks great and cleans fast.
  • 12 kW electric elements are removable for simplified service.
  • Solid-state thermostat plus low-water light & automatic shut-off keep operations safe and precise.
  • Integral console (right-side) with lever tilt and “clean-lock” stops at 105° for safe rinsing.
  • Built-in safety valve, combination vacuum/pressure gauge and pressure relief valve (50 PSI).
  • Four stainless tubular legs with adjustable flanged feet—bolt directly to floor for rock-solid stability.
  • Factory-installed faucet bracket makes adding a pot-filler quick and easy.
  • ASME constructed, National Board registered, cCSAus & NSF listed.
Built for Performance
  • Hemispherical bottom maximizes heat transfer and promotes natural stirring action.

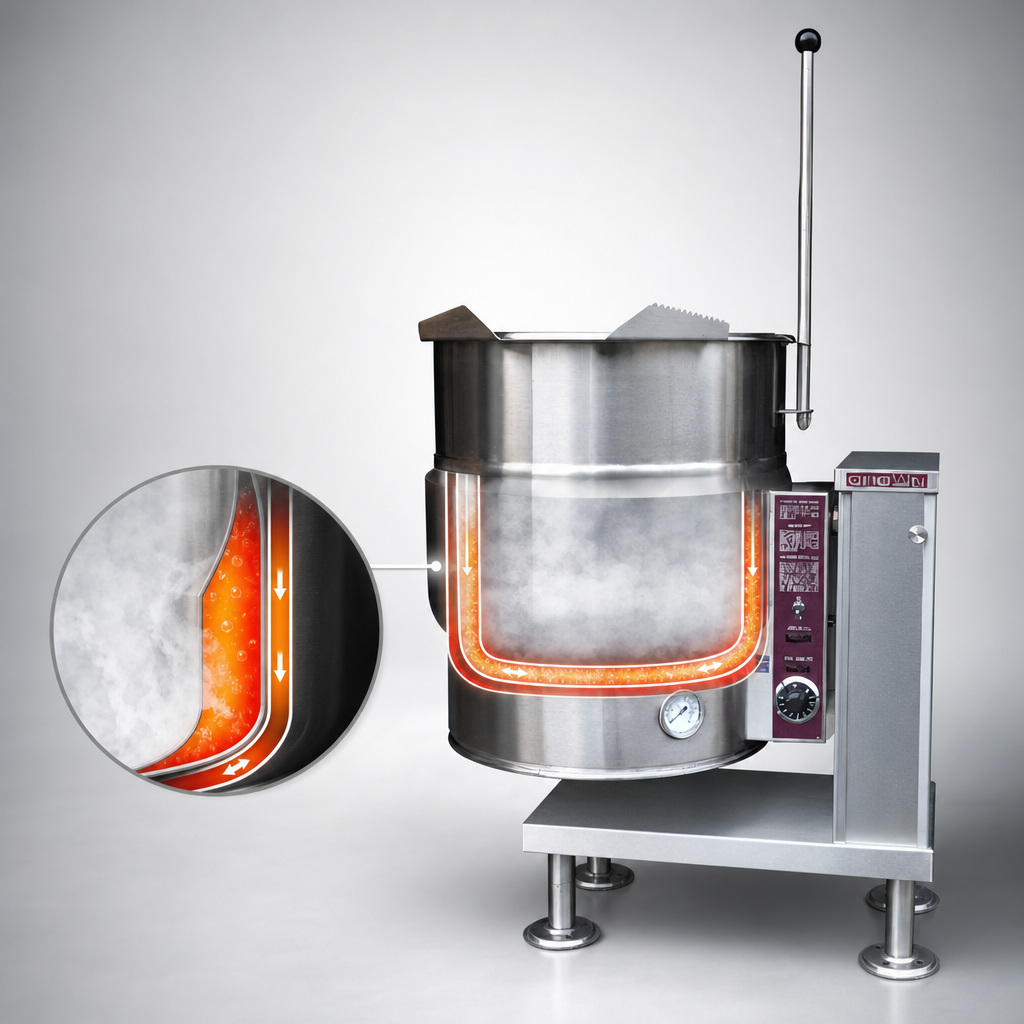

  • Closed steam jacket is pre-charged with distilled water—no external boiler or water line required.
  • Field-convertible 208/240 V units (1- or 3-phase) plus 380, 415, 480 & 600 V 3-phase options.
  • “Power on” pilot light and easy-read knob graduations (°F or 1-10 scale) help staff nail repeatable results.
Technical Specifications
Model EC-20T
Capacity 20 gal (76 L)
Heating type Electric, self-generating steam
Element rating 12 kW
Operating pressure 50 PSI (345 kPa)
Temperature range 165 °F – 285 °F (74 °C – 140 °C)
Interior material 316 stainless steel
Exterior material 304 stainless steel, welded satin finish
Tilt mechanism Manual lever, right side
Controls On/off switch, solid-state thermostat, low-water indicator, pilot light, combo vacuum/pressure gauge
Electrical (1-phase) 208 V 57.6 A | 240 V 50.0 A
Electrical (3-phase) 208 V 33.4 A | 240 V 28.9 A | 380 V 18.3 A | 415 V 16.7 A | 480 V 14.5 A | 600 V 11.5 A
Shipping weight 245 lb (111 kg)
Minimum clearance Right 0″ | Left 3″ | Back 7.5″
Certifications ASME, cCSAus, NSF
Included With Your Purchase
  • Factory-sealed distilled water charge
  • Pressure relief valve (50 PSI)
  • Faucet mounting bracket
  • Comprehensive user & parts manual
Need more versatility? Etched gallon/liter markings, draw-off valves, strainers, pot-filler faucets and other accessories are available on request.
Important: This unit is intended for commercial kitchens only and must be bolted to a level floor surface. Always maintain water quality within recommended limits and follow daily cleaning procedures to protect your 10-year kettle shell warranty.
Warranty

• 1 year parts & labor on the complete unit
• 10 year hemispherical kettle body warranty

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

36.0in

Width

36.0in

Depth

33.25in

Shipping Weight

245.0lbs

Base

quad-leg

Kettle Liner

316 stainless steel

Capacity

18 - 26 gallon

Kettle Jacket

partial jacket

Specifications

Tilting Kettle, electric, floor model, 20 gallon capacity, 2/3 jacket, solid state thermostat, safety valve, low water light & shut off, pressure gauge, console with lever tilt on right, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, (4) stainless steel tubular legs with adjustable feet, 12kW, 50 PSI, cCSAus, NSF
