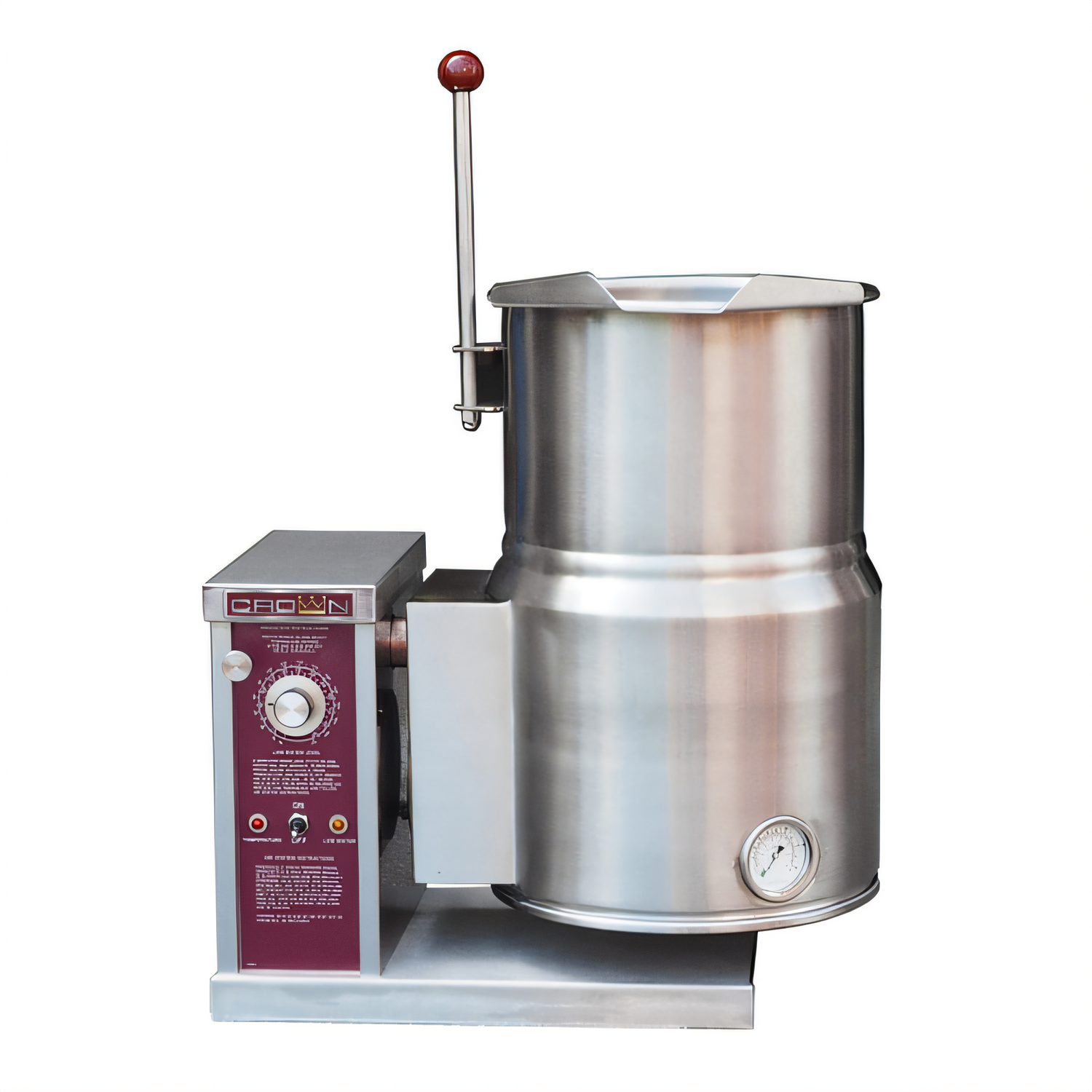

Crown EC-12TWL 12 Gallon Electric Countertop Tilting Kettle with Left Console
Crown EC-12TWL 12 Gallon Electric Countertop Tilting Kettle with Left Console
2/3 Jacketed, Self-Generating Steam, 316 Stainless Steel Liner
The Crown EC-12TWL electric tilting kettle provides efficient and high-pressure cooking for commercial kitchens, featuring a durable stainless steel construction and precise temperature control.
- Large 12-gallon capacity ideal for high-volume cooking and soup warming applications.
- Durable 316 stainless steel interior liner offers enhanced corrosion resistance and longevity.
- Self-generating closed steam system with 2/3 jacket ensures uniform and efficient heating without external steam.
- Solid-state thermostat and integrally mounted controls provide precise temperature management (165°F to 285°F).
- Equipped with a 'Clean Lock' mechanism to hold the kettle in position for easy and safe cleaning.
- Capable of 50 PSI high-pressure operation for faster cooking temperatures and improved efficiency.
- Features a left-side console with lever tilt for convenient operation, pouring, and precise control.

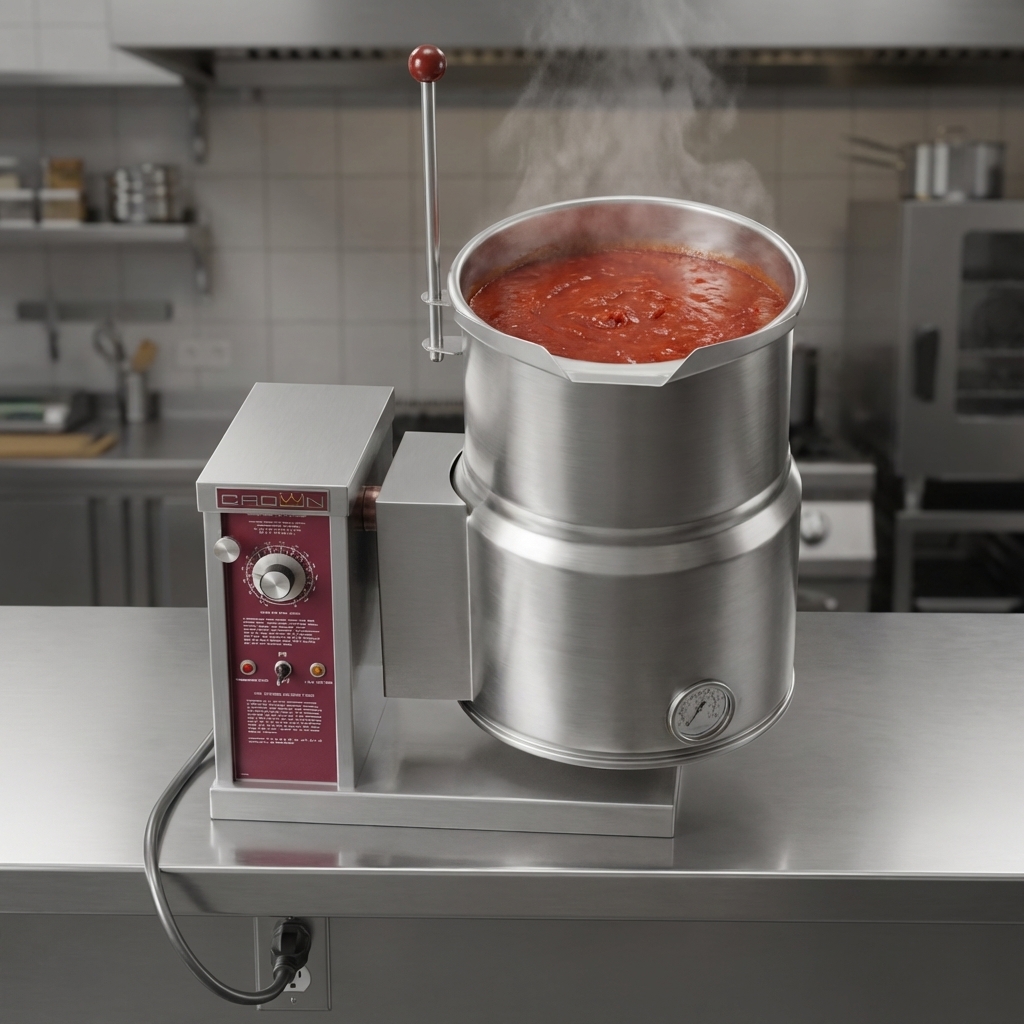

Self-Generating Closed Steam System
Equipped with a self-contained, factory-sealed steam jacket system, eliminating the need for an external steam source and ensuring efficient operation.

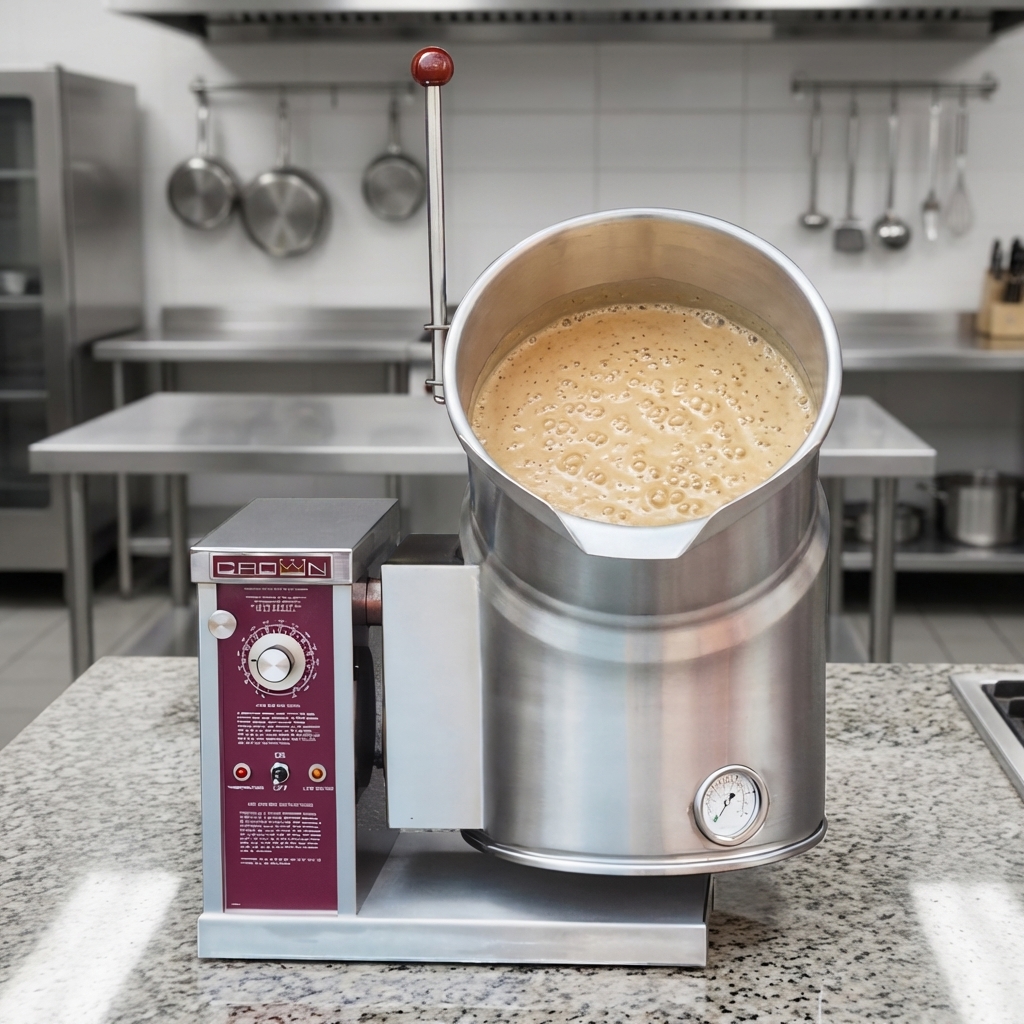

2/3 Steam Jacket
A double-wall kettle interior forms a steam jacket around the lower two-thirds of the kettle, providing uniform heat distribution for consistent cooking results.

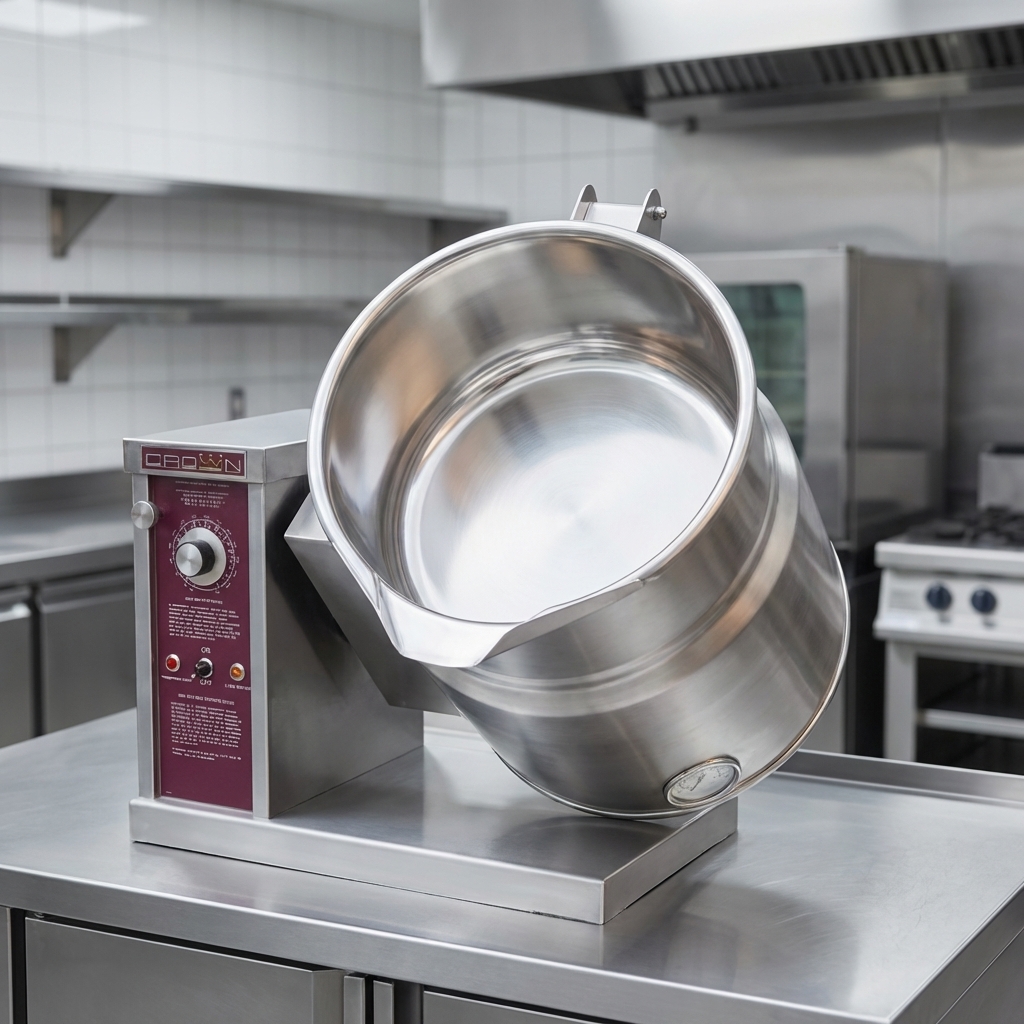

316 Stainless Steel Interior Liner
The interior cooking surface is made from Type 316 stainless steel, offering superior corrosion resistance for a wide variety of food products and longer equipment life.
50 PSI High-Pressure Operation
Designed for high-pressure operation up to 50 PSI (345 kPa), enabling higher cooking temperatures for faster and more efficient food preparation.
Solid State Temperature Control
Features a solid-state thermostat for precise and consistent temperature management within a range of 165°F to 285°F (74°C to 140°C).
Integrally Mounted Water-Resistant Controls
All controls, including a power switch, pilot light, vacuum/pressure gauge, safety valve, and low water shut-off with indicator, are conveniently and durably mounted on the left-side console.
Low Water Level Cut-Off and Indicator
Automatically shuts off heating elements and provides a visual indicator when water levels in the steam jacket are too low, protecting the equipment from damage.
Safety Relief Valve
A critical safety component that prevents over-pressurization within the sealed steam jacket.
"Clean Lock" Mechanism
Allows the kettle to be securely held in either its cooking position or a 105° tilt angle for safe and effortless cleaning.
Durable Stainless Steel Construction
Constructed with an all-welded #4 finish Type 304 stainless steel exterior, console, and trunnion, ensuring long-lasting commercial durability.
Removable Heating Elements
Features removable heating elements for ease of service and maintenance.
Faucet Bracket
Includes an integrated bracket for convenient installation of an optional pantry faucet.
Specifications
| Type | Tilting Kettle |
|---|---|
| Style | Countertop |
| Installation Type | Countertop |
| Capacity | 12 Gallons (45 Liters) |
| Material | 304 Stainless Steel |
| Interior Finish | 316 Stainless Steel |
| Controls | Solid State Thermostat |
| Temperature Range | 165°F to 285°F |
| Pressure | 50 PSI |
| Watts | 12 kW |
| Hertz | 50/60 Hz |
| Phase | 3-Phase |
| Amps | 33.3 Amps (at 208V) |
| Voltage | 208-600 Volts |
| Water Connection | Not Required |
| Drain Connection | Not Required |
| Shipping Weight | 190 lb. |
| Shipping Width | 27 Inches |
| Shipping Depth | 18 Inches |
| Shipping Height | 37 Inches |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
26.25"W x 17.25"D x 36.88"HProduct Weight:
190.0 lbCertifications & Compliance
Warranty & Protection
Please refer to the manufacturer's documentation for specific warranty details.
