Crown (Middleby)

Crown EC-12TW 12 Gallon Countertop Electric Tilting Kettle

SKU: EC-12TW
$11,046.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Warming Crown (Middleby) Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Kettles

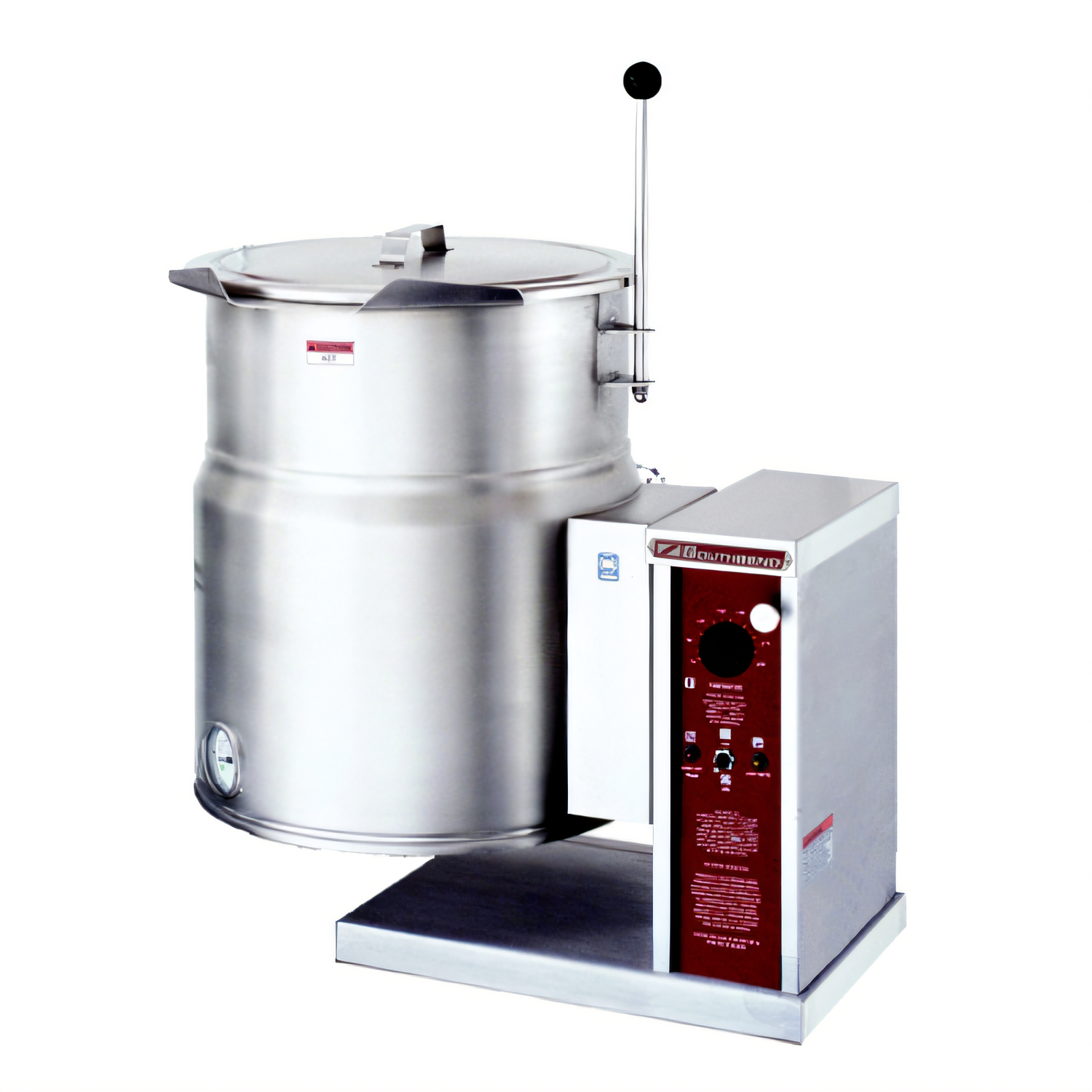

Crown EC-12TW 12 Gallon Countertop Electric Tilting Kettle

Self-Generating, 2/3 Jacket, Right-Side Lever Tilt

Designed for commercial kitchens, the Crown EC-12TW provides efficient and consistent cooking with its self-generating electric steam jacketed design and convenient countertop placement.

  • 12-gallon capacity ideal for large batches of soups, stews, and sauces.
  • Self-generating steam jacketed system ensures even heat distribution without external steam.
  • Robust construction with a 316 stainless steel interior liner and 304 stainless steel exterior.
  • Ergonomic countertop installation with a right-side lever tilt for easy pouring and cleaning.
  • Equipped with a solid state thermostat, pressure gauge, and essential safety features.
  • Manufactured in North America with cCSAus and NSF certifications for quality and safety.

Overall Dimensions:

26.25"W x 17.25"D x 36.88"H

Product Weight:

190.0 lb

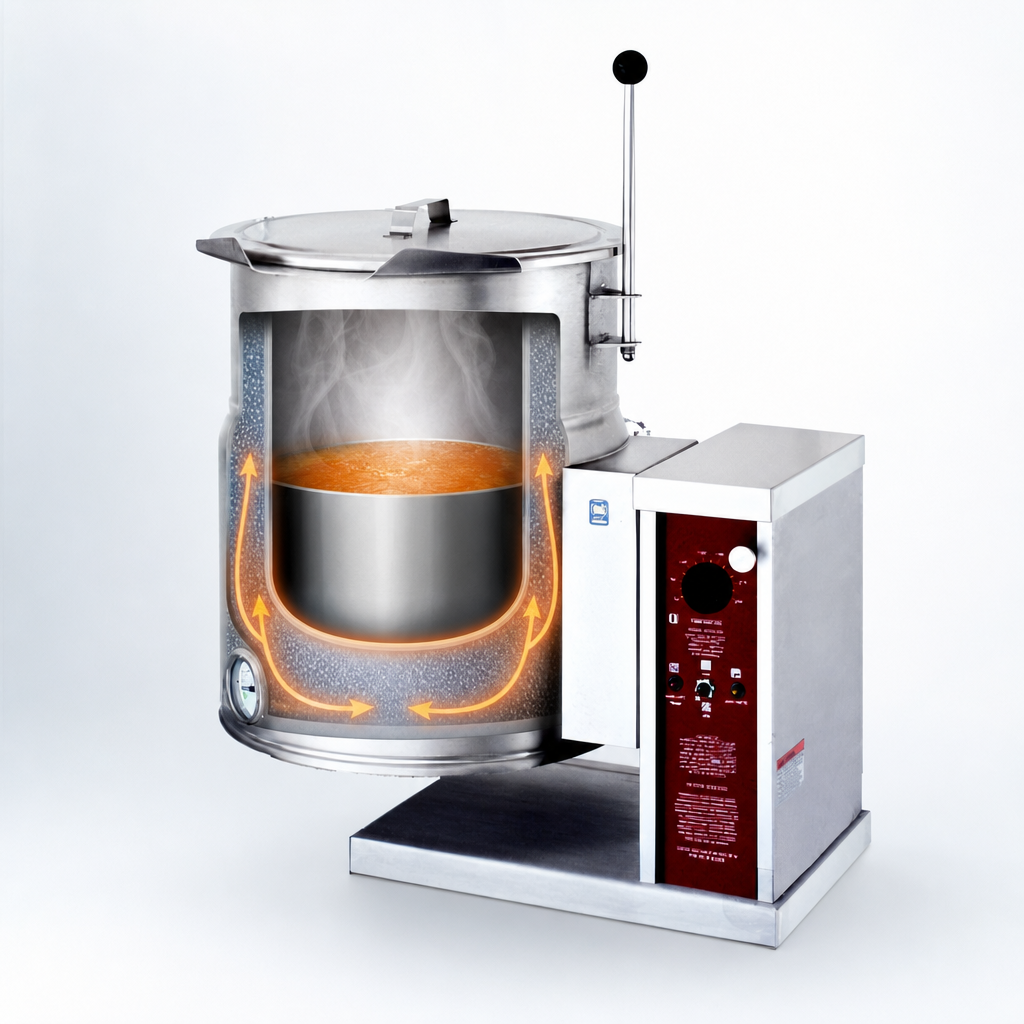

Self-Generating Steam Jacketed Design

Provides uniform heating across the kettle's 2/3 jacket for consistent cooking results, eliminating the need for an external steam source.

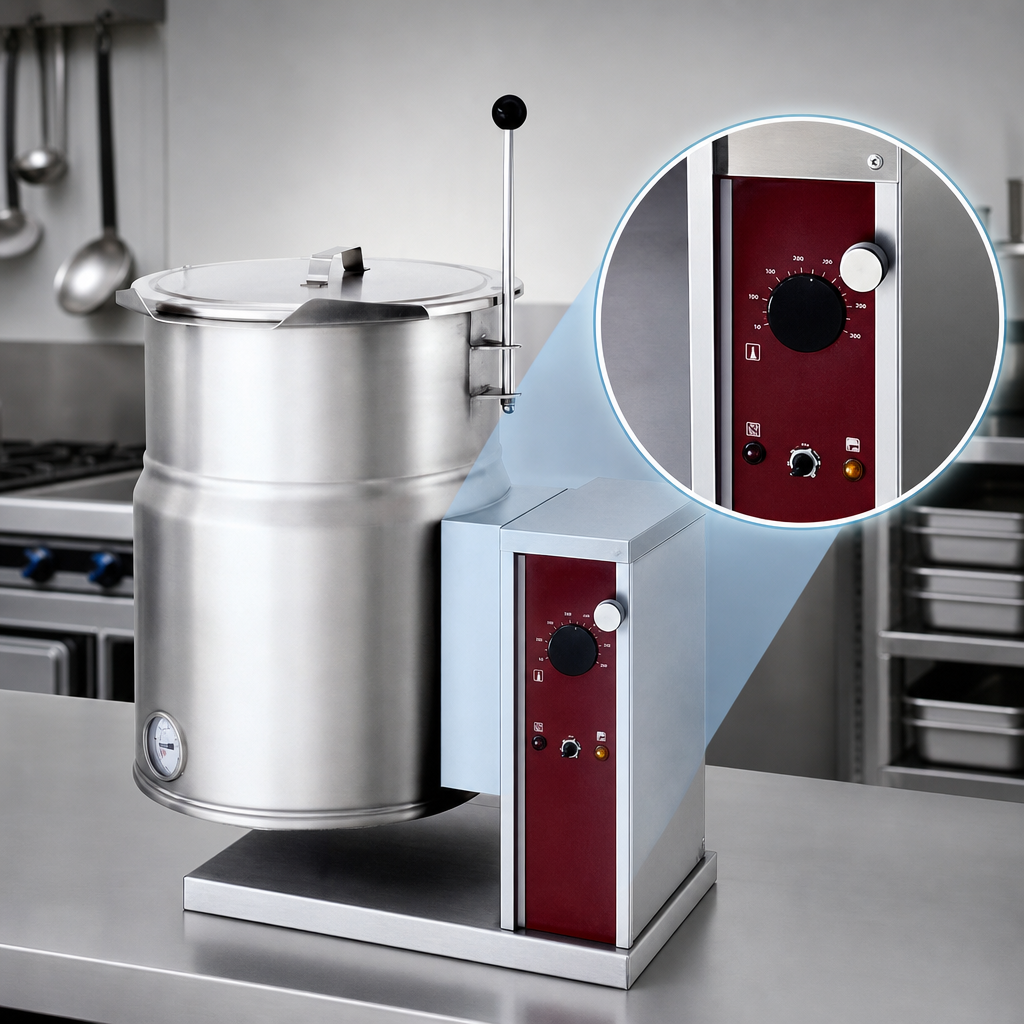

Solid State Thermostat

Ensures precise temperature control for optimal cooking of various food items.

Right-Side Lever Tilt Mechanism

Allows for ergonomic and controlled pouring of contents, making serving and cleaning safe and efficient.

Durable Stainless Steel Construction

Features a high-grade 316 stainless steel interior liner for excellent corrosion resistance and a robust 304 stainless steel exterior for long-lasting durability.

Integrated Safety Features

Includes a clear pressure gauge, a 50 PSI safety relief valve, and a low water indicator light with automatic shut-off to ensure safe operation.

Integrally Mounted Controls

All operational controls are conveniently located on the unit's console for ease of access and intuitive use.

Optional Faucet Bracket

Comes with a pre-installed bracket designed to accommodate an optional faucet for convenient water filling.

Type Tilting Kettle
Style Countertop
Installation Type Countertop
Capacity 12 Gallons
Kettle Jacket 2/3 Jacket
Kettle Liner 316 Stainless Steel
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Watts 12 kW
Voltage 208V, 220V, 240V, 380V, 415V, 480V, 600V
Phase 3-Phase
Controls Solid State Thermostat
Max Operating Pressure 50 PSI
Water Connection Required
Cold Water Inlet Size 5/8" O.D. Copper Tubing or 1/2 NPSM Male
Hot Water Inlet Size 5/8" O.D. Copper Tubing or 1/2 NPSM Male
Drain Connection Required
Drain Connection Size 1-1/2" NPT
Support Location Right
Tilt Type Lever Arm
Shipping Width 27 Inches
Shipping Depth 18 Inches
Shipping Height 37 Inches
Shipping Weight 190.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is not explicitly detailed in the provided documents.

Documents

PDF Cutsheet PDF Download PDF Ec-10-12tw with sd-30 stand PDF Download PDF Installation & operation PDF Download PDF Ec-10-12tw with s-30 stand PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown EC-12TW tilting kettle has a generous capacity of 12 gallons (45 liters), suitable for various commercial cooking needs.
The kettle features a 316 stainless steel interior liner for superior corrosion resistance and a durable 304 stainless steel exterior.
No, the Crown EC-12TW is a self-generating electric steam jacketed kettle, meaning it produces its own steam and does not require an external steam connection.
The EC-12TW is equipped with a pressure gauge, a 50 PSI safety relief valve, and a low water indicator light with an automatic shut-off mechanism for safe operation.
The kettle requires both cold and hot water connections with compression fittings for 5/8" O.D. copper tubing or 1/2 NPSM Male, and a 1-1/2" NPT drain connection.
The Crown EC-12TW tilting kettle is explicitly designed and intended for commercial use only and should not be used in household settings.
