Crown (Middleby) EC-12TW-2 Steam Kettles
Description

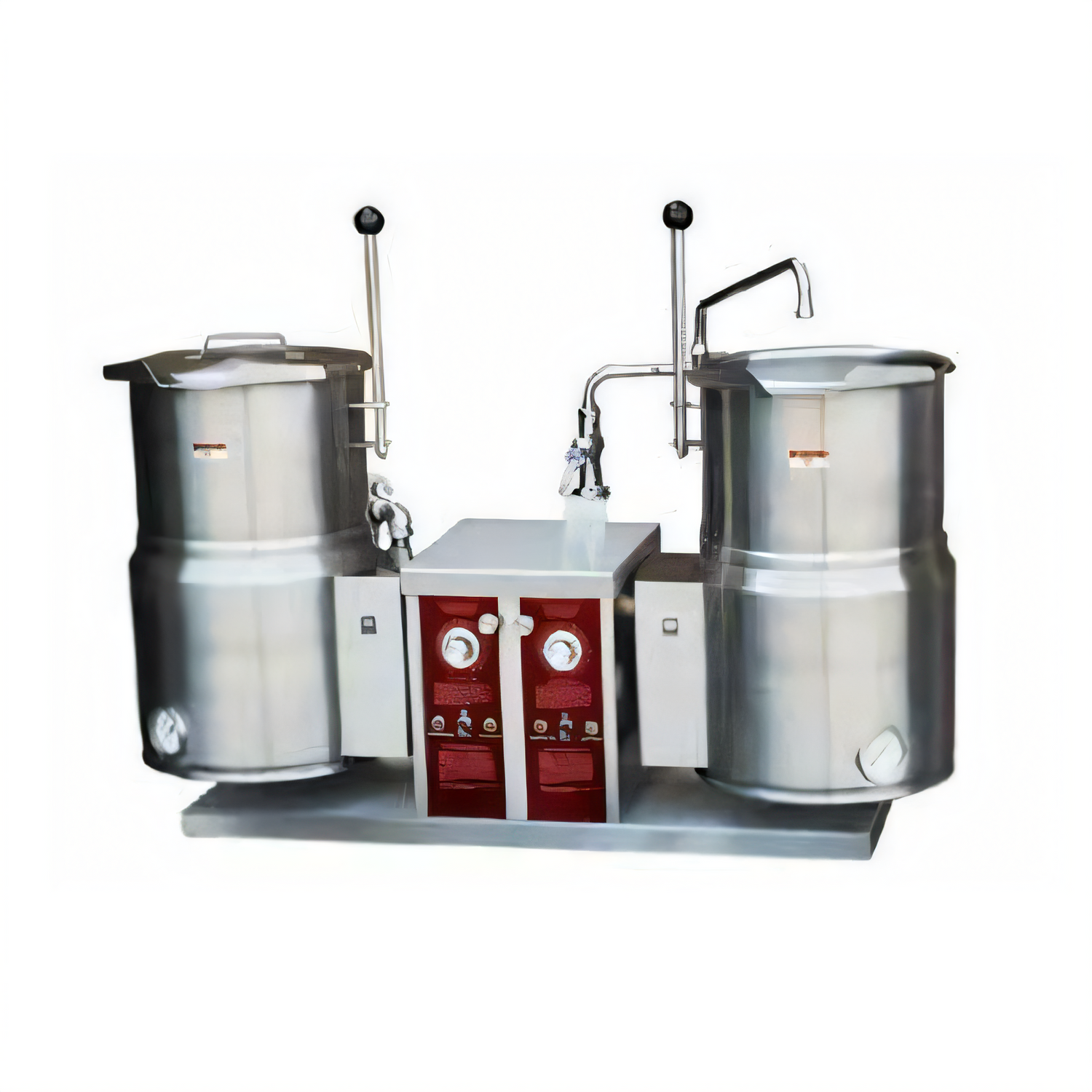

Crown EC-12TW-2 Twin 12-Gallon Countertop Tilting Kettles
Electric • Self-Generating Steam • 2/3 Jacket • 316/304 Stainless SteelDouble your production without doubling your footprint. The Crown EC-12TW-2 pairs two independent, right-hand-tilt kettles—each holding 12 gallons (45 L)—on a single console, delivering rapid, uniform cooking at up to 50 psi for high-temperature performance. Rugged stainless-steel construction, precise solid-state controls and removable elements make this the go-to solution for high-volume soups, sauces, pastas and more.
Key Advantages

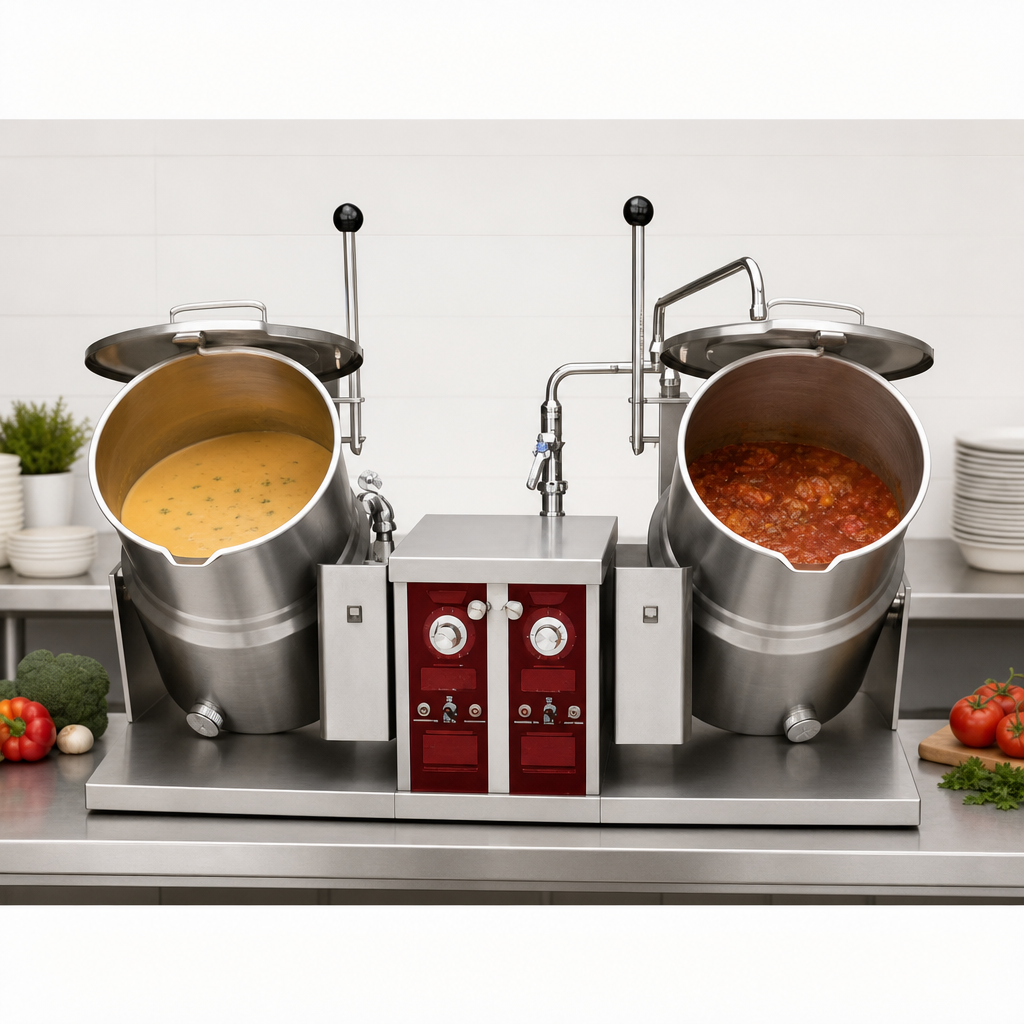

- True twin design: two separate 12 gal kettles with individual controls & safety systems.

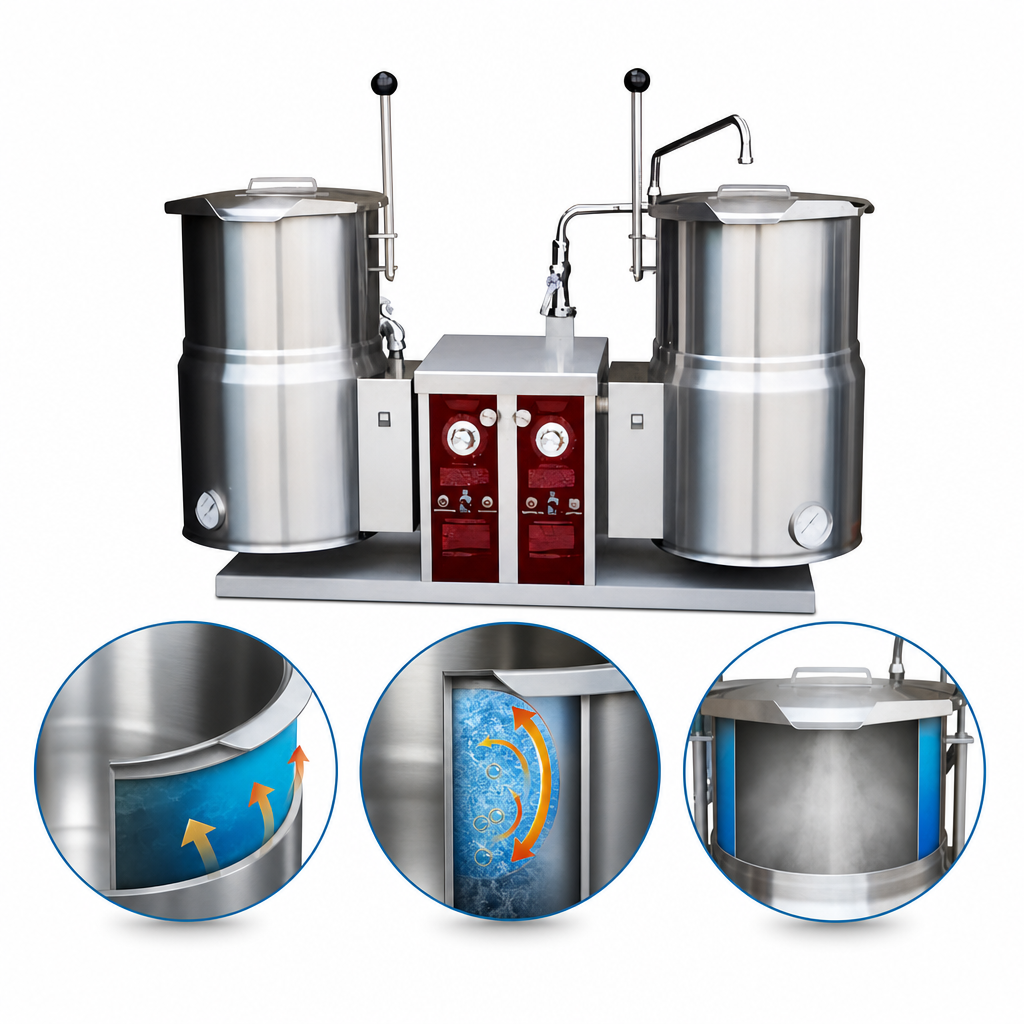

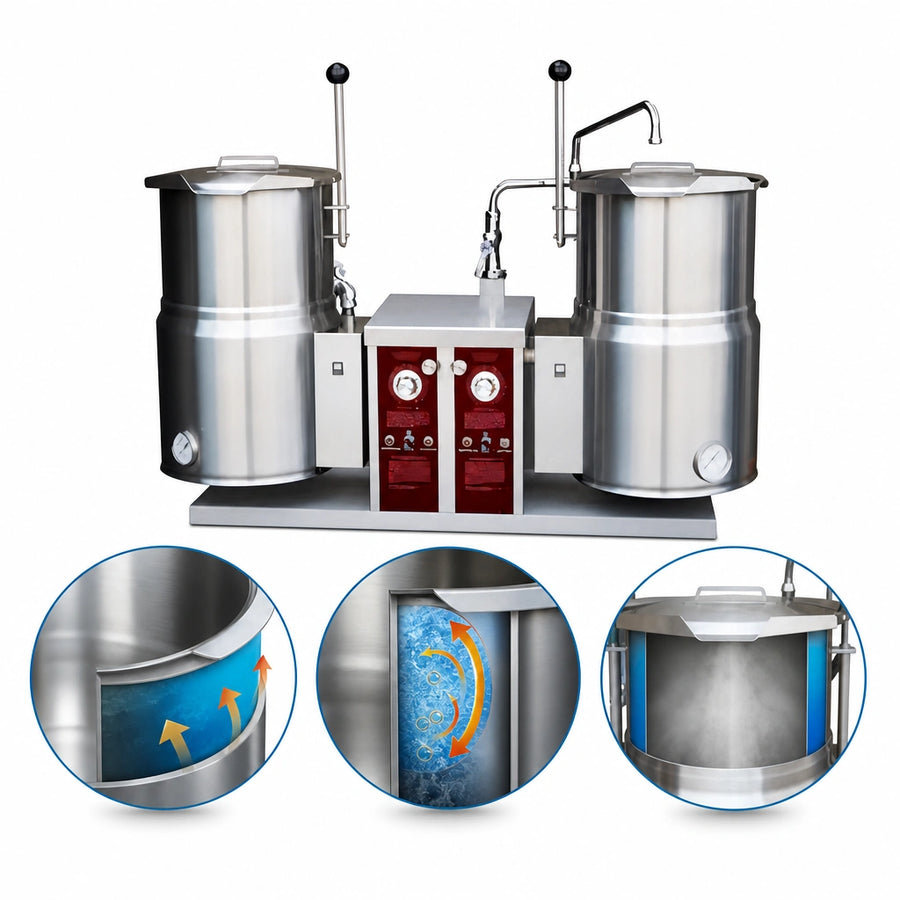

- Self-generating 2/3 steam jacket reaches 165 – 285 °F (74 – 140 °C) for faster batch times.
- Type 316 stainless interior resists acidic products; #4 finish 304 stainless exterior wipes clean.
- Solid-state thermostat, pressure/vacuum gauge & low-water light keep operators in total control.
- Lever-actuated right-hand tilt with Clean-Lock stops at 0° for cooking or 105° for wash-down.
- Factory-sealed distilled-water jacket & removable heating elements simplify maintenance.
- Water-resistant console, safety relief valve and cCSAus & NSF certifications for worry-free compliance.
- Integrated faucet bracket—add an optional pantry faucet for instant kettle filling.
Performance Specifications
| Capacity (per kettle) | 12 gal / 45 L |
|---|---|
| Total capacity | 24 gal / 90 L |
| Steam jacket | 2/3 – self-contained, factory sealed |
| Operating pressure | 50 psi (345 kPa) |
| Temperature range | 165 – 285 °F (74 – 140 °C) |
| Construction | 316 SS liner, 304 SS exterior, SS console & trunnion |
| Heating | Electric, 24 kW total, removable elements |
| Electrical (3 Ø) |
208 V 66.6 A • 220 V 63 A • 240 V 57.8 A 380 V 36.6 A • 415 V 33.4 A • 480 V 29 A • 600 V 23 A |
| Exterior width (F) | 55.25 in / 1 400 mm |
| Exterior depth (D) | 36.88 in / 937 mm |
| Height to rim (H) | 30 in / 762 mm |
| Shipping weight | 350 lb / 159 kg |
| Certifications | cCSAus, NSF, ASME code stamped, NB registered |
| Clearances | 3 in (76 mm) sides, 2 in (51 mm) rear |
Popular Options & Accessories
- Single or double pantry faucet with 18 in swing spout
- One-piece lift-off stainless steel covers
- Stainless wire baskets & pour-lip strainers
- Etched gallon or litre markings
- 21 in floor stand with slide-in drain drawers
