Crown (Middleby) EC-10TWL Steam Kettles
Description

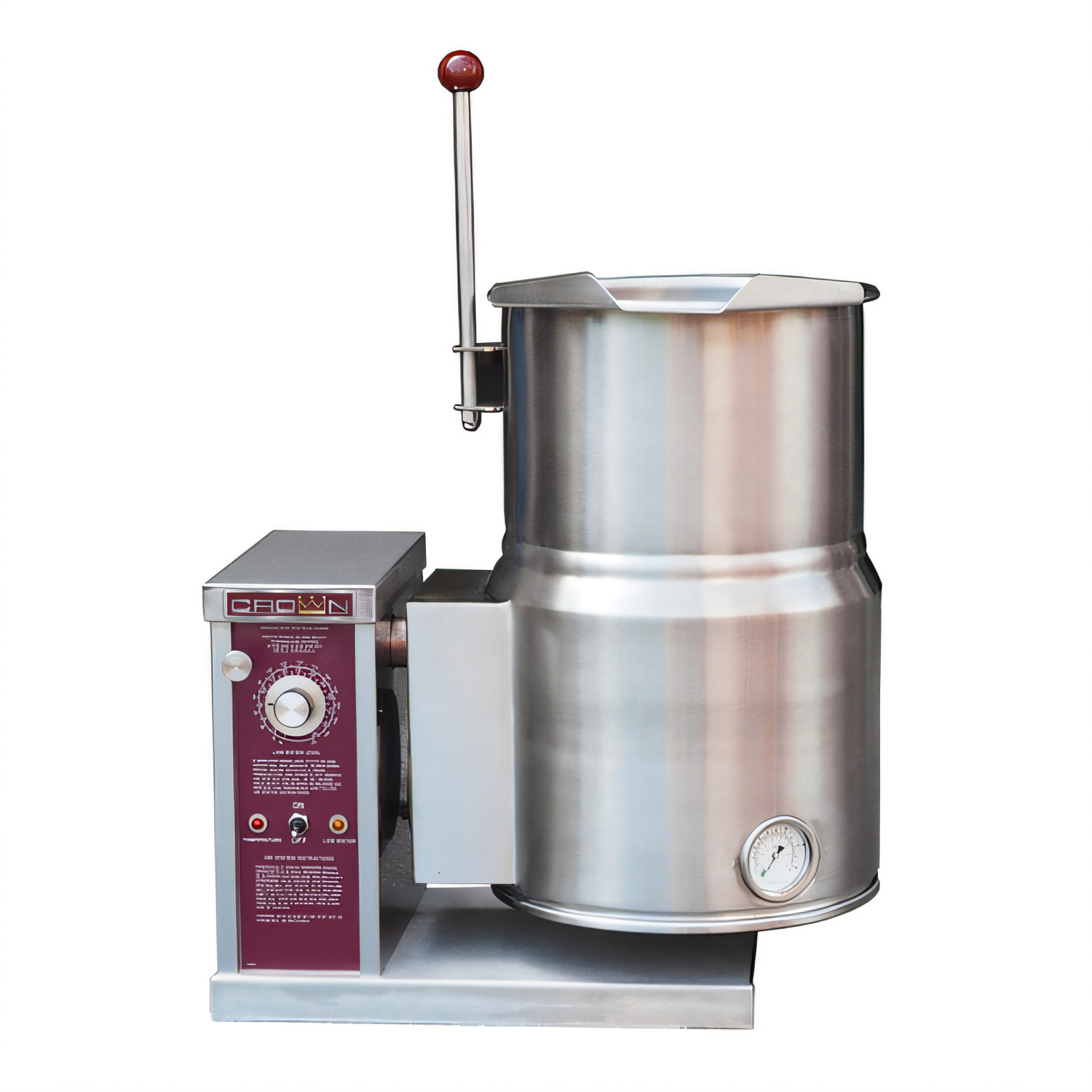

Crown EC-10TWL 10-Gallon Electric Counter Tilting Kettle
Self-Generating Steam • 2/3 Jacket • 50 PSI • 12 kWBuilt for high-volume, high-speed production, the Crown EC-10TWL delivers the performance of a floor kettle in a compact countertop footprint. Its self-contained 50 PSI steam jacket reaches temperatures up to 285 °F, cutting cook times on soups, sauces, pasta and stocks while the smooth lever tilt and “Clean Lock” wash-down position make operation and cleanup effortless.
Key Benefits
- 10 gal (38 L) batch capacity—great for restaurants, schools, commissaries and hotels.

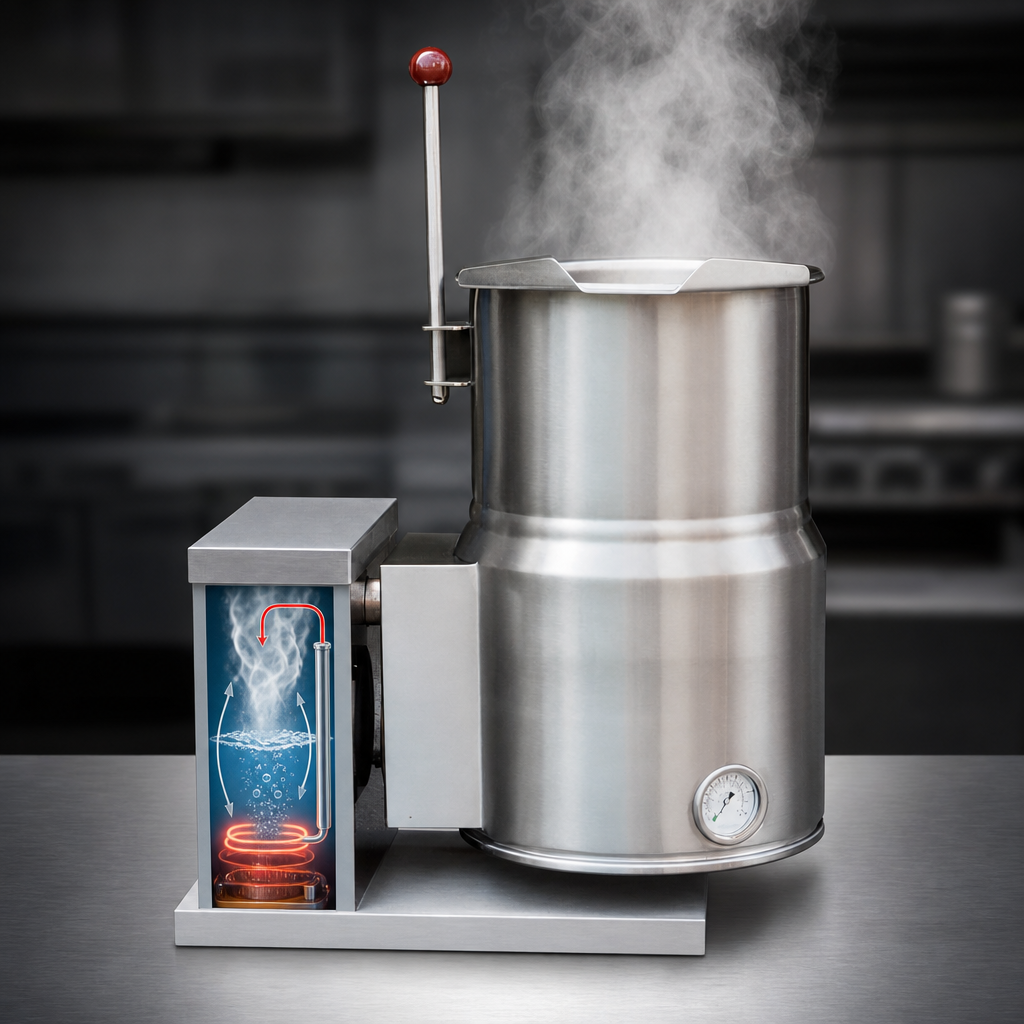

- Self-generating closed steam system—no external boiler or water hook-up required.

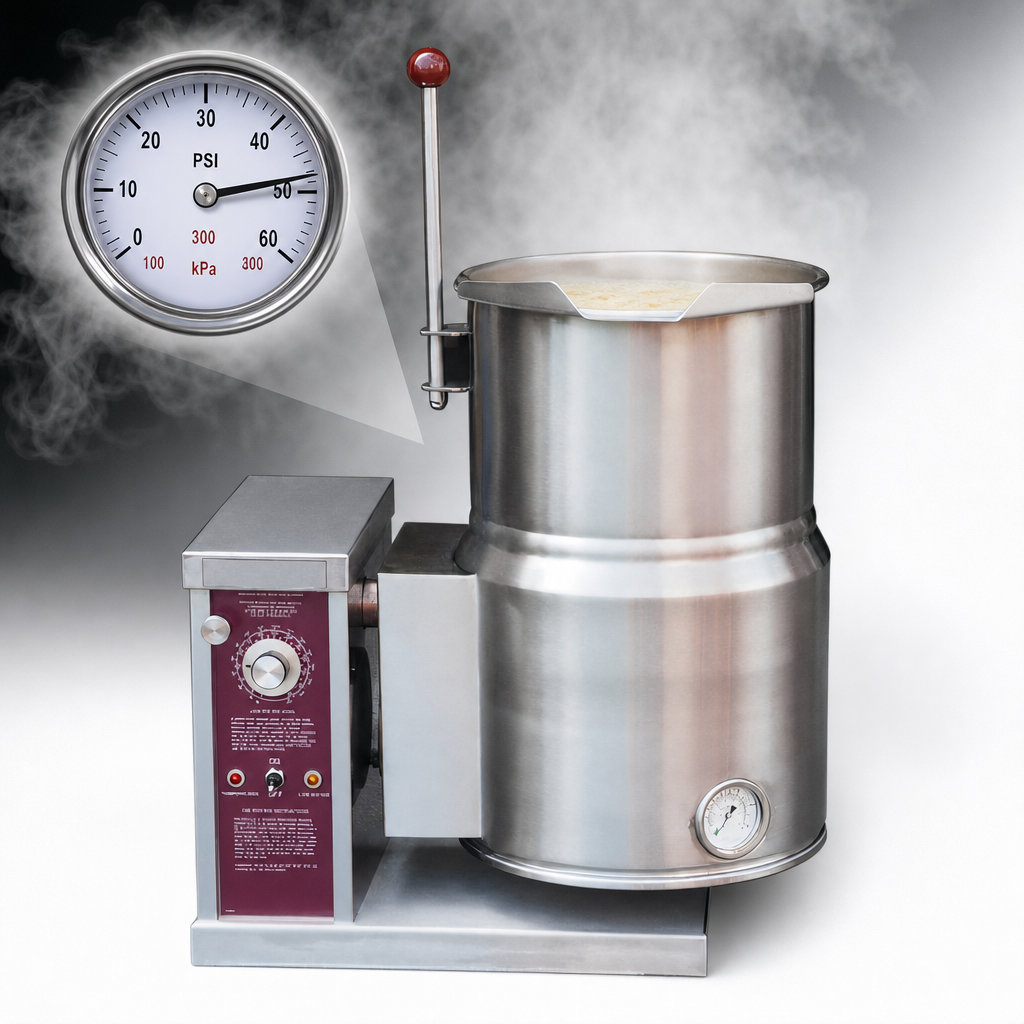

- 50 PSI jacket pressure for faster heat-up and superior browning, reducing batch times.
- 316 stainless cooking liner resists corrosion from acidic ingredients.
- Solid-state thermostat (165–285 °F) with indicator lights for accurate, repeatable results.
- Low-water cut-off & warning light protect elements and ensure safe operation.
- Left-hand console with lever tilt plus 105° “Clean Lock” position for hands-free cleaning.
- Water-resistant, integrally mounted control panel with pressure gauge & safety relief valve.
- Removable heating elements simplify service and reduce downtime.
- cCSAus & NSF listed—meets the latest sanitation and safety standards.
Technical Specifications
| Model | EC-10TWL |
|---|---|
| Capacity | 10 gal / 38 L |
| Steam Jacket | 2/3 coverage, factory-sealed, self-generating |
| Operating Pressure | 50 PSI (345 kPa) |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Heating Power | 12 kW electric, removable elements |
| Voltage Options* | 208, 220, 240, 380/220, 415/240, 480 or 600 V; 1- or 3-phase (field-convertible) |
| Amps @ 208 V | 57.6 A (1-ph) / 33.3 A (3-ph) |
| Controls | Power switch, solid-state thermostat, pressure gauge, low-water light & shut-off |
| Tilt Mechanism | Lever arm, left console; full pour & 105° “Clean Lock” |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, #4 finish |
| Overall Dimensions | W 26 in (660 mm) × D 28 in (711 mm) × H 34.9 in (886 mm) |
| Shipping Weight | 180 lb (82 kg) |
| Certifications | cCSAus, NSF |
*Specify required voltage and phase when ordering.
Optional Accessories (Add-On)
- Lift-off stainless steel cover
- Perforated cooking basket
- Etched gallon or litre markings
- Single or double pantry faucets with 12″ swing spout & bracket
- Pour-lip strainer
- SD-30 stainless floor stand with sliding drain drawer
