Crown (Middleby) EC-10TW-2 Steam Kettles
Description

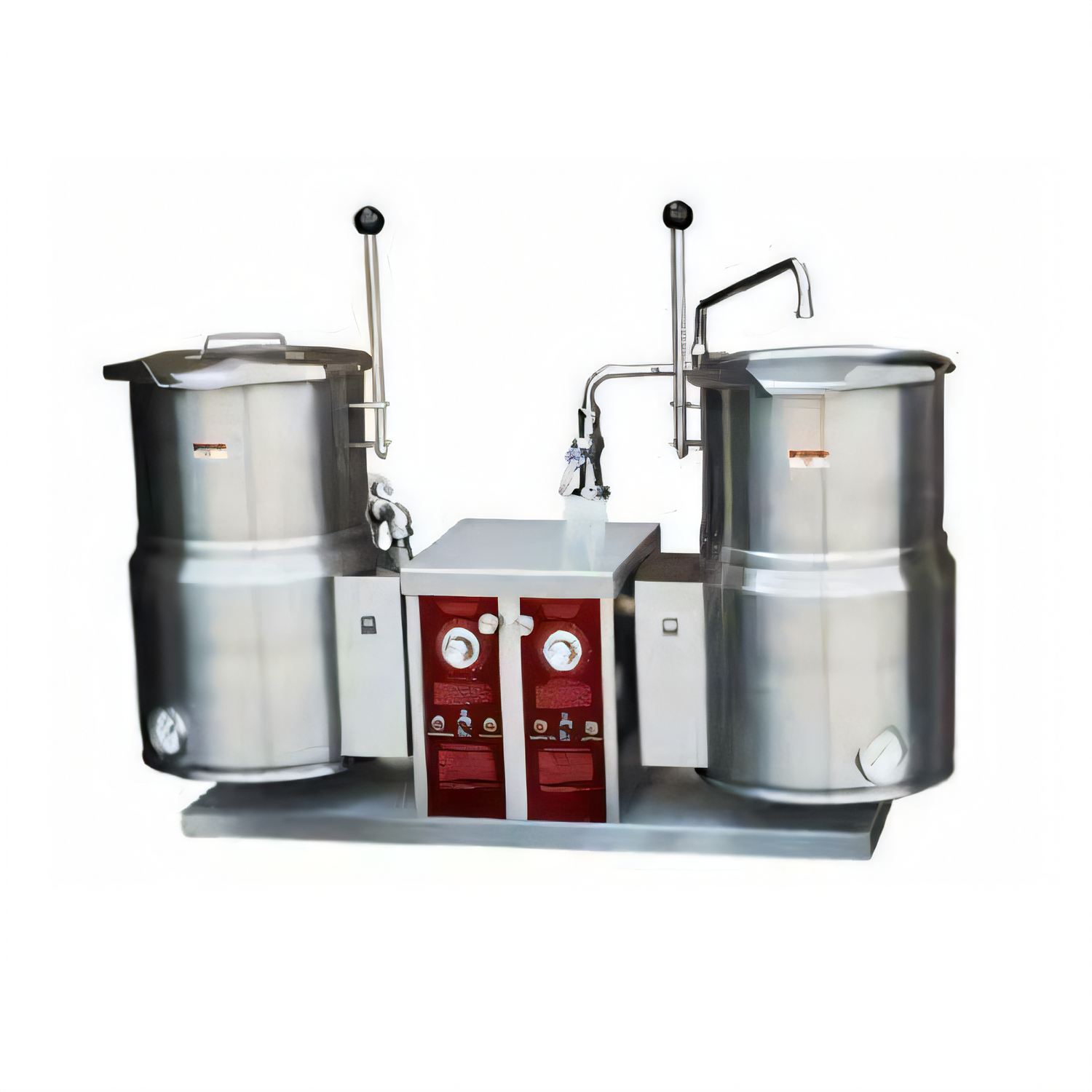

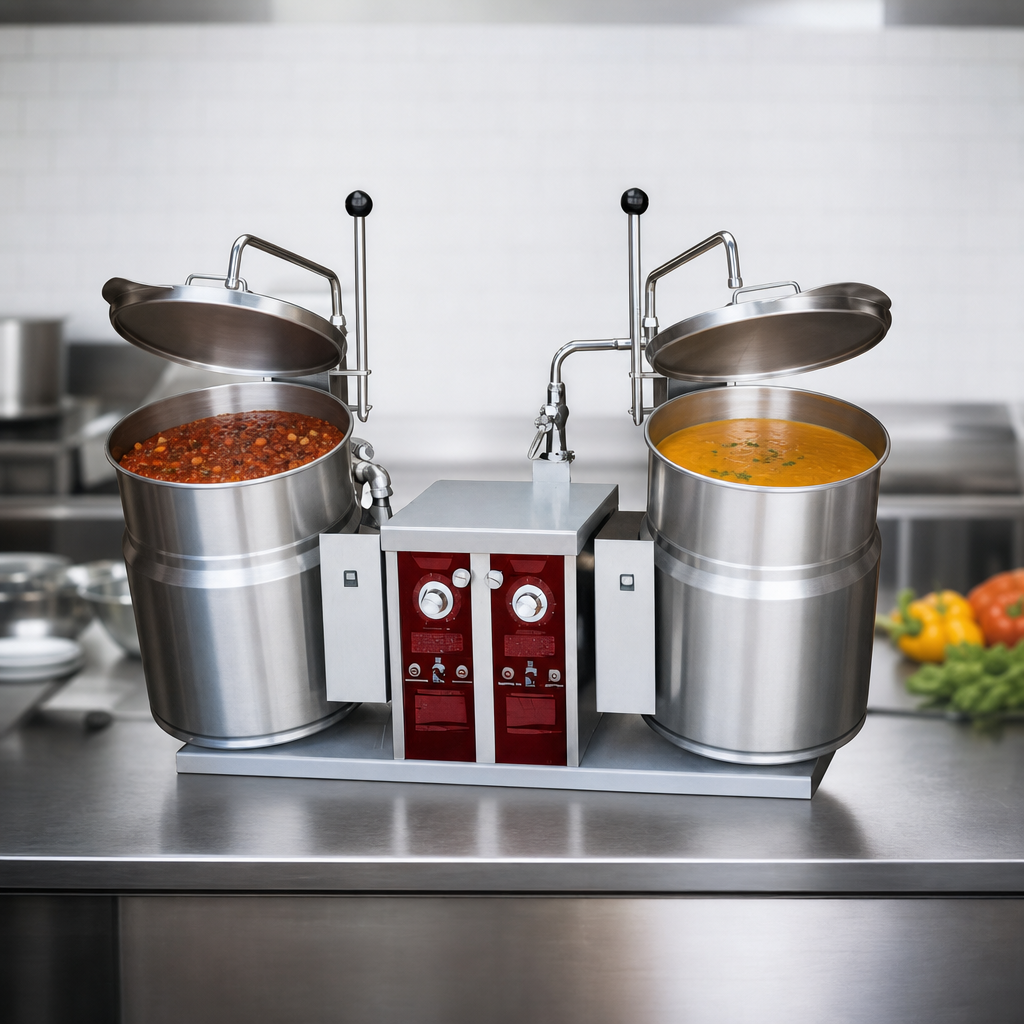

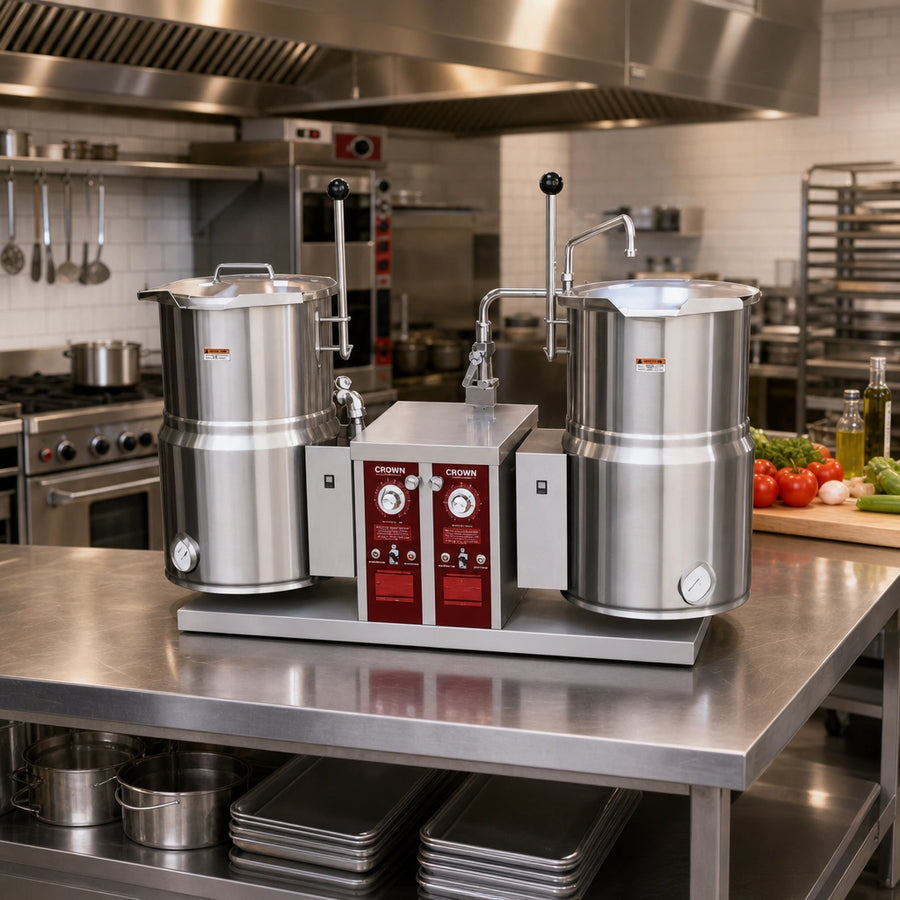

Crown EC-10TW-2 Twin Electric Counter Tilting Kettles – 10 Gallon Each
High-capacity steam cooking in a space-saving countertop footprintDouble your production without doubling your footprint. The Crown EC-10TW-2 packs two independent 10-gallon, 2⁄3-jacketed kettles into one self-contained unit, delivering rapid, even steam heat up to 50 psi for soups, sauces, stocks and more—while the smooth lever-tilt design makes pouring and cleaning effortless.
Key Features
- 20 gal total capacity – two 10 gal (38 L) kettles side by side

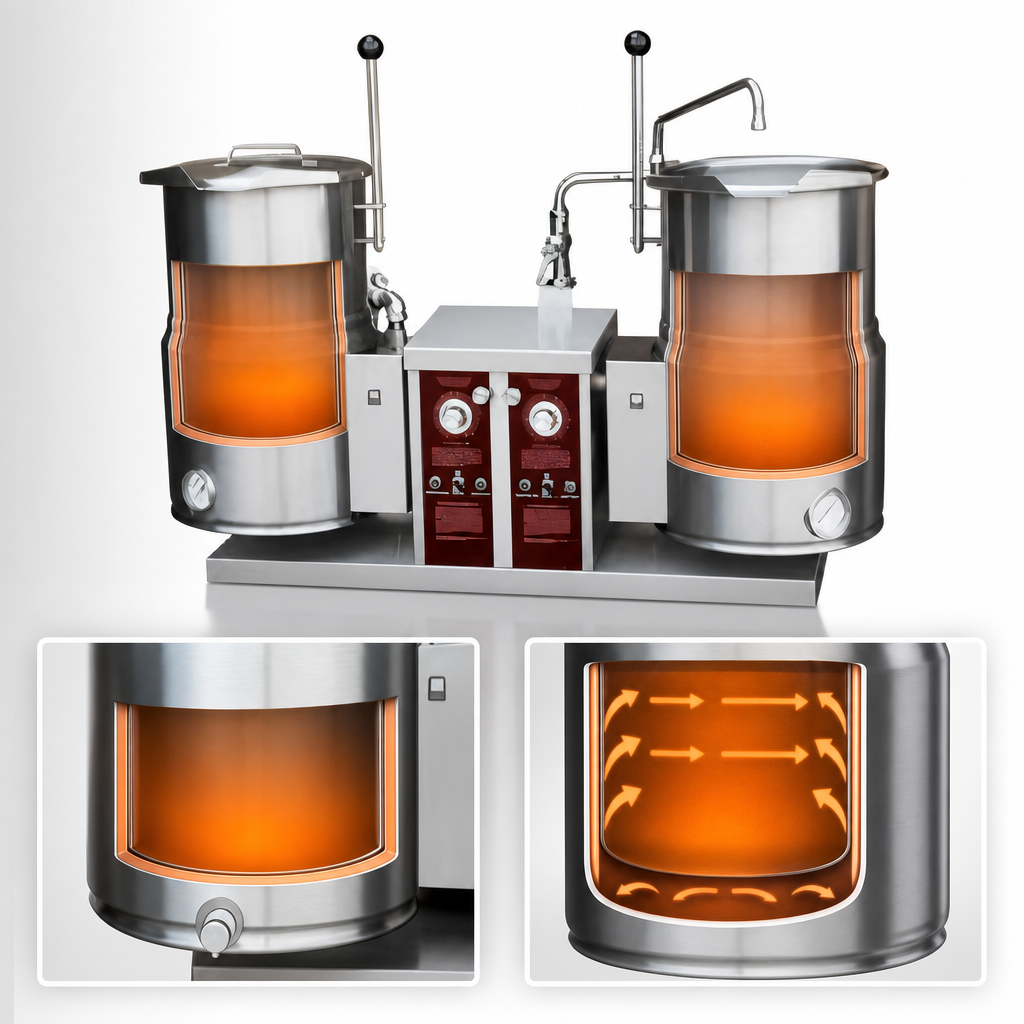

- Self-generating closed steam system with 2⁄3 jacket for fast, uniform heating
- Solid-state thermostat; 165 – 285 °F (74 – 140 °C) temperature range
- Right-hand lever tilt with “clean-lock” positions for safe draining & wash-down
- Low-water cut-off & indicator light protect elements
- Factory-set 50 psi safety relief valve plus pressure/vacuum gauge
- 316 SS kettle liner resists acidic foods; 304 SS exterior & console for durability
- Removable heating elements simplify service
- Integrated faucet bracket for optional single or double pantry faucets
- Water-resistant control console; cCSAus & NSF certified
Why You’ll Love It
- High-pressure steam cuts batch times—ideal for high-volume menus
- No external boiler: factory-sealed jacket is maintenance-free
- Compact countertop footprint frees valuable floor space
- Tilt, pour and rinse in seconds—no heavy lifting or transfer buckets
At-a-Glance Specs
| Model | EC-10TW-2 |
|---|---|
| Capacity | 2 × 10 gal (38 L) kettles |
| Jacket Coverage | 2⁄3 (hemispherical bottom) |
| Operating Pressure | 50 psi (345 kPa) |
| Temperature Range | 165 – 285 °F / 74 – 140 °C |
| Heating System | Electric, self-contained steam generation |
| Total kW | 15 kW |
| Electrical | 208, 220, 240 V 3-ph or 380/415/480/600 V 3-ph (see data plate for amps & phase) |
| Amps @ 208 V / 240 V | 41.6 A / 36.2 A per line |
| Exterior Dimensions (W × D × H) | 55.25" × 26" × 34.88" 1400 × 660 × 886 mm |
| Shipping Weight | ≈ 340 lb (154 kg) |
| Certifications | cCSAus, NSF, ASME-registered pressure vessel |
Need a floor stand, etched gallon markers or a faucet kit? Ask our team about factory-installed options and accessories.
