Crown (Middleby)  |  SKU: DPT-40

Crown (Middleby) DPT-40 Steam Kettles

$18,101.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Parts list Installation & operation Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

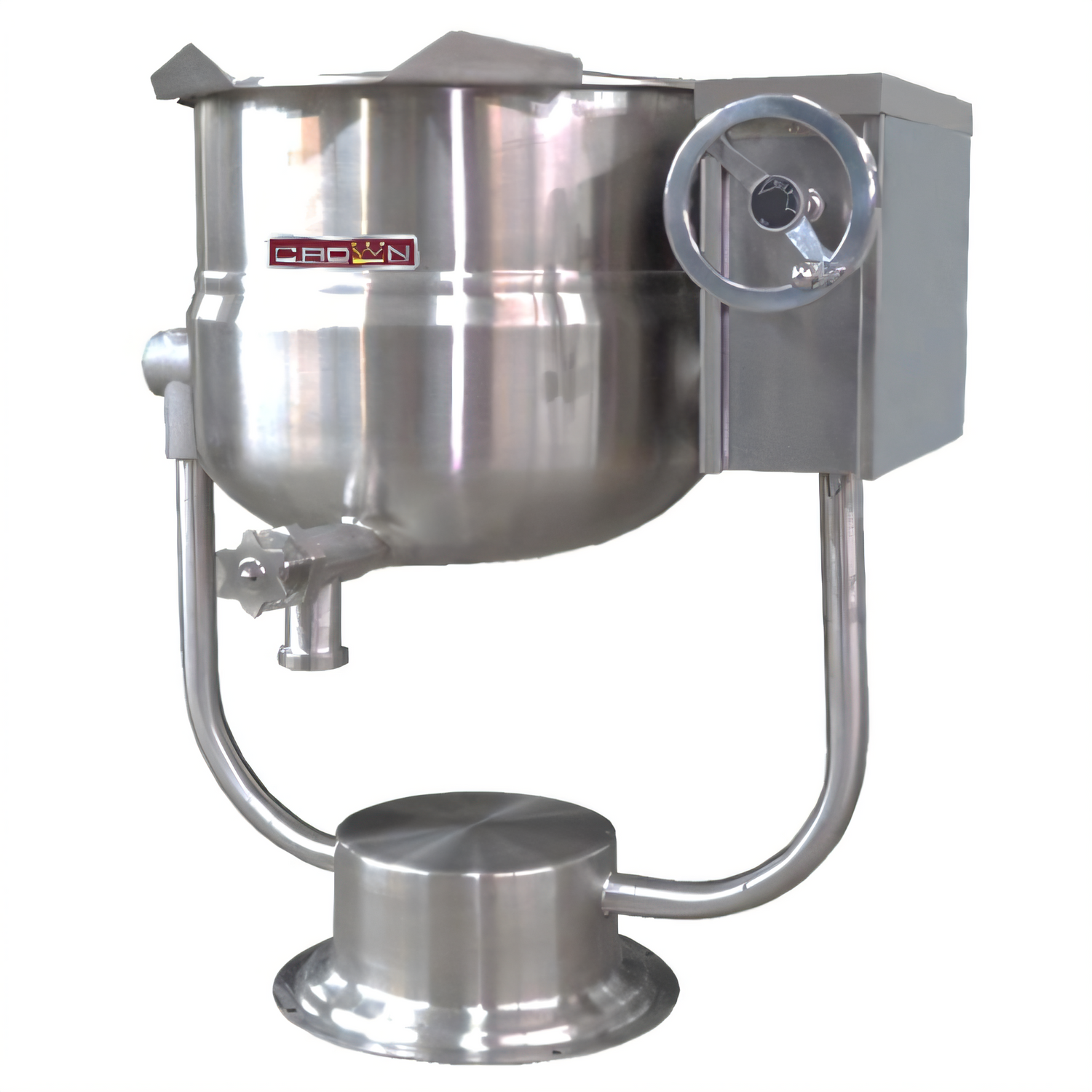

Crown DPT-40 Direct-Steam Pedestal Tilting Kettle – 40 Gal

2/3-Jacket • Manual Crank Tilt • 316/304 Stainless Steel

Engineered for busy production kitchens, the Crown DPT-40 combines the speed of direct steam with the safety and control of a smooth crank tilt. The 40-gallon bowl handles anything from chowders and sauces to pasta and chili, while the space-saving pedestal base keeps your floor clear for effortless cleanup.

Key Features
  • 40 gal (152 L) capacity – up to 640 8 oz servings per batch

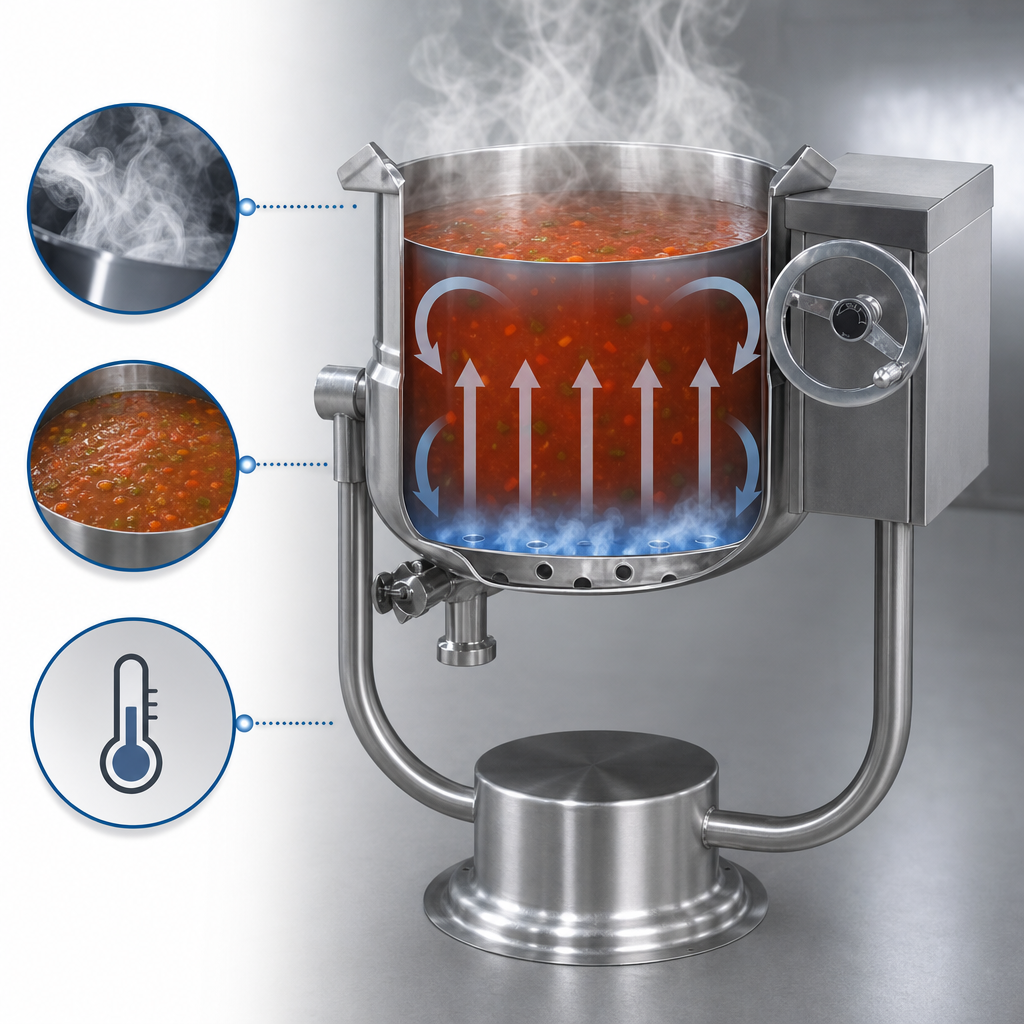

  • Direct-steam operation, 5-30 PSI input (3/4" IPS)

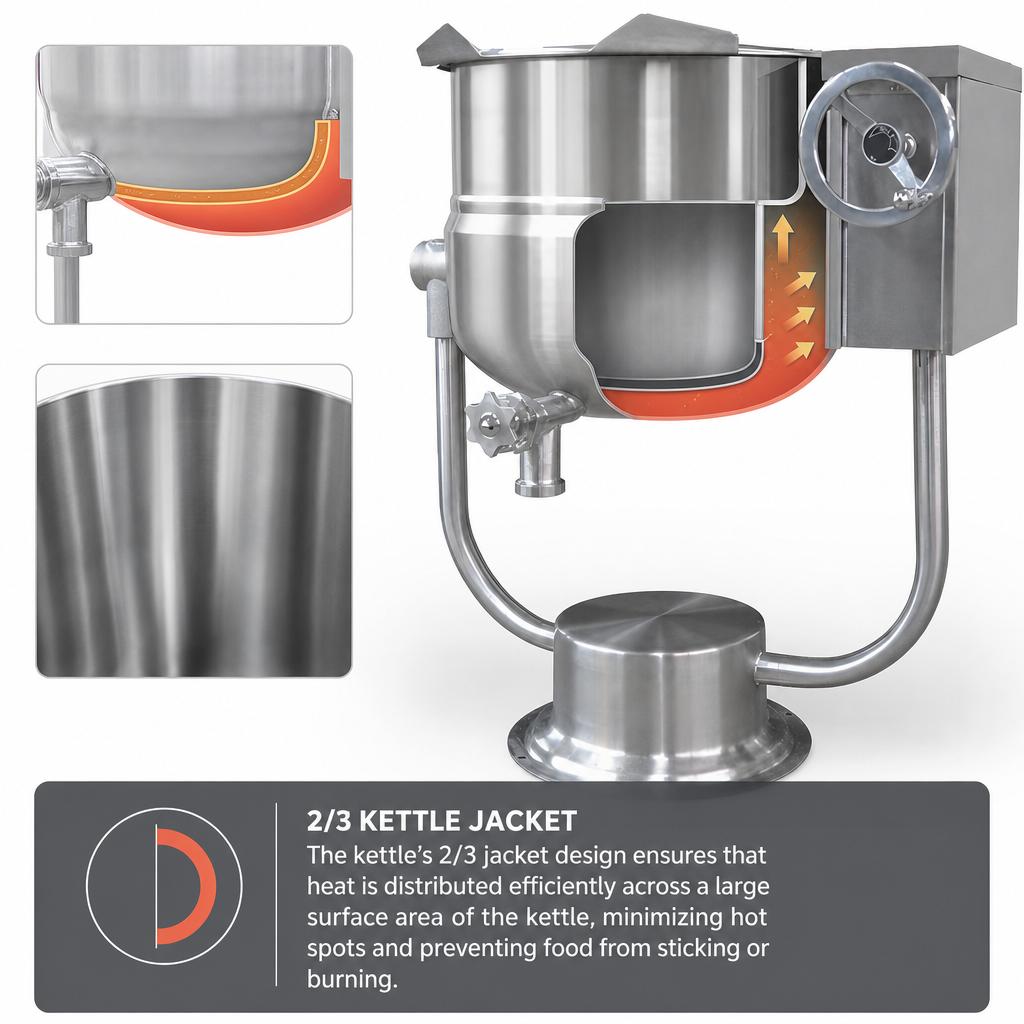

  • 2/3 jacketed double-wall design for rapid, even heating
  • 316 SS interior liner resists acidic recipes like tomato or citrus
  • Satin-finish 304 SS exterior – all-welded, easy to clean
  • Manual crank tilt with self-locking positive stop – 90° pour for complete emptying
  • Hemispherical bottom for superior heat circulation & product movement
  • Integrated faucet bracket – ready for single or double pantry faucets
  • ASME code stamped, National Board registered & NSF certified
Specifications
Model DPT-40
Capacity 40 US gal | 152 L
Jacket Coverage Lower 2/3 of bowl
Steam Supply 3/4" IPS  | 5-30 PSI (optional 50 PSI kit)
Condensate Return 1/2" IPS
Interior Material 316 stainless steel
Exterior Material 304 stainless steel, satin finish
Overall Height 64" (1626 mm)
Overall Width 45" (1143 mm)
Overall Depth 39.75" (1010 mm)
Tilting Range 0 – 90° manual crank
Certifications NSF, ASME, National Board
Popular Accessories (sold separately)
  • 2" or 3" sanitary draw-off valve with perforated strainer
  • Spring-assist stainless steel cover
  • Etched gallon or litre markings
  • Single or double pantry faucets with swing spout
  • Pour-lip strainer & pan carrier
  • Steam trap assembly & 50 PSI high-pressure upgrade

Need help configuring your kettle? Our equipment specialists are ready to assist—just reach out via chat or phone.

Installation note: This is a direct-steam kettle and requires a dedicated external steam source supplying 5-30 PSI for operation.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF

Height

38.0in

Width

41.0in

Depth

37.75in

Shipping Weight

320.0lbs

Capacity

30 - 45 gallon

Kettle Liner

316 stainless steel

Tilt

manual tilt

Base

pedestal base

Kettle Jacket

partial jacket

Specifications

Tilting Kettle, direct steam, 40 gallon capacity, 2/3 jacket, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, console & pedestal base, NSF
