Crown (Middleby) DPT-30 Steam Kettles
Description

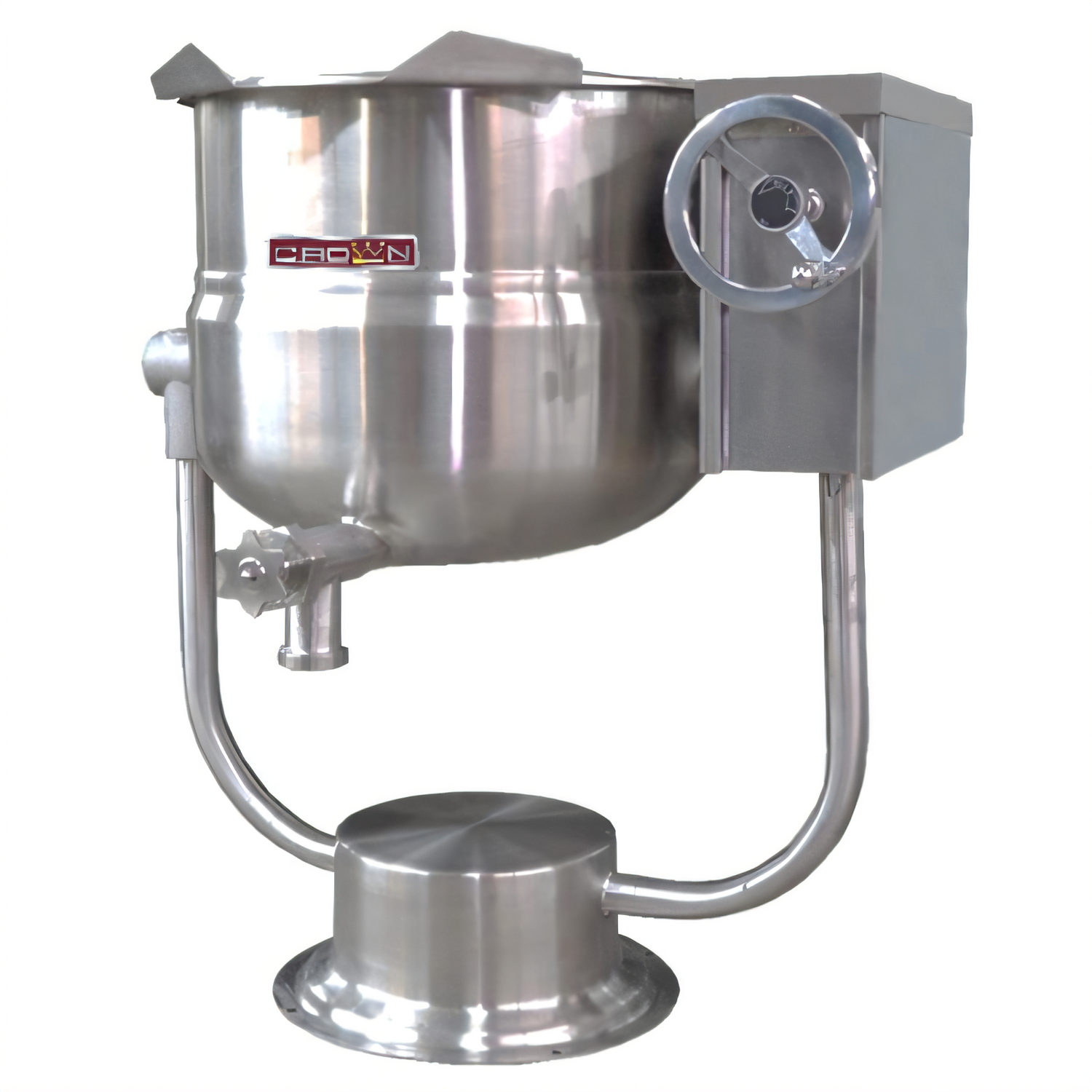

Crown DPT-30 Direct-Steam Pedestal Tilting Kettle
30 gal (114 L) • 2/3 Jacket • Crank-TiltEngineered for demanding production kitchens, the Crown DPT-30 gives you rapid, even steaming power in a space-saving pedestal design. A self-locking hand-wheel tilt lets one operator pour product with confidence, while rugged 304/316 stainless-steel construction stands up to years of heavy use.
Key Features & Benefits
- 30 gallon / 114 liter capacity – ideal for soups, sauces, stocks & more

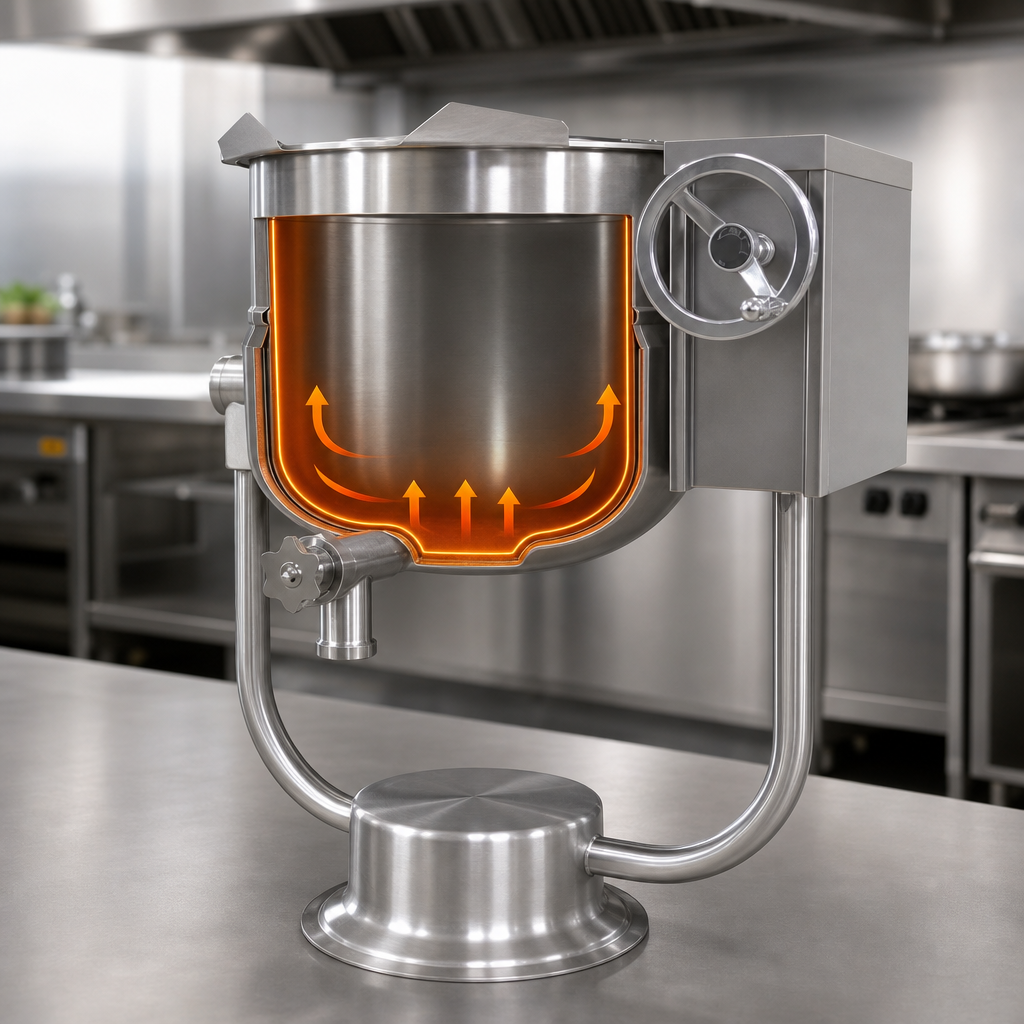

- Direct steam jacket (2/3 coverage) heats product fast and evenly
- Crank-style tilt with self-locking positive stop for full 90° emptying
- Type 316 stainless interior resists acidic foods; Type 304 exterior with satin finish cleans easily
- Hemispherical bottom maximizes heat circulation & simplifies stirring
- Integrated faucet bracket – ready for single or double pantry faucets (optional)
- Pedestal base with four anchor holes for rock-solid floor mounting
- ASME code stamped, National Board registered & NSF certified
Specifications
| Model | DPT-30 |
|---|---|
| Capacity | 30 gal / 114 L (product) |
| Jacket Coverage | Lower 2/3 of kettle bowl |
| Construction | Interior – 316 SS | Exterior – 304 SS, all-welded |
| Tilt Range | 0–90° via manual hand wheel |
| Steam Requirements | 5–30 psi (34–207 kPa) direct steam Optional 50 psi (345 kPa) |
| Connections | Steam – 3/4" IPS | Condensate – 1/2" IPS |
| Overall Dimensions (WxDxH) | 24" × 37.75" × 62.5" (610 × 959 × 1588 mm) |
| Shipping Weight | ≈ 320 lb / 145 kg |
| Certifications | ASME, NB, NSF |
Popular Options & Accessories
- Spring-assist hinged cover
- 2" or 3" sanitary draw-off valve (with or without perforated strainer)
- Single or double pantry faucets with swing spouts
- Etched gallon or litre markings, graduated measuring strip
- Triple basket assembly, pour-lip strainer, pan carrier & more
- High-pressure 50 psi jacket for higher cooking temperatures
All data is factory-supplied and subject to change without notice. For detailed installation guidelines, refer to the Crown installation & operation manual.
