Crown (Middleby)  |  SKU: DPT-20

Crown (Middleby) DPT-20 Steam Kettles

$16,946.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Middleby financial flyer Crown steam group letter Installation & operation Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

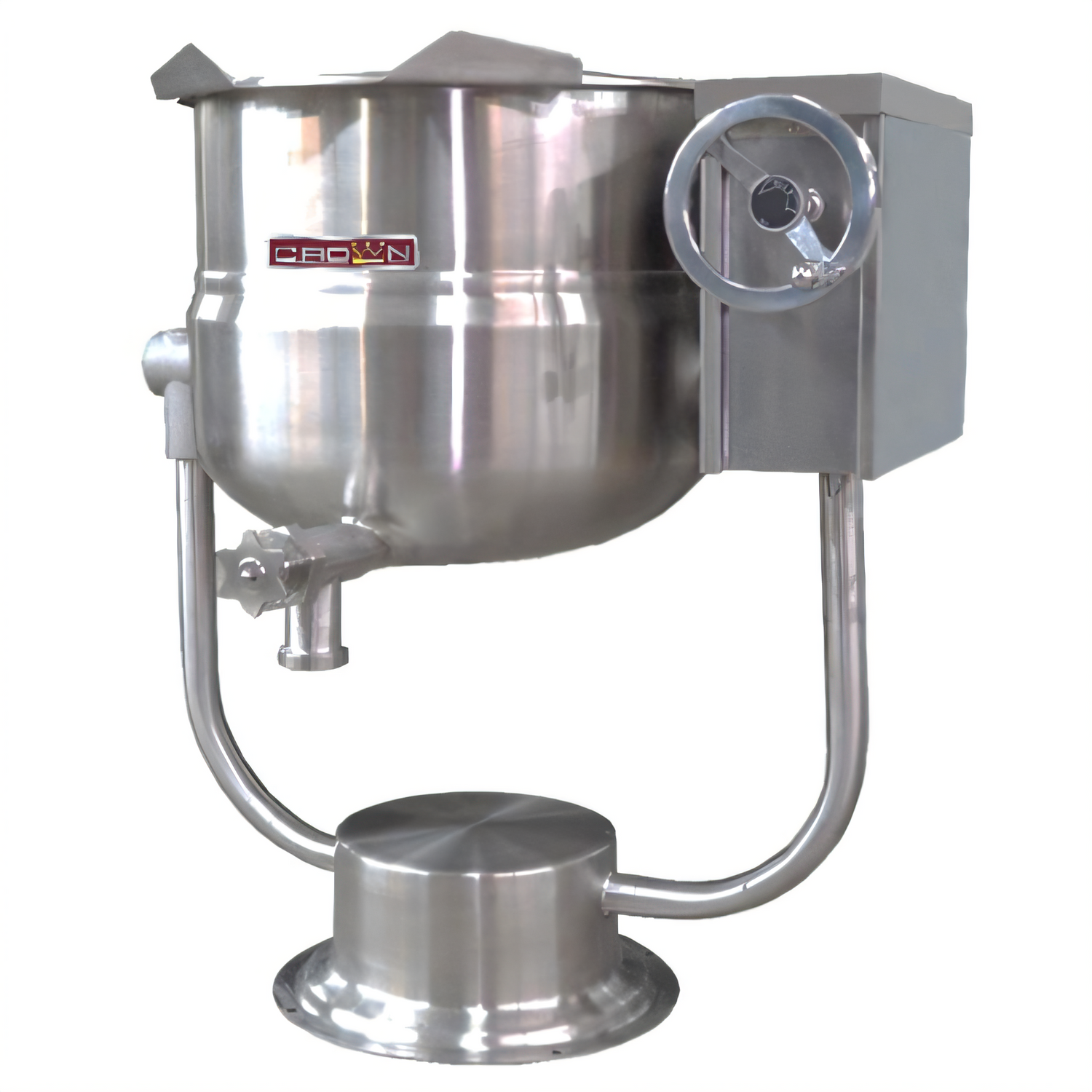

Crown DPT-20 Direct Steam Pedestal Tilting Kettle

20 gal (76 L) • 2/3-Jacketed • 316 SS Interior • NSF

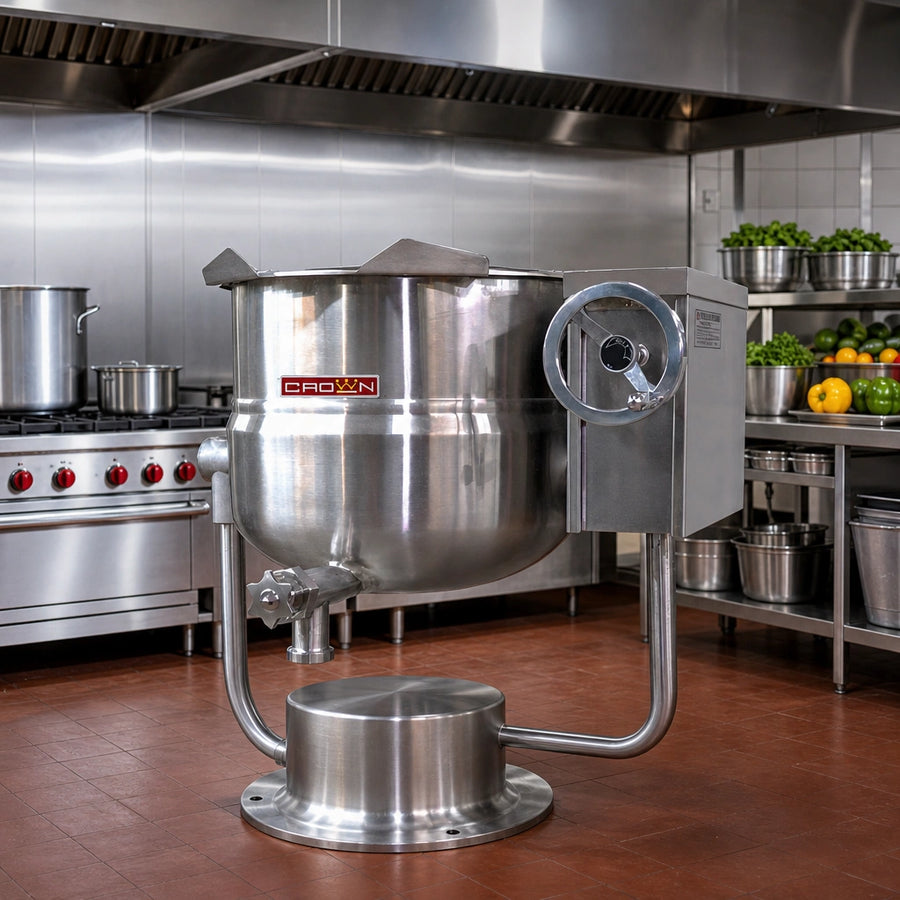

Engineered for busy commercial kitchens, the Crown DPT-20 delivers rapid, even heat with the durability of all-stainless construction. Crank-tilt control and a compact pedestal base make high-volume batch cooking safe, simple and precise.

Key Features

  • 20 gallon / 76 liter working capacity – ideal for soups, sauces & bulk prep

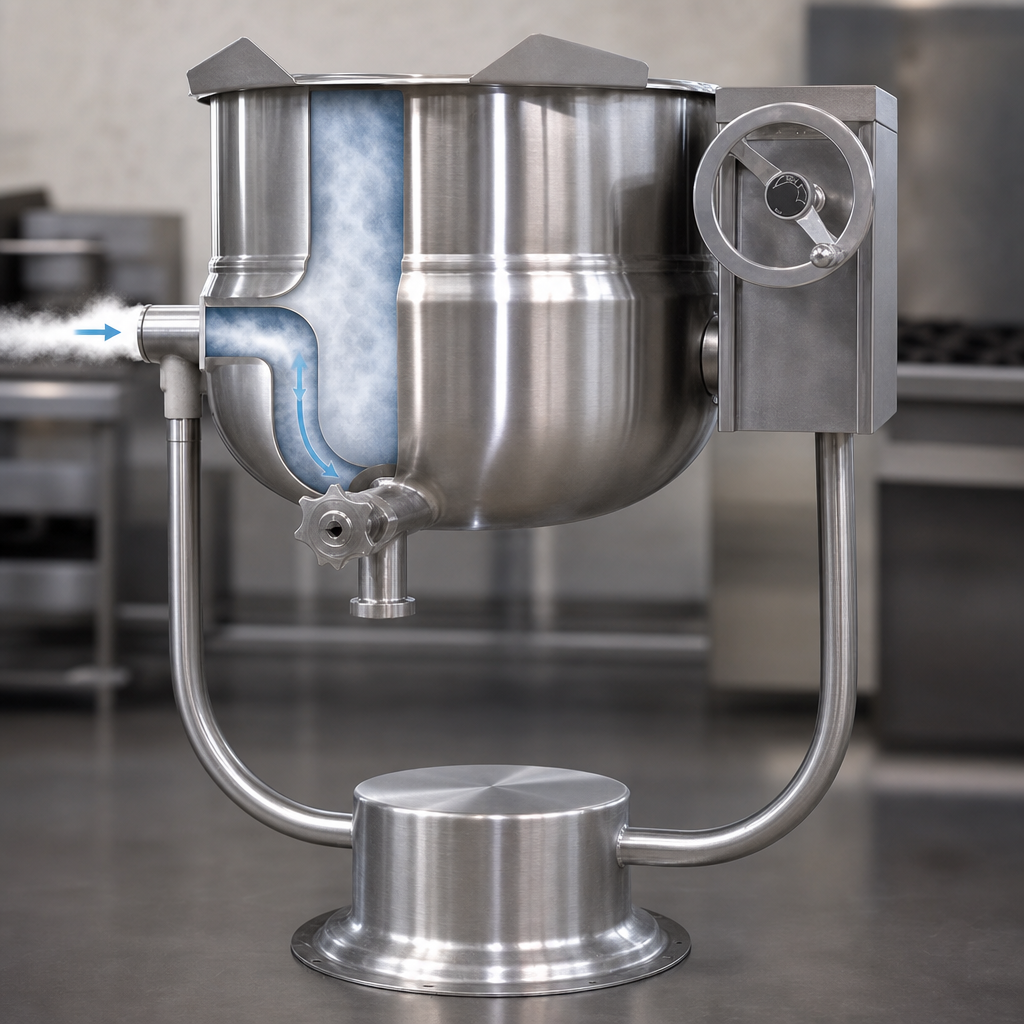

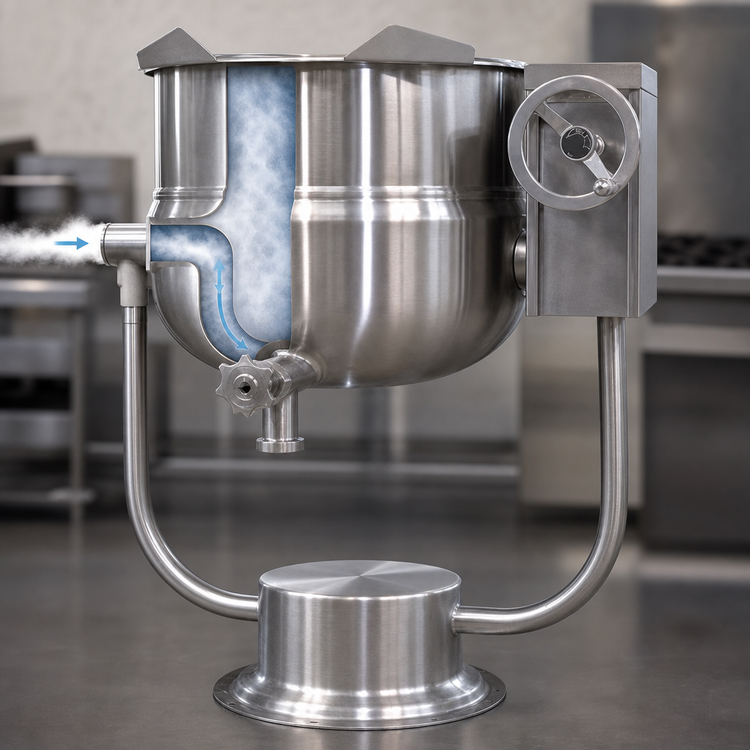

  • Direct steam operation (5–30 psi) for instant, controllable heat

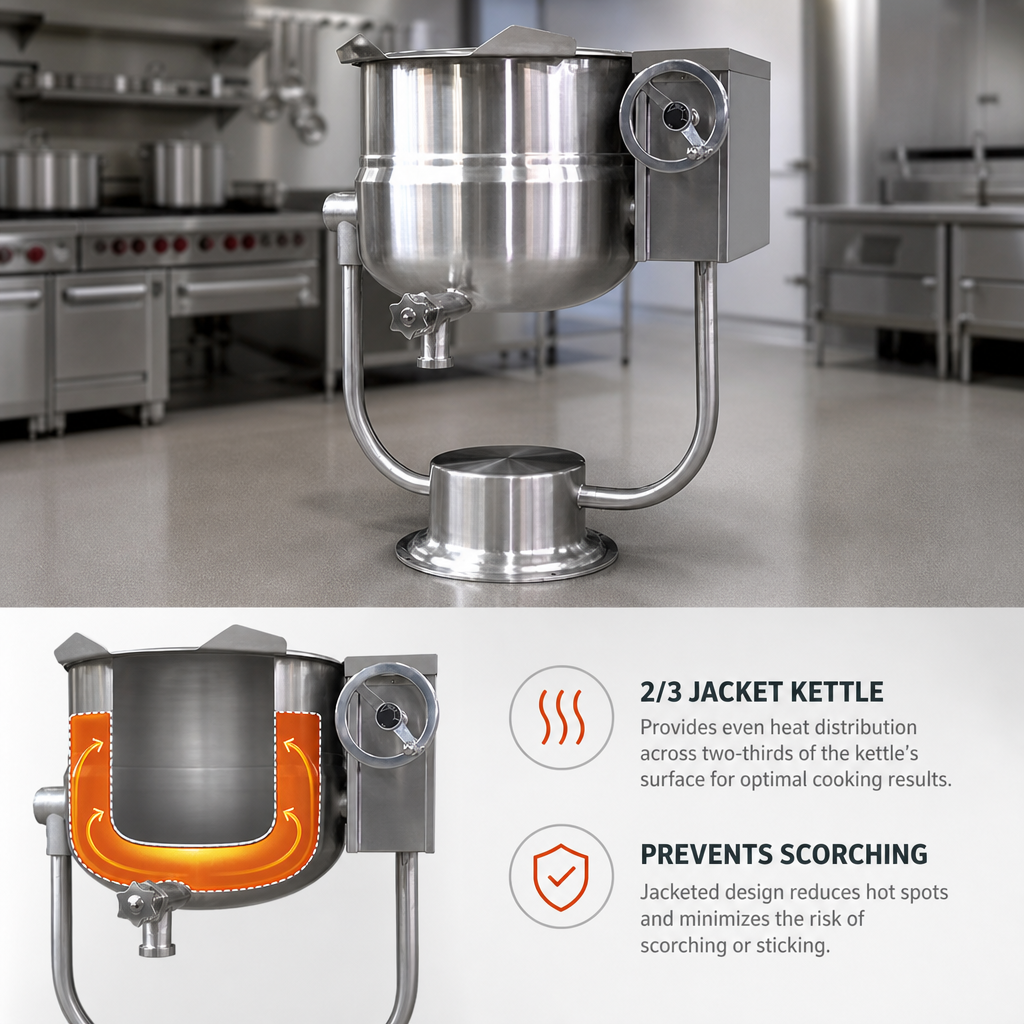

  • 2/3 steam jacket surrounds lower bowl for maximum heat transfer
  • Crank tilt with self-locking positive stop — smooth, 90° pour path for complete emptying
  • 316 stainless steel liner resists acidic foods & aggressive cleaning chemicals
  • 304 stainless steel exterior with satin welds for a professional finish
  • Hemispherical bottom promotes natural agitation and even cooking
  • Integral faucet bracket – ready for optional single or double pantry faucets
  • ASME Code stamped, National Board registered & fully NSF certified
  • Four pre-drilled anchor holes in pedestal for rock-solid floor mounting

Specifications

Model DPT-20
Capacity 20 gal / 76 L
Jacket Coverage Lower 2/3 of kettle
Steam Pressure Range 5–30 psi (34–206 kPa)
Steam Connection ¾ ” IPS
Condensate Return ½ ” IPS
Tilt Mechanism Manual crank with self-locking gear & positive stop
Interior Material 316 stainless steel
Exterior Material 304 stainless steel
Overall Height 59.5 in / 1 512 mm (lid open)
Footprint (W × D) 41 × 34.75 in / 1 041 × 883 mm
Certifications NSF, ASME

Popular Accessories (sold separately)

  • Single or double pantry swing-spout faucets
  • 2″ or 3″ tangent draw-off valves with perforated strainers
  • Spring-assist or lift-off stainless cover
  • Etched gallon or litre markings
  • Pour-lip and basket strainers, pan carrier & more
Installation Note: If incoming steam pressure exceeds 30 psi, a pressure-reducing valve is required. Kettle must be hard-piped to steam and condensate lines and anchored to the floor to maintain NSF compliance.

Need a larger capacity? 30, 40, 60 & 80 gal versions are also available in the Crown DPT series.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF

Height

38.0in

Width

36.0in

Depth

34.0in

Shipping Weight

230.0lbs

Tilt

manual tilt

Kettle Jacket

partial jacket

Capacity

18 - 26 gallon

Kettle Liner

316 stainless steel

Base

pedestal base

Specifications

Tilting Kettle, direct steam, 20 gallon capacity, 2/3 jacket, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, console & pedestal base, NSF
