Crown (Middleby) DP-80F Steam Kettles
Description

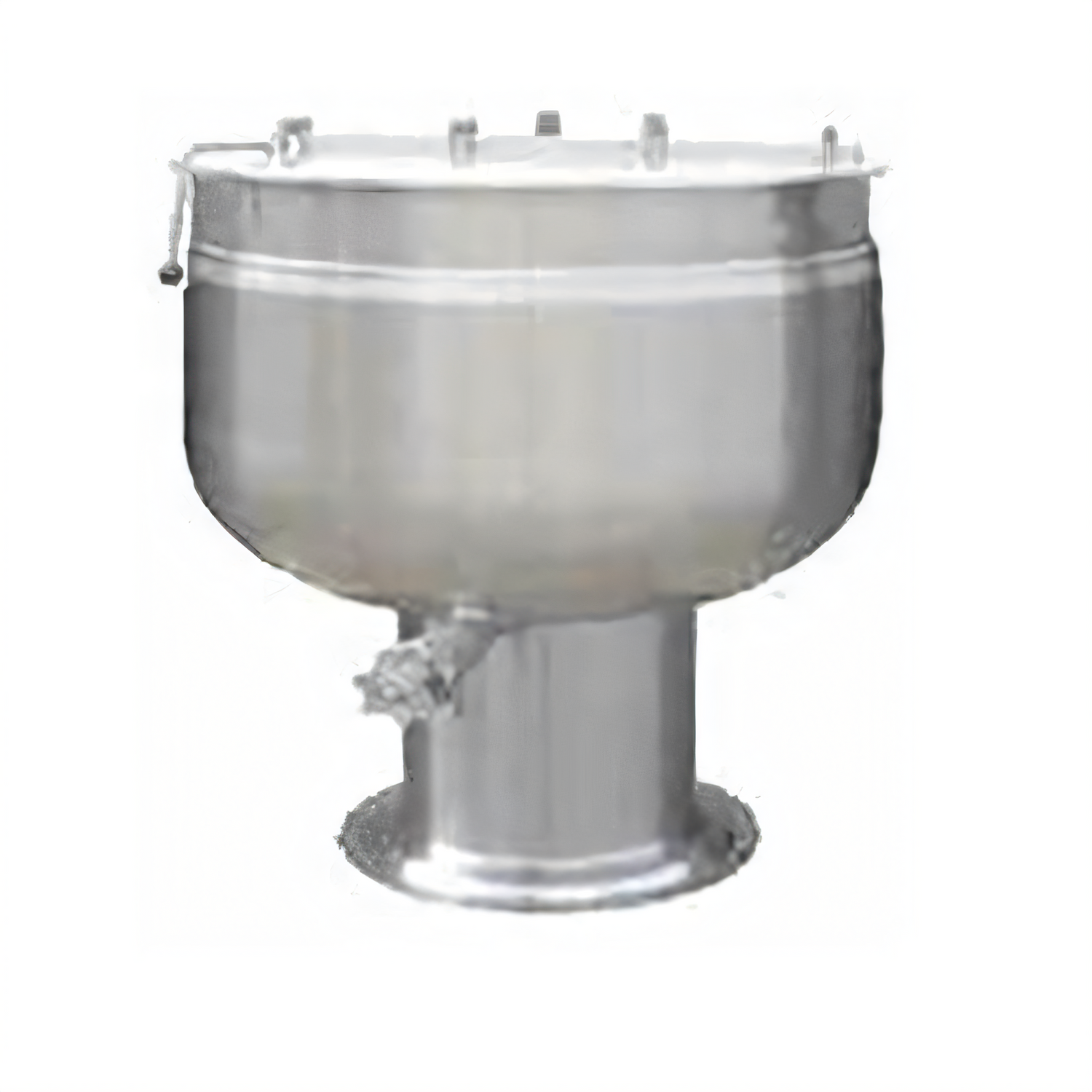

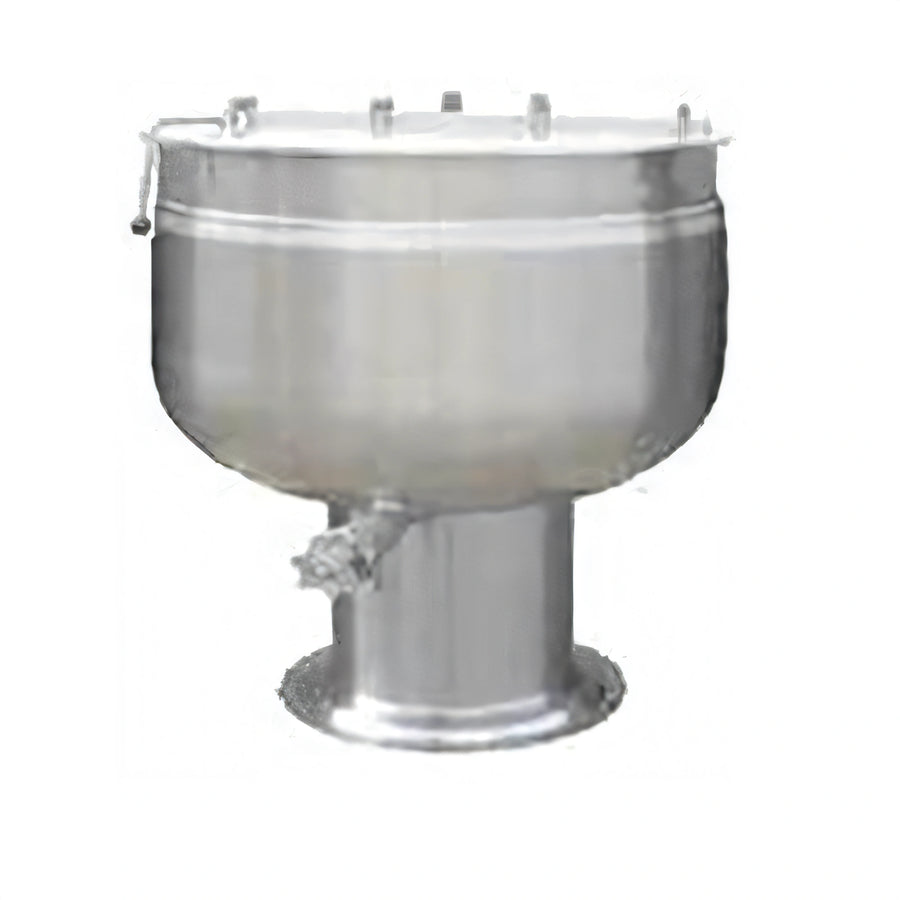

Crown DP-80F | 80-Gallon Direct-Steam Stationary Kettle

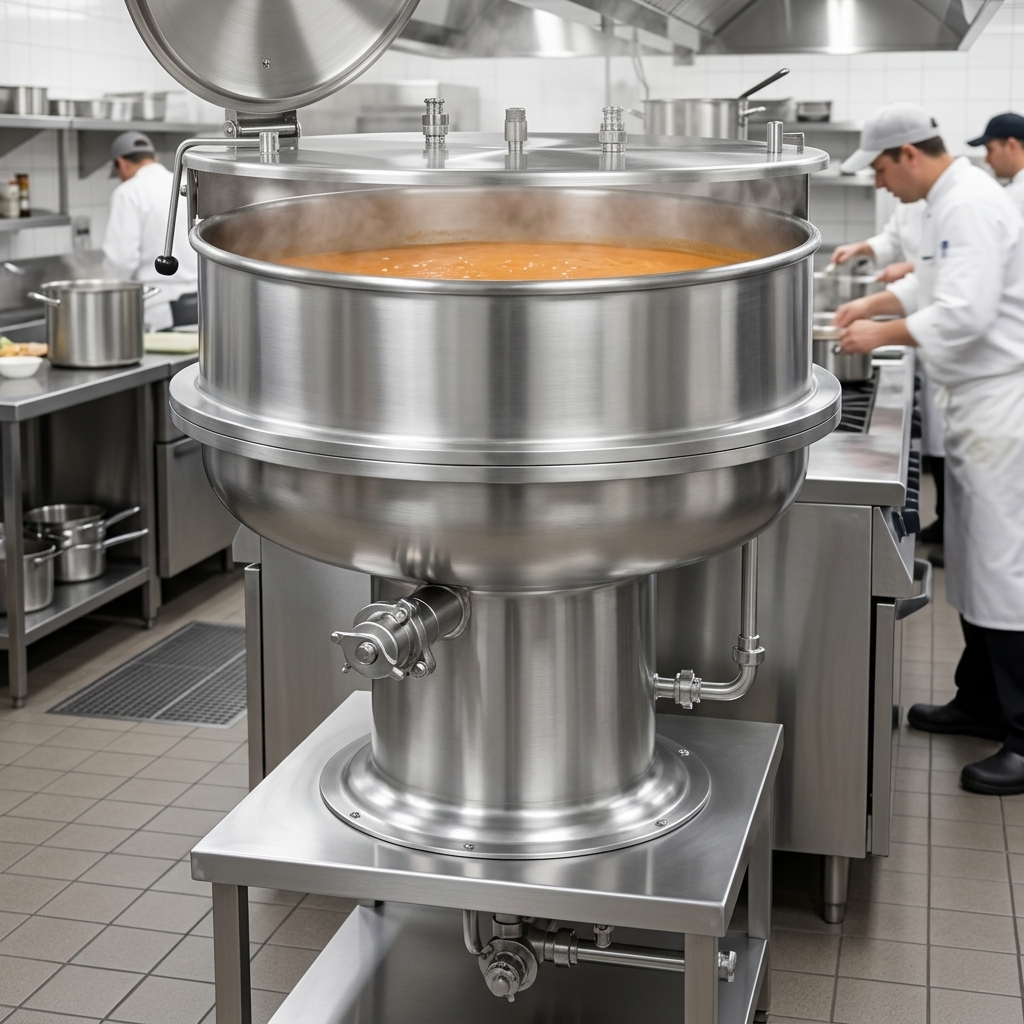

Full-jacket pedestal kettle with 2″ sanitary draw-off valveBuilt for the toughest high-volume kitchens, the Crown DP-80F delivers rapid, even heat with rock-solid reliability. A full steam jacket surrounds its hemispherical 316 SS interior, giving you maximum surface area for fast boiling, simmering and reduction while protecting delicate, acid-rich recipes from scorching. From creamy sauces to chowders and pasta, this 80-gallon workhorse keeps production moving.
Why You’ll Love It
- Massive 80 gal (≈304 L) capacity—perfect for commissaries, schools & correctional facilities
- Direct-steam operation (5–35 PSI standard) taps into your existing boiler for unbeatable energy efficiency

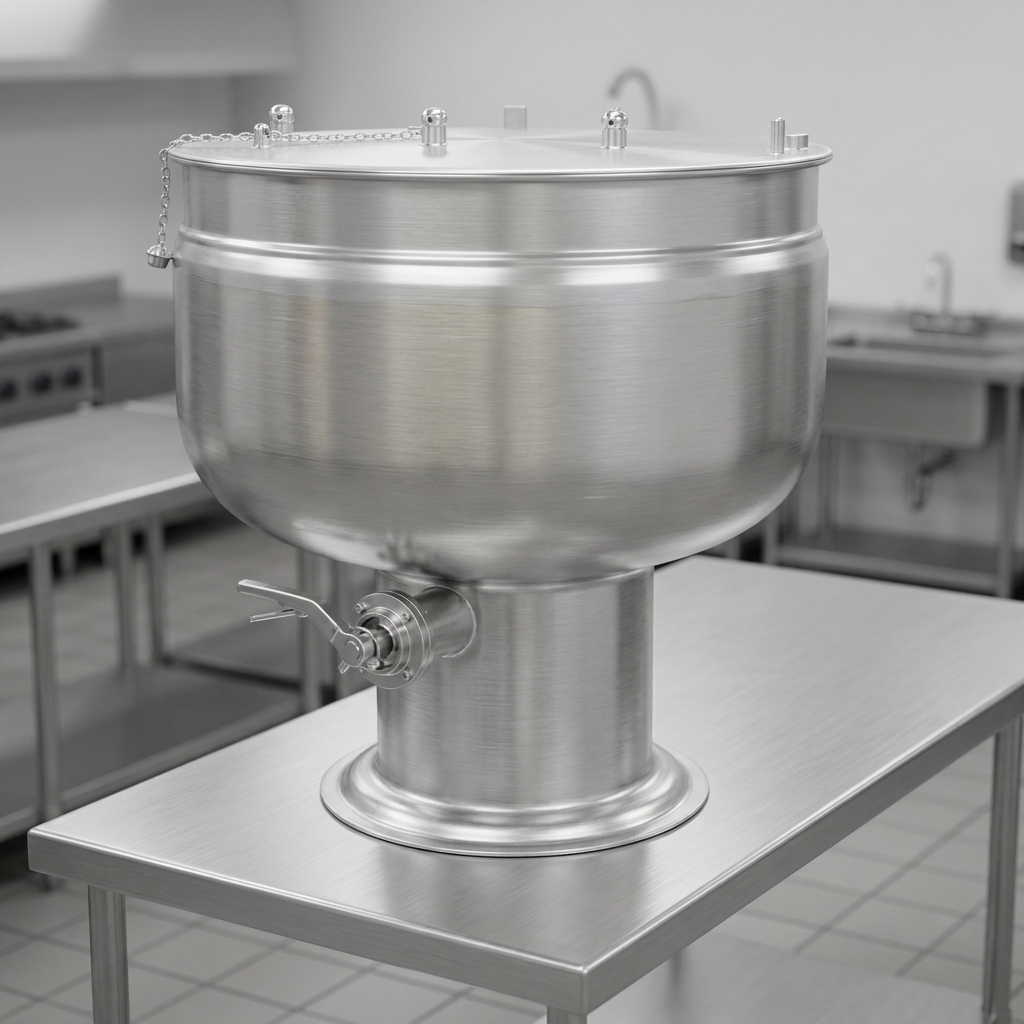

- Full 304 SS welded body with satin finish—tough, hygienic and easy to wipe down
- Type 316 stainless kettle liner stands up to tomato and other high-acid foods
- Hemispherical bottom ensures superior heat circulation and quicker heat-up
- 2″ sanitary draw-off valve with perforated strainer for clean portioning & rapid draining
- Spring-assist hinged stainless-steel cover—one-hand operation, no slam risk
- Integrated faucet bracket speeds filling and rinse-down
- Heavy-duty pedestal base with four 7/16″ anchor holes for rock-solid floor mounting
- NSF certified and backed by Crown’s 10-year hemisphere kettle warranty
Specifications at a Glance
| Model | DP-80F – Full Pedestal |
|---|---|
| Capacity | 80 gal (≈304 L), brimful |
| Jacket Type | Full (double-wall) steam jacket |
| Operating Steam Pressure | 5–35 PSI (34–241 kPa) standard Optional 50 PSI kit for higher temperatures |
| Draw-Off Valve | 2″ sanitary with perforated strainer (removable) |
| Interior Material | 316 stainless steel |
| Exterior / Pedestal | All-welded 304 stainless steel, satin finish |
| Cover | Spring-assist, hinged, stainless steel |
| Service Connections | Steam — 3/4″ IPS | Condensate Return — 1/2″ IPS |
| Certifications | NSF, ASME code stamped |
| Warranty | 1-year parts & labor • 10-year hemisphere kettle body |
Available Options & Accessories
- 50 PSI high-pressure kit (HP-50)
- 3″ draw-off valve with strainer (TVS-3)
- Solid stainless valve disc (TSS-)
- Triple basket assembly (TBA-)
- Graduated measuring strip (CMS-)
- Steam-trap assembly with control valve & check valve (STA-1)
- Kettle heat shield (KHS-)
