Crown (Middleby) DP-80 Steam Kettles
Description

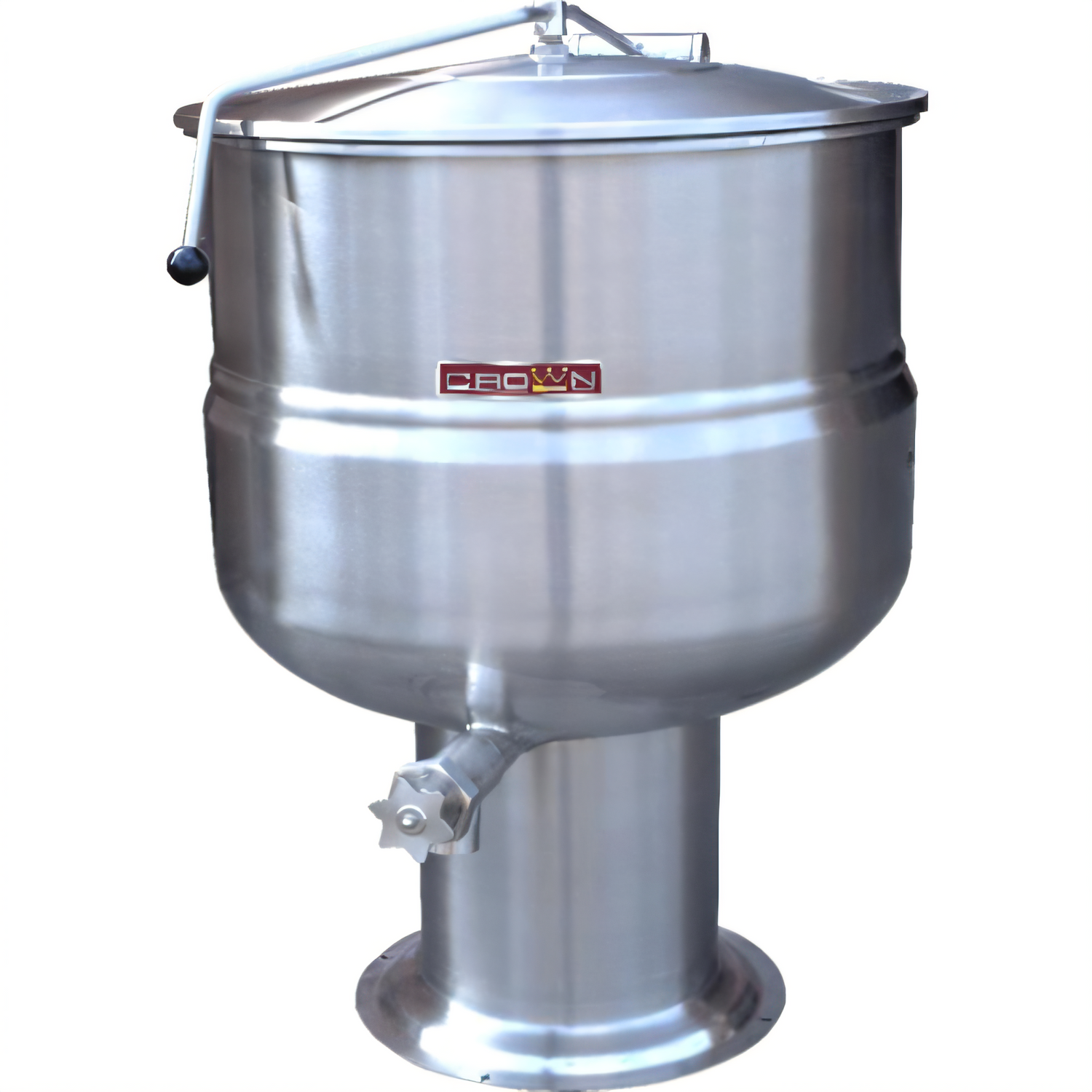

Crown DP-80 Direct-Steam Stationary Kettle – 80 Gal.
Pedestal base • 2 ⁄ 3 jacket • 2" tangent draw-off with strainer • Spring-assist dome coverProduce batch after batch of perfectly heated soups, sauces, stocks and more with Crown’s DP-80 direct-steam kettle. Its heavy-duty pedestal design saves floor space while the 2 ⁄ 3 steam jacket delivers lightning-fast heat transfer across a massive 80-gallon (303 L) capacity. Built entirely of stainless steel—including a pharmaceutical-grade 316 SS liner—this kettle is engineered for decades of worry-free service in the busiest commercial kitchens.
Why chefs choose the DP-80

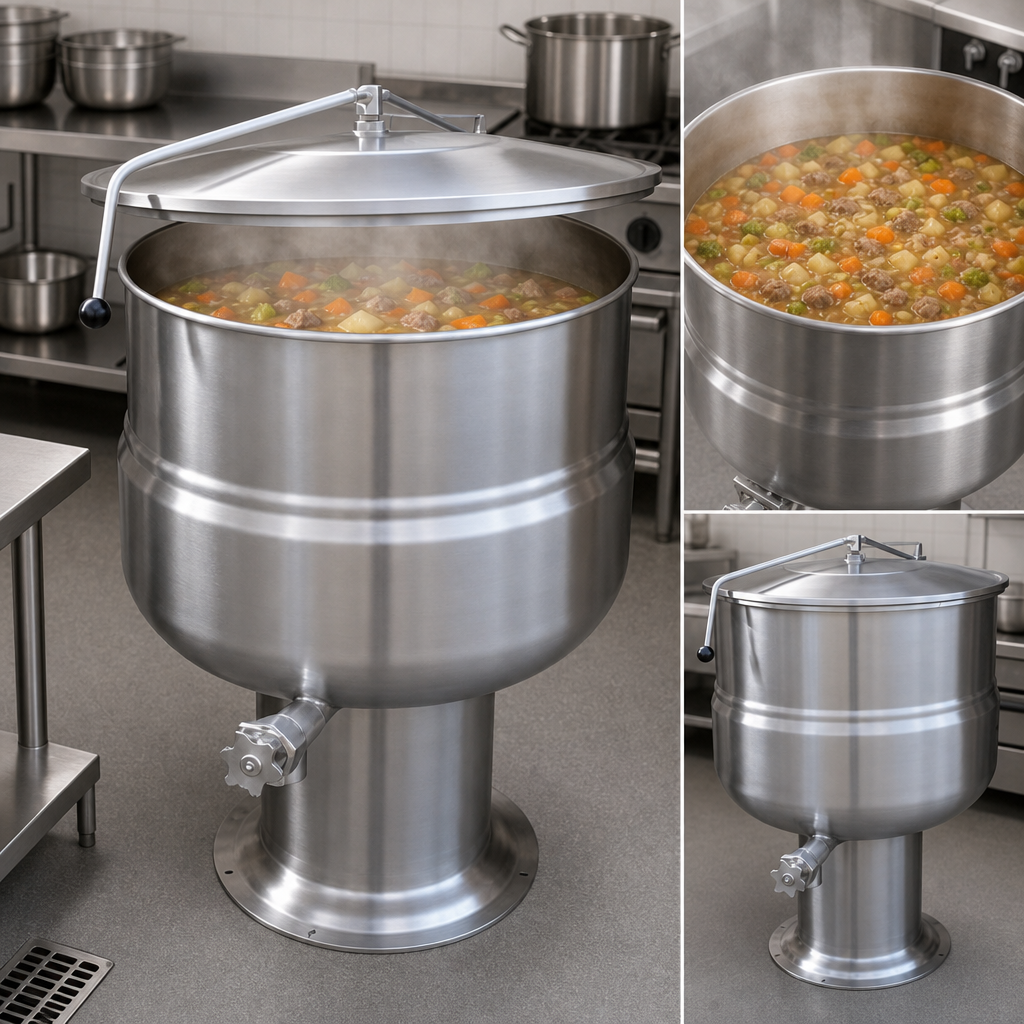

- 80-gallon working capacity handles high-volume production without hot-spots or scorching.
- 2 ⁄ 3 steam jacket heats product evenly from all sides for faster batches and reduced energy use.
- 316 SS interior liner resists acidic products—perfect for tomato-based recipes and delicate sauces.
- 304 SS exterior & pedestal stand up to daily cleaning and harsh kitchen environments.
- Spring-assisted stainless steel dome cover lifts effortlessly and self-holds at multiple positions.
- 2" tangent draw-off valve with perforated product strainer speeds portioning and cleaning.
- Integrated faucet bracket makes it easy to add a water fill faucet at any time.
- NSF-listed and ASME code stamped relief valve for worry-free compliance.
Performance & construction highlights

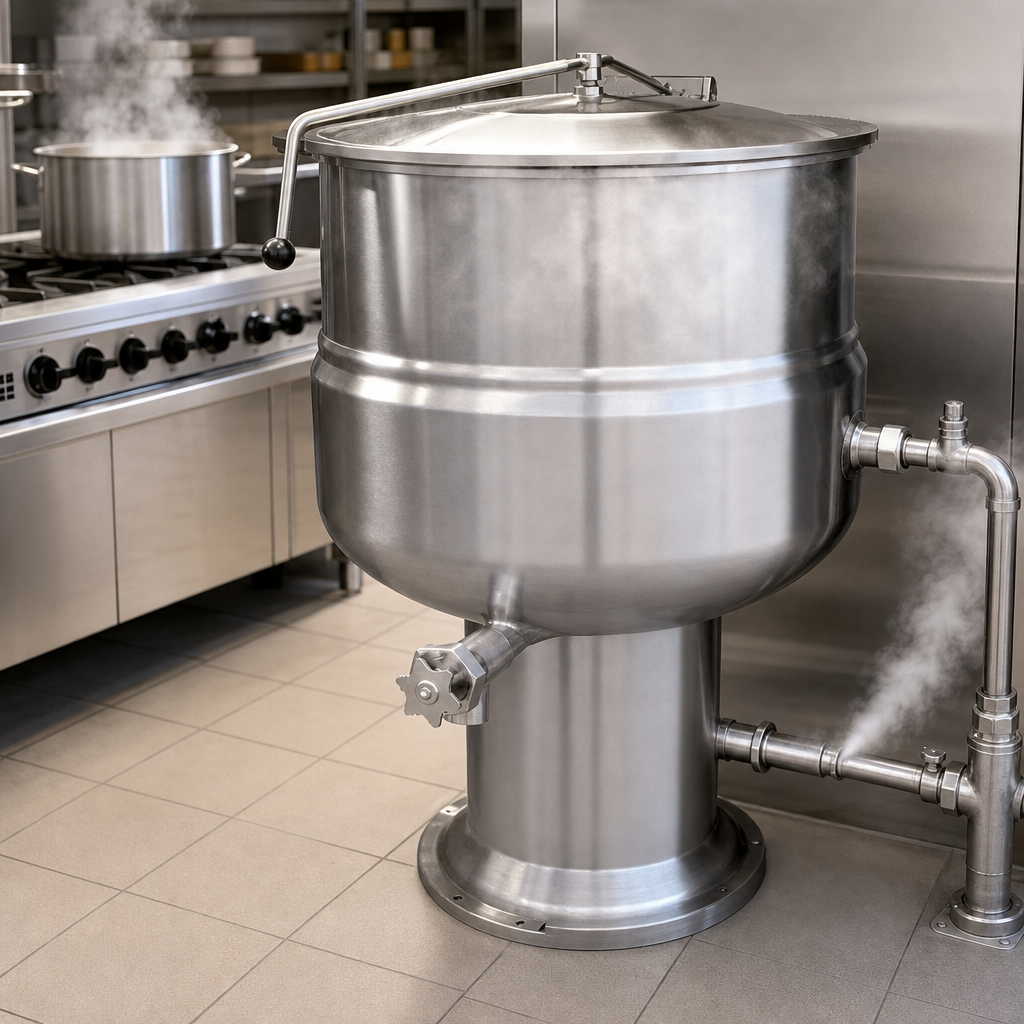

- Direct-steam operation: connect to your low-pressure boiler (5-30 psi standard, 5-45 psi optional).
- Pedestal base with four pre-drilled anchor holes for rock-solid, sanitary floor mounting.
- Safety relief valve factory-set at 35 psi (50 psi option available).
- 304 SS 2-piece pedestal shroud conceals steam & condensate piping for a clean, professional look.
- Standard flanged feet exceed NSF flush-to-floor hygiene requirements.
Utility requirements
| Steam inlet | ¾" IPS, 5-30 psi (pressure reducing valve required above 50 psi) |
|---|---|
| Condensate return | ½" IPS, trapped and pitched to drain or boiler return |
| Installation clearance | Sides – 3" (76 mm) | Back – 6" (152 mm) |
| Shipping weight | Approx. 308 lb (140 kg) |
Dimensional data
| Model | DP-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Overall height (J) | 76.63" (1 946 mm) |
| Diameter (A) | 33" (838 mm) |
| Bowl depth (C) | 42.5" (1 080 mm) |
| Front-to-back (B) | 28" (711 mm) |
| Draw-off centerline height (H) | 25.75" (654 mm) |
Included with your kettle
- 2" stainless steel tangent draw-off valve
- Perforated product strainer insert
- Factory-mounted faucet bracket
- Spring-assist stainless steel cover
- ASME relief valve & down-tube
- Installation & operation manual
Certifications
- NSF
- ASME Section VIII, “U” stamped jacket
- UL Sanitation (E115110)
Direct-steam kettles require a dedicated external steam source. Installation should be performed by licensed professionals in accordance with local codes.
