Crown (Middleby) DP-60F Steam Kettles
Description

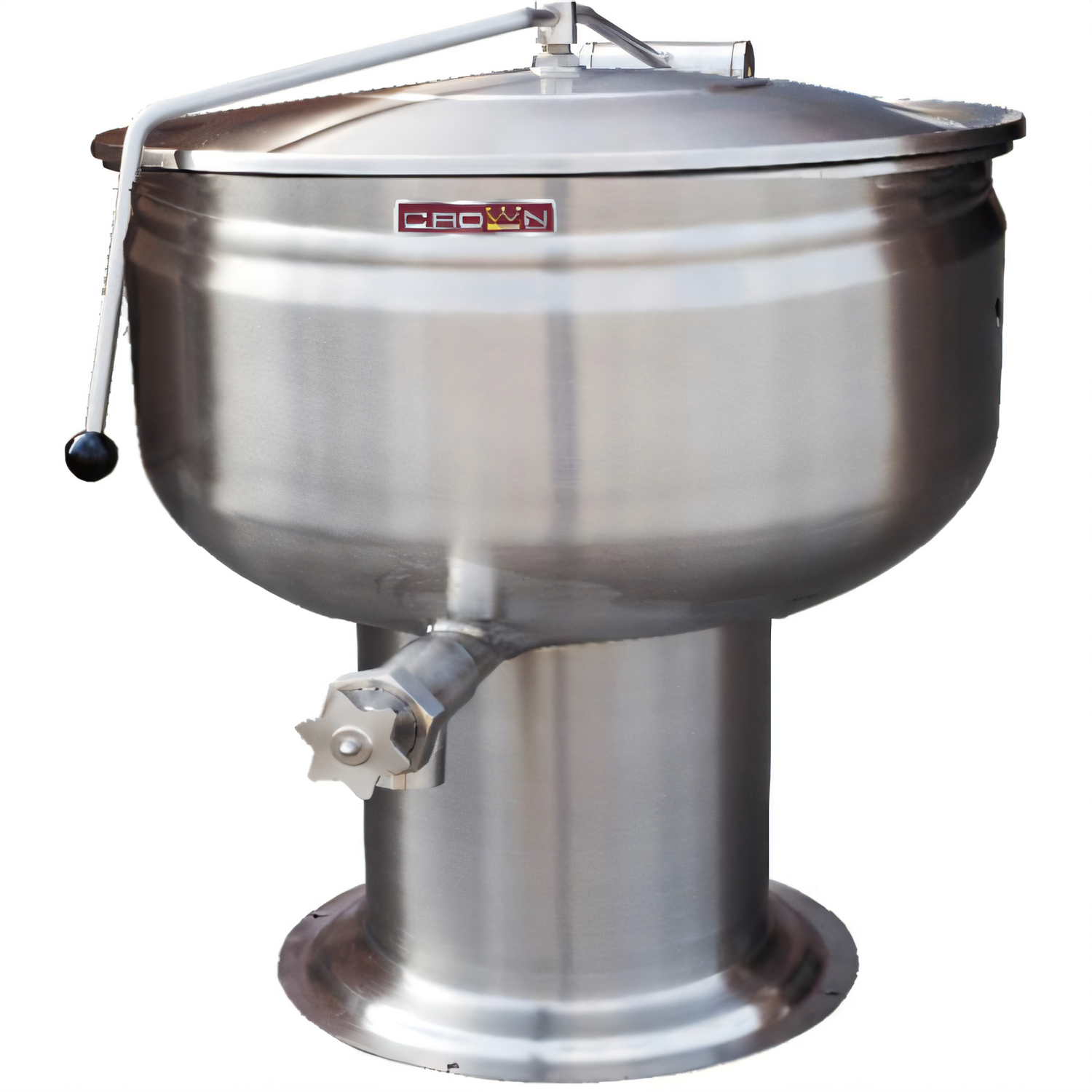

Crown DP-60F 60 Gallon Direct-Steam Full Pedestal Kettle
Full Jacket • 304/316 Stainless Steel • NSF CertifiedPower through high-volume production of soups, sauces, stocks and more with the Crown DP-60F. This 60-gallon stationary kettle connects directly to your steam supply, delivering rapid, even heating while its rugged pedestal base saves valuable floor space.
Key advantages
- Generous 60 gal (227 L) capacity handles up to 480 lb of product per batch.
- All-welded 304 stainless-steel exterior with satin finish stands up to heavy commercial use.
- 316 stainless-steel liner resists corrosion from acidic ingredients.

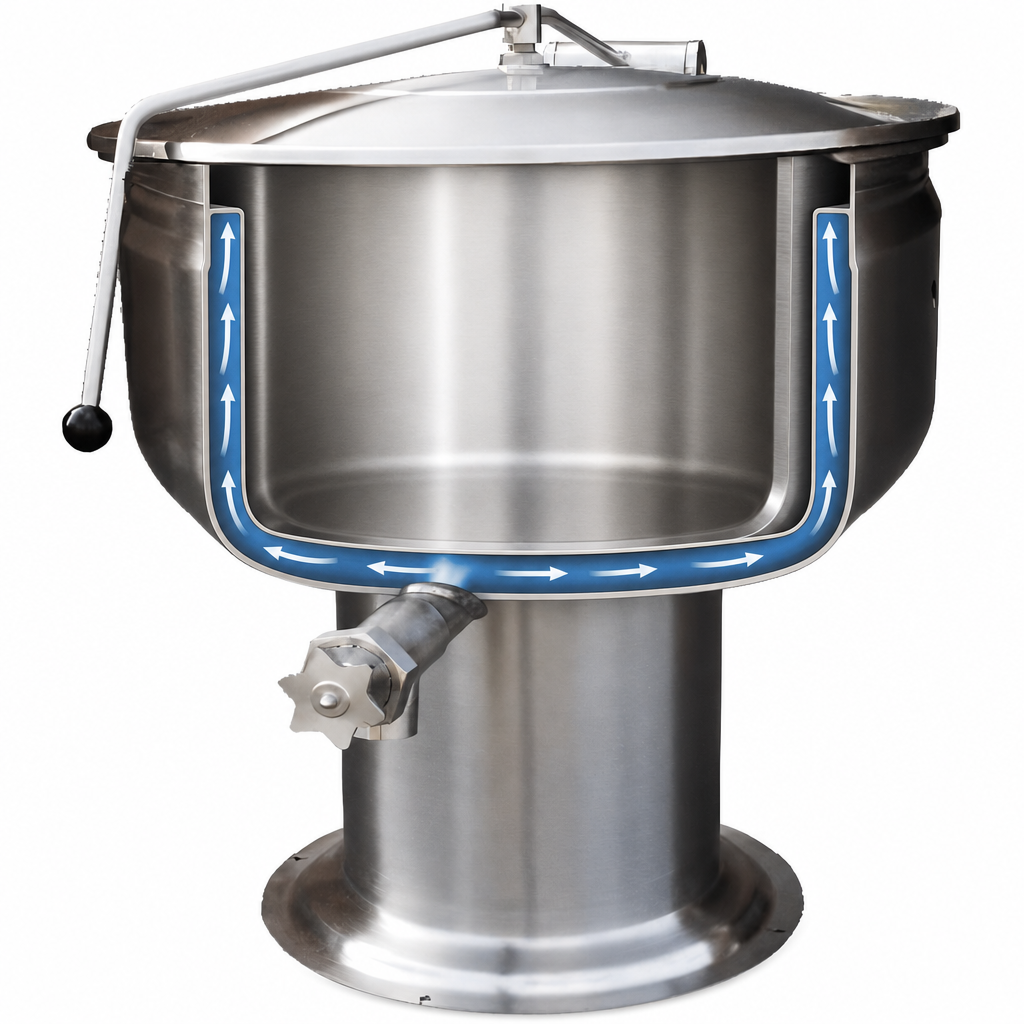

- Full steam jacket & hemispherical bottom ensure superior heat transfer and easy stirring.
- Spring-assist stainless-steel cover opens smoothly and stays in place.
- 2" sanitary draw-off valve with included perforated strainer speeds portioning and cleaning.
- Integrated faucet bracket—add a water faucet without extra drilling (faucet not included).

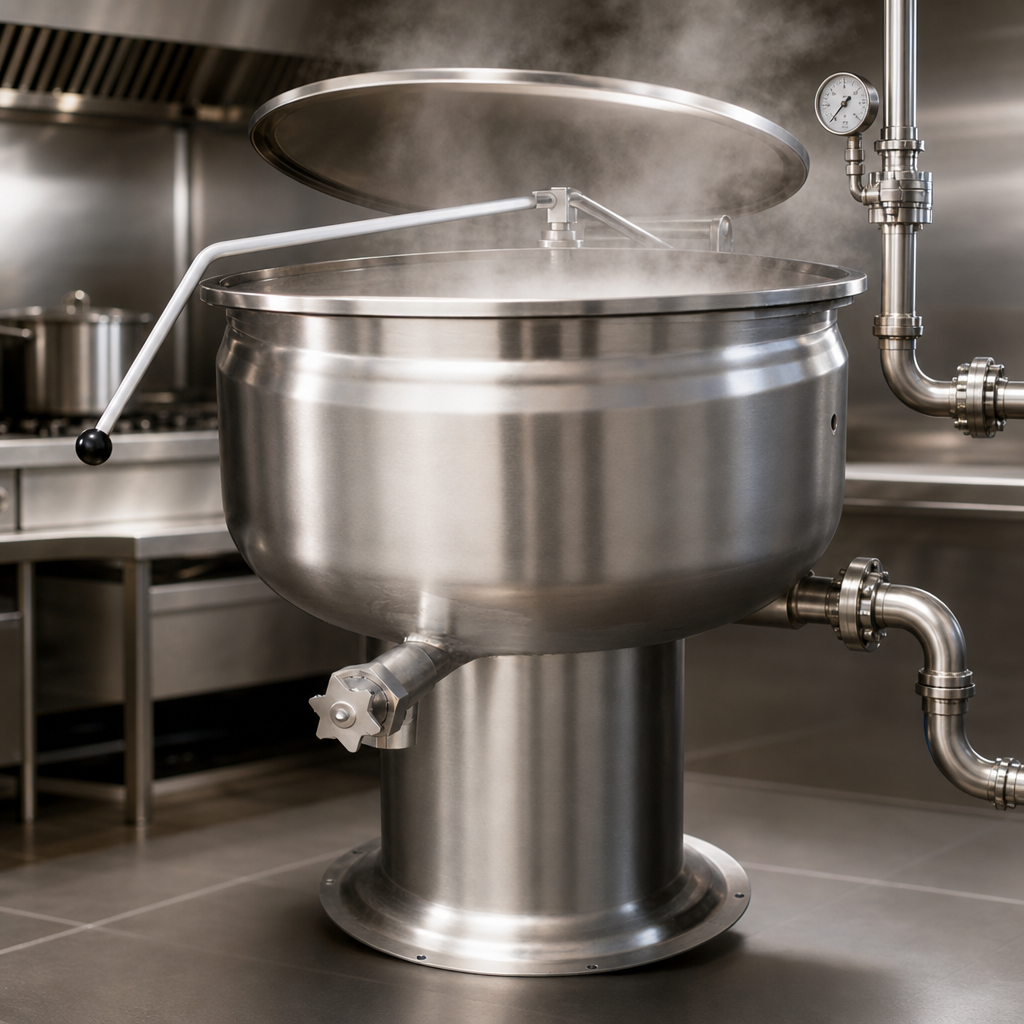

- Runs on existing direct steam at 5–35 psi (optional 50 psi kit for even higher temperatures).
- NSF listed and backed by Crown’s 10-year hemisphere warranty.
What’s included
- DP-60F stationary kettle on pedestal base
- Spring-assist stainless-steel cover
- 2" draw-off valve & perforated strainer
- Faucet mounting bracket
- Installation & operation manual
Technical specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Steam pressure (standard) | 5–35 psi (34–241 kPa) |
| High-pressure option | 50 psi (345 kPa) |
| Steam connection | 3/4" IPS |
| Condensate return | 1/2" IPS |
| Overall height | 71.63" (1 819 mm) |
| Kettle diameter (A) | 35.5" (902 mm) |
| Front-to-back depth (D) | 40" (1 016 mm) |
| Shipping weight | 320 lb (145 kg) |
| Required clearances | 3" (76 mm) sides • 0.5" (13 mm) back |
| Construction | 304 SS exterior, 316 SS liner, full welded jacket |
| Certifications | NSF |
Optional accessories (sold separately)
- 50 psi high-pressure kit (HP-50)
- 3" draw-off valve with perforated strainer (TVS-3)
- Solid stainless-steel draw-off disc (TSS-)
- Steam trap assembly (STA-1)
- Triple basket assembly (TBA-)
- Kettle heat shield (KHS-)
- Graduated measuring strip (CMS-)
- Strainer hook (SH)
Warranty
1-year parts & labor, plus a 10-year hemispherical kettle warranty for complete peace of mind.
Intended for commercial use only. Refer to the installation manual for utility requirements and water quality guidelines.
