Crown (Middleby) DP-60 Steam Kettles
Description

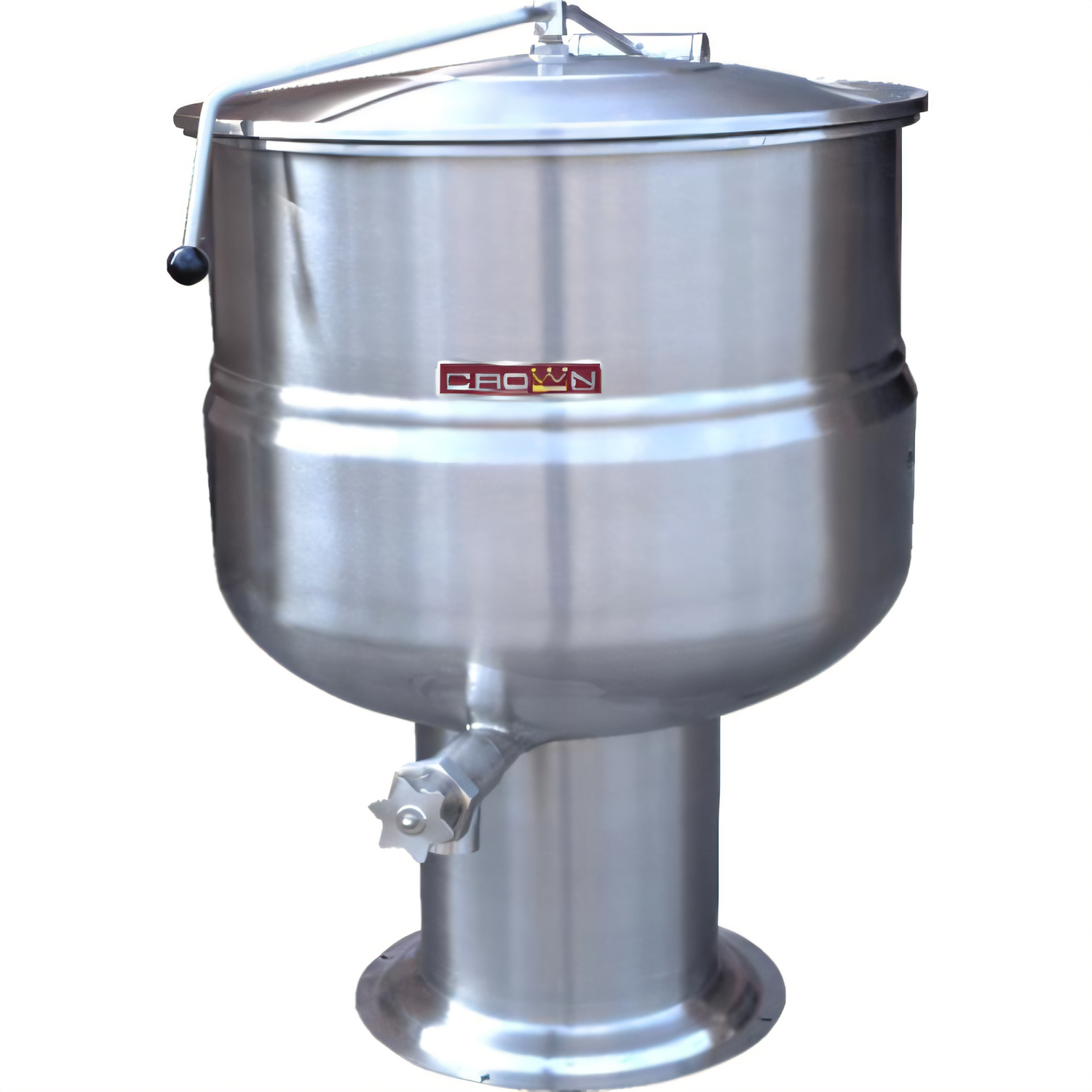

Crown DP-60 60-Gallon Direct-Steam Stationary Kettle
Pedestal-Mounted | 2/3 Jacket | 2" Draw-Off | NSFProduce large batches of soups, sauces and stocks with confidence. Built for demanding commercial kitchens, the Crown DP-60 combines a spacious 60-gallon (227 L) capacity with the speed and efficiency of direct steam, all in a rugged pedestal design that saves precious floor space.
Key Features
- Generous 60 gal / 227 L capacity—perfect for high-volume production.

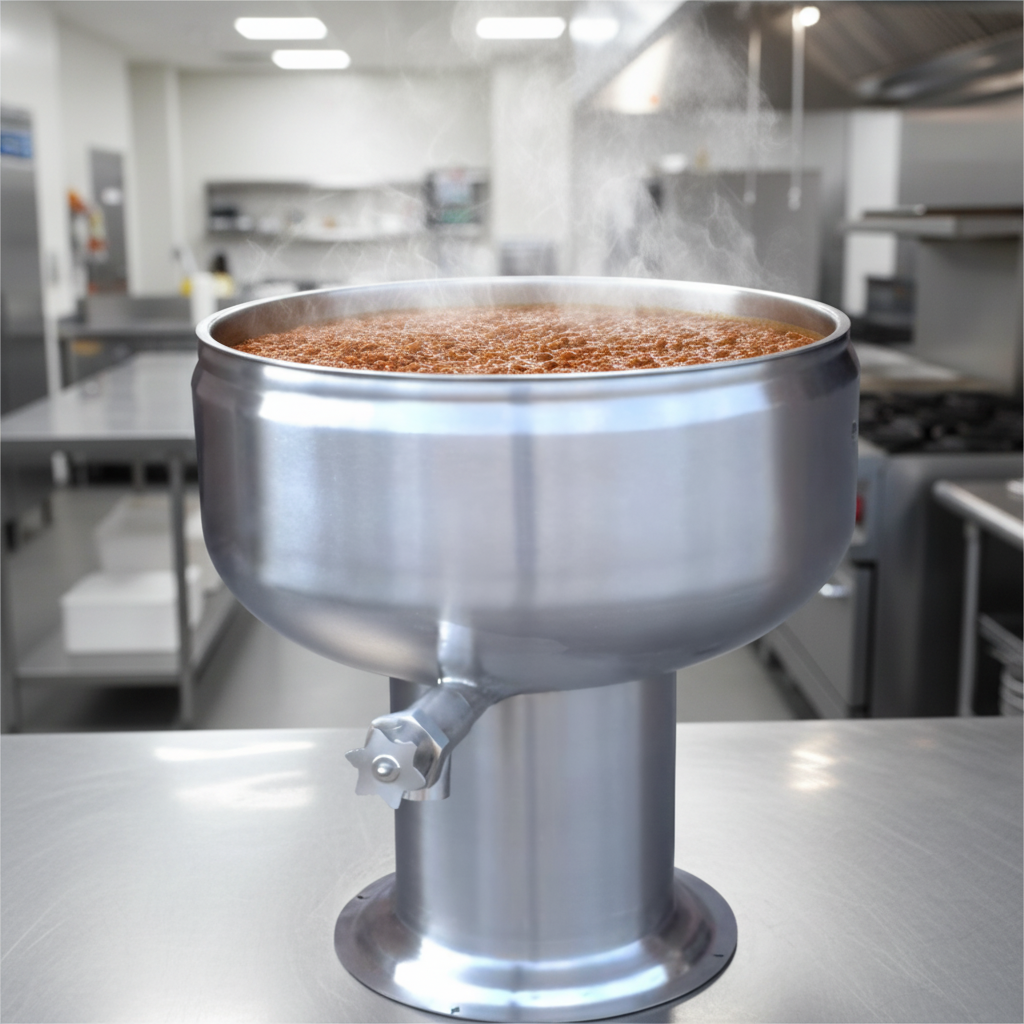

- 2/3 steam jacket delivers uniform, gentle heating and faster cook times.

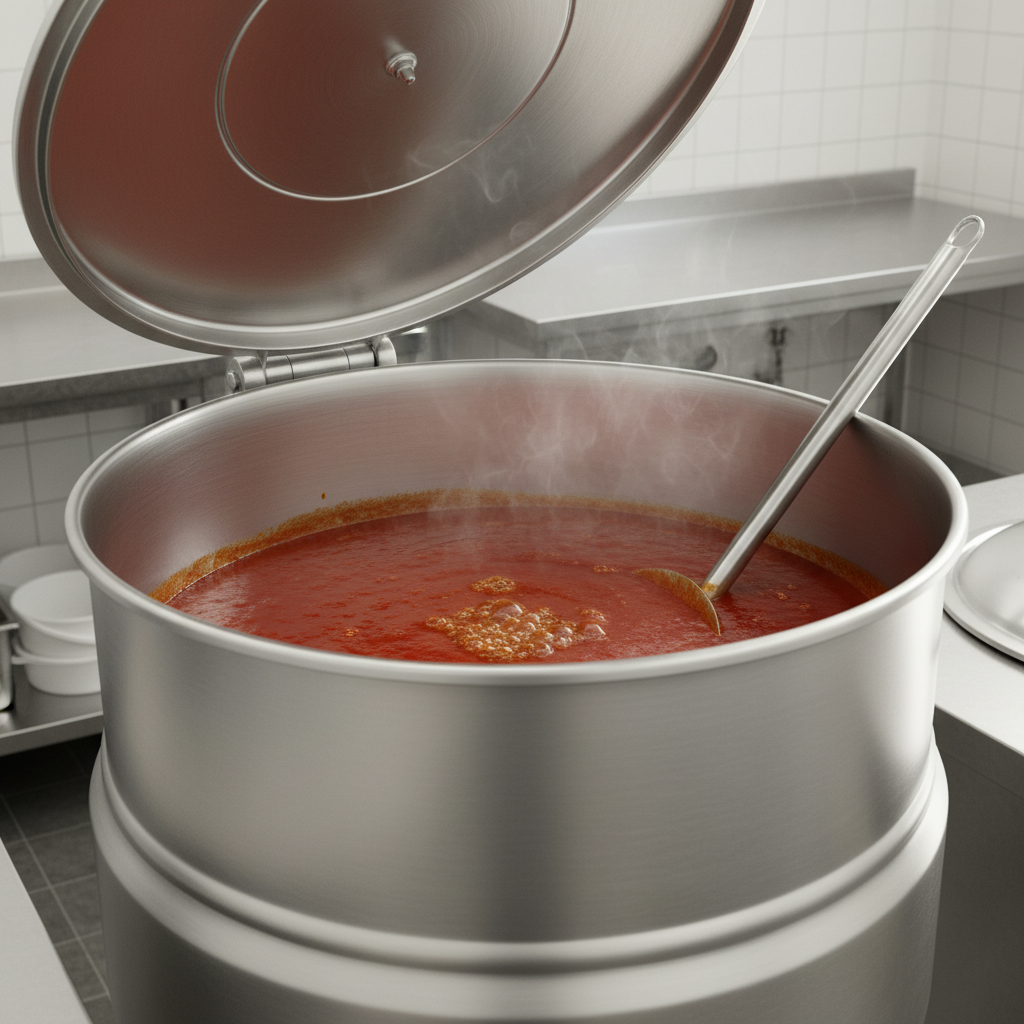

- 304 stainless steel kettle body with 316 stainless interior liner for superior corrosion resistance.
- Factory-installed 2" tangent draw-off valve with stainless handle and included perforated strainer.
- Spring-assisted stainless steel dome cover—opens easily and stays where you put it.
- Integrated faucet bracket allows simple installation of a pot-filler (faucet not included).

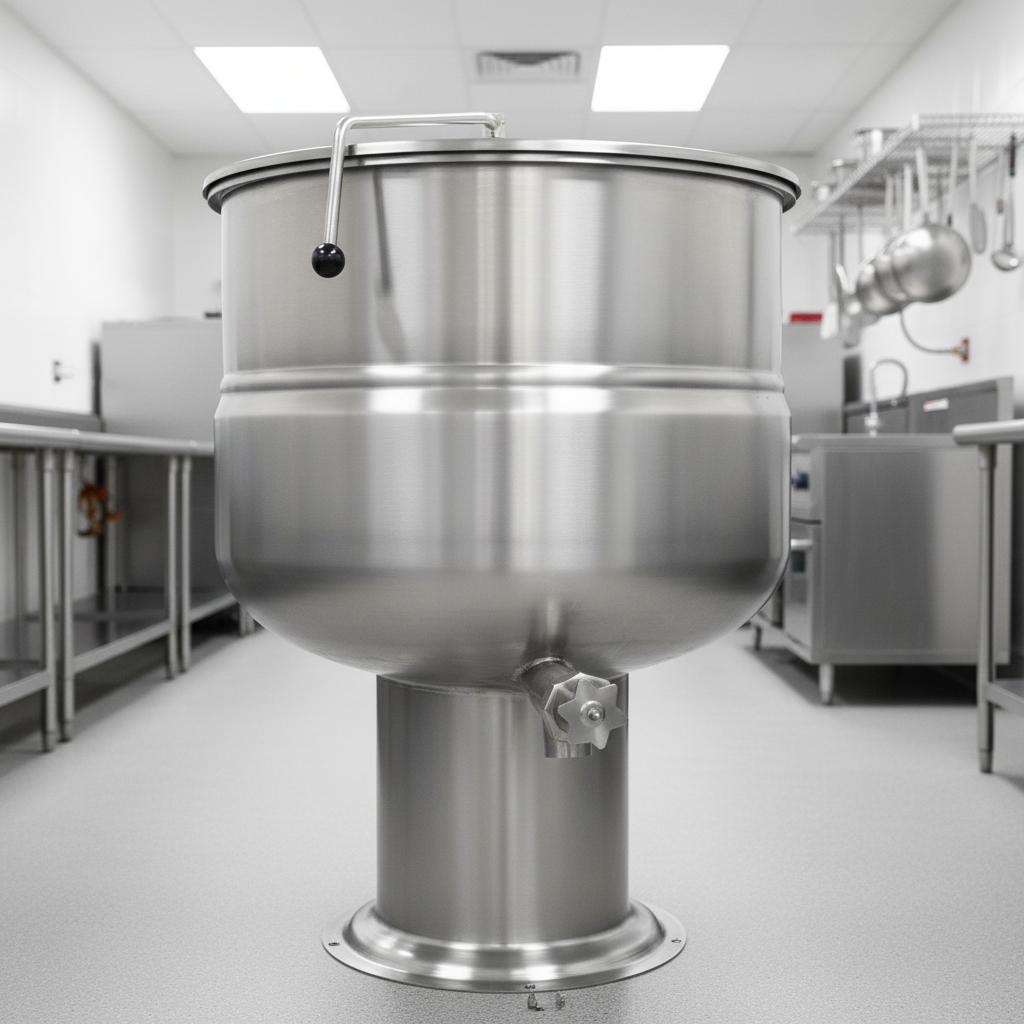

- Heavy-duty pedestal base anchors securely to the floor for rock-solid stability.
- NSF & UL listed; meets the latest sanitation and safety standards.
- Made in North America by Crown, a Middleby company.
At-a-Glance Specifications
| Model | DP-60 (Stationary, Pedestal) |
|---|---|
| Capacity | 60 gal / 227 L |
| Jacket Coverage | 2/3 (sealed) |
| Steam Connection | 3/4" IPS, 5–30 psi (5–45 psi optional) |
| Condensate Return | 1/2" IPS |
| Draw-Off Valve | 2" stainless tangent with perforated strainer |
| Interior Material | 316 stainless steel |
| Exterior / Shell | 304 stainless steel |
| Cover | Spring-assisted stainless dome |
| Mounting | Pedestal base (4 × 7/16" anchor holes) |
| Overall Height | 72.88" / 1 851 mm |
| Diameter (A) | 29.5" / 749 mm |
| Shipping Weight | 265 lb / 120 kg |
| Certifications | NSF, UL |
Why Direct Steam?
- Immediate, consistent heat—no recovery lag.
- Even temperature distribution eliminates scorching.
- Lower energy cost when a central boiler already exists.
- Moves excess heat & noise out of the kitchen.
Replacing a Southbend, Blodgett or Market Forge kettle? Crown manufactures the original equipment—this DP-60 matches existing footprints and utility connections.
