Crown (Middleby) DP-40F Steam Kettles
Description

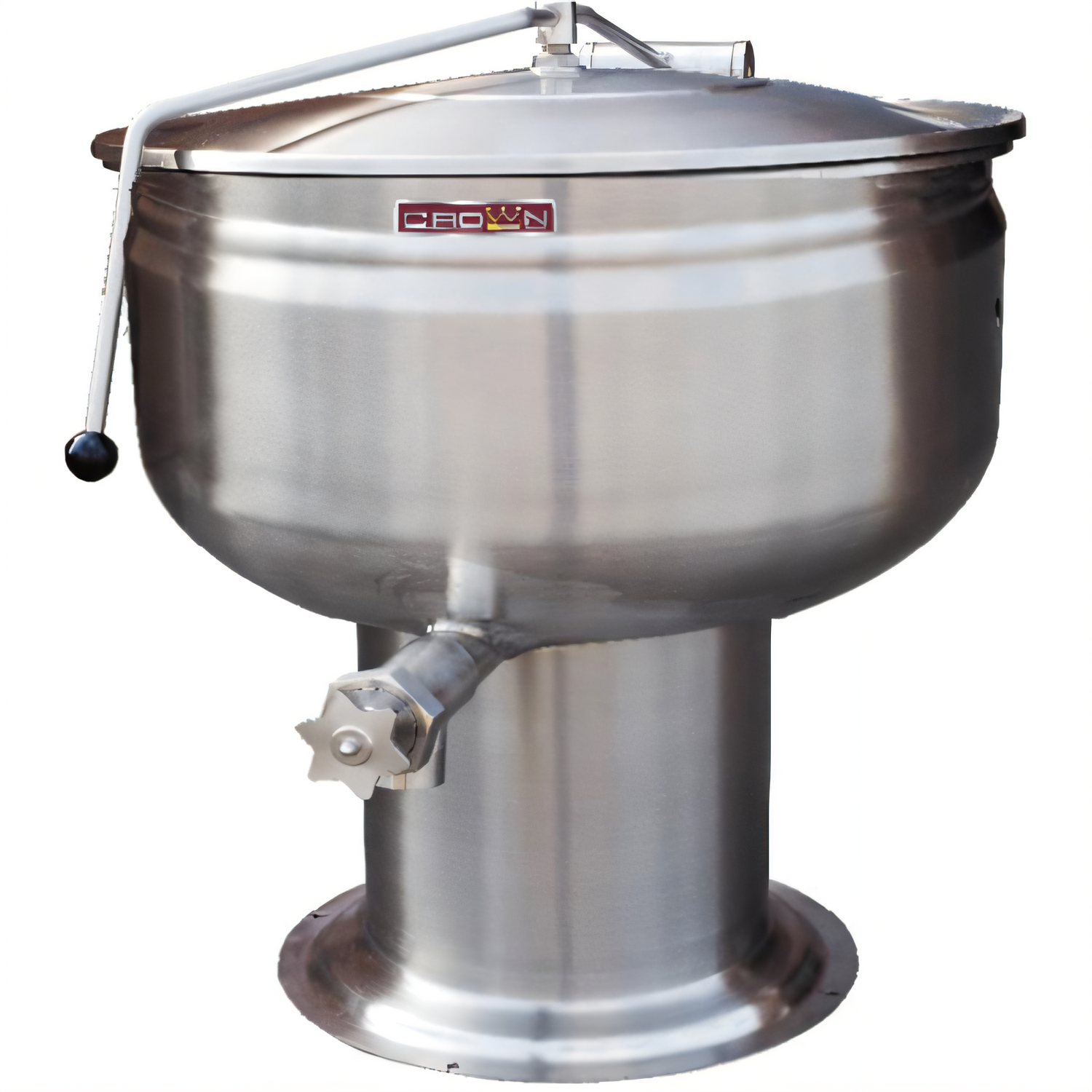

DP-40F 40-Gallon Direct-Steam Stationary Kettle
Full-jacket pedestal kettle built for high-volume, high-acid cookingCrown’s DP-40F gives you 40 gallons (152 L) of consistent, even heat for soups, sauces, stocks and more—all in a rugged, easy-to-clean package that’s ready for direct-steam hookups.
Key advantages

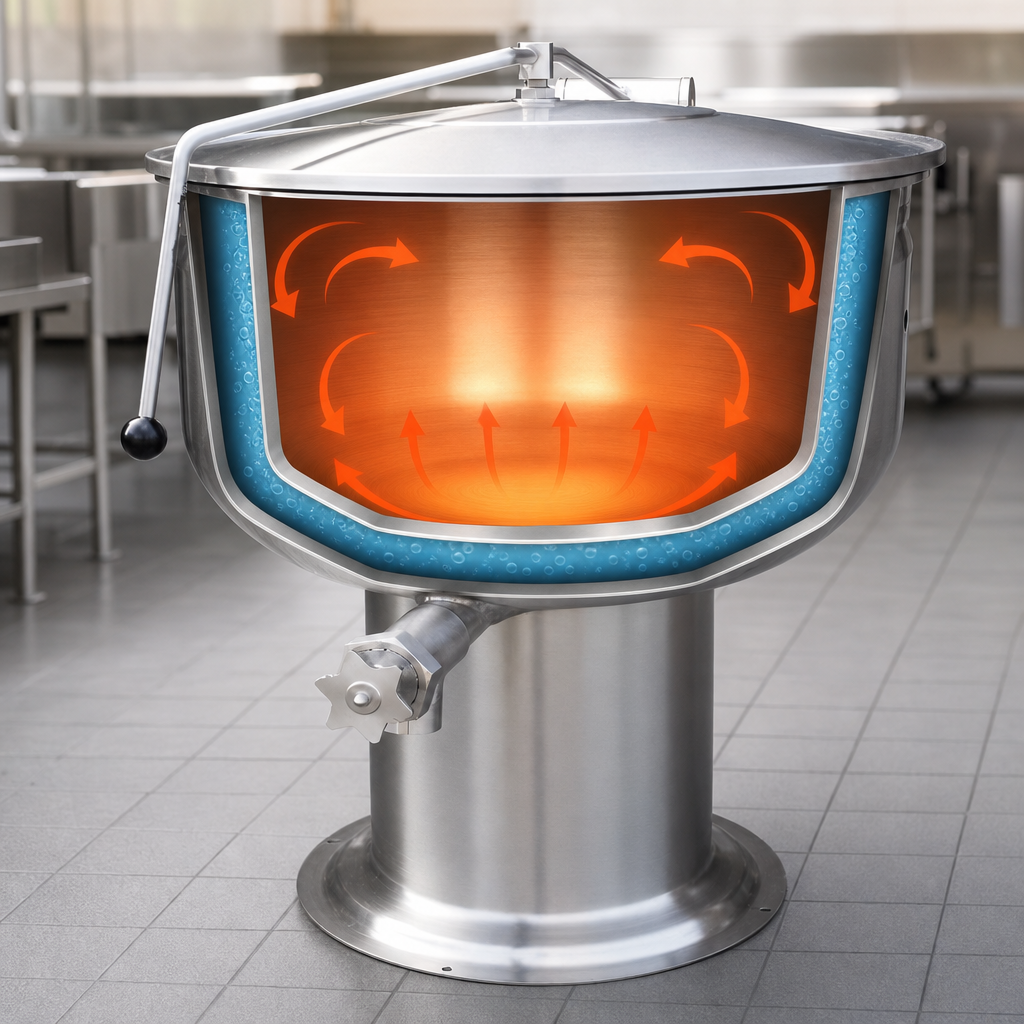

- Full jacket design envelopes 100 % of the kettle for superior heat transfer and faster cook times.
- Ultra-durable 316 stainless-steel liner withstands acidic recipes that can corrode ordinary kettles.
- 304 stainless-steel exterior with satin finish looks great and wipes clean in seconds.
- Spring-assist stainless-steel cover lets staff open and close the lid with one hand.
- 2" sanitary draw-off valve with factory-supplied perforated strainer speeds portioning and filtering.
- Built-in faucet bracket keeps water or rinse faucets right where you need them—no extra drilling.
- One-piece stainless pedestal with four pre-drilled 7/16" anchor holes for rock-solid floor mounting.
- NSF-certified & UL-listed for peace of mind in any commercial kitchen.
Performance you can count on

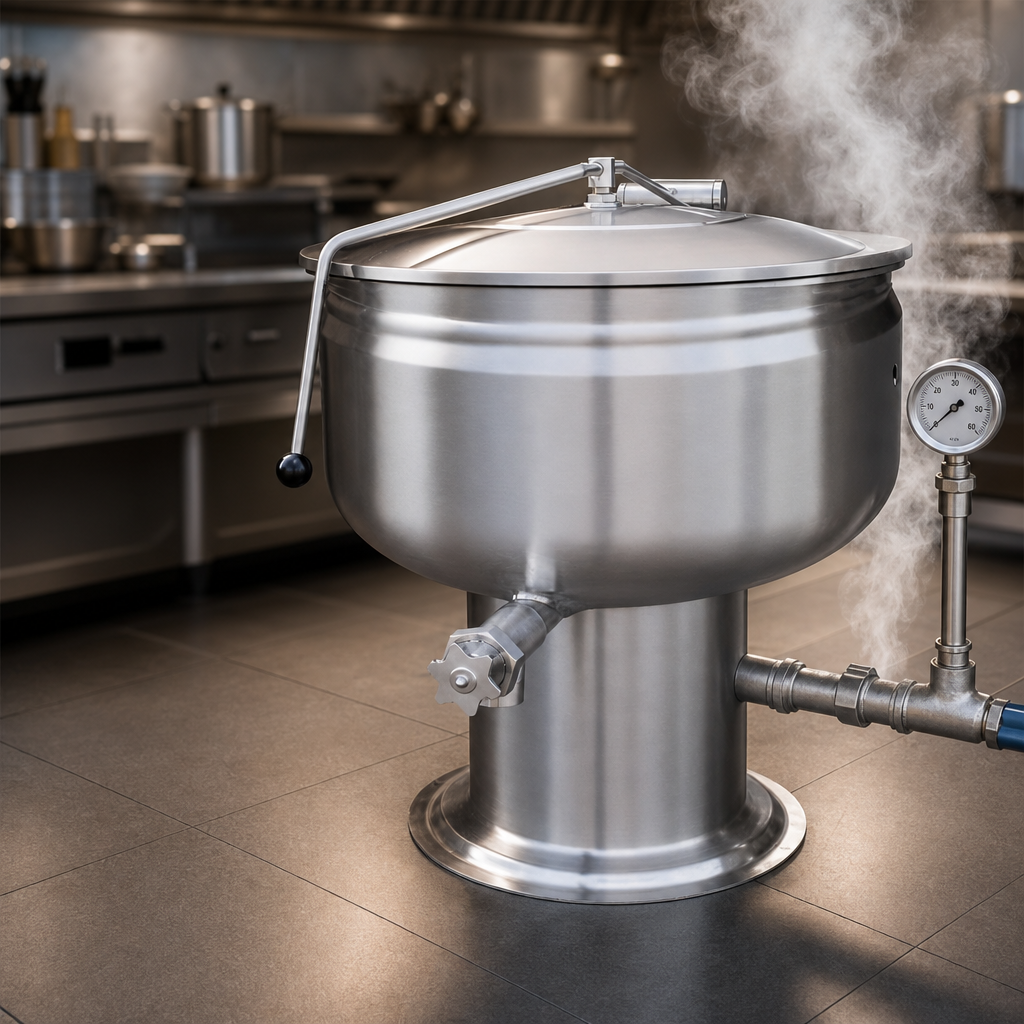

Hook up 5–35 psi (34–241 kPa) direct steam and the DP-40F’s hemispherical bottom circulates heat evenly, eliminating hot spots that burn product. Whether you’re reducing marinara or holding chowder, temperature stays consistent from the first gallon to the last.
Specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Steam pressure (operating) | 5 – 35 psi (34 – 241 kPa) |
| Interior liner | 316 SS, seamless |
| Exterior construction | All-welded 304 SS, satin finish |
| Jacket style | Full (double-wall) |
| Draw-off valve | 2" sanitary, with perforated strainer (included) |
| Overall height (L) | 67.88" (1724 mm) |
| Width (A) | 33" (838 mm) |
| Depth (C) | 33.75" (857 mm) |
| Shipping weight | 280 lb (127 kg) |
| Steam inlet | ¾" IPS |
| Condensate return | ½" IPS |
| Required clearances | 3" (76 mm) sides, ½" (13 mm) back |
| Certifications | NSF, UL, 10-year hemisphere warranty |
Popular accessories (sold separately)
- 50 psi high-pressure kit for even higher cooking temperatures.
- 3" draw-off valve kit with strainer for large particulates.
- Graduated measuring strip for quick volume checks.
- Triple basket assembly for pasta or seafood production.
- Steam trap assembly for efficient condensate management.
Intended for commercial use only. Installation must meet local codes and utilize a ¾" steam supply and ½" condensate return.
