Crown (Middleby)  |  SKU: DP-30F

Crown (Middleby) DP-30F Steam Kettles

$16,937.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Middleby financial flyer Crown steam group letter Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Crown (Middleby) Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

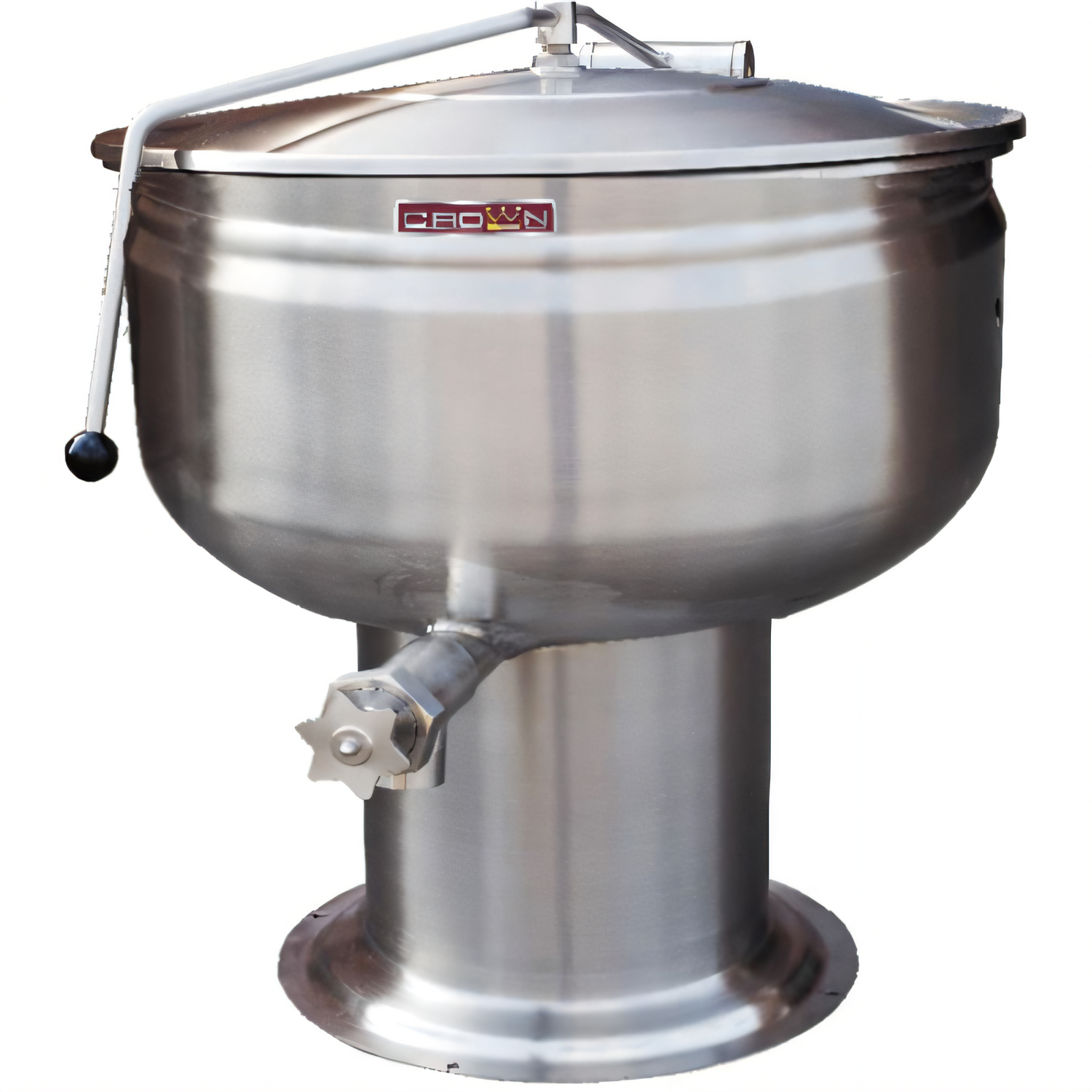

Crown DP-30F 30-Gallon Direct-Steam Stationary Kettle

Full-jacket pedestal kettle with 2 in. sanitary draw-off valve

Boost batch consistency and production capacity with the Crown DP-30F. This 30-gallon, direct-steam kettle delivers rapid, even heating across a 316-stainless interior— perfect for high-acid soups, sauces, stocks and more—while a rugged 304-stainless exterior and pedestal base stand up to demanding commercial kitchens.

Why chefs choose the DP-30F

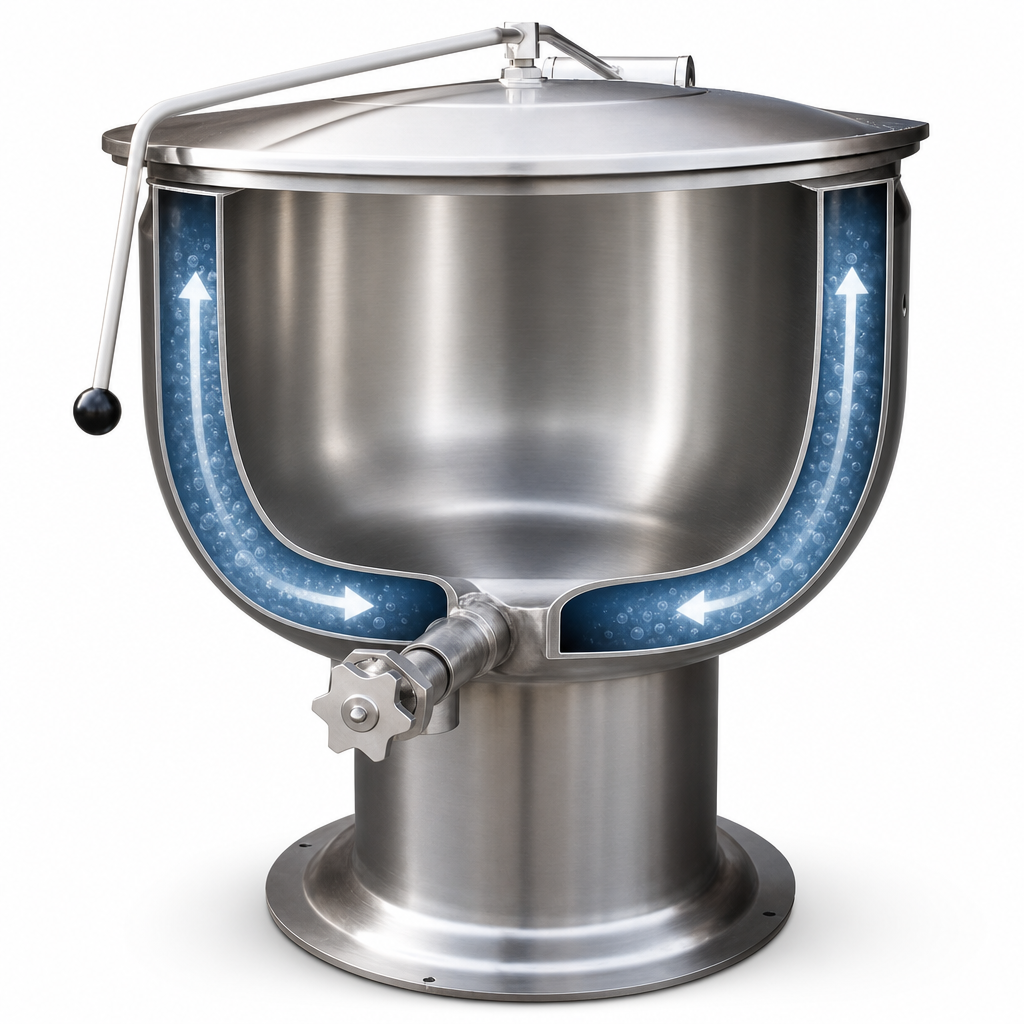

  • Full steam jacket surrounds the kettle for 360° heat transfer and fast recovery.
  • 316 stainless-steel liner resists acid corrosion, extending kettle life and flavor integrity.
  • 2 in. sanitary draw-off valve with perforated strainer for effortless, debris-free dispensing.
  • Spring-assist hinged cover—single-hand operation keeps hands free and reduces fatigue.
  • Hemispherical bottom promotes superior heat circulation and easy stirring.
  • Integrated faucet bracket simplifies wash-downs and fill-ups (faucet sold separately).
  • NSF certified & backed by Crown’s 10-year hemisphere warranty.
Specifications
Model DP-30F
Capacity 30 gal | 114 L

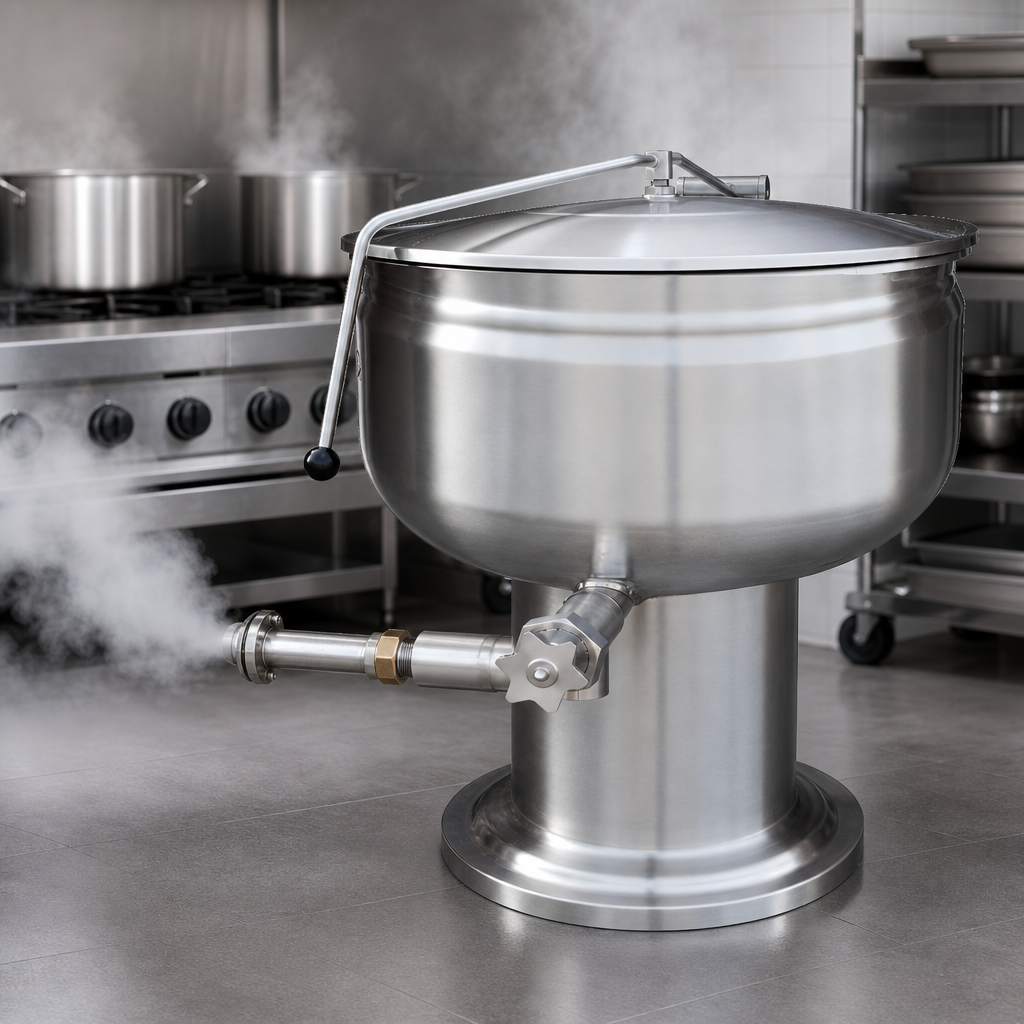

Steam source Direct steam, 3/4 in. IPS supply
Operating pressure 5–35 PSI (34–241 kPa)  •  50 PSI option available
Condensate return 1/2 in. IPS
Interior material 316 stainless steel
Exterior / jacket All-welded 304 stainless steel, satin finish
Overall height (lid closed) 62.88 in. | 1,597 mm
Diameter (A) 29.5 in. | 749 mm
Bowl depth (B) 17.5 in. | 445 mm
Floor to draw-off (K) 11.88 in. | 302 mm
Shipping weight 240 lb | 109 kg
Base mounting Stainless pedestal with four 7/16 in. anchoring holes
Clearance required 3 in. sides  •  0.5 in. rear
Certifications NSF, cULus

Requires an external steam generator or boiler (not included). Minimum supply pressure 5 PSI; maximum 35 PSI standard operation.

Commercial use only. 10-year hemisphere warranty plus 1-year parts & labor standard warranty.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF

Height

37.0in

Width

25.88in

Depth

31.0in

Shipping Weight

240.0lbs

Kettle Jacket

full jacket

Capacity

30 - 45 gallon

Base

pedestal base

Kettle Liner

316 stainless steel

Specifications

Stationary Kettle, direct steam, 30 gallon capacity, full jacket, 2" draw-off, includes: perforated strainer, spring assisted stainless steel cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel construction, pedestal, NSF
