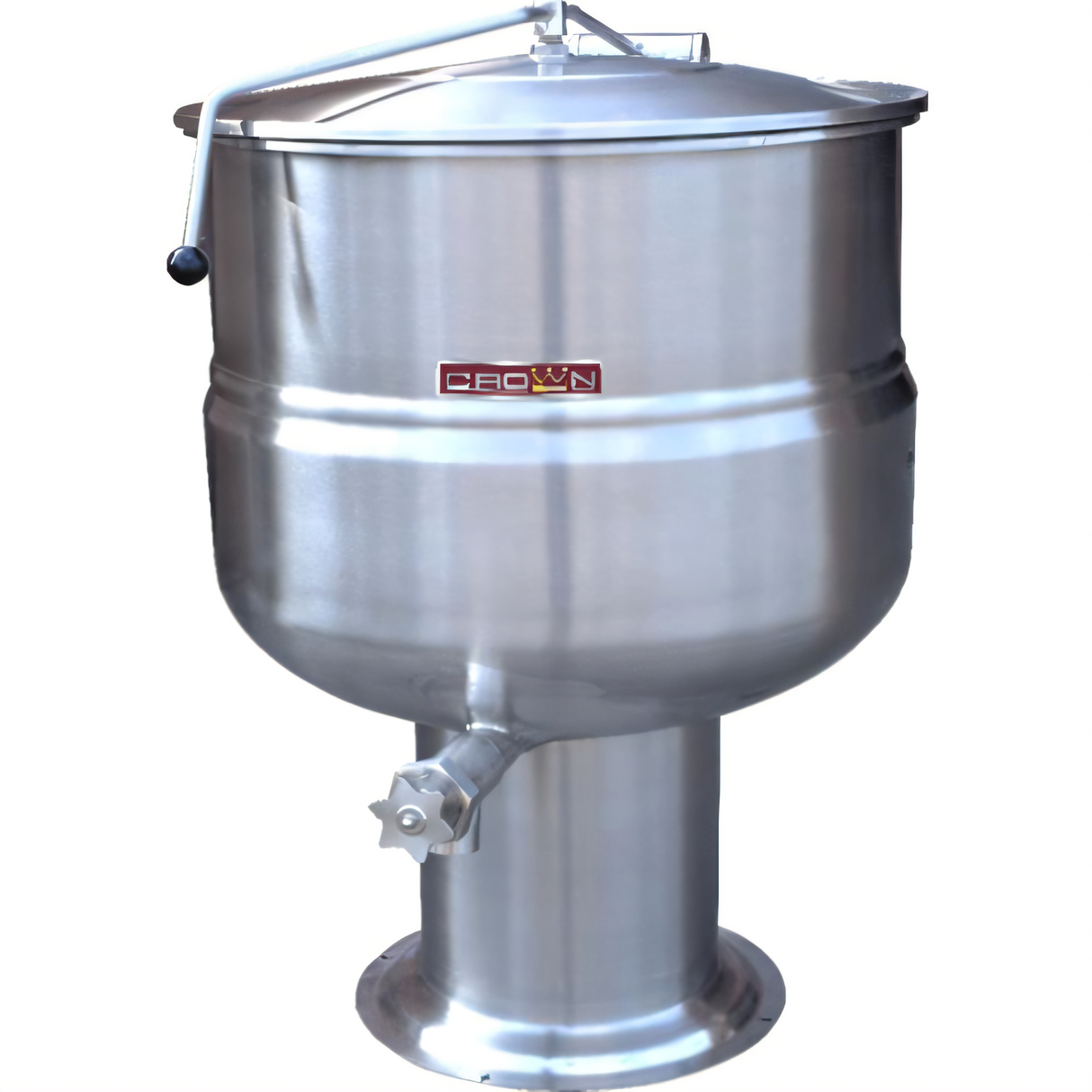

Crown 30-Gallon Direct-Steam Pedestal Kettle

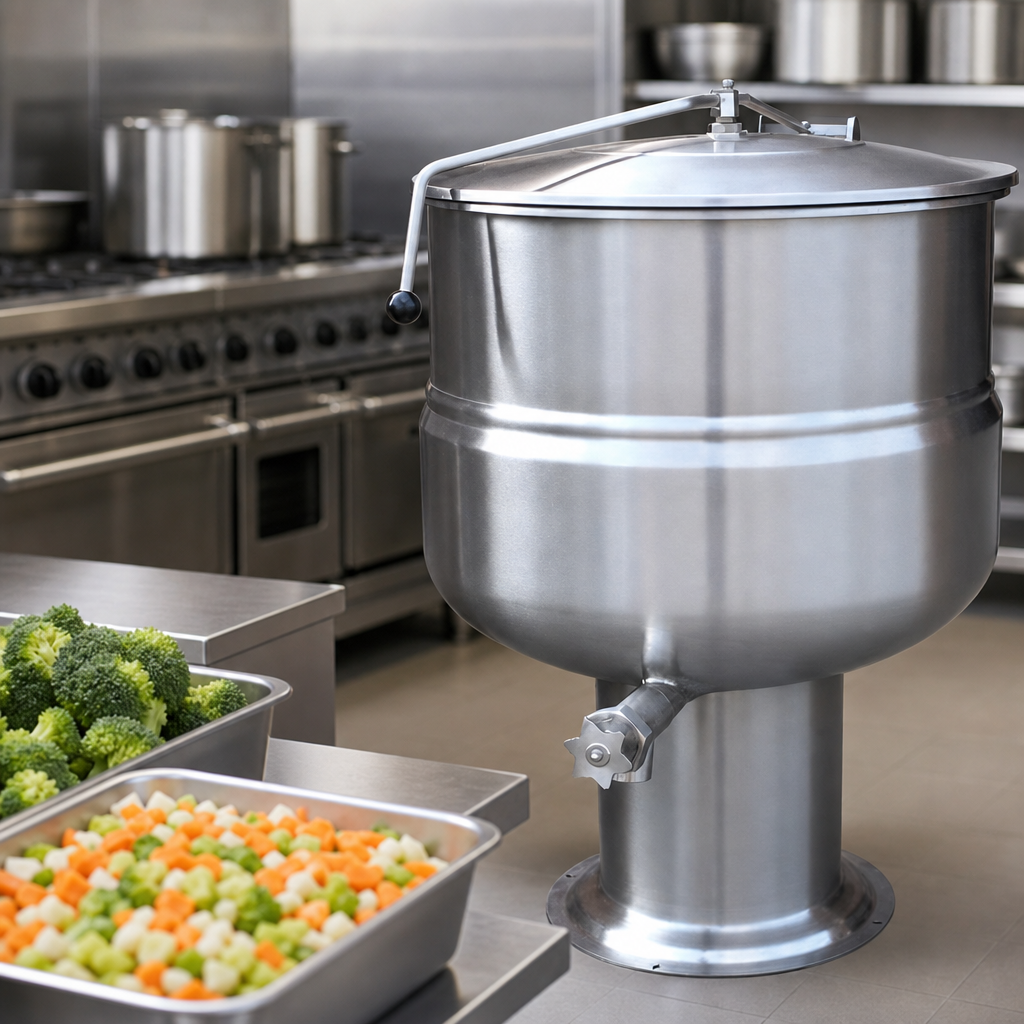

Model DP-30 | 2/3 Jacket • 2" Draw-Off • NSF ListedEngineered for high-volume, high-efficiency production, the Crown DP-30 stationary kettle delivers 30 gallons (114 L) of consistent, even heating—perfect for soups, sauces, custards, pasta and more. A heavy-duty pedestal base, spring-assisted dome cover and all-stainless construction give your kitchen the durability it demands and the safety it requires.
Built for Commercial Performance
- Direct-steam design heats product rapidly with no internal burners to service.

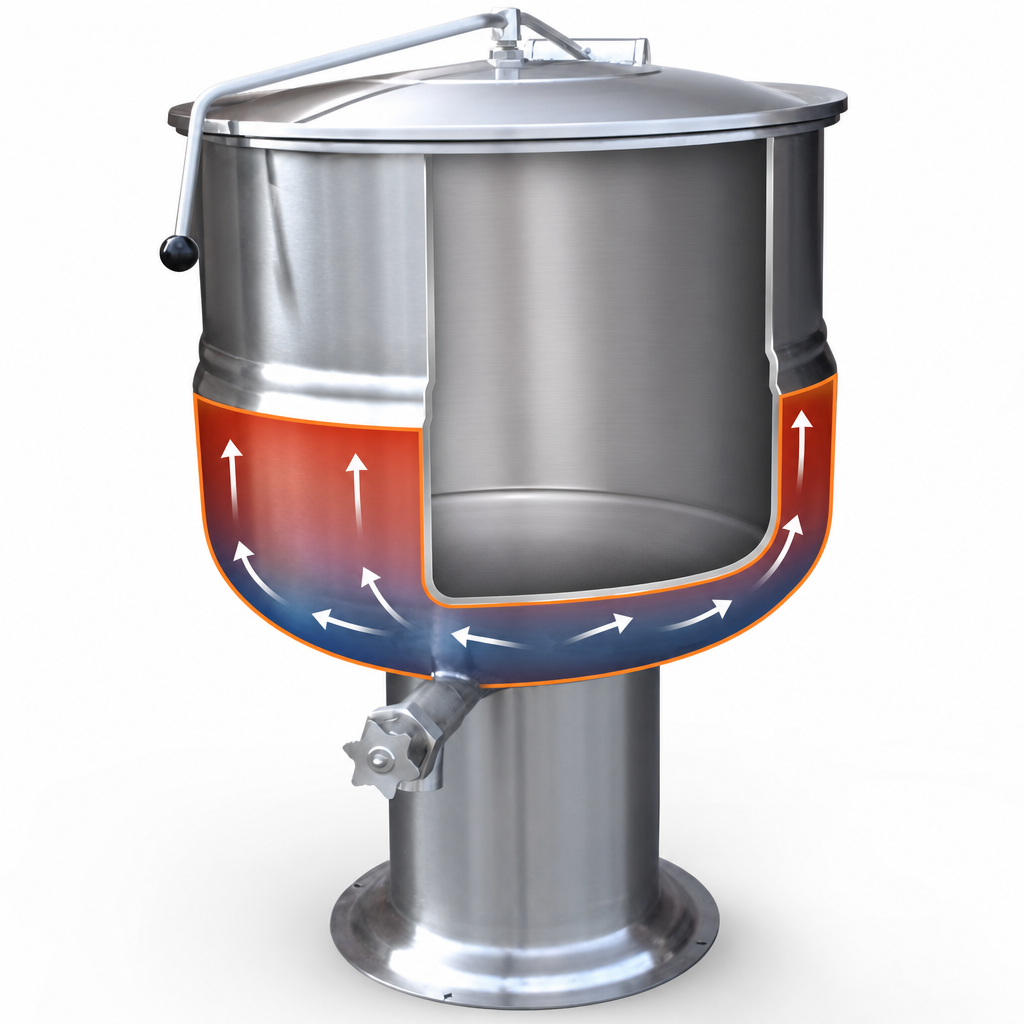

- 2/3 steam jacket provides full-height sidewall heating for improved heat transfer and reduced scorching.
- 316 SS interior liner resists acid & salt corrosion—ideal for tomato-based and high-salt recipes.
- 304 SS exterior & pedestal withstand daily cleaning and tough kitchen environments.
- Spring-assisted stainless-steel dome cover opens easily and stays in position for safe, hands-free operation.
- Integrated 2" draw-off valve with included perforated strainer speeds portioning and broth clarification.
- Faucet mounting bracket comes standard—add a potable-water fill faucet in minutes (faucet not included).
- NSF certified and designed to meet the latest sanitation standards.
Specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Jacket Coverage | 2/3 jacket (side & bottom) |
| Operating Steam Pressure | 5–30 PSI (34–207 kPa) standard 5–45 PSI (34–310 kPa) optional |
| Steam Connection | 3/4" IPS inlet |
| Condensate Return | 1/2" IPS outlet (steam trap required) |
| Draw-Off Valve | 2" compression-fit, stainless-steel; includes perforated strainer |
| Interior Liner | 316 stainless steel, bead-blasted finish |
| Exterior Construction | 304 stainless steel kettle & pedestal |
| Lid | Spring-assisted, removable SS dome with stay-cool handle |
| Shipping Weight | ≈ 180 lb / 82 kg |
| Overall Height | 62.9" (1 598 mm) |
| Kettle Diameter | 24" (610 mm) |
| Certifications | NSF, UL Sanitation |
Why Choose Crown Direct Steam?
- Fewer moving parts than gas or electric kettles—means lower maintenance and longer life.
- Consistent, even jacket temperatures help eliminate hot spots and improve batch-to-batch repeatability.
- Pedestal mounting minimizes floor space while providing full access for cleaning.
Steam generator/boiler not included. A pressure-reducing valve is required if line pressure exceeds 50 PSI (345 kPa). Installation must be performed by qualified personnel in accordance with local codes.
