Crown (Middleby) DP-20F Steam Kettles
$15,911.50
Unit price
/
Unavailable
Description

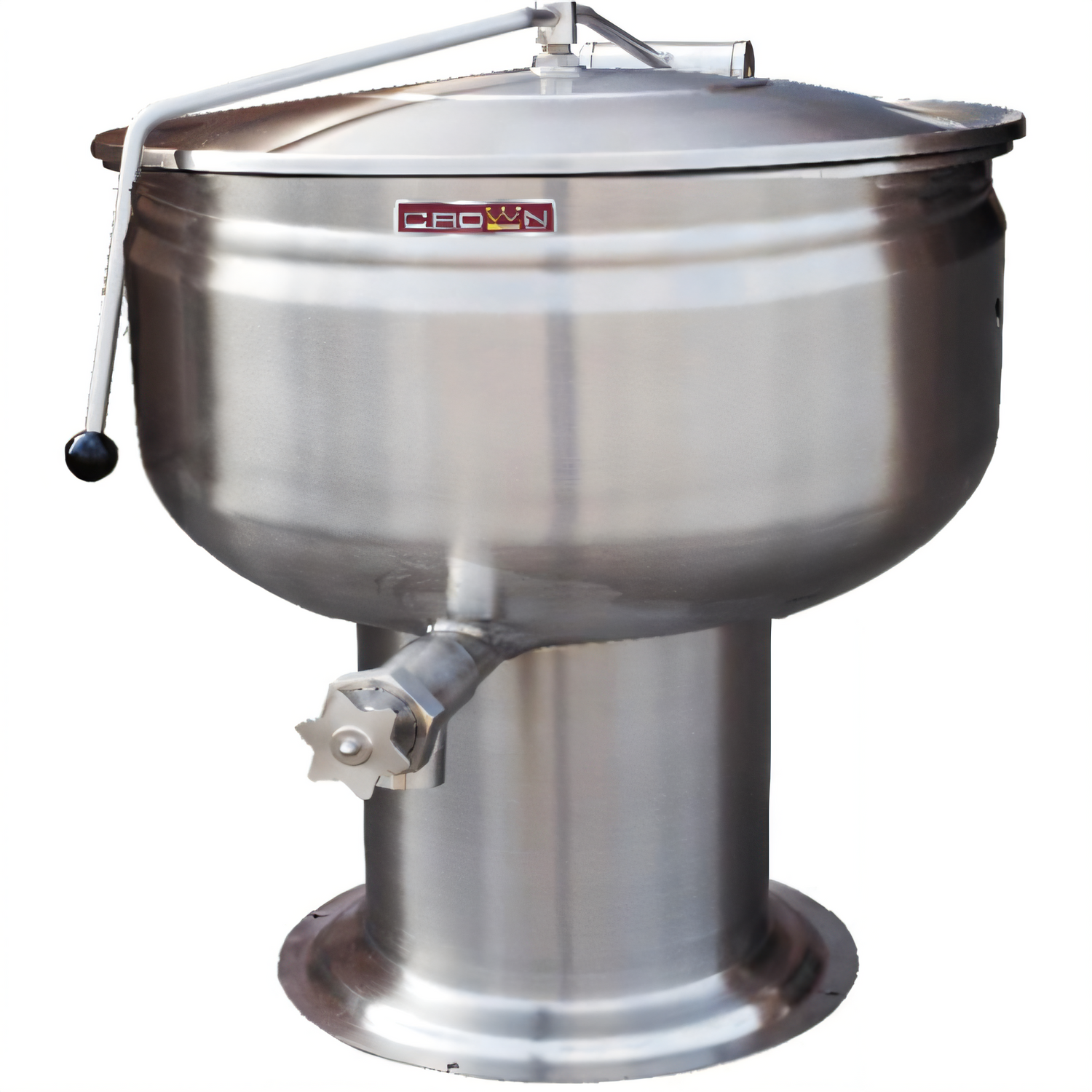

Crown DP-20F | 20-Gallon Direct Steam Stationary Kettle
Full-Jacket Pedestal • 2" Sanitary Draw-Off • NSFGive your high-volume kitchen a durable, high-performance workhorse. The Crown DP-20F connects to an external steam source to deliver fast, even heat across a 20-gallon 316 SS cooking surface—perfect for scratch-made soups, sauces, stocks and pasta. A pedestal base keeps the footprint compact while integrated accessories speed up production and cleanup.
Key Features
- 20 gal (76 L) capacity – ideal for batch cooking & holding.

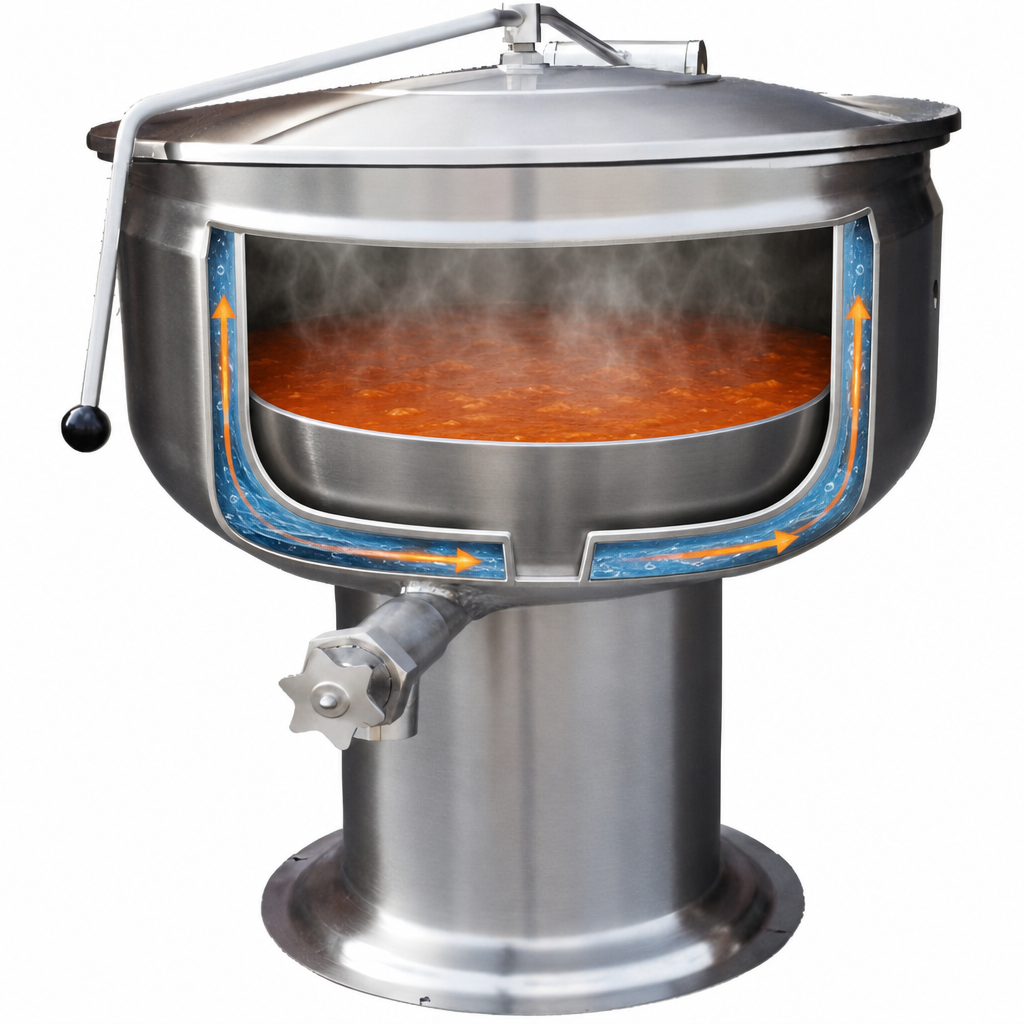

- Full 100 % steam jacket surrounds the kettle for uniform heating.
- 316 stainless steel liner resists corrosion from high-acid foods.
- Satin-finish 304 stainless exterior cleans quickly and looks professional.
- 2" sanitary draw-off valve with perforated strainer for effortless draining & portioning.
- Spring-assisted stainless steel cover reduces operator fatigue and stays open at any angle.
- Hemispherical bottom promotes superior heat circulation & product movement.
- Factory-mounted faucet bracket keeps rinse or fill hose right where you need it.
- Four 7/16" floor-mount holes in the pedestal for rock-solid installation.
- NSF certified; built in North America by Crown Steam Group (a Middleby company).
Technical Specifications
| Model | DP-20F (Stationary Pedestal) |
|---|---|
| Capacity | 20 US gal | 76 L |
| Interior Material | 316 Stainless Steel (food-grade, acid-resistant) |
| Exterior Material | 304 Stainless Steel, satin finish |
| Jacket Type | Full jacket, direct steam |
| Operating Steam Pressure | 5–35 PSI (34–241 kPa) 50 PSI option available |
| Steam Connection | 3/4" IPS |
| Condensate Return | 1/2" IPS |
| Draw-Off Valve | 2" (50 mm) sanitary, with perforated strainer |
| Overall Height | 58" (1473 mm) |
| Overall Width (A) | 26" (660 mm) |
| Overall Depth (C) | 30.25" (768 mm) |
| Shipping Weight | 175 lb (79 kg) |
| Required Clearances | Sides – 3" (76 mm) Back – 0.5" (13 mm) |
| Certifications | NSF Listed |
| Warranty | 1-year parts & labor + 10-year hemisphere kettle warranty |
Utilities & Installation
- Requires direct steam supply (external boiler or central steam) at specified pressure.
- Floor mounting hardware not included.
- For optimal performance, use treated water that meets Crown Steam water-quality standards.
Included Accessories
- Perforated draw-off strainer
- Spring-assisted stainless steel cover
- Faucet / hose bracket
Popular Options & Upgrades (sold separately)
- 50 PSI high-pressure jacket (HP-50) for higher cooking temperatures
- 3" draw-off valve (TVS-3)
- Triple basket assembly (TBA-)
- Graduated content measuring strip (CMS-)
- Steam trap assembly (STA-1)
- Kettle heat shield (KHS-)

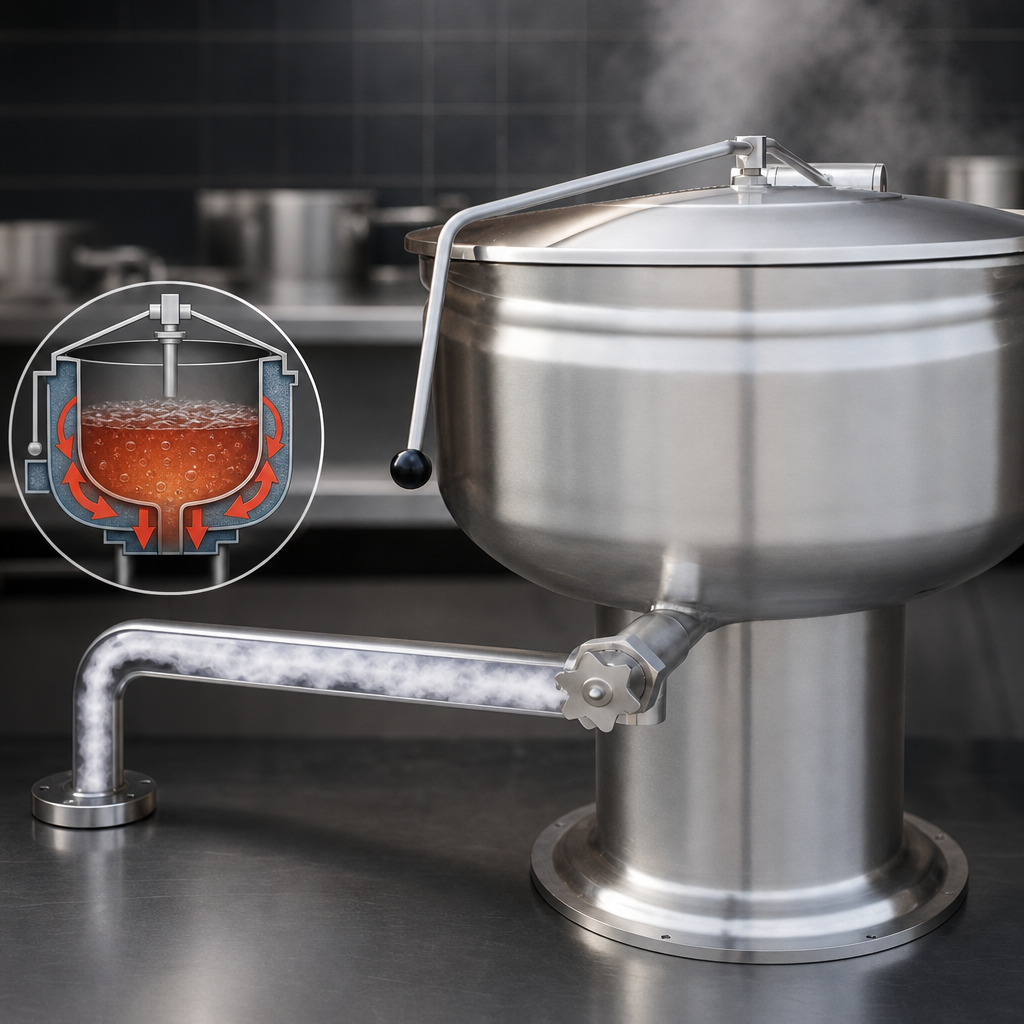

Important: The DP-20F is a direct-steam kettle.
It will not heat without an external steam source delivering 5–35 PSI of clean, dry steam.
Verify your facility’s boiler capacity and connection sizes before ordering.
Intended for commercial use only. Not for household installation.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF
Height
37.0in
Width
22.75in
Depth
28.75in
Shipping Weight
175.0lbs
Base
pedestal base
Capacity
18 - 26 gallon
Kettle Jacket
full jacket
Kettle Liner
316 stainless steel
Specifications
Stationary Kettle, direct steam, 20 gallon capacity, full jacket, 2" draw-off, includes: perforated strainer, spring assisted stainless steel cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel construction, pedestal, NSF
