Crown (Middleby) DMT-60 Steam Kettles

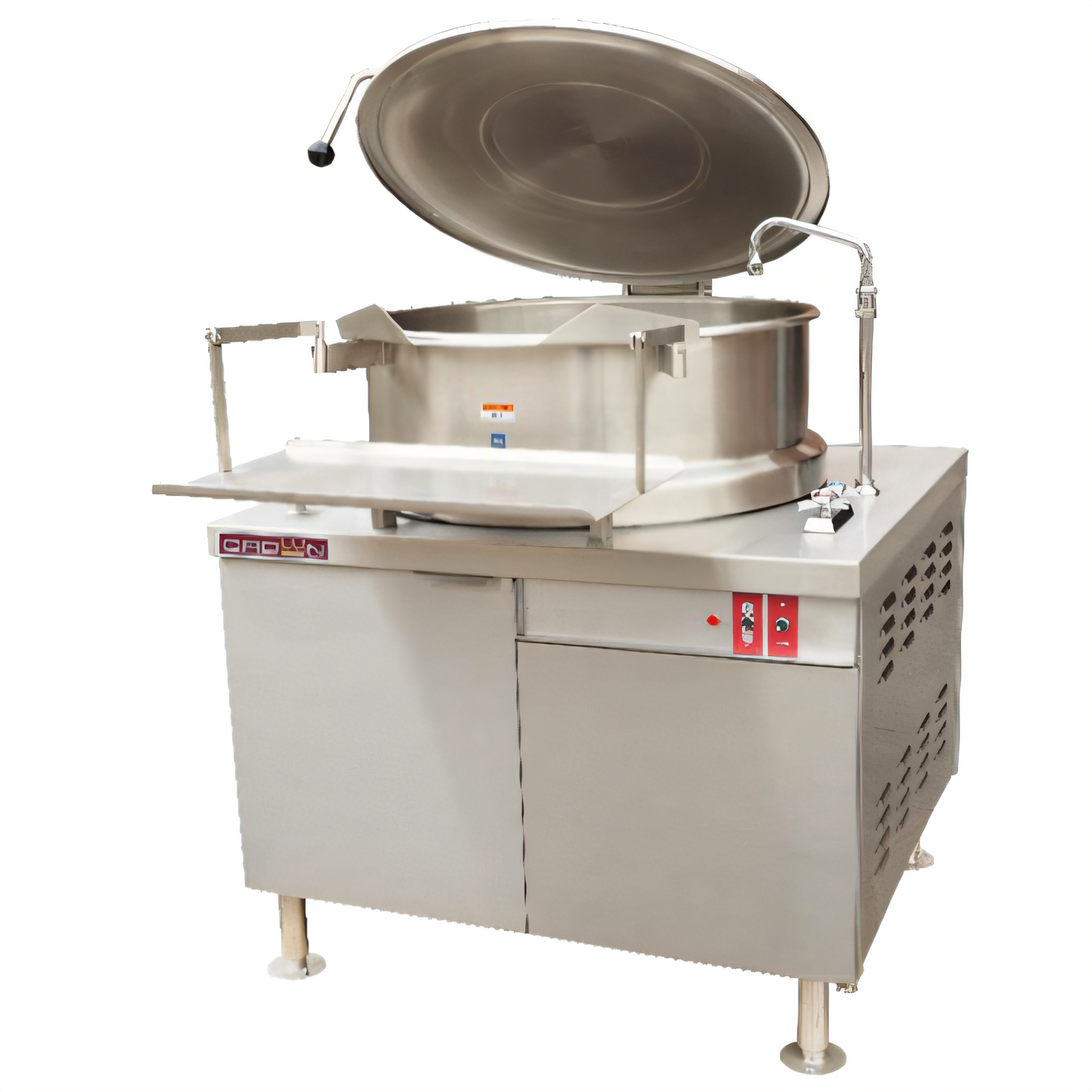

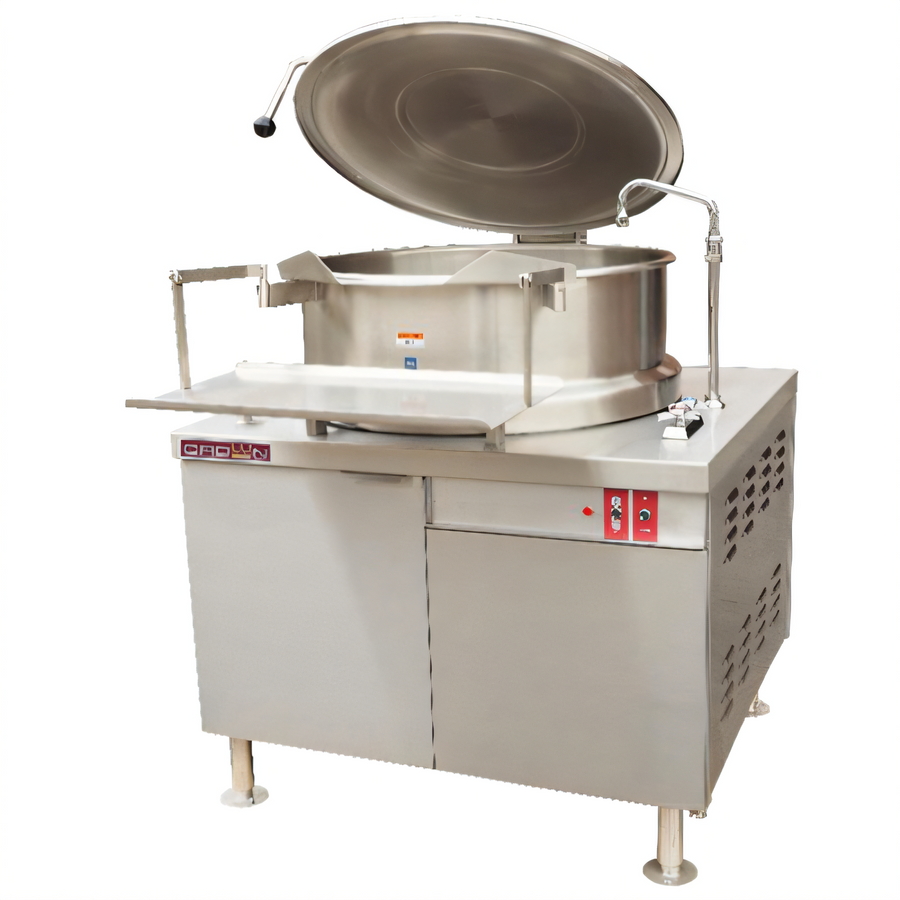

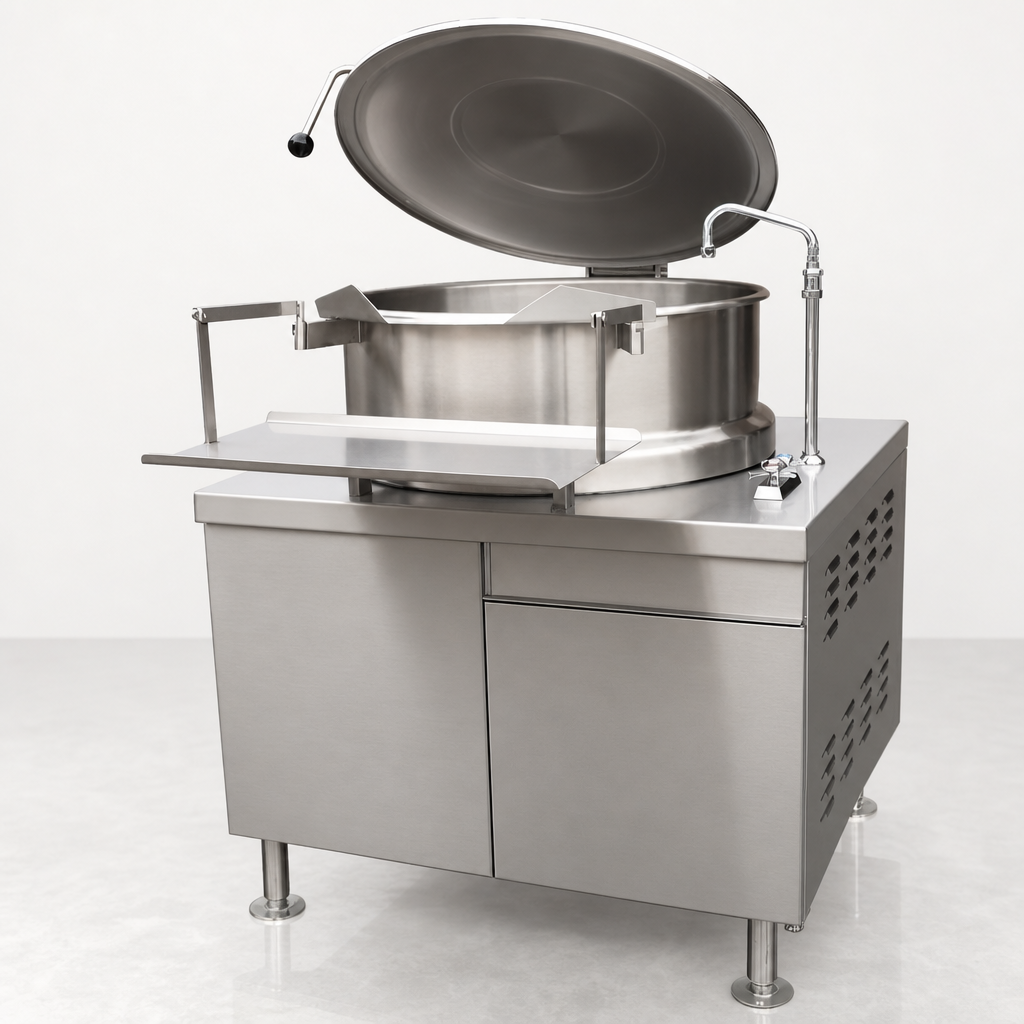

Crown DMT-60 60 Gallon Direct-Steam Tilting Kettle

Engineered for high-volume, high-acid production, the Crown DMT-60 delivers 60 gallons of consistent, even heat with the speed and efficiency of your facility’s direct-steam supply. A powerful ½ HP hydraulic system tilts the kettle smoothly for safe, controlled portioning, while a rugged 316 stainless interior and full stainless cabinet withstand years of daily use.

Key Performance Benefits

• 2/3-jacket design surrounds product with gentle, uniform heat for faster cook times and reduced scorching
• 316 SS hemisphere bottom promotes superior heat circulation and stands up to acidic recipes like tomato sauce, fruit fillings & condiments
• Hydraulic power tilt stops at any angle for exact portion control and complete emptying
• One-piece spring-assisted cover keeps steam and flavor locked in while remaining easy to lift with one hand
• 2 in. tangent draw-off valve with removable TPS-2 perforated strainer speeds portioning and filtration
• Deck-mounted hot/cold faucet (DMF) lets you fill or rinse right in the kettle—no trips to the sink
• Swing drain funnels waste safely to a floor drain; removes tool-free for cleaning

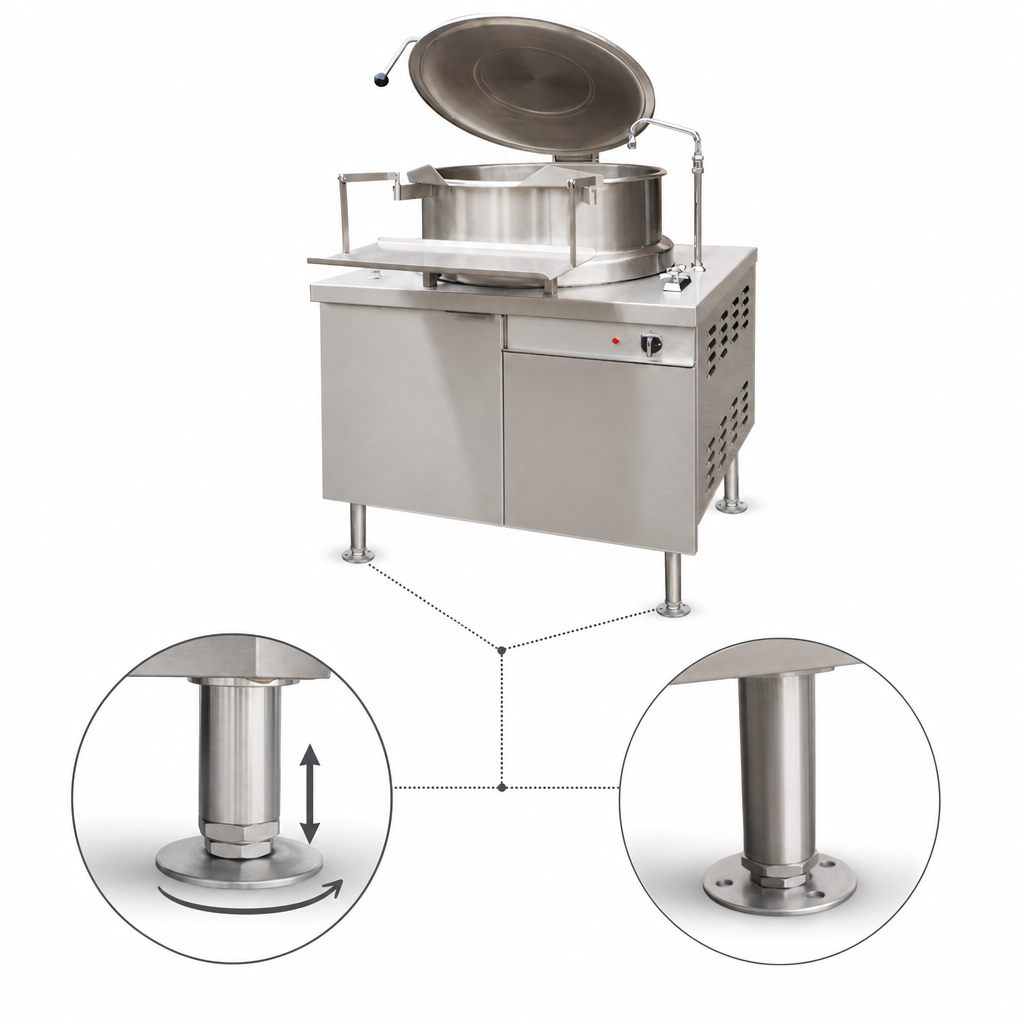

• 6 in. stainless legs with adjustable flanged feet bolt securely to the floor for rock-solid stability

Included Accessories

• TPS-2 perforated strainer for 2 in. draw-off
• Pan carrier keeps a 12 × 20 × 2.5 in. pan perfectly level through the entire tilt arc
• Steam control valve & steam trap
• Safety relief valve (ASME)

Technical Specifications

Ideal Applications

• Soups, stocks & sauces
• Chili, stews & curries
• Pasta, rice & grain cook-offs
• Custards, puddings & fruit compotes
• High-acid preparations such as tomato or BBQ sauce

10-year hemisphere weld warranty on the kettle body; 1-year parts & labor on remaining components.
Intended for commercial use only.
