Crown (Middleby) DMT-6 Steam Kettles
$13,924.50
Unit price
/
Unavailable
Description
Crown DMT-6 Direct-Steam Tilting Kettle on 24" Cabinet Base
6 gal (23 L) • 316 Stainless Liner • Built-In Rinse Sink & FaucetTake the guess-work out of small-batch production. Crown’s DMT-6 combines a 6-gallon hemispherical tilting kettle, a 3" deep rinse sink with splash-guard, and a rock-solid 24" cabinet base into one space-saving, steam-powered workstation that’s ready for soups, sauces, custards and more.
Why You’ll Love It

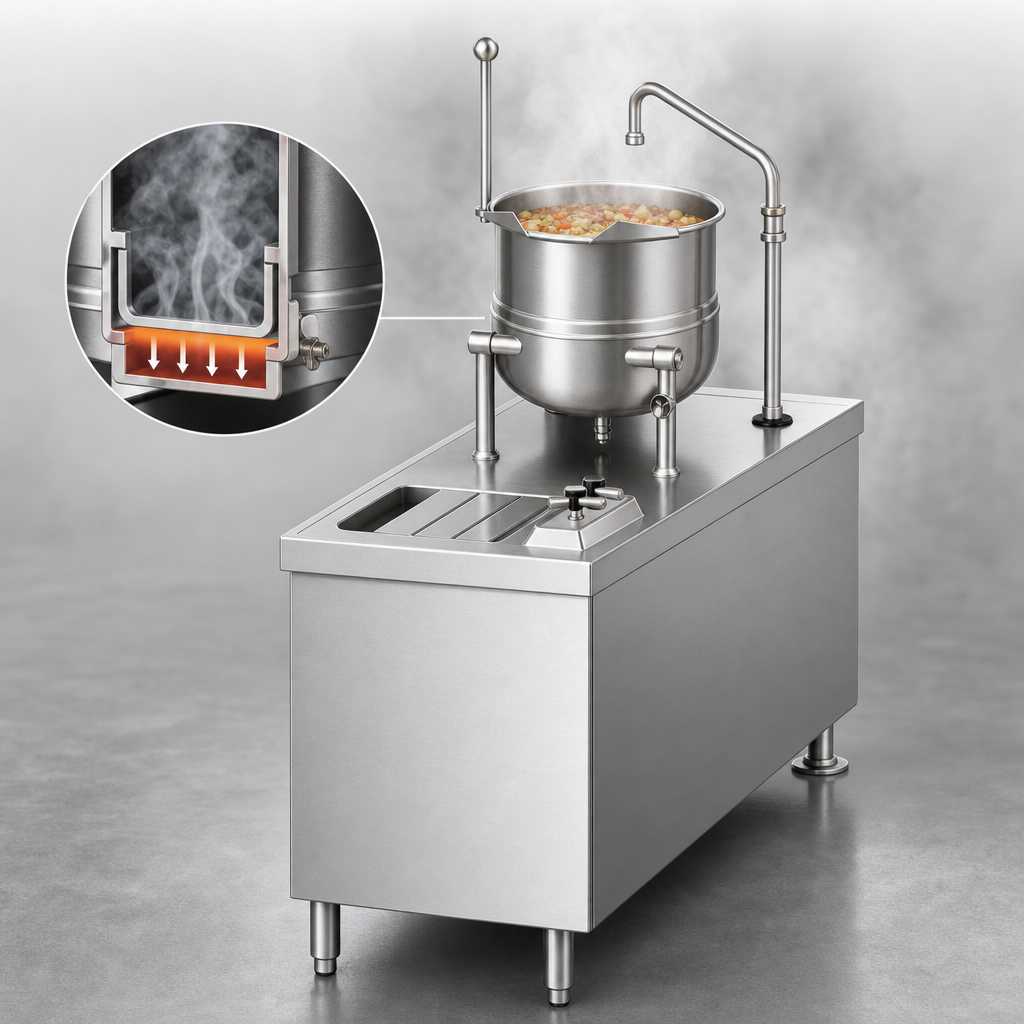

- Direct-connected steam jacket (5–45 psi) for lightning-fast heat up & recovery.
- Type 316 stainless kettle liner resists acidic foods better than 304 SS.
- Reversible, stay-cool tilt handle — effortless 90° pour from either side.
- Deck-mount hot & cold fill faucet with 12" riser reaches both kettle and sink.
- Integrated 3" deep stainless rinse sink with rear splash-guard & drain.
- Full #4-finish stainless cabinet with hinged door for tool storage & concealed plumbing.
- 6" stainless legs with adjustable flanged feet for code-compliant floor mounting.
- NSF listed, ASME coded & National Board registered.
At-a-Glance Specs
| Model | DMT-6 |
|---|---|
| Kettle Capacity | 6 gal / 23 L |
| Steam Pressure Range | 5 – 45 psi (34 – 310 kPa) |
| Boiler HP Required | 0.25 BHP |
| Liner Material | 316 Stainless Steel |
| Cabinet Width | 24" (610 mm) |
| Sink | 3" (76 mm) deep, stainless, with drain & splash-guard |
| Water Connections | 3/8" OD hot & cold (NSF-61) |
| Steam Connection | 3/4" IPS supply, 1/2" IPS condensate return |
| Clearance Requirements | 0" sides / 0" back |
| Shipping Weight | 225 lb (102 kg) |
| Certifications | NSF, ASME, NB, CSA |
Popular Factory Options (Add-On)
- Etched gallon or litre markings
- One-piece stainless lift-off cover
- Lift-out perforated basket or pour-lip strainer
- Stainless back panel or frame upgrades
- Pressure-reducing valve (for incoming steam >45 psi)
Commercial Use Only: This equipment is engineered for professional kitchens. Water quality must meet Crown’s published limits (TDS ≤ 60 ppm, hardness ≤ 35 ppm, pH 6.8-7.3). Failure to comply may void warranty.
Covered by Crown’s 1-Year parts & labor warranty + 10-Year hemisphere weld warranty on the kettle body.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF
Height
62.13in
Width
24.0in
Depth
33.0in
Shipping Weight
225.0lbs
Kettles
(1) 6 gallon
Kettle Liner
stainless steel
Base
24" wide cabinet
Specifications
Kettle/Cabinet Assembly, direct steam, (1) 6 gallon tilting kettle, reversible tilt handle, 24" cabinet base, 316 stainless steel liner, deck mount hot & cold fill faucet, 3" deep stainless steel sink with splash guard, stainless steel construction, 6" stainless steel legs with adjustable flanged feet, NSF
