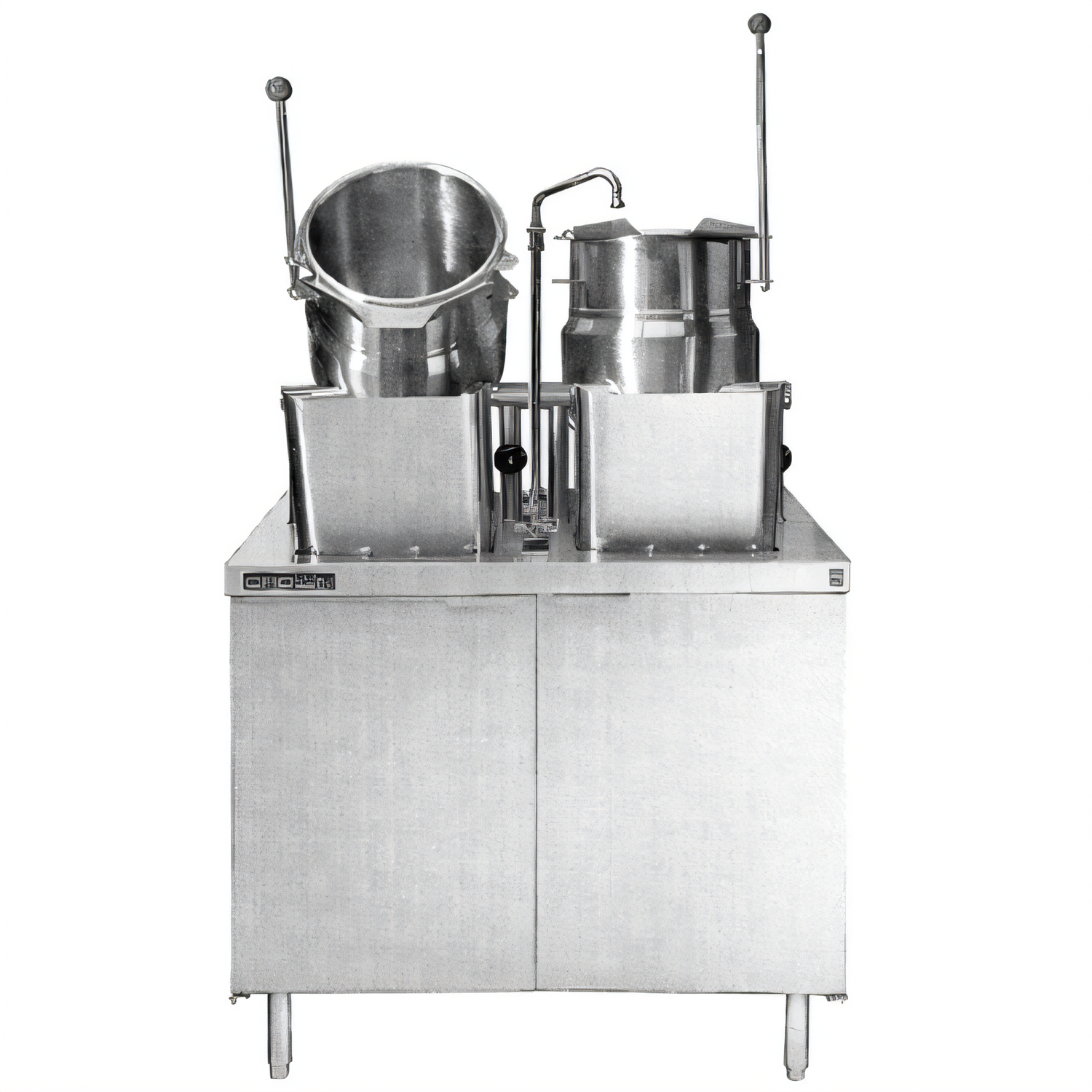

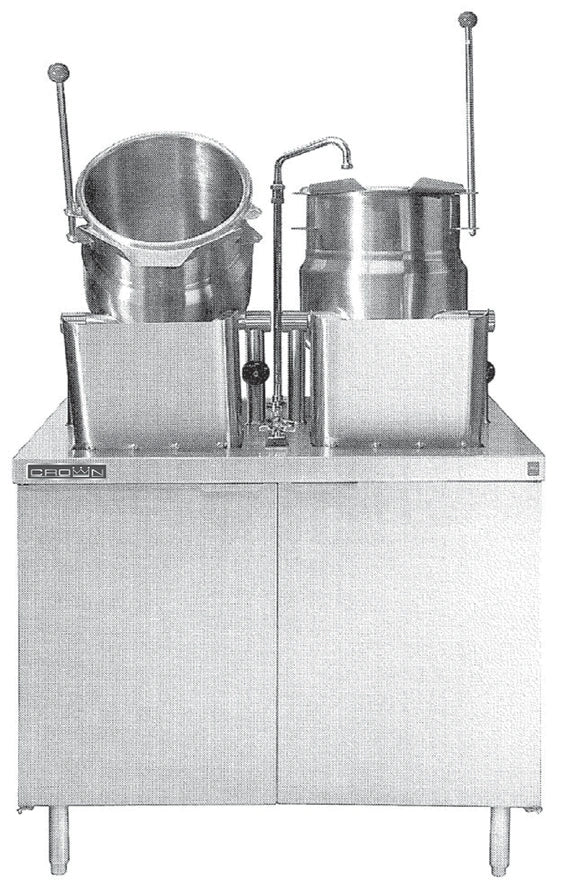

Crown DMT-6-6 Direct Steam Kettle with (2) 6 Gallon Tilting Kettles on 36-Inch Cabinet Base
Crown DMT-6-6 Direct Steam Kettle with (2) 6 Gallon Tilting Kettles on 36-Inch Cabinet Base
Two 6 Gallon Kettles, Direct Steam Operation, 316 Stainless Steel Liner
Efficiently prepare large batches of high-acid foods with this durable direct steam kettle assembly, featuring two tilting 6-gallon kettles on a versatile cabinet base.
- Equipped with two 6-gallon direct steam tilting kettles for versatile cooking.
- Kettles feature a 316 stainless steel liner, ideal for high-acid food products.
- Mounted on a robust 36-inch stainless steel cabinet base with hinged doors and magnetic latches.
- Includes a hot and cold water faucet and a 3-inch deep sink with splash guard for convenience.
- ASME code stamped kettles and concealed plumbing ensure safety and compliance.
- Tilts past 90 degrees for complete emptying and easy cleaning.

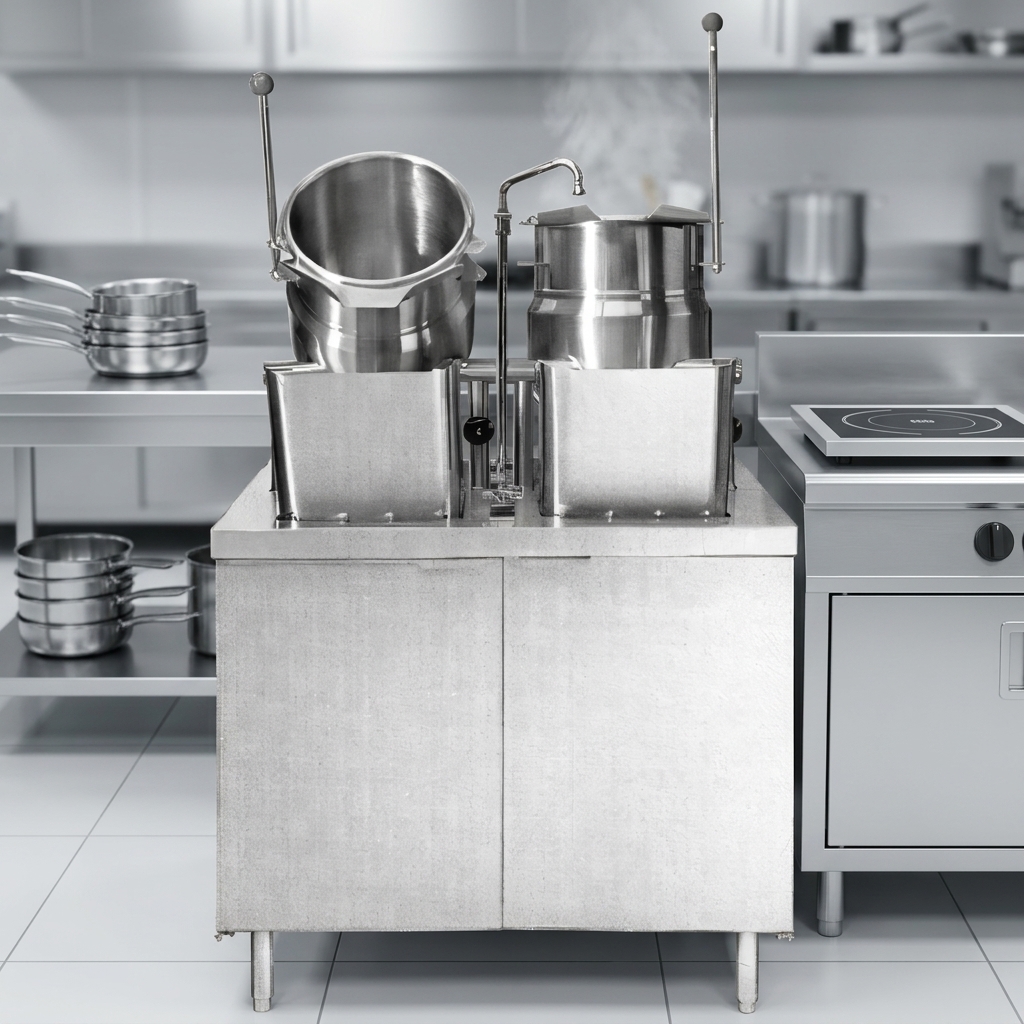

Twin 6-Gallon Tilting Kettles
Two direct steam tilting kettles, each with a 6-gallon capacity, allow for simultaneous preparation of different dishes or larger batches.

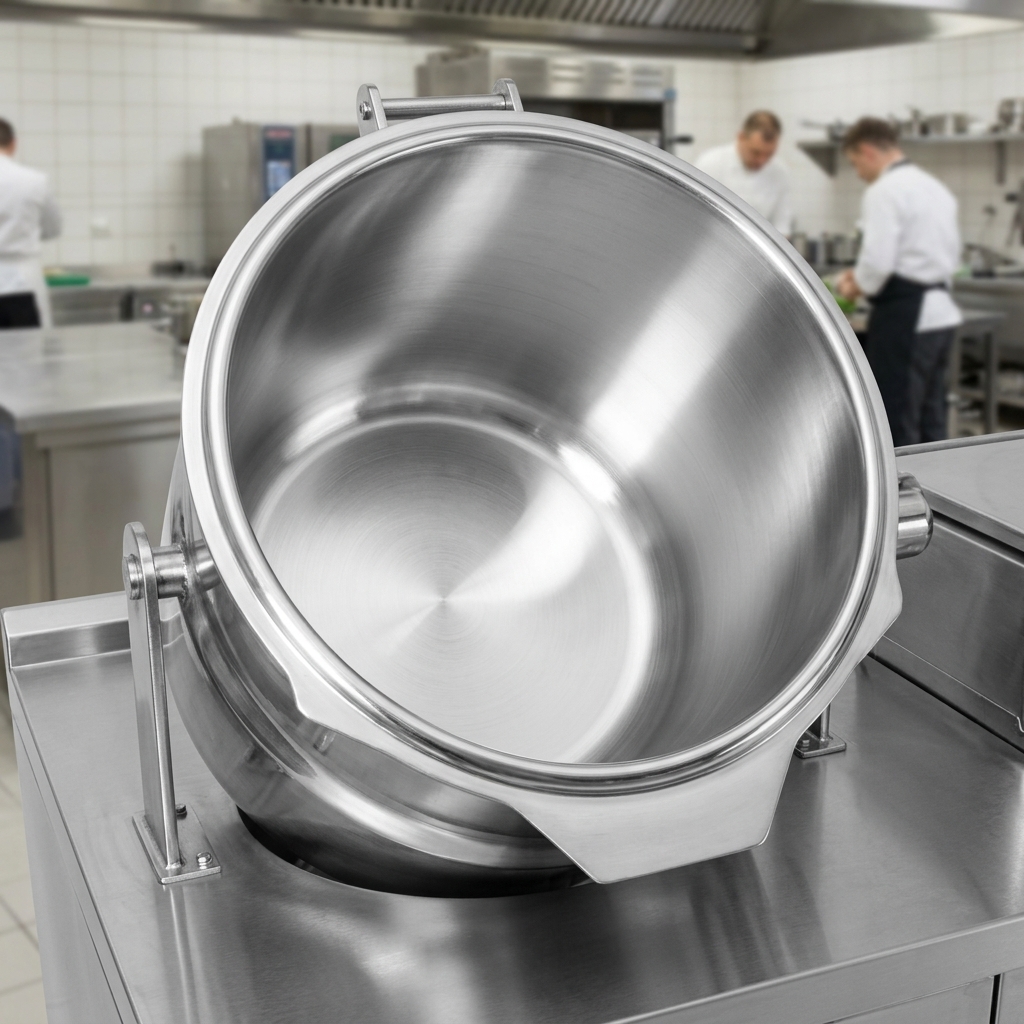

316 Stainless Steel Kettle Liner
Each kettle features a durable 316 stainless steel liner, specially designed to withstand high-acid content products.

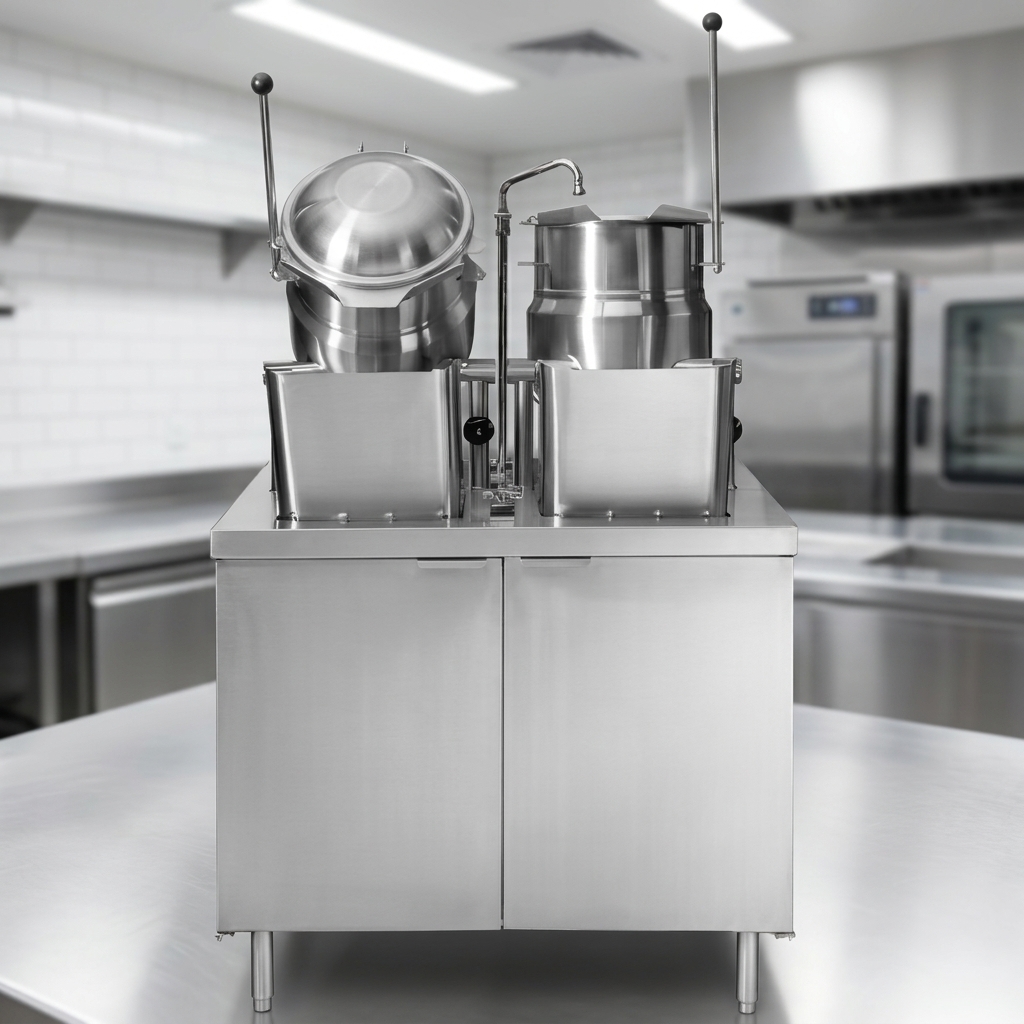

ASME Code Stamped Kettles
Each kettle is ASME code stamped and National Board registered, ensuring high standards of safety and quality.
Hemispherical Kettle Design
The kettle's hemispherical bottom promotes superior heat circulation for even and efficient cooking.
90°+ Tilting Mechanism
Kettles can be tilted forward past 90 degrees, allowing for complete emptying and making cleanup simple and efficient.
Steam Control Valve
A steam control valve is conveniently fitted in the right leg of each kettle for precise temperature management.
Heat Resistant Tilt Knob
Each kettle is fitted with a tilt handle and a heat resistant knob for safe and comfortable operation.
Integrated Cabinet Base
A 36-inch cabinet base with a #4 finish stainless steel exterior, removable side panels, and hinged doors with magnetic latches provides sturdy support and convenient storage.
Hot and Cold Water Faucet
Equipped with a hot and cold water faucet with control valves, making it easy to fill kettles or use the integrated sink.
3-Inch Deep Sink with Splash Guard
A functional 3-inch deep sink with a drain and splash guard is integrated into the cabinet counter, perfect for quick rinses and maintaining a clean workspace.
Concealed Plumbing
The cabinet houses concealed plumbing, including a steam supply manifold with a safety relief valve, a condensate return manifold, and a steam trap for each kettle.
6-Inch Stainless Steel Legs
Supported by 6-inch stainless steel legs with adjustable flanged feet, allowing for secure floor mounting and easy leveling.
Specifications
| Type | Direct Steam Tilting Kettle Assembly |
|---|---|
| Style | Cabinet Base |
| Installation Type | Floor Model (With Cabinet Base) |
| Kettle Capacity | 6 Gallons (Each) |
| Compartments | 2 |
| Interior Finish | 316 Stainless Steel |
| Material | Stainless Steel |
| Finish | No. 4 Stainless Steel |
| Cabinet Width | 36 Inches |
| Controls | Manual Steam Control Valve |
| Heating Method | Direct Steam |
| Steam Pressure Range | 5-45 PSI |
| Steam Supply Connection Size | 3/4 Inch IPS |
| Condensate Return Connection Size | 1/2 Inch IPS |
| Cold Water Connection Size | 1/2 Inch NPT (to faucet) |
| Faucet Cold Water Connection Size | 3/8 Inch OD |
| Faucet Hot Water Connection Size | 3/8 Inch OD |
| Sink Drain Connection Size | 1-1/8 Inch OD |
| Water Connection | Required |
| Drain Connection | Required |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
| Shipping Weight | 350 lb. |
| Shipping Width | 36 Inches |
| Shipping Depth | 33 Inches |
| Shipping Height | 63 Inches |
Overall Dimensions:
36.0"W x 33.0"D x 62.13"HProduct Weight:
350.0 lbCertifications & Compliance
Warranty & Protection
Warranty not explicitly detailed in provided documents.
