Crown (Middleby) DMT-40 Steam Kettles
Description

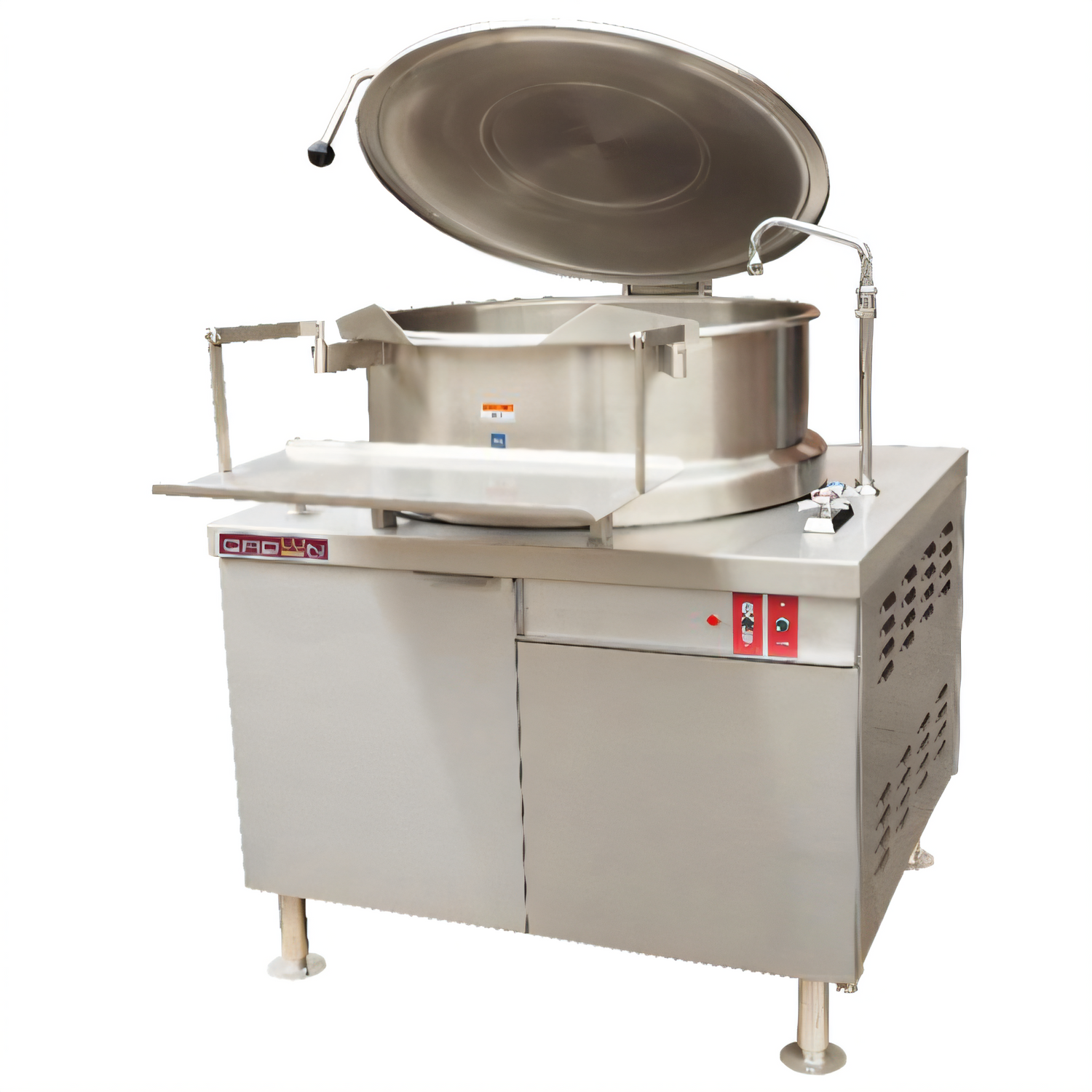

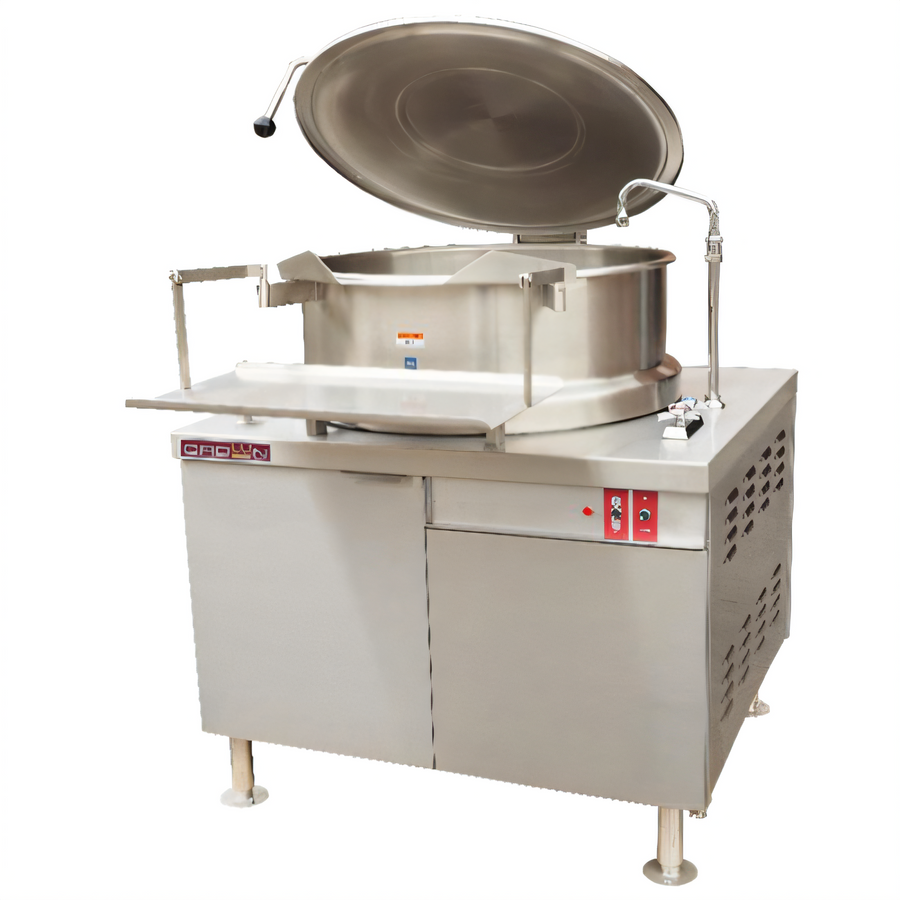

Crown DMT-40 Direct-Steam Tilting Kettle
40 Gallon • 2/3 Jacket • Hydraulic Power TiltEngineered for high-volume production kitchens, the Crown DMT-40 delivers fast, even, direct-steam cooking with smooth hydraulic tilting and a corrosion-resistant 316 stainless-steel liner—ideal for simmering, boiling or finishing everything from stocks to sauces to chili.
Key Advantages
- 40 gal (151 L) capacity—yields 300+ eight-ounce servings per batch.

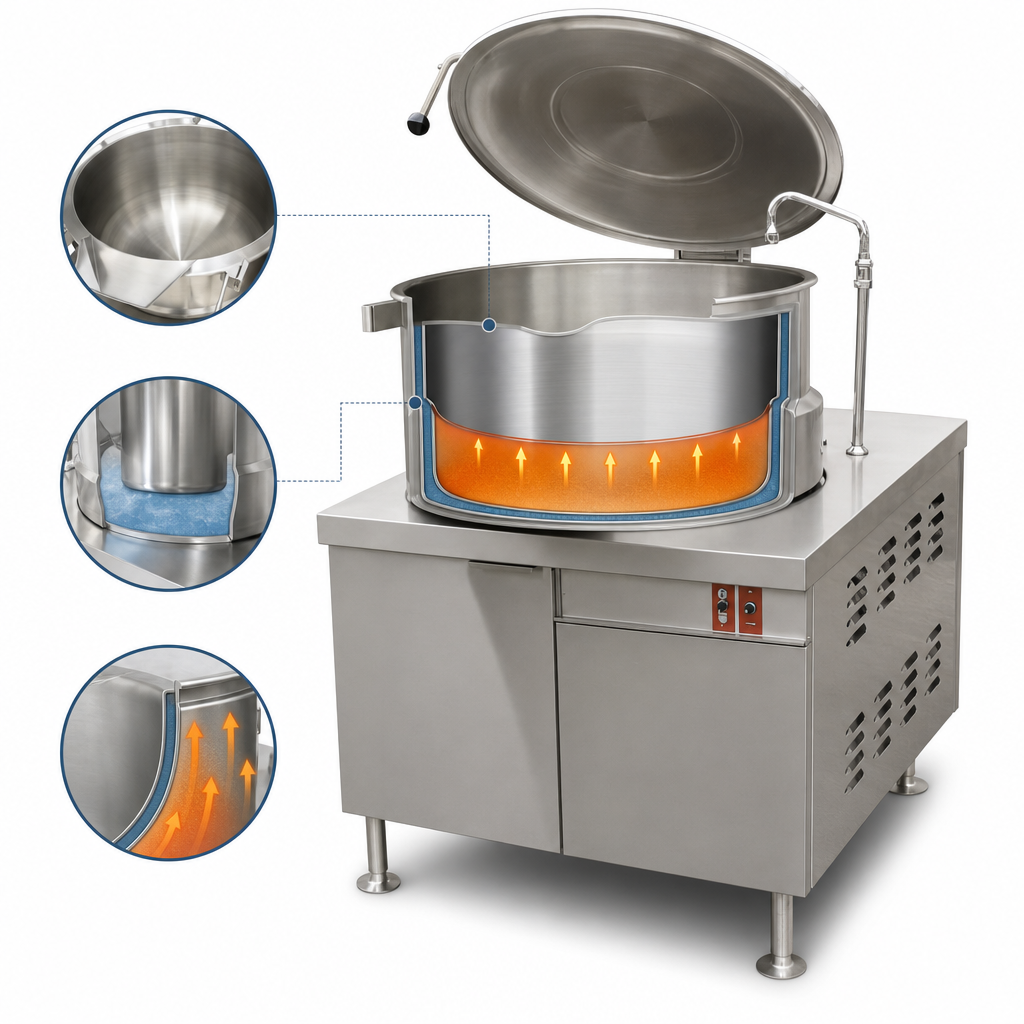

- 2/3-jacketed design surrounds food with uniform heat for quicker turnaround.
- ½ HP hydraulic power tilt lets you pour smoothly and stop at any angle for precise portion control.

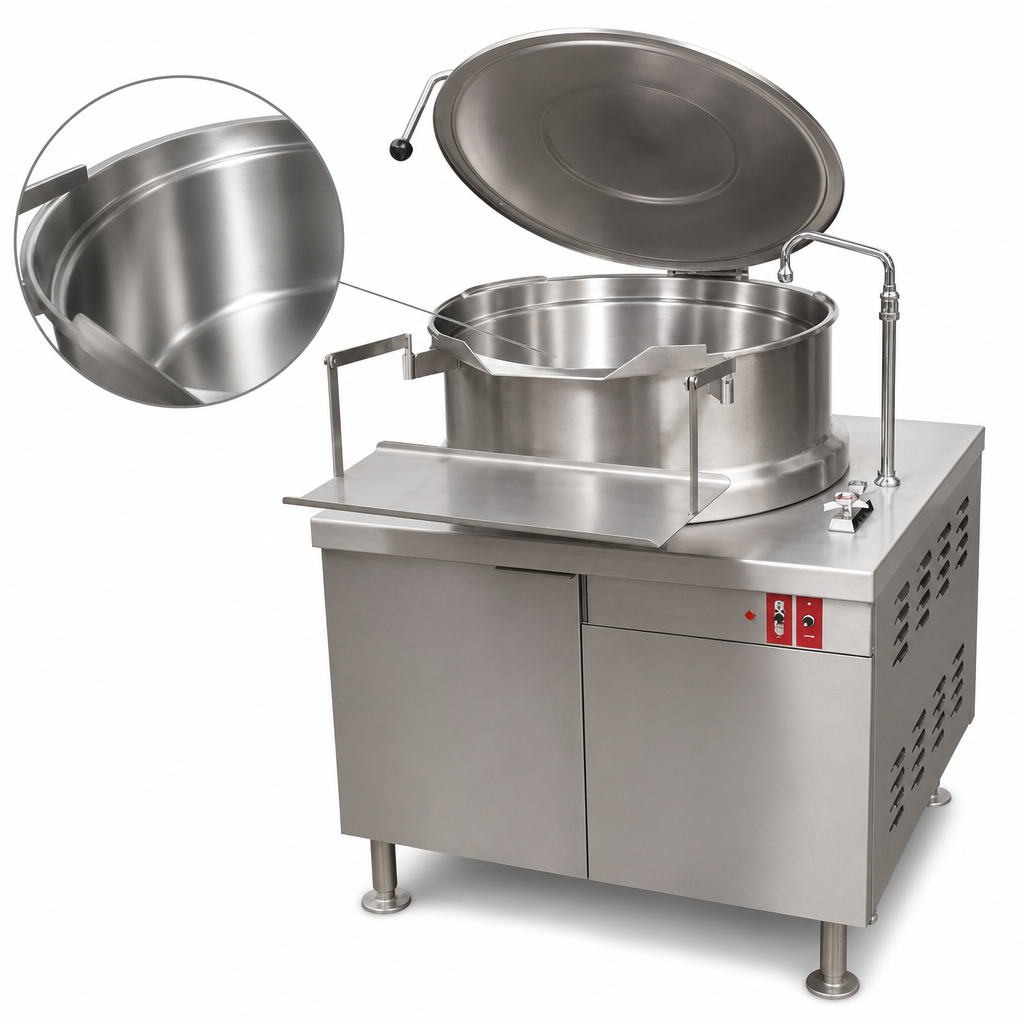

- 316 stainless-steel interior handles acidic recipes without pitting or flavor transfer.
- One-piece, spring-assisted stainless cover reduces operator fatigue and retains heat.
- 2" tangent draw-off valve with TPS-2 perforated strainer—perfect for clear broths or chunk-free sauces.
- Swing-away drain funnel catches drips; removes without tools for cleaning.
- Deck-mounted hot/cold fill faucet (DMF) for convenient water top-ups.
- Included pan carrier keeps a 12" × 20" × 2½" hotel pan level while tilting.
- All-stainless cabinet base #4 finish on 6" adjustable flanged legs—built to bolt down and last.
- Factory-installed steam control valve & steam trap for precise regulation and efficiency.
- cCSAus & NSF certified; ASME code-stamped and National Board registered.
Technical Specifications
| Model | DMT-40 |
|---|---|
| Capacity | 40 gal / 151 L |
| Interior Material | 316 stainless steel |
| Jacket Coverage | Lower 2/3 of kettle |
| Heat Source | Direct external steam, 5–30 psi (34–207 kPa) |
| Tilt Mechanism | Hydraulic, ½ HP motor |
| Draw-off Valve | 2" sanitary w/ perforated strainer & swing drain |
| Fill Faucet | Deck-mount, hot & cold (DMF) |
| Legs / Base | 6" stainless legs with adjustable flanged feet |
| Electrical (tilt) | 115 V, 1 ph, 60 Hz, 10 A, ½" conduit |
| Utility Connections | Steam ¾" IPS | Water ⅜" OD | Drain 1 ⅝" OD |
| Overall Dimensions | 26" W × 36" D × 68.25" H (cover open) |
| Shipping Weight | Approx. 525 lb / 238 kg |
| Warranty | 1-year parts & labor • 10-year hemisphere welds |
Built to Perform, Built to Last
- Manufactured in North America by Crown Steam Group, a Middleby brand with decades of steam expertise.
- Rugged 316 SS liner outlasts 304 steel in acidic cooking applications.
- Full cabinet protects plumbing & controls, simplifying daily clean-up.
- Ergonomic design reduces operator strain and boosts kitchen productivity.
