Crown (Middleby) DMT-10 Steam Kettles
Description

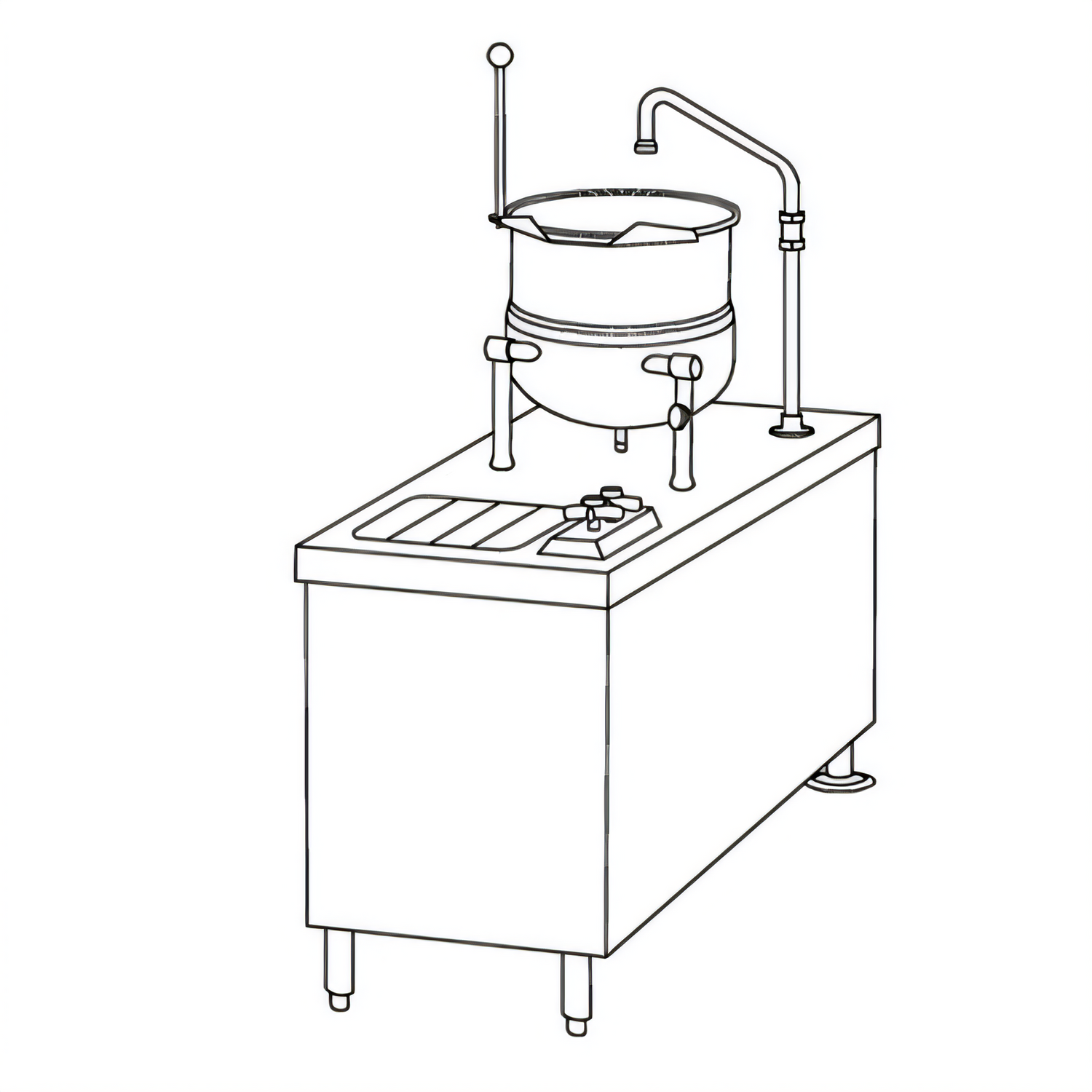

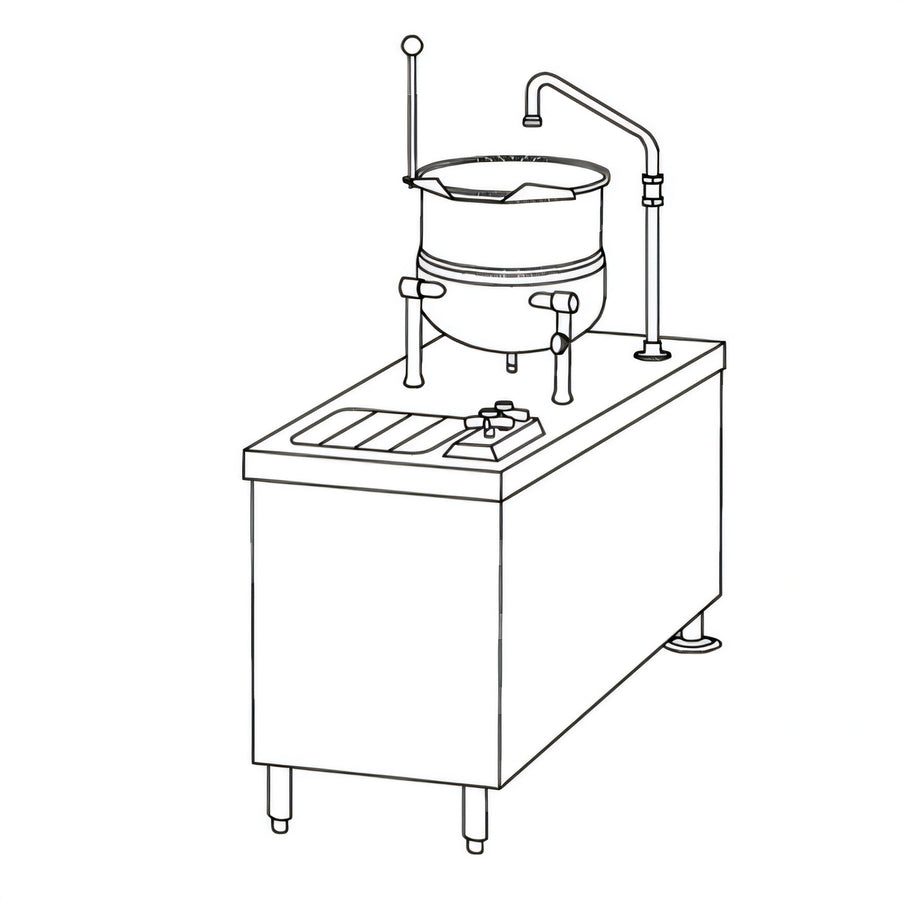

Crown DMT-10 Direct-Steam Tilting Kettle on 24″ Cabinet Base – 10 gal
Single-kettle workstation with sink, faucet & reversible tilt handleEngineered for high-volume, high-acid cooking, the Crown DMT-10 pairs a 10-gallon 316 stainless-steel tilting kettle with a compact 24 inch cabinet base. A built-in hand-sink, deck-mount hot & cold fill faucet, and concealed steam/condensate plumbing create a self-contained station that speeds production while keeping your cookline clean and safe.
Why You’ll Love It
- 10 gal (38 L) hemispherical kettle jacketed over the lower ⅔ for rapid, even heating.

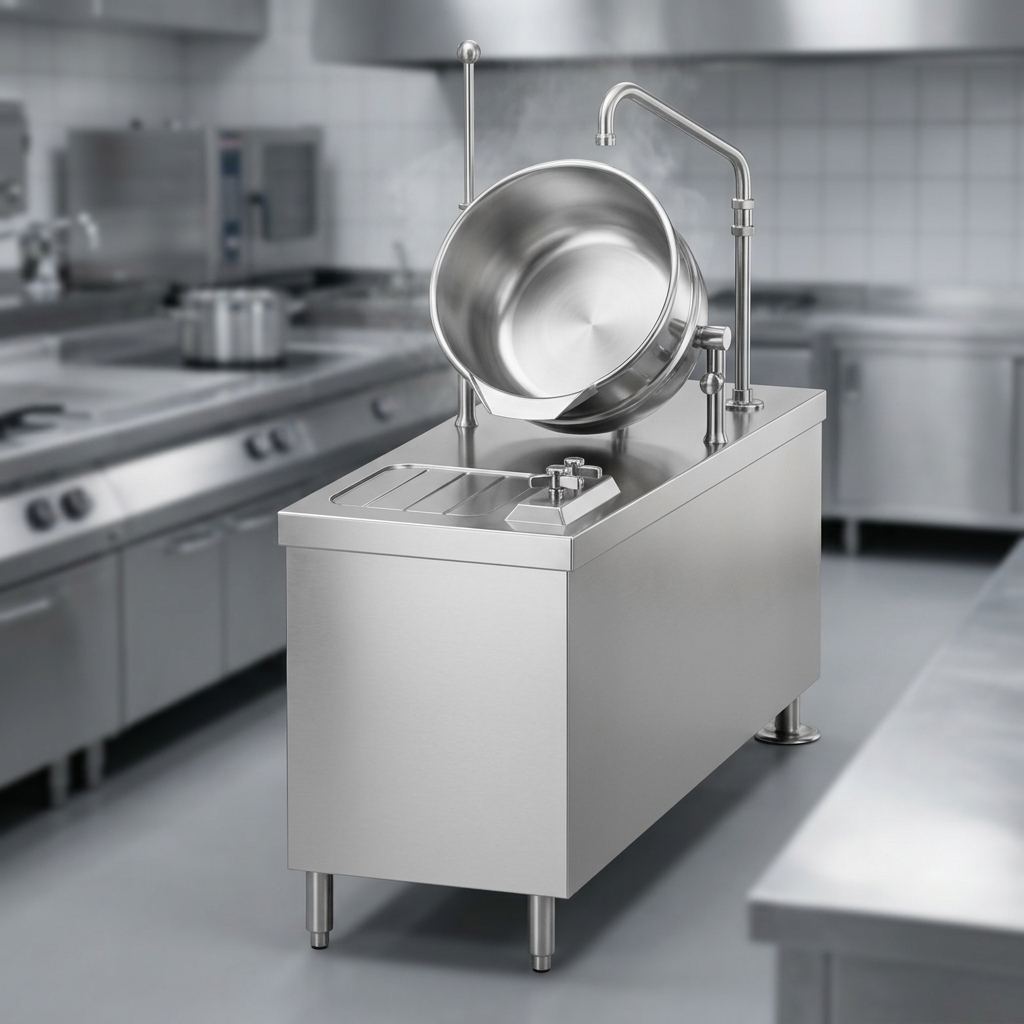

- Type 316 stainless-steel liner—ideal for tomato-based sauces and other acidic recipes.

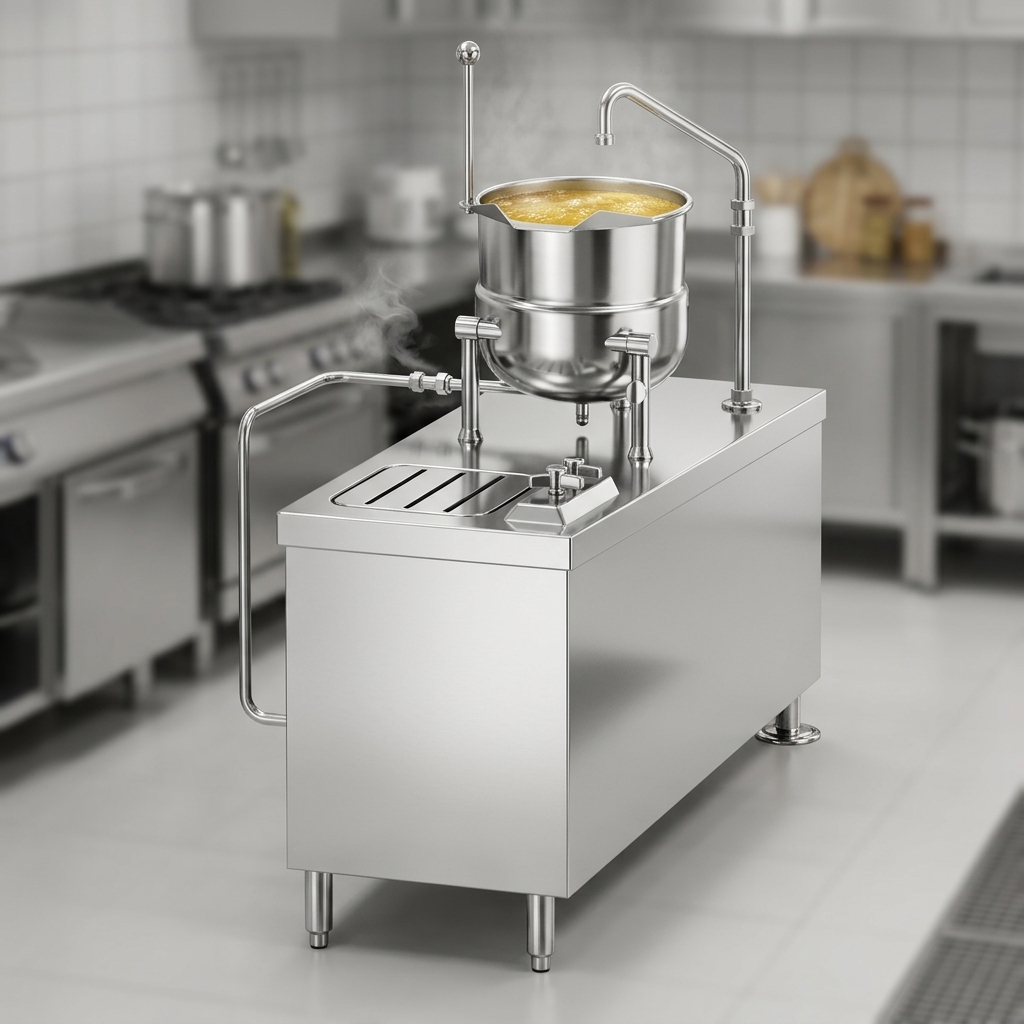

- Direct steam operation, 5–45 psi (34–310 kPa); only ¼ BHP required.

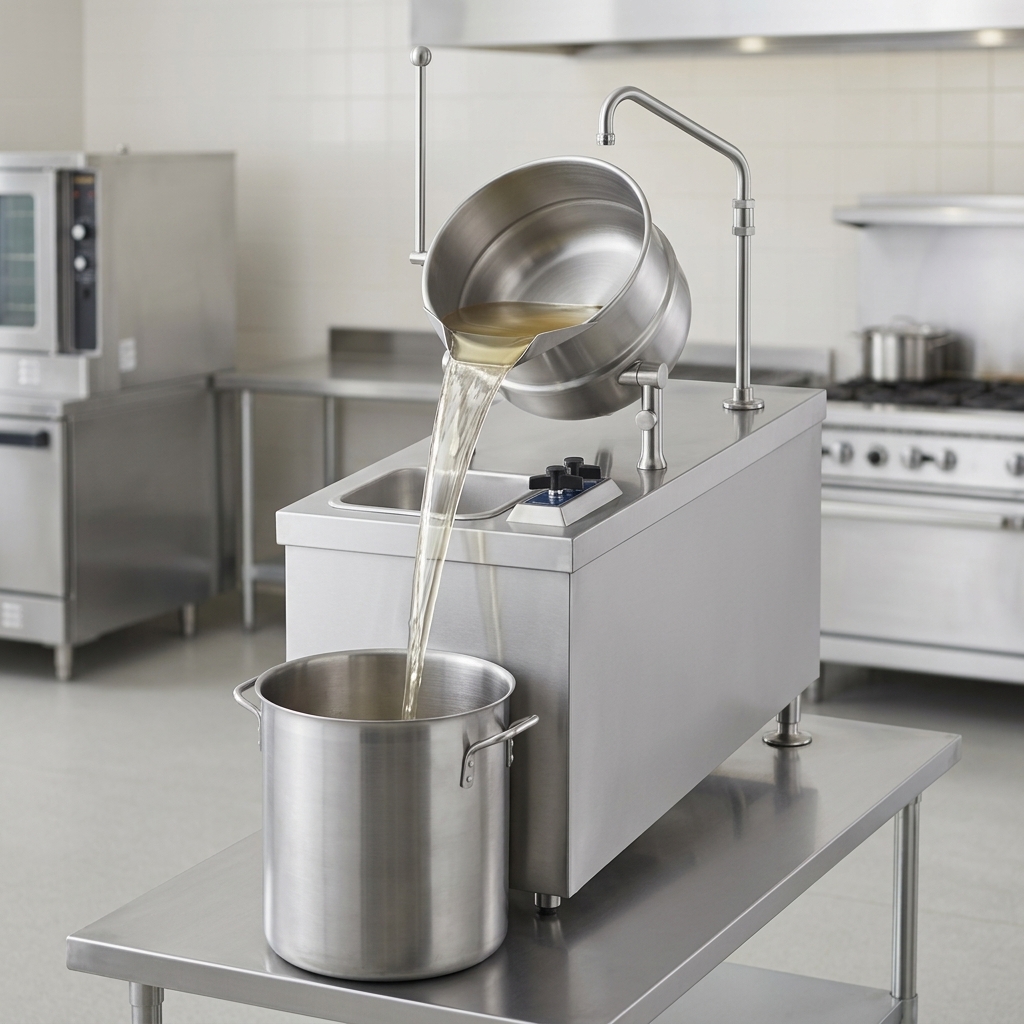

- Reversible, stay-cool tilt handle lets left- or right-handed staff pour with confidence; kettle locks upright and tilts up to 90° for complete emptying.
- Integrated 3″ (76 mm) deep stainless-steel sink with splash guard for safe filling, sampling or rinsing.
- Deck-mount mixing faucet (NSF-61) with swing spout and separate hot/cold valves for on-demand water.
- Modular 24″ cabinet base with full perimeter angle frame, reinforced countertop and hinged access door.
- Concealed manifolds with factory-installed steam control valve, safety relief valve & steam trap.
- 6″ stainless legs with adjustable flanged feet—bolt it to the floor for rock-solid stability.
- All #4 finish stainless exterior cleans fast and matches other Crown cookline equipment.
- NSF listed, ASME code stamped & National Board registered.
Specifications
| Model | DMT-10 (24″ cabinet) |
|---|---|
| Capacity | 10 gal / 38 L |
| Operation | Direct steam, 5–45 psi (34–310 kPa) |
| Kettle Interior | 316 SS, hemispherical bottom |
| Cabinet Footprint (W × D) | 24″ × 28.13″ (610 × 714 mm) |
| Steam Supply | ¾″ IPS |
| Condensate Return | ½″ IPS |
| Water Inlets | ⅜″ OD tubing (hot & cold) |
| Sink Drain | 1 ⅛″ OD tubing |
| Shipping Weight | 245 lb / 111 kg |
| Clearance Required | 0″ sides & back |
Popular Options & Accessories (sold separately)
- Etched gallon or litre markings
- One-piece lift-off cover
- Pour-lip strainer or perforated basket insert
- Stainless back panel or frame upgrade
- Pressure-reducing valve, ball float steam trap & correctional packages
Standard warranty: 1 year parts & labor plus 10-year hemisphere warranty on the kettle shell. Intended for commercial use only.
