Crown (Middleby) DMT-10-10 Steam Kettles
Description

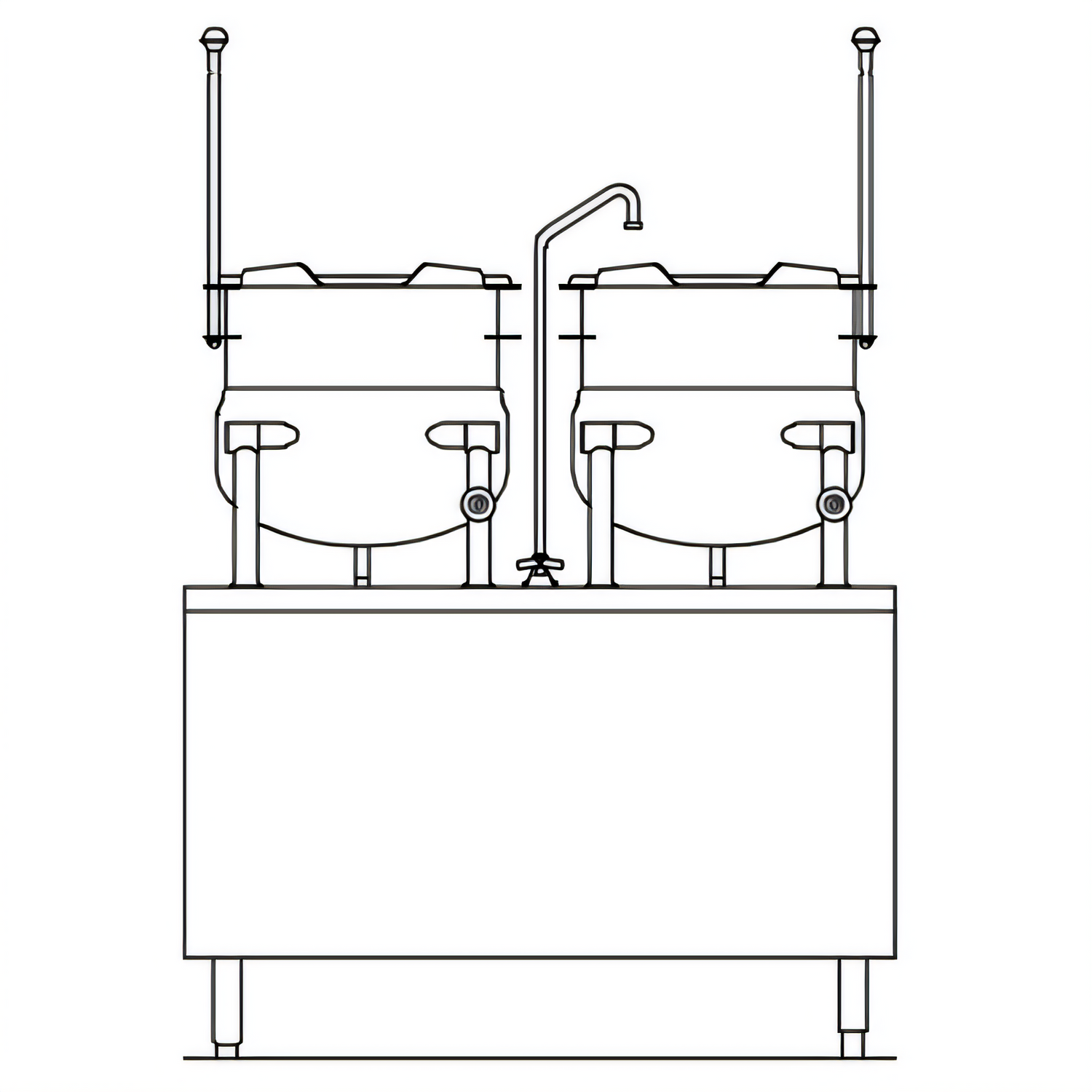

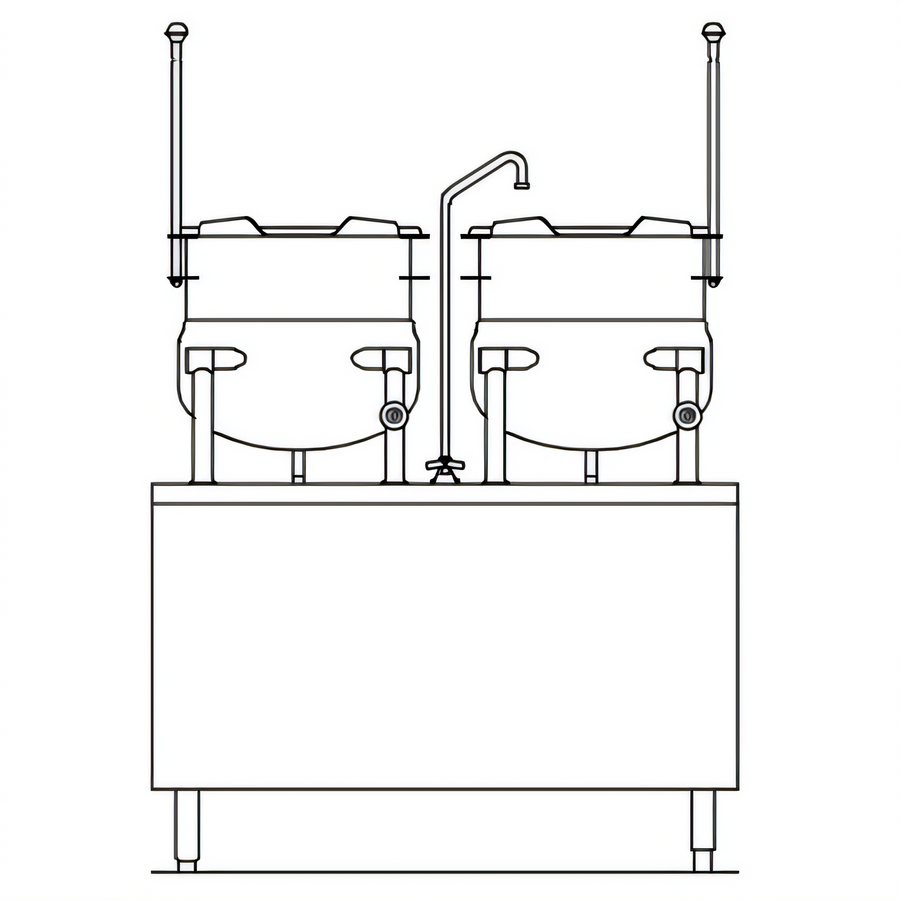

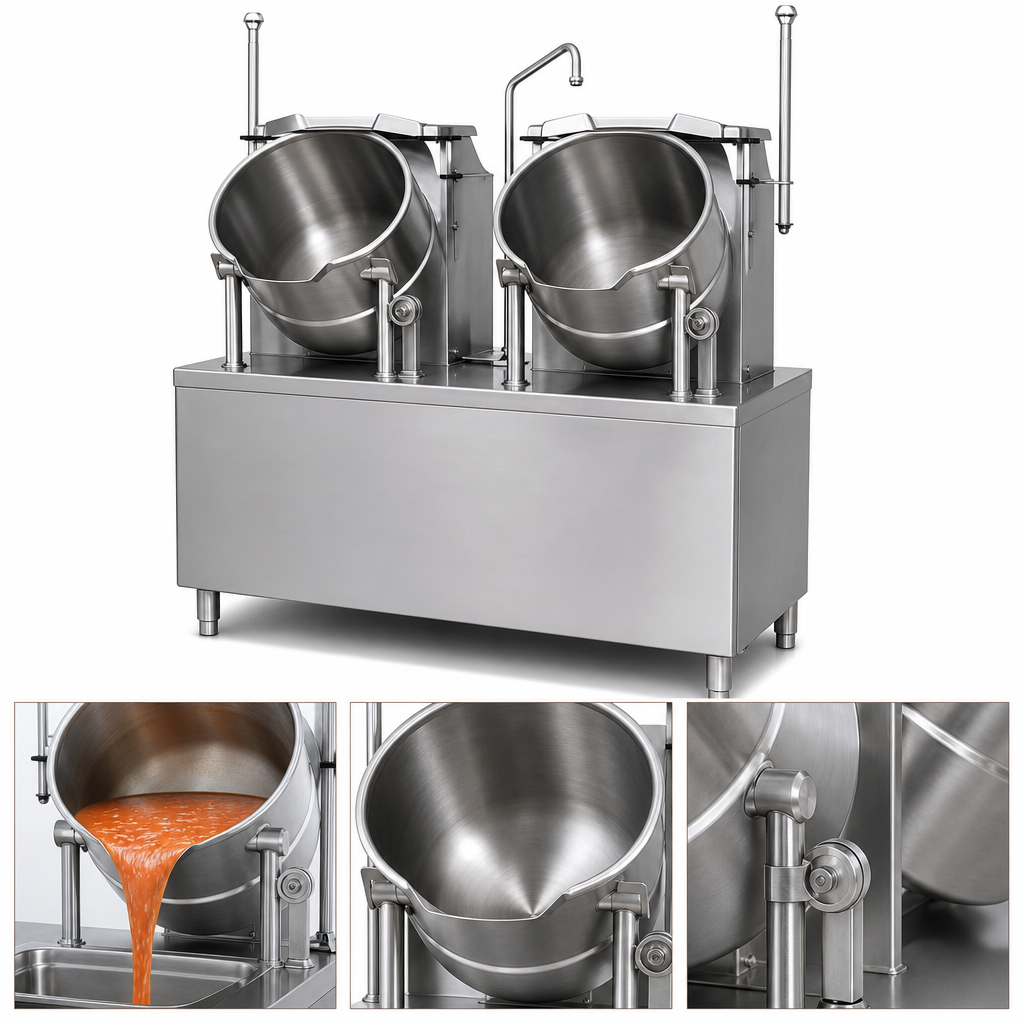

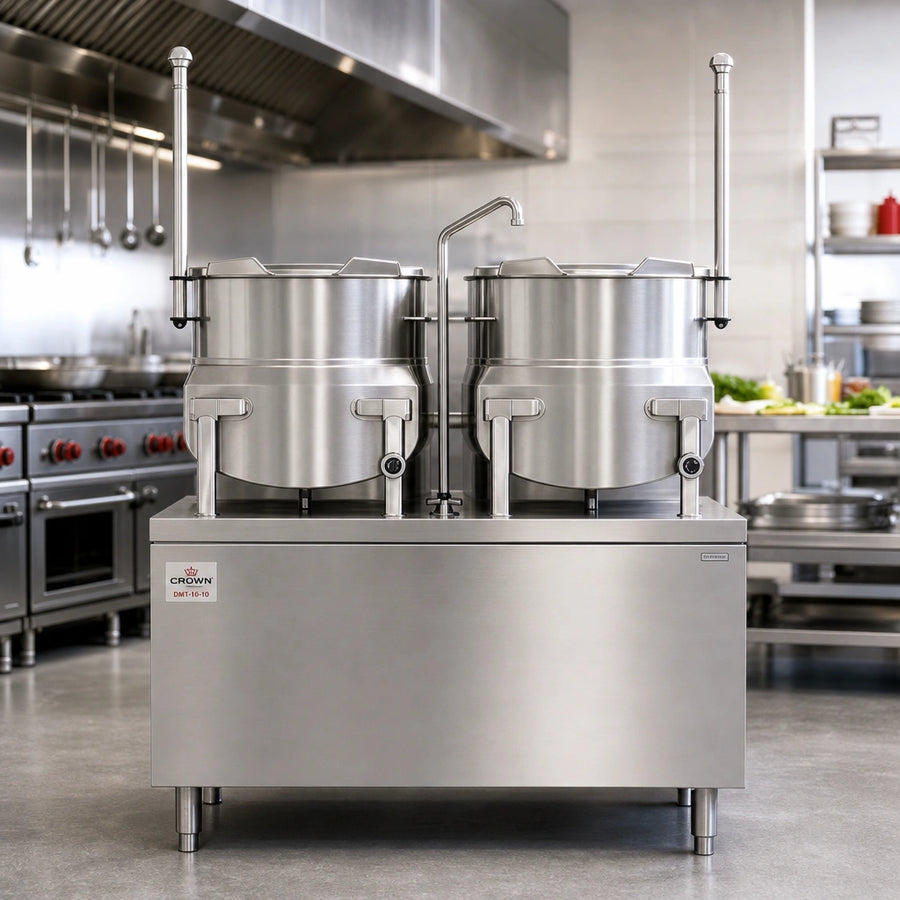

Crown DMT-10-10 Direct-Steam Twin 10-Gallon Tilting Kettle on 42" Cabinet Base
(2) 10-gal | 2/3 jacket | 316 stainless steel liner | NSF)Built for high-volume kitchens that demand speed, consistency and durability, the Crown DMT-10-10 combines two 10-gallon steam-jacketed kettles with a rugged 42" stainless cabinet. Hook it up to your existing boiler and start producing perfectly heated soups, sauces, stocks and pastas—twice as fast and with half the footprint.
Key Features
- Direct-steam operation — 5–45 psi (34–310 kPa) for rapid, even heat with no burners or elements
- Two independent 10 gal (38 L) kettles, each with a 2/3 steam jacket and hemispherical bottom for superior heat transfer
- Food-safe 316 stainless steel liners resist acidic ingredients and extend service life
- Hand-tilt design with heat-resistant knob pivots past 90° for complete emptying
- Integrated steam control valve on the front leg for precise simmer-to-boil adjustment
- Built-in 3" deep stainless sink with splash guard plus combination hot/cold fill faucet
- Full #4-finish stainless exterior, removable side panels and magnetic-latch doors for easy service access
- 6" stainless legs with adjustable flanged feet for bolting to the floor
- ASME code-stamped kettles, National Board registered and NSF listed
Why It Performs Better
- Hemispherical kettle bottoms eliminate cold spots and speed batch times
- 316 SS interior outlasts 304 SS when cooking high-acid recipes
- Concealed manifolds keep steam, condensate and plumbing out of the way for a cleaner cookline
- Low ¼ BHP steam demand fits easily into existing boiler capacity
- No open flame means cooler kitchens and potentially lower ventilation costs
Specifications
| Model | DMT-10-10 |
|---|---|
| Kettle Capacity | (2) 10 gal / 38 L each |
| Jacket Coverage | 2/3 |
| Liner Material | 316 stainless steel |
| Steam Pressure Range | 5–45 psi (34–310 kPa) |
| Steam Connection | ¾" IPS |
| Condensate Return | ½" IPS |
| Hot / Cold Water Inlet | ⅜" O.D. tubing, 25–50 psi |
| Sink Drain | 1 ⅛" O.D. |
| Cabinet Width | 42" (1067 mm) |
| Overall Depth | 27.63" (702 mm) |
| Height to Kettle Rim | 28" (711 mm) |
| Height to Handle | 33.2" (843 mm) |
| Shipping Weight | 390 lb (177 kg) |
| Installation Clearance | 0" sides / 0" back |
| Certifications | NSF, ASME, National Board |
Optional Accessories (sold separately)
- Etched gallon or litre markings
- One-piece stainless lift-off covers
- Lift-out perforated product baskets
- Pour-lip strainer
- Stainless back panel or frame
- Pressure-reducing valve (required if incoming steam > 50 psi)
- Correctional-package tamper-proof hardware
Warranty: 1 year parts & labor plus 10-year hemisphere warranty on kettles. Intended for commercial use only — not for household installation.
