Crown (Middleby) DMS-60 Steam Kettles
Description
Crown DMS-60 | 60 Gallon Stationary Direct-Steam Kettle
2/3 jacket • 316 stainless interior • NSF & cCSAus certifiedEngineered for high-volume production, the Crown DMS-60 delivers fast, even heating and rock–solid reliability in a compact, floor-mounted package. Its 60-gallon (227 L) capacity, full stainless steel construction and spring-assisted cover make it the perfect workhorse for soups, sauces, pasta, stews and high-acid recipes that would punish lesser kettles. Connect your facility’s low-pressure steam line (5–30 psi) and start cooking with the precision, safety and efficiency you expect from Crown (Middleby).
Why You’ll Love It
- Generous 60 gal / 227 L capacity handles up to 480 lb of product per batch*

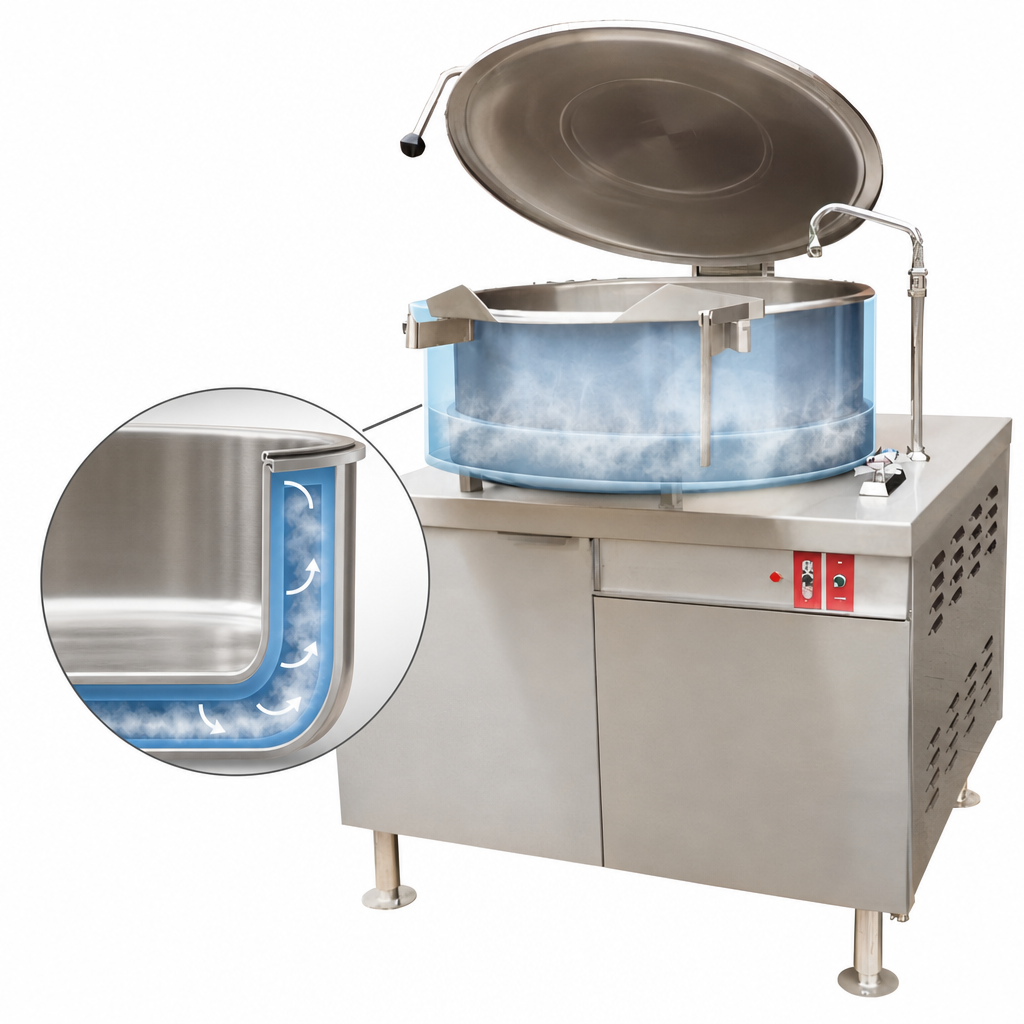

- 2/3 steam jacket surrounds the lower bowl for rapid, uniform heat transfer
- Food-safe 316 stainless steel liner resists corrosion when cooking tomato, citrus or other acidic foods
- 2 in. sanitary tangent draw-off valve with TPS-2 perforated strainer and removable swing drain for mess-free portioning
- Deck-mounted hot & cold fill faucet (DMF) eliminates trips to the sink
- One-piece, spring-assisted stainless cover—easy on operators, impossible to misplace
- Included pan support keeps a 12 × 20 × 2-½ in. hotel pan level for ladling or draining
- 6 in. stainless legs with adjustable flanged feet for rock-solid floor anchoring
- Steam control valve, steam trap & relief valve factory-installed for safe, dependable operation
- All-stainless cabinet (#4 finish) with tool-free side panels and magnetic doors
- ASME code-stamped pressure vessel, NSF listed, cCSAus certified
Technical Specifications
| Total capacity | 60 gal / 227 L |
|---|---|
| Kettle style | Stationary, direct steam, 2/3 jacket |
| Operating steam pressure | 5–30 psi (34–207 kPa) |
| Interior liner | 316 SS hemispherical bowl |
| Exterior | Full stainless steel cabinet, #4 finish |
| Draw-off valve | 2 in. sanitary, with TPS-2 perforated strainer |
| Cover | One-piece stainless, spring assisted |
| Legs / feet | 6 in. stainless legs, adjustable flanged feet (4) |
| Certifications | NSF, cCSAus, ASME NB registered |
| Warranty | 1 yr parts & labor • 10 yr kettle body (hemisphere) |
Footprint & Clearances
| Width (B) | Depth (F) | Working Height (E) | Height w/ lid open (G) | Shipping weight |
|---|---|---|---|---|
| 42 in. (1067 mm) | 47.6 in. (1210 mm) | 41.1 in. (1045 mm) | 74.3 in. (1886 mm) | 500 lb (227 kg) |
Utility Connections
| Steam inlet | ¾ in. IPS, 5–30 psi† |
|---|---|
| Cold water | ⅜ in. O.D. tubing to faucet |
| Hot water | ⅜ in. O.D. tubing to faucet |
| Drain | 1-5/8 in. O.D. to open floor drain (no hard connection) |
| Clearance | 0 in. sides & back |
Popular Factory Options
- 50 psi jacket rating for high-temperature cooking
- Etched gallon or litre markings
- Pour-lip strainer, solid valve disc or triple basket set
*Approximate yield based on 8 lb/gal product weight. †Utilities must meet Crown Steam Group water quality requirements.
