Crown (Middleby) DMS-30 Steam Kettles
Description

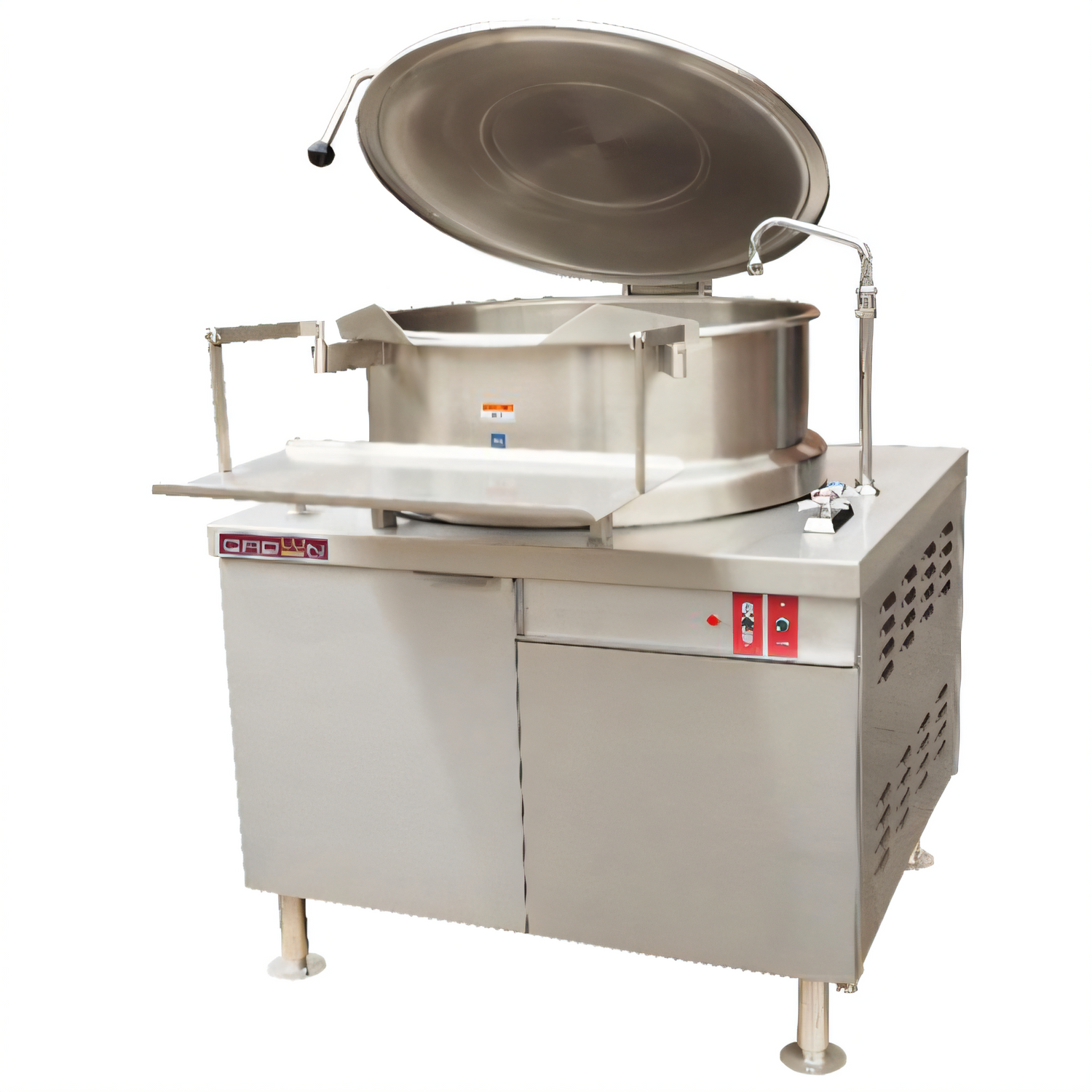

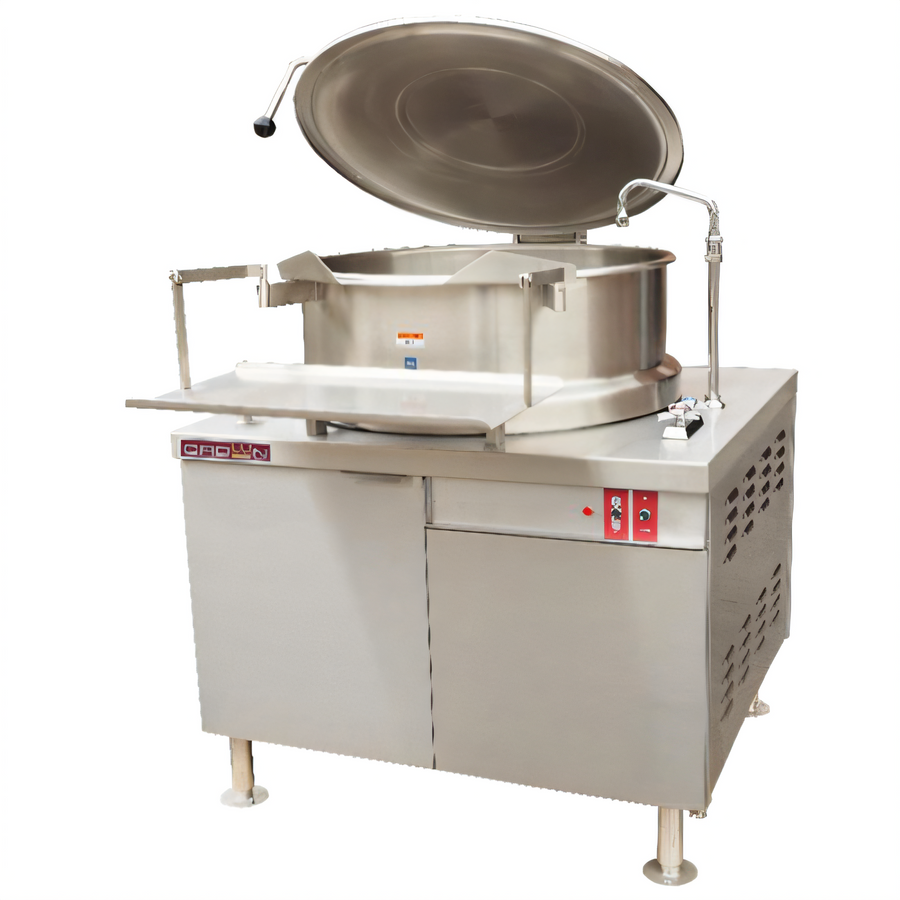

DMS-30 30-Gallon Direct-Steam Stationary Kettle
2/3-Jacket | 316 SS Interior | NSF & cCSAus CertifiedEngineered for demanding, high-volume kitchens, the Crown DMS-30 delivers 30 gallons of fast, even steam-jacketed cooking in a rock-solid, floor-mounted cabinet. From silky soups to high-acid sauces, its 316 stainless-steel liner and precision steam controls keep every batch consistent and profitable.
Standard Features

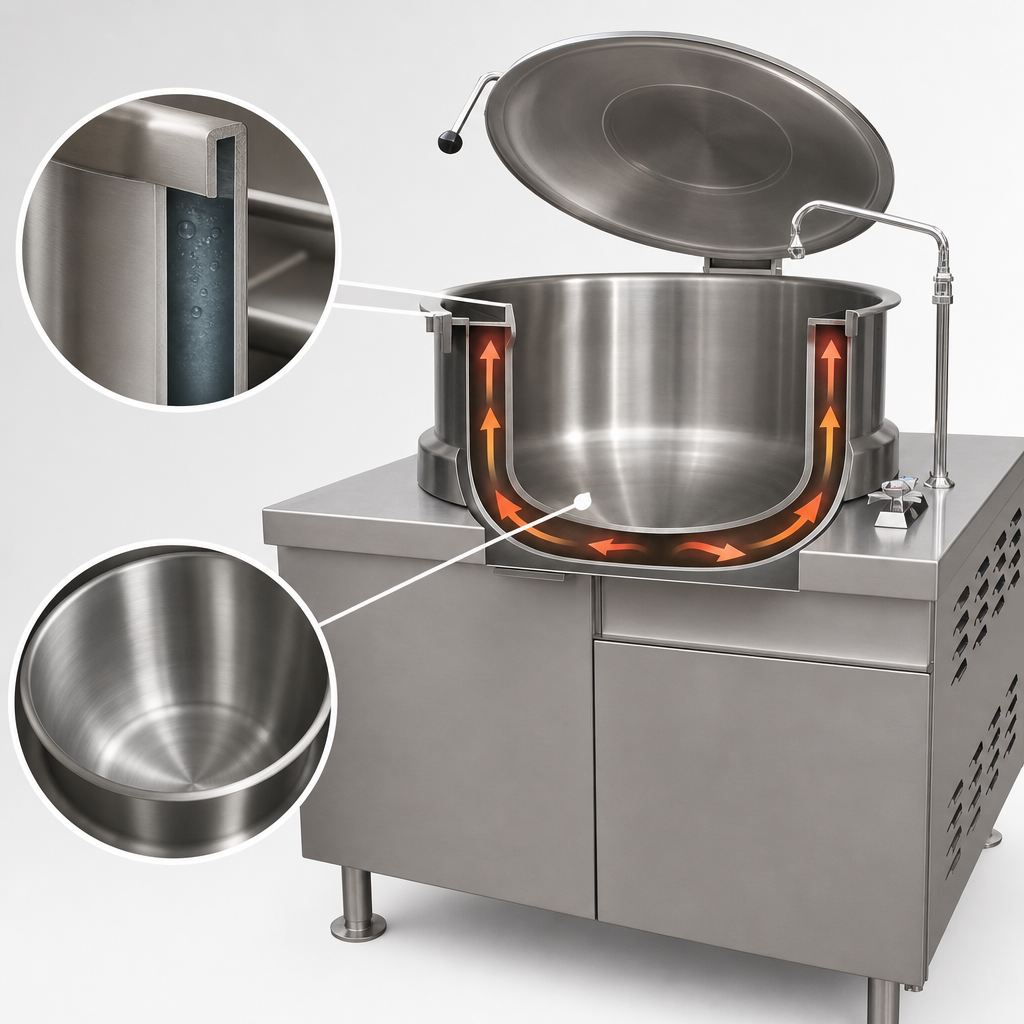

- 30 gal (114 L) capacity with efficient 2/3 steam jacket
- Corrosion-resistant 316 stainless-steel liner – ideal for tomato, citrus & other acidic recipes
- One-piece, spring-assisted stainless cover – effortless lift & stay-open
- 2" sanitary draw-off valve with TPS-2 perforated strainer for chunk-free portioning
- Swing-away drain funnels product directly to floor drain between batches
- Factory-installed steam control valve & steam trap for reliable jacket regulation
- Hot & cold deck-mounted fill faucet (DMF) for rapid filling and rinse-down
- Removable pan support holds one 12" × 20" × 2.5" hotel pan level during draw-off

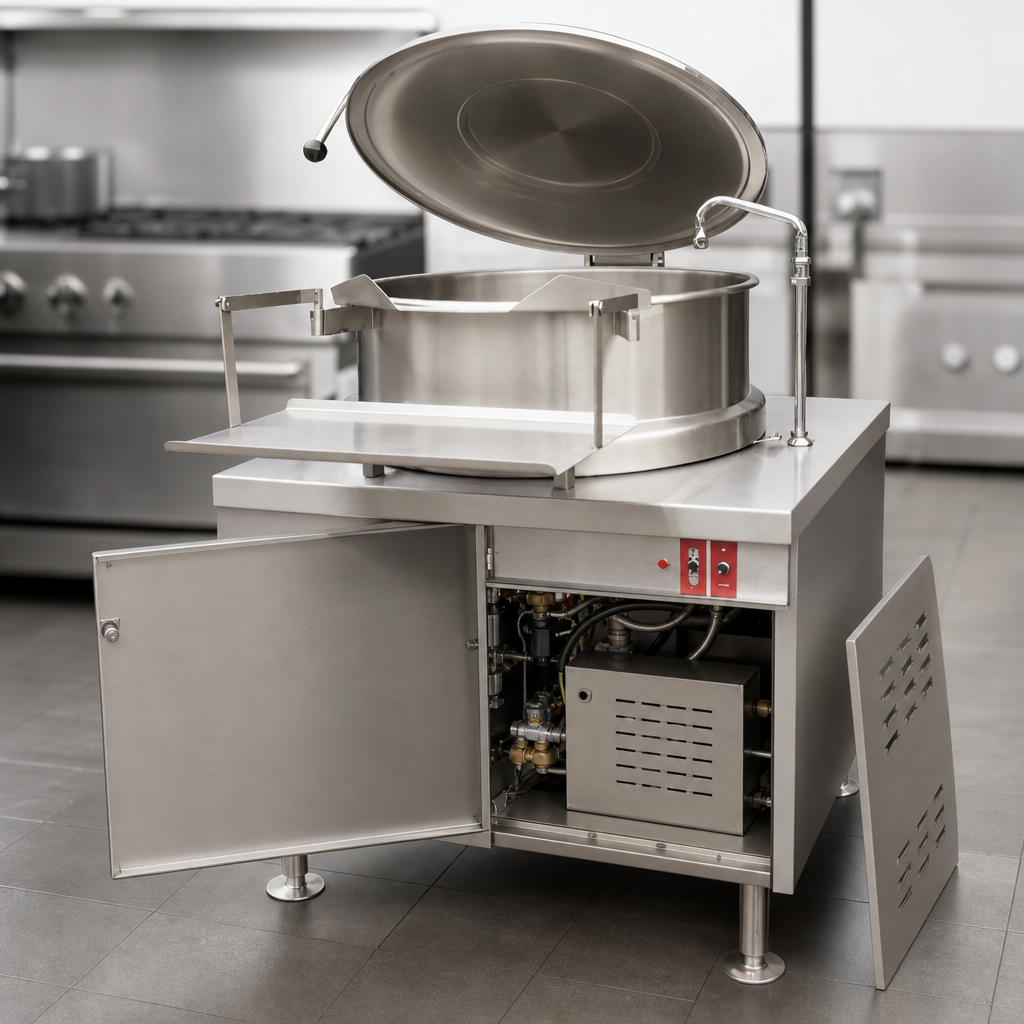

- All-stainless cabinet base with magnetic-latch doors & #4 finish
- 6" stainless legs with adjustable flanged feet – bolt-down ready
- ASME-code stamped jacket, NSF listed, cCSAus certified
Technical Specifications
| Model | DMS-30 (stationary) |
|---|---|
| Capacity | 30 gal / 114 L |
| Jacket Pressure | 5–30 PSI (34–207 kPa) |
| Steam Inlet | 3/4" IPS (external boiler required) |
| Water Connections | 3/8" O.D. hot & cold to faucet |
| Drain Outlet | 1-5/8" O.D. to open floor drain |
| Dimensions (W × D × H) | 36" × 39" × 41.5" (914 × 991 × 1054 mm) |
| Overall Height (cover open) | 65.25" / 1657 mm |
| Shipping Weight | ≈ 375 lb / 170 kg |
| Clearance Required | None – 0" sides & back |
| Finish | All-stainless, #4 polish |
| Certifications | NSF, cCSAus, ASME NB |
Why Direct Steam?
Connected to your central boiler, direct-steam kettles heat in seconds, recover instantly, and use less energy than self-contained units. Pair multiple kettles on one steam line to scale production without sacrificing efficiency.
Warranty
• 1-year parts & labor
• 10-year hemispherical kettle body warranty
Pressure-reducing valve required if incoming steam exceeds 30 PSI. Commercial use only. Images may show optional accessories.
