Crown (Middleby) DLTM-80 Steam Kettles
Description

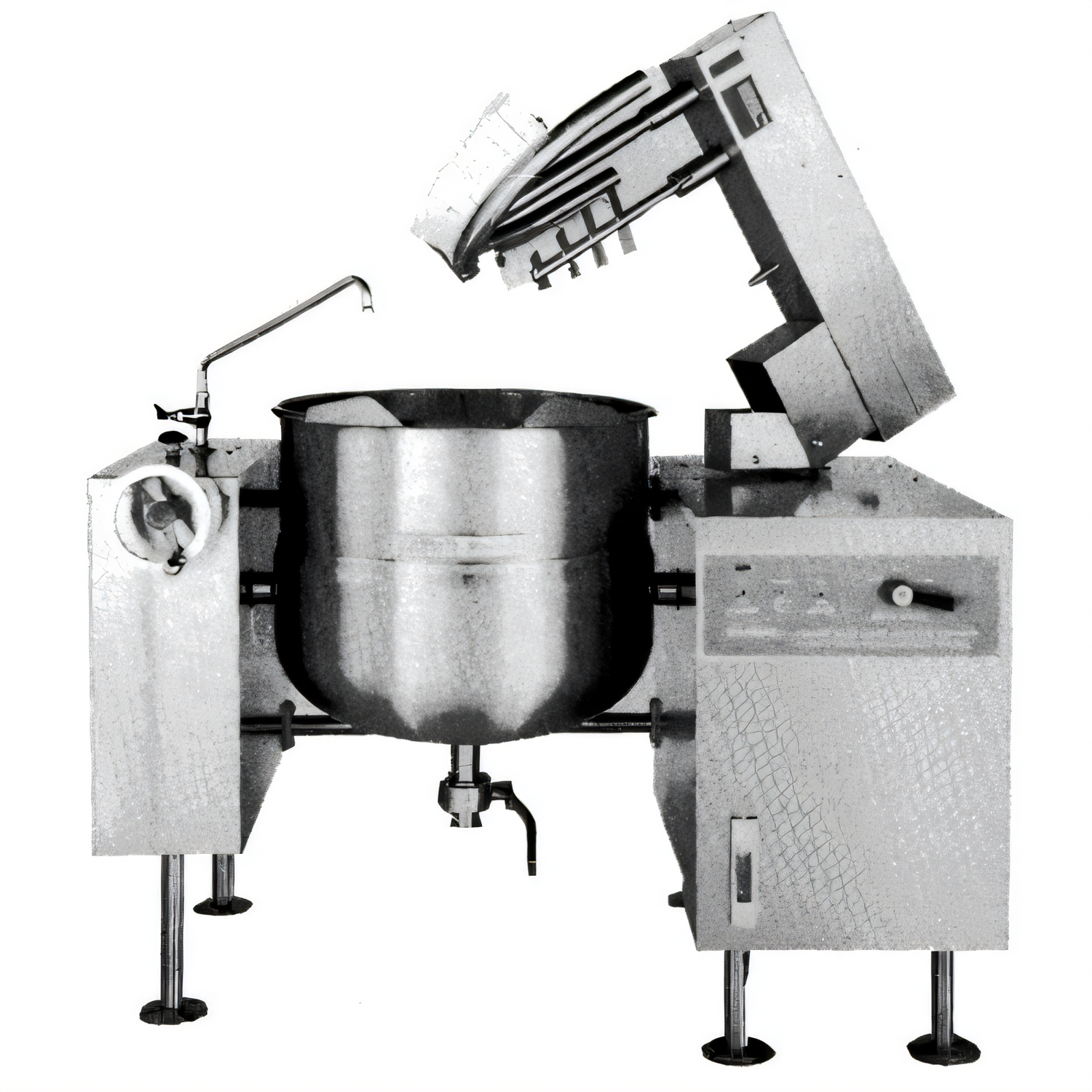

Crown DLTM-80 Direct-Steam Tilting Mixer Kettle – 80 gal
Leg-mounted • 2/3 jacket • Power tilt • 316 SS liner • cCSAus & NSFEngineered for high-volume production, the Crown DLTM-80 combines rapid direct-steam heating with dual variable-speed agitators and effortless power tilting. From silky soups and sauces to rugged mashed potatoes, every batch turns out fast, consistent and labor-free.
Key performance advantages
- 80 gallon (303 L) capacity – ideal for central kitchens, commissaries & institutions.

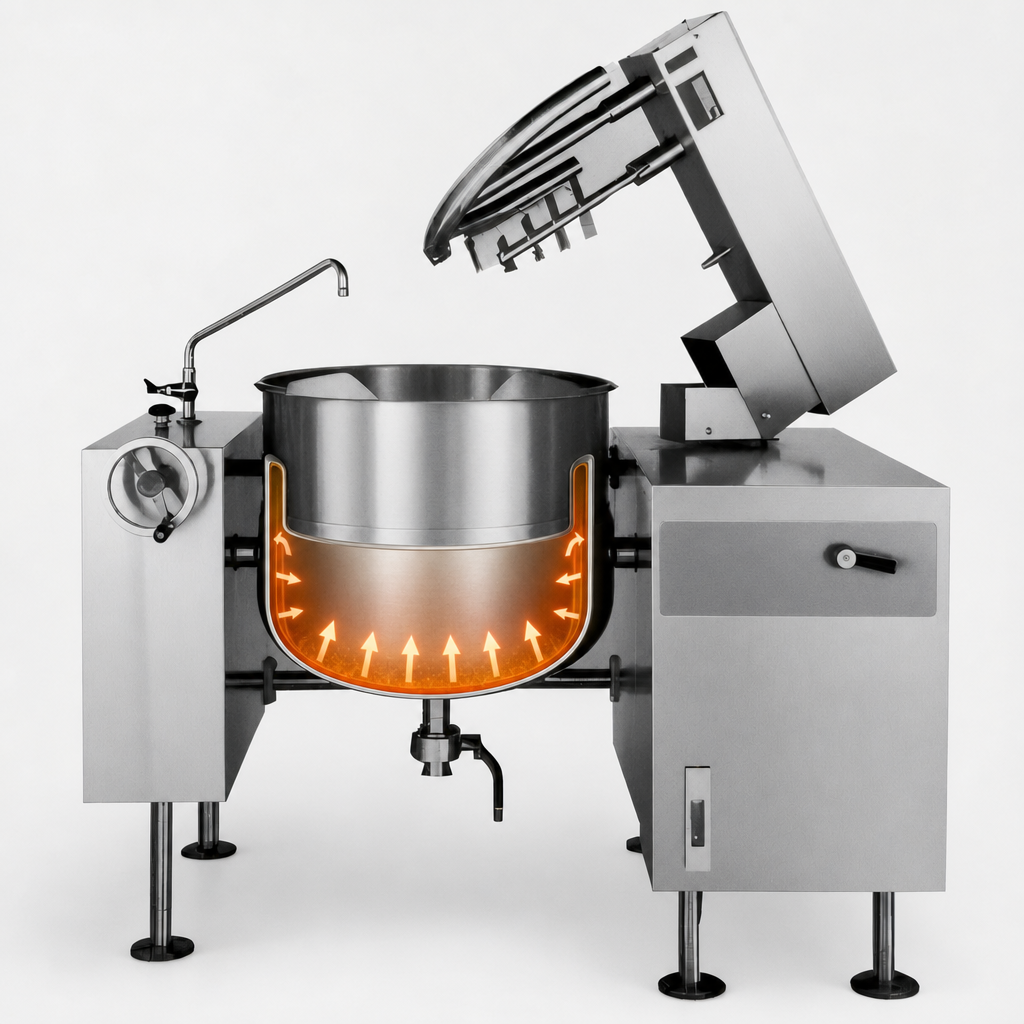

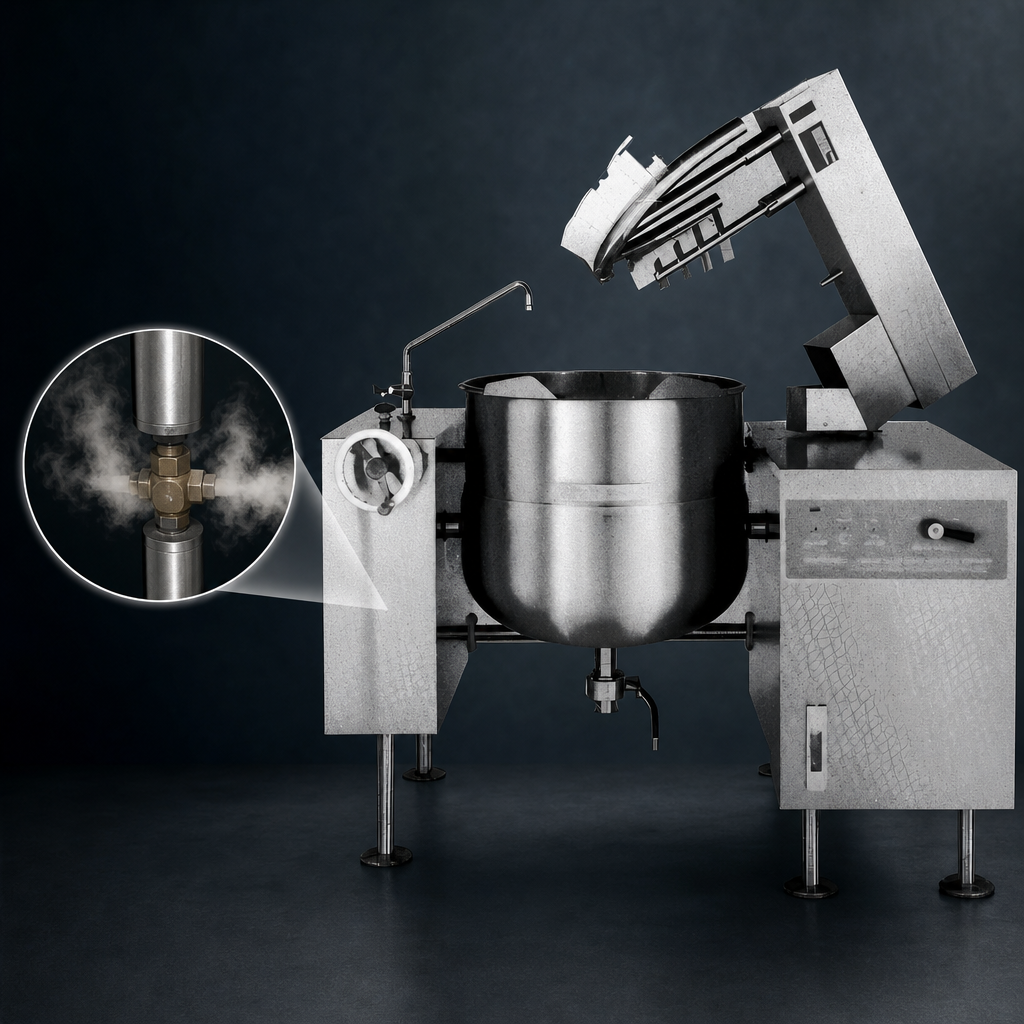

- Direct steam jacket (5–30 psi) envelops the lower 2/3 of the kettle for lightning-fast heat-up and reduced scorching.
- 316 stainless steel liner withstands acidic ingredients and aggressive cleaning chemicals.
- Hemispheric bottom maximises heat transfer and promotes even mixing.
- Two removable agitators:
- Primary scraper agitator sweeps the entire kettle wall & bottom.
- Secondary high-speed agitator for rapid blending, emulsifying and particle suspension.
- (2) 5 HP hydraulic motors deliver smooth, adjustable speeds—slow fold to high-speed whip—at a twist of the dial.
- Power tilt plus 140° bridge lift lets one operator safely empty or clean the kettle without heavy lifting.
- 10-gauge 304 stainless steel bridge and shell, plus tubular legs with four adjustable flanged feet for rock-solid floor mounting.
- Floor-mounted console places the main power, bridge-lift and speed controls right at your fingertips.
- Certified to cCSAus and NSF standards for sanitation and safety.
Technical specifications
| Model | DLTM-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Jacket rating | Max 30 psi (207 kPa) • Optional 45 psi kit |
| Steam connection | 3/4" IPS, 5–30 psi direct steam |
| Hydraulic power | 208 V-3-60 Hz or 240 V-3-60 Hz (480 V optional) |
| Agitator drive | (2) variable-speed hydraulic motors, 5 HP total |
| Exterior construction | 304 stainless steel with satin finish |
| Dimensions (approx.) | W 67.75" × D 58.5" × H 60" (bridge down) |
| Shipping weight | 840 lb / 381 kg |
| Minimum clearance | Sides 0" • Back 4" (102 mm) |
| Certifications | cCSAus, NSF |
Popular factory options
- Swing-base fill faucet
- 2″ or 3″ manual butterfly drain valve with optional strainer
- Etched gallon or litre graduations
- High-pressure (45 psi) jacket upgrade
- Quick-Chill refrigerated water jacket
Contact us if you require custom modifications — most upgrades can be integrated at the factory.
Warranty & after-sales support
The DLTM-80 carries Crown’s 10-year hemisphere weld warranty on the kettle body and a 1-year parts & labor warranty on all other components. Nationwide service is handled by Crown-authorized technicians for rapid, worry-free coverage.
