Crown (Middleby) DLTM-60 Steam Kettles
Description

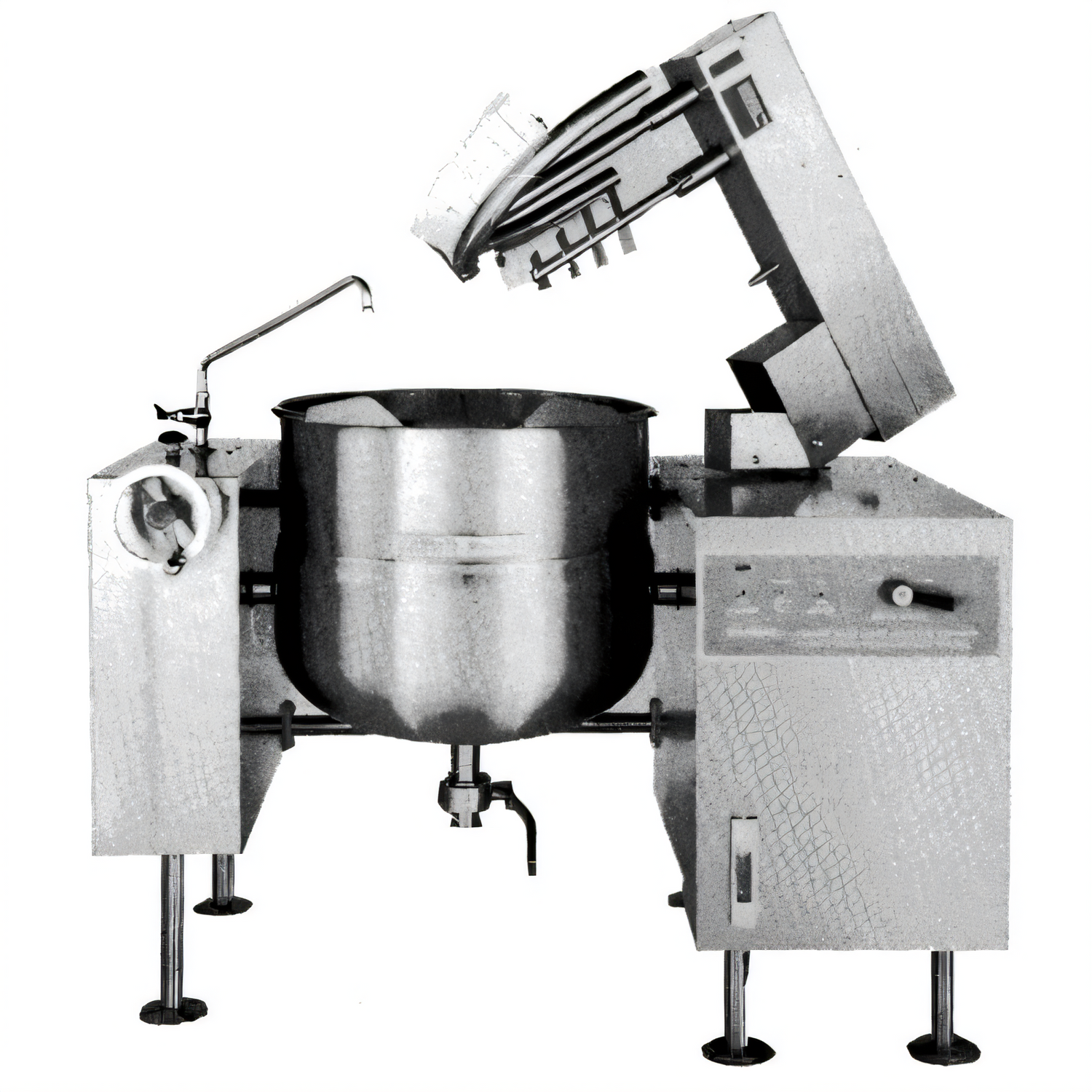

DLTM-60 Direct-Steam Tilting Mixer Kettle – 60 gal
Crown (Middleby) • 2/3 Jacket • Power-Tilt • Dual AgitatorsBuilt for high-volume, high-acid, and high-precision production, the DLTM-60 combines a 60-gallon hemispheric kettle with a heavy-duty, variable-speed mixer and effortless hydraulic power-tilt. 316 stainless steel where it counts, 304 stainless everywhere else, and cCSAus & NSF approvals make it the reliable workhorse every commercial kitchen, commissary or institution demands.
Key benefits
- 60 gal (227 L) capacity – ideal for sauces, soups, fillings, custards & more

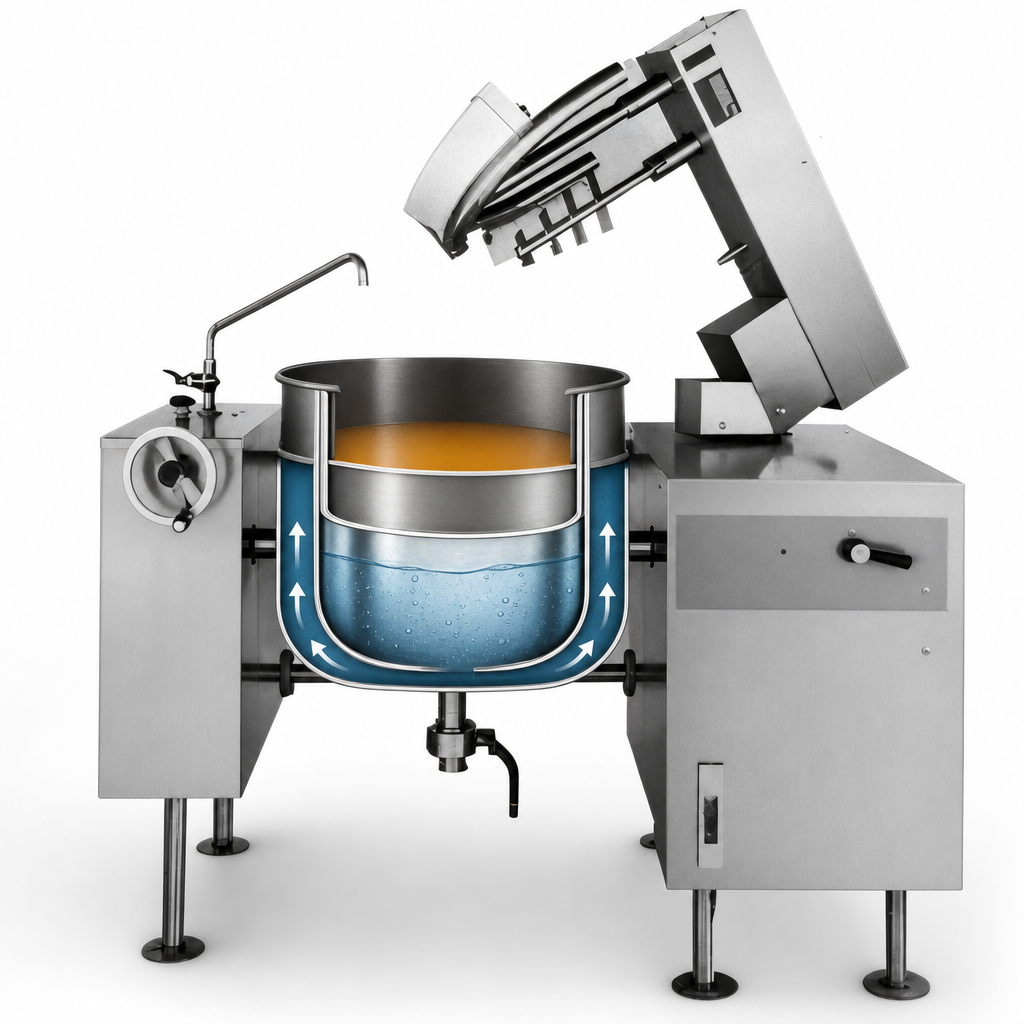

- 2/3 steam jacket with 316 SS liner for superior heat transfer & corrosion resistance

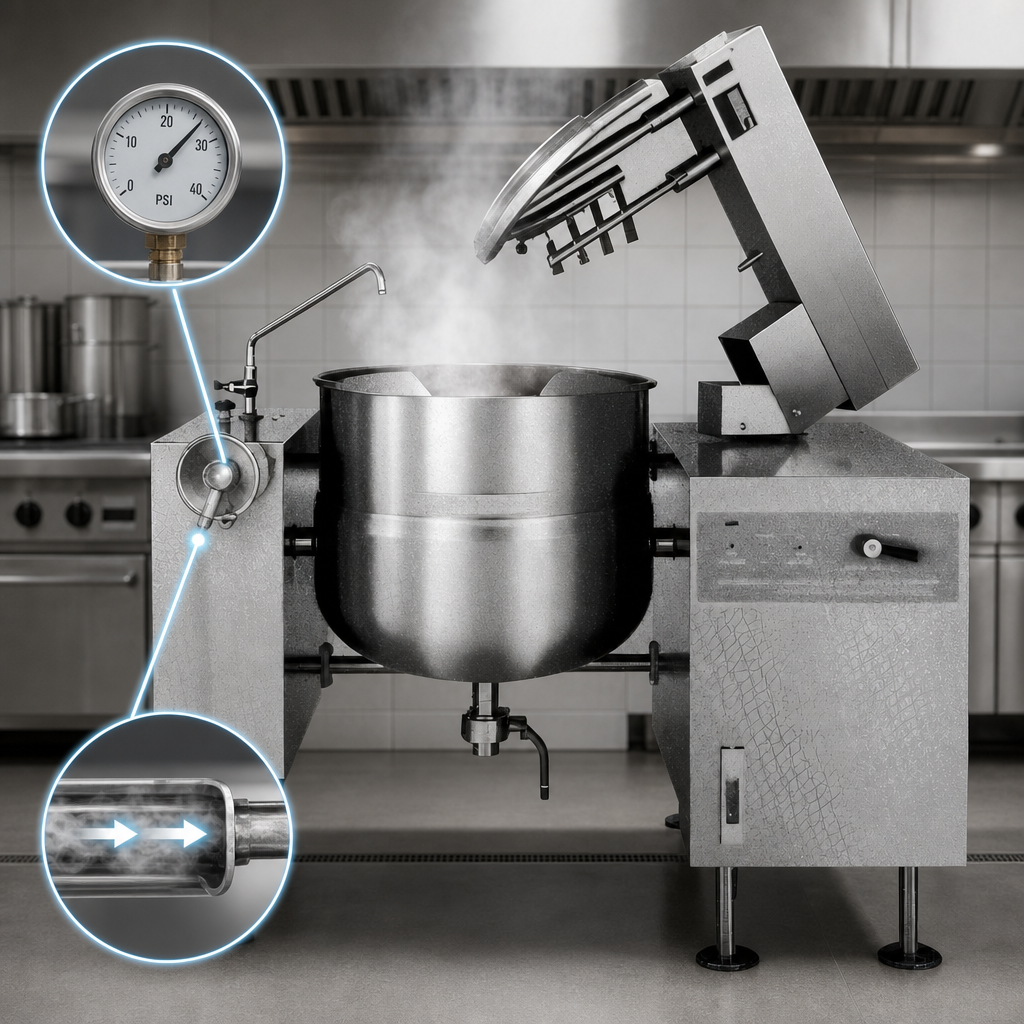

- Direct-steam operation (5–30 psi) keeps utility costs low and recovery times fast
- Integrated variable-speed (2) hydraulic drive motors power the agitators
- Includes two tool-free removable agitators:
- Primary scraper agitator with self-tensioning UHMW blades
- Secondary high-speed mixer for rapid dispersion & uniformity
- Hydraulic power-tilt to 90° for safe, complete emptying
- Bridge swings 140° clear of the kettle for loading or clean-in-place access
- Tubular stainless legs with adjustable, four-bolt flanged feet—code-compliant floor anchoring out of the box
- Front console puts main power, bridge lift, and speed control at your fingertips
- cCSAus & NSF certified; 10-year hemisphere warranty on the kettle shell
Technical specifications
| Model | DLTM-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Kettle Construction | 304 SS exterior, 316 SS jacket & liner (2/3 coverage) |
| Jacket Rating | 5–30 psi (optional 5–45 psi) |
| Heat Source | Direct external steam (3/4" IPS supply, 1/2" IPS condensate return) |
| Agitators | Primary scraper + secondary high-speed mixer, removable w/o tools |
| Drive | (2) variable-speed hydraulic motors, 5 HP hydraulic power pack |
| Tilt | Hydraulic power-tilt, 90° dump angle |
| Electrical (for hydraulics) | 208 V / 240 V 3Ø 14 A | 480 V 3Ø 7 A |
| Exterior Dimensions (W × D × H) | 65" × 49" × 80" (1651 × 1245 × 2032 mm) |
| Shipping Weight | 730 lb / 331 kg |
| Clearance | Back: 4" (102 mm) • Sides: 0" |
| Certifications | cCSAus, NSF |
| Warranty | 10-yr kettle hemisphere • 1-yr parts & labor |
Popular options & accessories (sold separately)
- Swing-mounted faucet (left console)
- 2" or 3" butterfly draw-off valve (with strainers &/or quick-chill package)
- Etched gallon or litre graduations
- High-pressure jacket (up to 45 psi)
- Two-piece lift-off cover, pour-lip strainer & heat shields
- 480 V motor kit & other electrical configurations
Intended for commercial use only. Installation must comply with local codes for steam, electrical and floor anchoring.
