Crown (Middleby) DLTM-60-2 Steam Kettles
Description

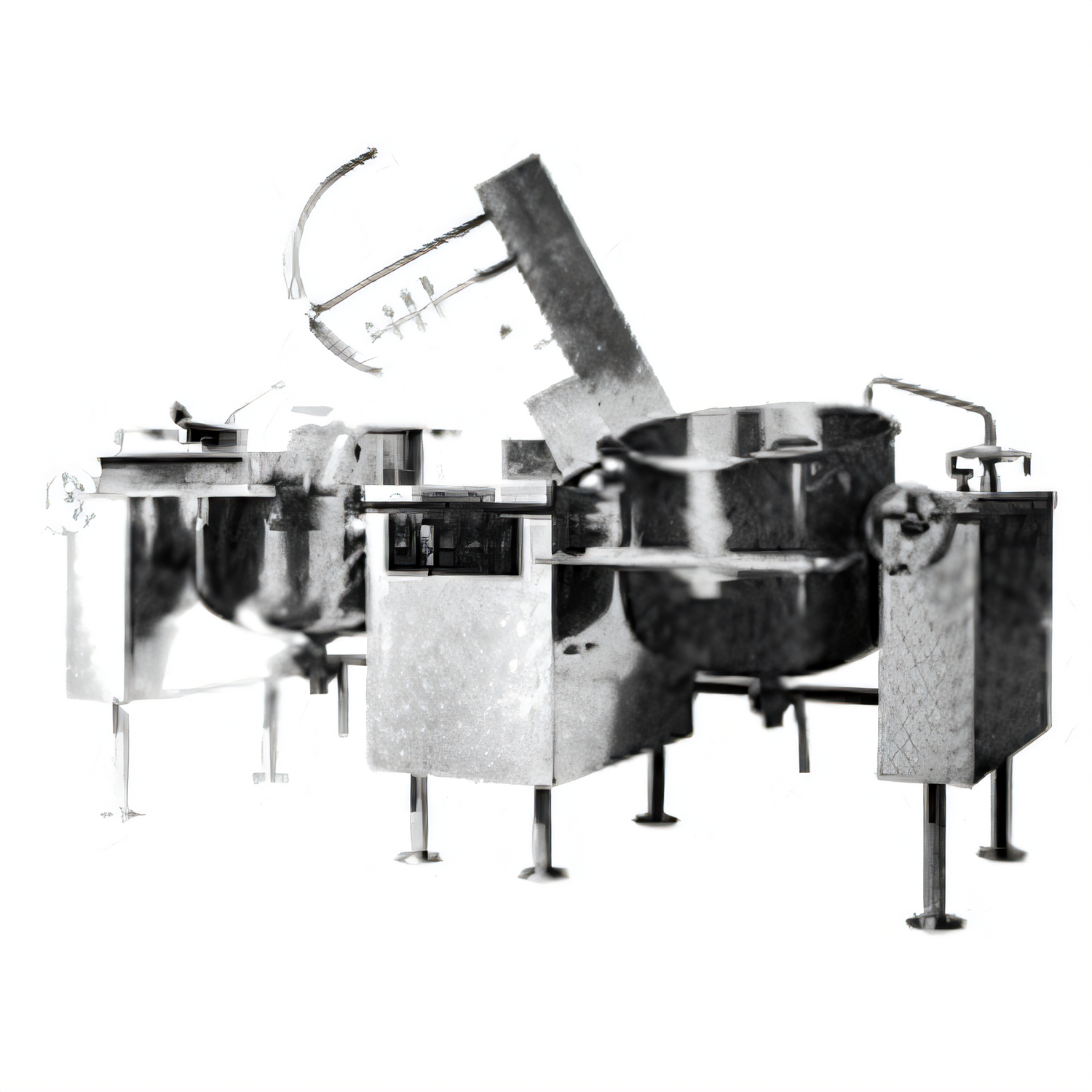

DLTM-60-2 Twin 60 Gallon Direct-Steam Tilting Mixer Kettle
by Crown – a Middleby Brand | cCSAus & NSF CertifiedDouble your production without doubling your footprint. The Crown DLTM-60-2 pairs two 60-gallon (227 L) kettles with a swinging, variable-speed mixing bridge and a hydraulic power-tilt system—delivering the throughput, control and cleaning convenience that high-volume kitchens demand.
Performance Highlights

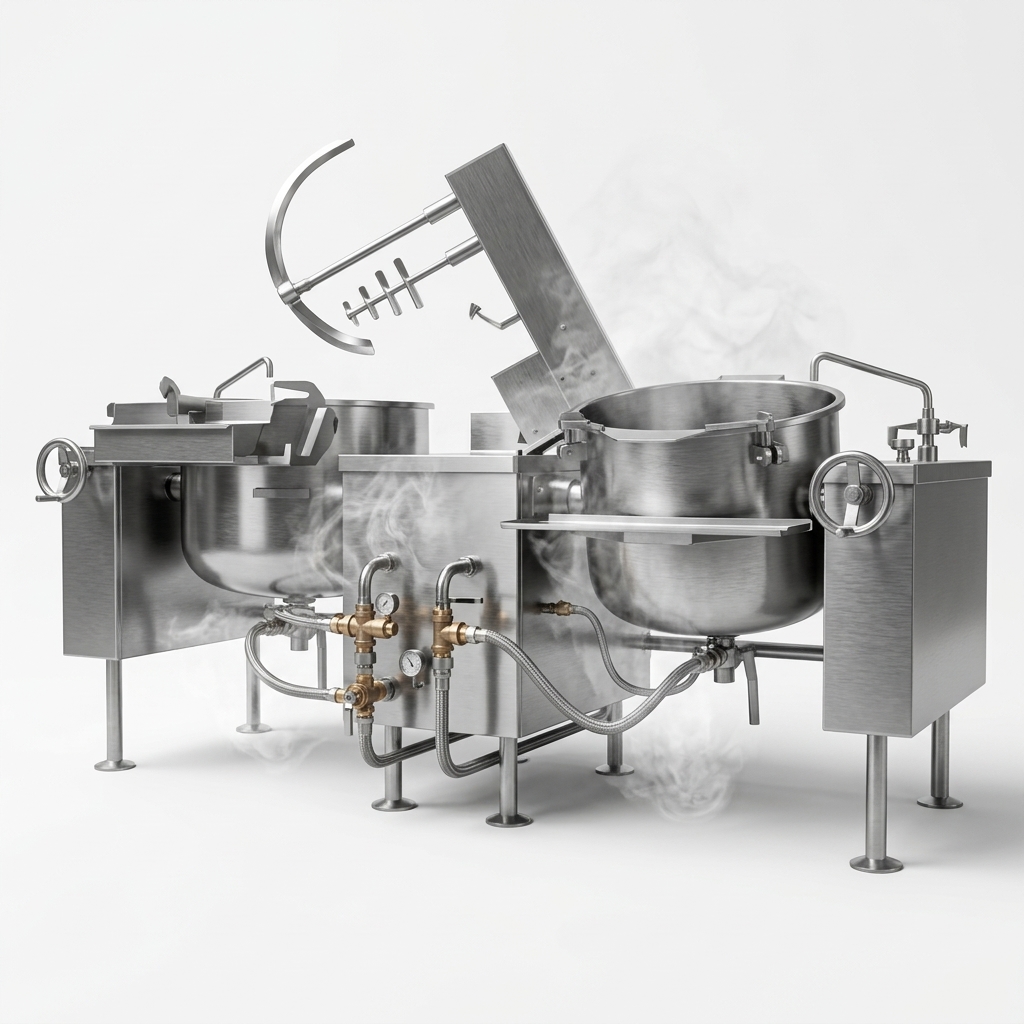

- Two fully jacketed 60 gal kettles heat evenly with 5–30 psi direct steam.
- Food-grade 316 SS liner resists acid & salt corrosion—perfect for tomato, chili, sauces and more.
- Variable-speed mixing driven by twin 5 HP motors for smooth, lump-free results.
- Primary scraper agitator plus secondary high-speed agitator; both tool-free removable for cleaning.
- Power-tilt mechanism locks securely and pours a full 90° for complete pan emptying.
- 10-gauge stainless mixing bridge swings 140° clear for unobstructed kettle access.
- Floor-mounted control console with illuminated power switch, bridge lift switch and speed dial.
Engineered for the Long Haul
- All-welded 304 SS frame & tubular legs with four adjustable flanged feet for bolt-down stability.
- Hemispheric kettle bottoms maximize heat transfer and simplify clean-out.
- Sealed stainless tilt gearbox—no exposed screws or gears.
- Meets NSF sanitation and cCSAus safety standards.
- Includes Crown’s industry-leading 10-year hemisphere kettle warranty (1-year parts & labor on entire unit).
Technical Specifications
| Model | DLTM-60-2 (Twin 60 gal) |
|---|---|
| Capacity | 2 × 60 gal / 227 L each |
| Jacket | 2⁄3 steam jacket, 5–30 psi (34–207 kPa) |
| Mixing Motors | 2 × 5 HP, variable speed |
| Electrical (std.) | 208 V / 3 ph / 60 Hz or 240 V / 3 ph / 60 Hz – 14 A per line |
| Steam Connection | ¾" IPS supply, ½" IPS condensate return |
| Overall Width (B) | 108" / 2743 mm |
| Overall Height (E) | 80" / 2032 mm (bridge down) |
| Depth (C) | 49" / 1245 mm |
| Shipping Weight | 1440 lb / 654 kg (crated) |
| Clearances | Sides 0", Back 4" (102 mm) |
Popular Factory Options (sold separately)
- Swing faucet (left or right)
- 2" or 3" manual butterfly draw-off valve with strainers
- Etched gallon or litre markings
- Quick-Chill System (QCS-)
- High-pressure jacket (up to 45 psi)
- 480 V motor, kettle heat shield & more
This unit operates on external low-pressure steam. A regulated 5–30 psi steam supply, condensate return, and the specified 3-phase electrical service must be provided by the installer.
