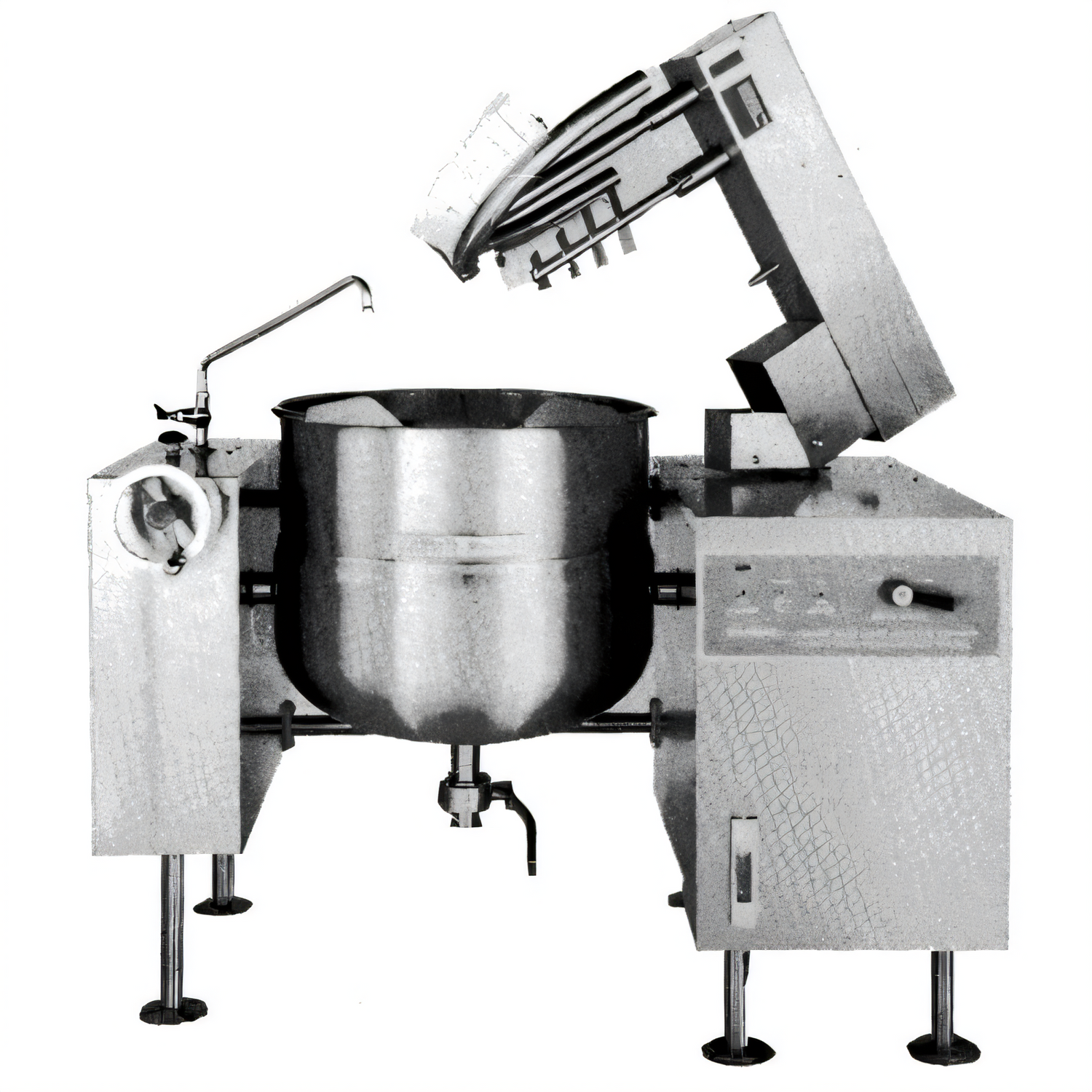

Crown DLTM-40 Direct Steam 40 Gallon Tilting Mixer Kettle
Floor Model, 2/3 Jacket, 316 Stainless Steel Liner, Hydraulic Power Tilt
Experience superior mixing and cooking performance with the Crown DLTM-40 direct steam tilting mixer kettle, designed for high-volume commercial kitchens.
- 40 gallon capacity with a 2/3 steam jacket for efficient, even heating.
- Features a 316 stainless steel liner, ideal for cooking high-acid content products.
- Equipped with power tilt for easy, complete emptying and two removable agitators for thorough mixing.
- Durable 304 stainless steel construction ensures longevity and hygiene in demanding environments.
- Hydraulic power supply with variable speed mixer motor provides precise control over mixing tasks.
- Designed for direct steam operation at 5-30 PSI, ensuring robust cooking capability.
- Floor-mounted control console supports and adjustable flanged feet provide stability and ergonomic operation.

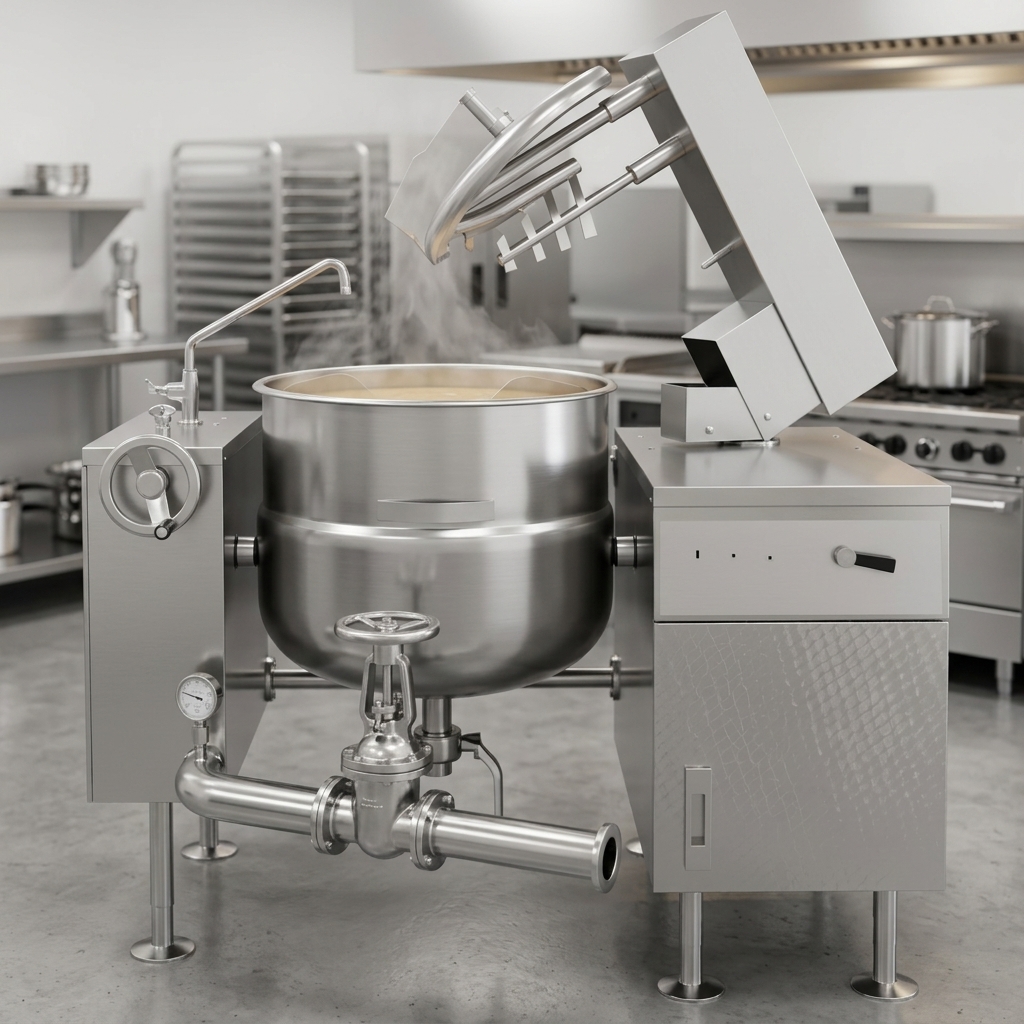

Direct Steam Operation
Operates using direct steam at a minimum of 5 PSI and a maximum of 30 PSI, providing efficient and consistent heating for various cooking tasks.

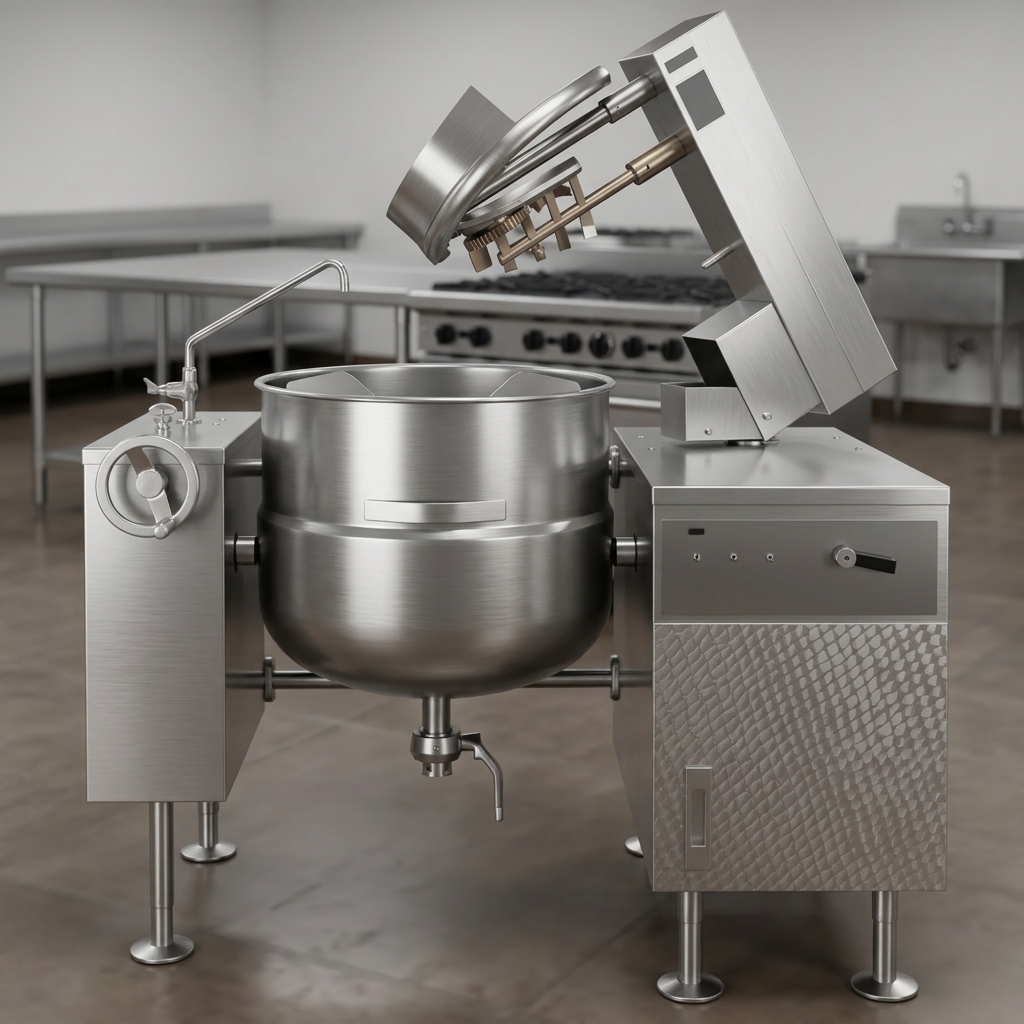

Heavy-Duty Construction
Constructed from welded stainless steel type 304 with a satin finish, ensuring durability, hygiene, and resistance to corrosion.

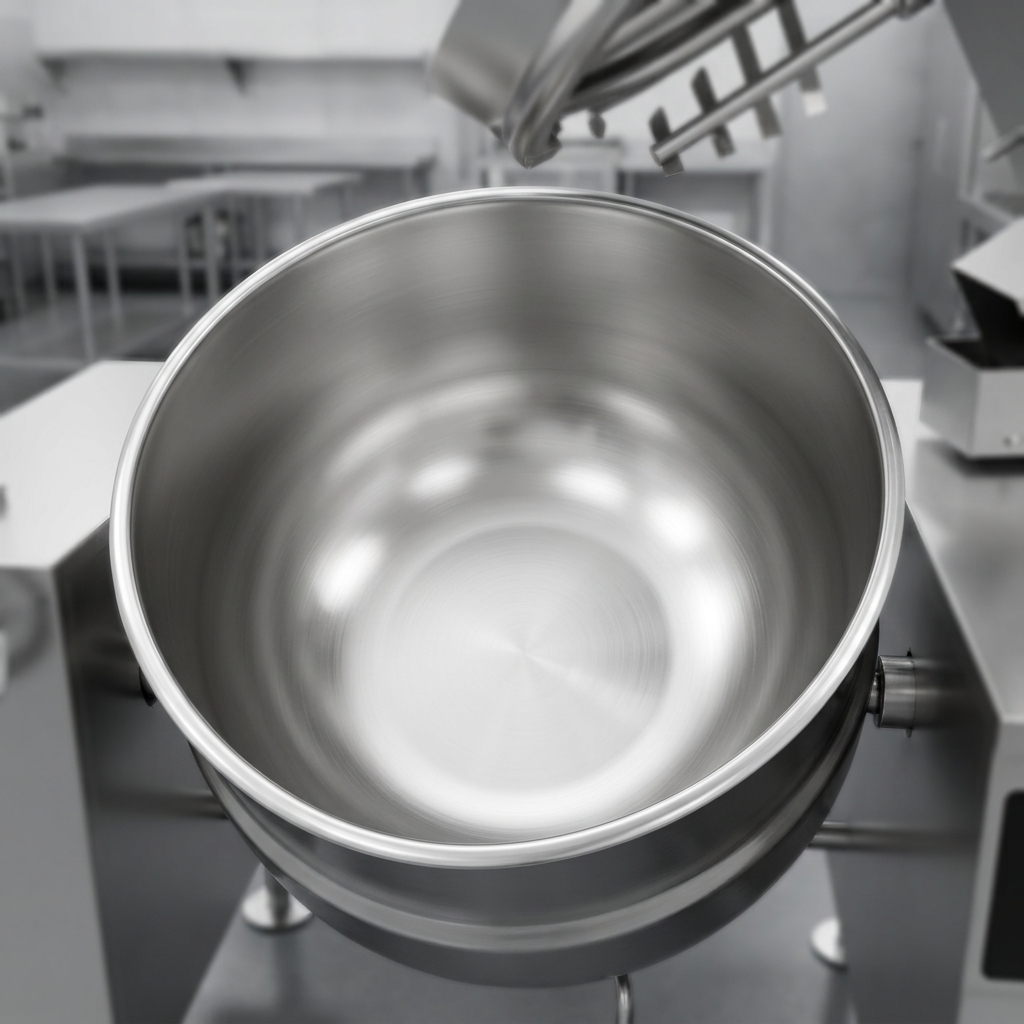

316 Stainless Steel Liner
The kettle interior features a 316 stainless steel liner, specifically designed for handling high-acid content products safely and effectively.
2/3 Steam Jacket
A double-wall kettle interior forms a steam jacket around the lower 2/3 of the kettle, maximizing heat transfer and ensuring uniform cooking.
Hemispheric Kettle Bottom
The bottom of the kettle is designed with a hemispheric shape, optimized for maximum heat transfer and efficient product turnover.
Power Tilt Mechanism
A sealed stainless steel tilt mechanism allows the kettle to tilt forward a full 90 degrees for complete and effortless emptying. The mechanism is self-locking for positive stop action.
Variable Speed Mixer
Powered by a 5 hp electric motor driving a hydraulic pump, the variable speed mixer allows for precise control over mixing intensity.
Dual Agitator System
Includes two agitators: a primary stainless steel scraper/agitator and a secondary high-speed mixer. Both are removable without tools for easy cleaning.
Ergonomic Control Console
The console front features a main power switch, mixer lift switch, and variable speed control for convenient operation.
Sturdy Bridge Design
The mixer bridge is constructed of 10 gauge stainless steel and houses two heavy-duty hydraulic motors for agitator drive. It is power tilt and swings 140 degrees out of the way for kettle tilting or cleaning.
Adjustable Flanged Feet
Tubular stainless steel legs are fitted with four-hole, adjustable, flanged feet for secure installation and leveling on the floor.
Specifications
| Type | Tilting Mixer Kettle |
|---|---|
| Style | Direct Steam |
| Installation Type | Floor Model (With Stand) |
| Capacity | 40 Gallons (152 Liters) |
| Jacket | 2/3 Jacket |
| Kettle Liner | 316 Stainless Steel |
| Material | 304 Stainless Steel |
| Voltage | 208 Volts or 240 Volts |
| Phase | 3-Phase |
| Hertz | 60 Hz |
| Steam Connection Size | 3/4" IPS |
| Steam Inlet Pressure | 5-30 PSI (34-207 kPa) |
| Condensate Return Connection Size | 1/2" IPS |
| Motor Horsepower | 5 hp |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
| Shipping Width | 62 Inches |
| Shipping Depth | 56 Inches |
| Shipping Height | 76 Inches |
| Shipping Weight | 700 lb. |
Overall Dimensions:
62.0"W x 56.0"D x 75.63"HProduct Weight:
700.0 lbCertifications & Compliance
Warranty & Protection
Standard warranty not specified in provided text.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
