Crown (Middleby) DLTM-40-2 Steam Kettles

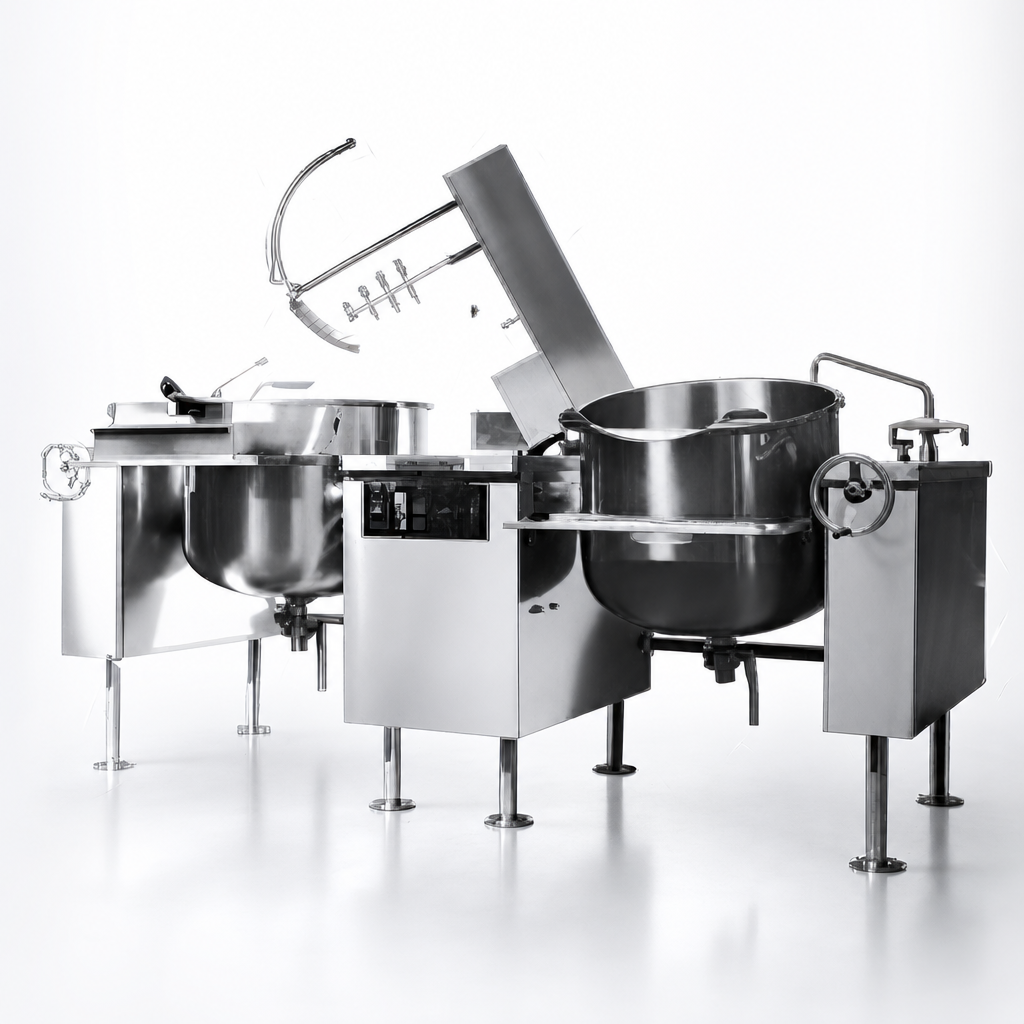

DLTM-40-2 Twin 40 Gallon Direct-Steam Tilting Mixer Kettles

Double your throughput without doubling your footprint. The Crown DLTM-40-2 pairs two 40-gallon (151 L) kettles with powerful variable-speed agitation and hands-free hydraulic tilt, giving high-volume kitchens an 80-gallon production powerhouse built entirely from food-grade stainless steel.

Key advantages

• Direct-steam operation rated 5–30 psi (34–207 kPa) for rapid, even heating.

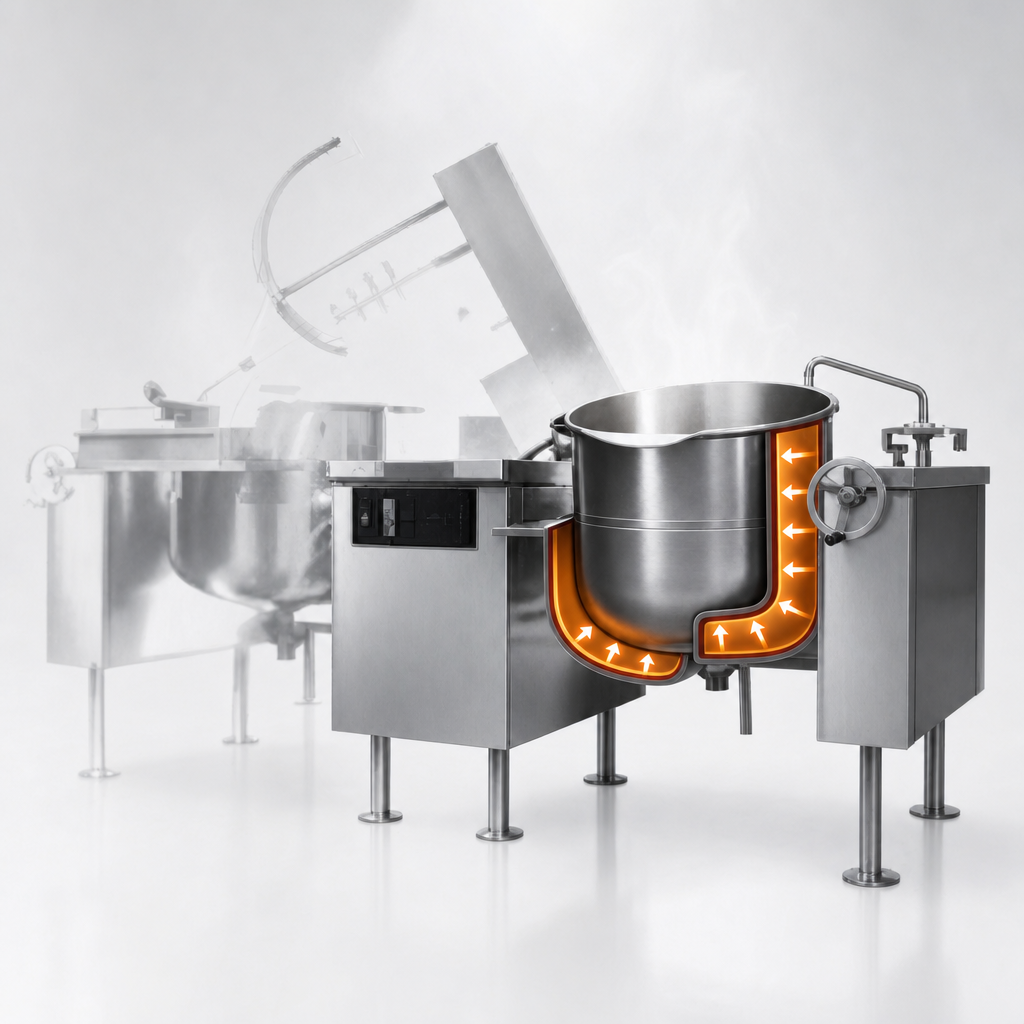

• 2/3 steam jacket and hemispheric bottom maximize heat transfer for faster batch times.
• (2) 5 HP hydraulic motors with variable speed drive removable agitator shafts.
• Primary scraper agitator prevents burn-on; secondary high-speed mixer delivers silky textures.
• Hydraulic bridge lifts and swings 140° clear for loading, cleaning or tilting.
• Power tilt dumps a full 90° and self-locks for safe, complete emptying.
• 316 SS kettle liner resists acidic recipes; 304 SS exterior offers a durable satin finish.
• Stainless tubular legs with 4-hole adjustable flanged feet bolt securely to the floor.
• Front console houses main power, bridge lift and speed control—right where you need them.
• NSF listed & cCSAus certified for commercial use in the U.S. and Canada.

What’s included

• (2) 40-gal direct-steam kettles with 2/3 jackets
• (2) Removable scraper agitators with food-grade blades
• (2) Removable secondary high-speed agitators
• Hydraulic power pack & stainless control console
• Stainless leg frame with adjustable flanged feet

Popular factory options

• Swing faucet (left or right)
• 2″ or 3″ butterfly draw-off valve with strainer
• Etched gallon or litre markings
• Quick-chill system, heat shield, high-pressure 45 psi jacket & more

Technical specifications

Need different voltage, volume etchings or draw-off valve size? Click “Request a Quote” and we’ll configure your DLTM-40-2 to order.

Warranty

1-year parts & labor, plus a 10-year hemispheric kettle body warranty. Full terms available upon request.
