Crown (Middleby) DLTM-100 Steam Kettles
Description

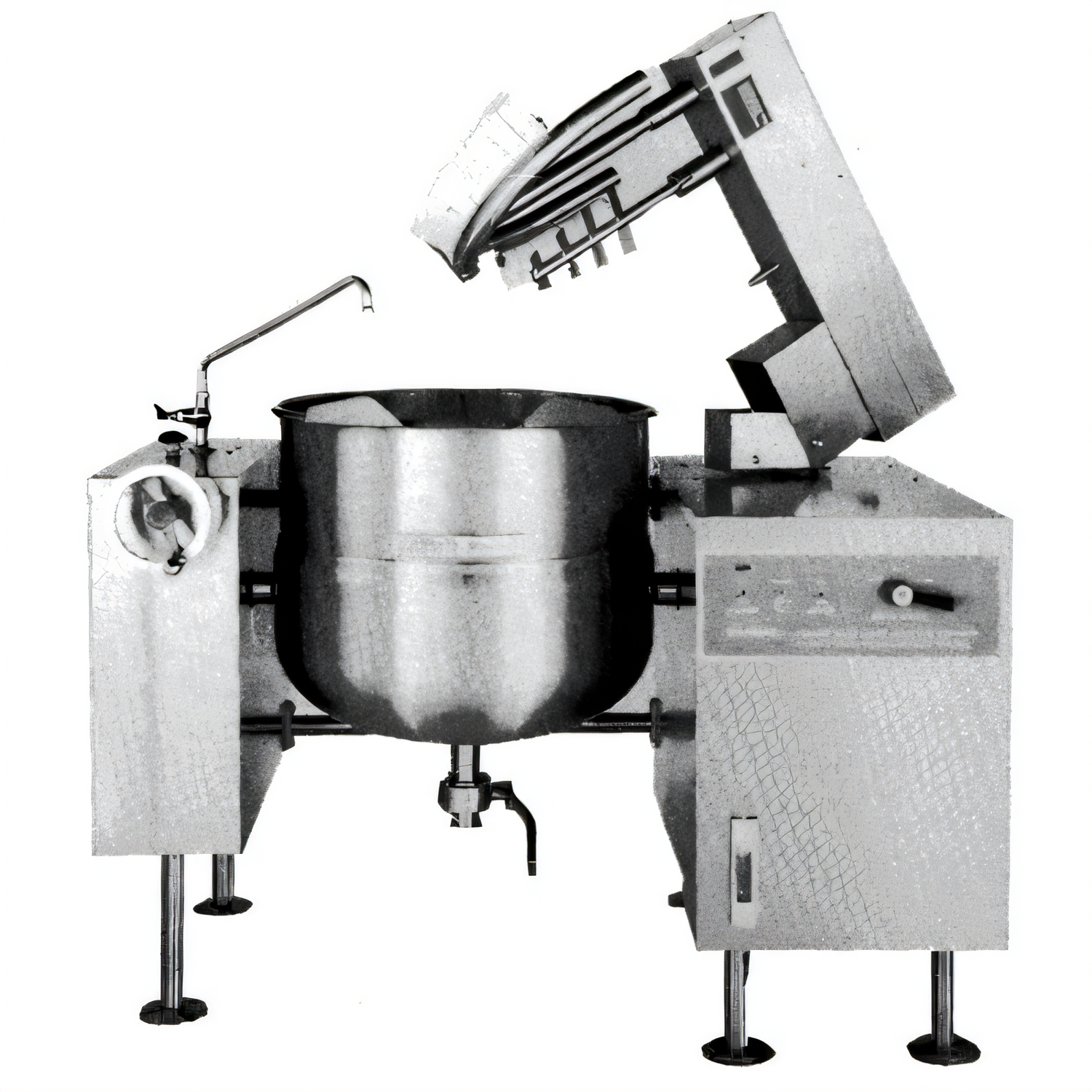

Crown DLTM-100 | 100-Gallon Direct-Steam Tilting Mixer Kettle
2/3-jacket • power-tilt • dual variable-speed agitatorsEngineered for high-volume production kitchens, the Crown DLTM-100 couples the lightning-fast heat-up of direct steam with a rugged hydraulic mixing and tilting system—delivering perfectly blended soups, sauces, fillings and ready-to-eat meals batch after batch.
Key Performance Features

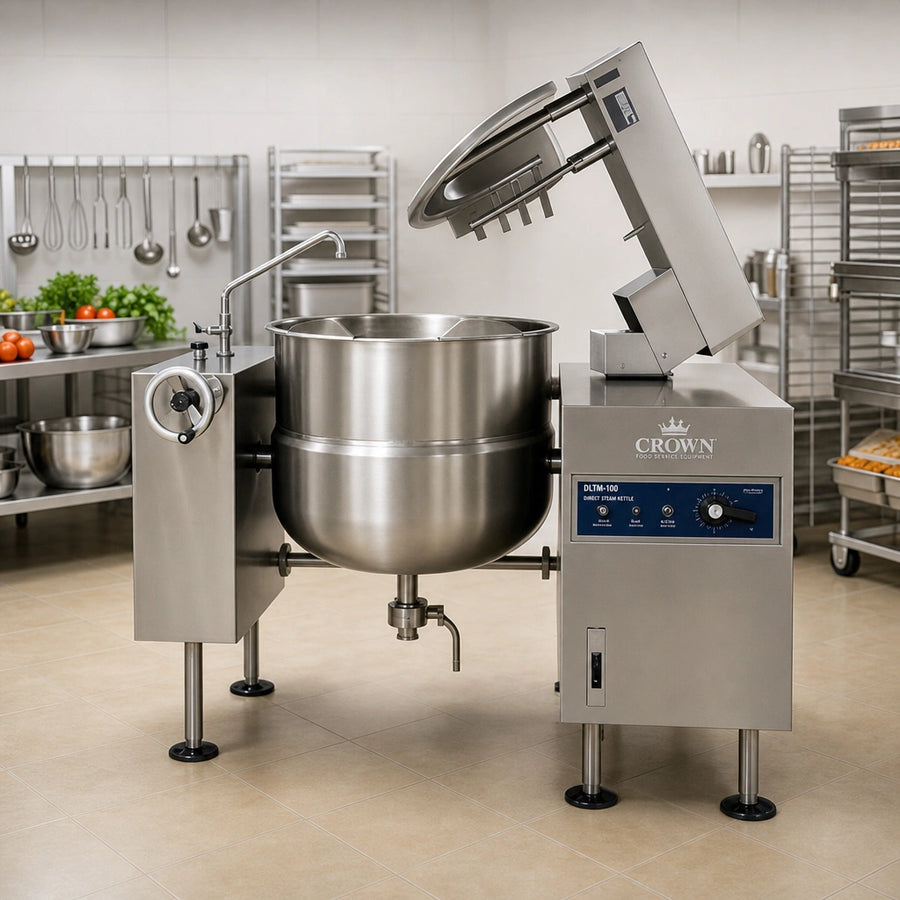

- Huge 100 gal (380 L) capacity—ideal for commissaries & central kitchens

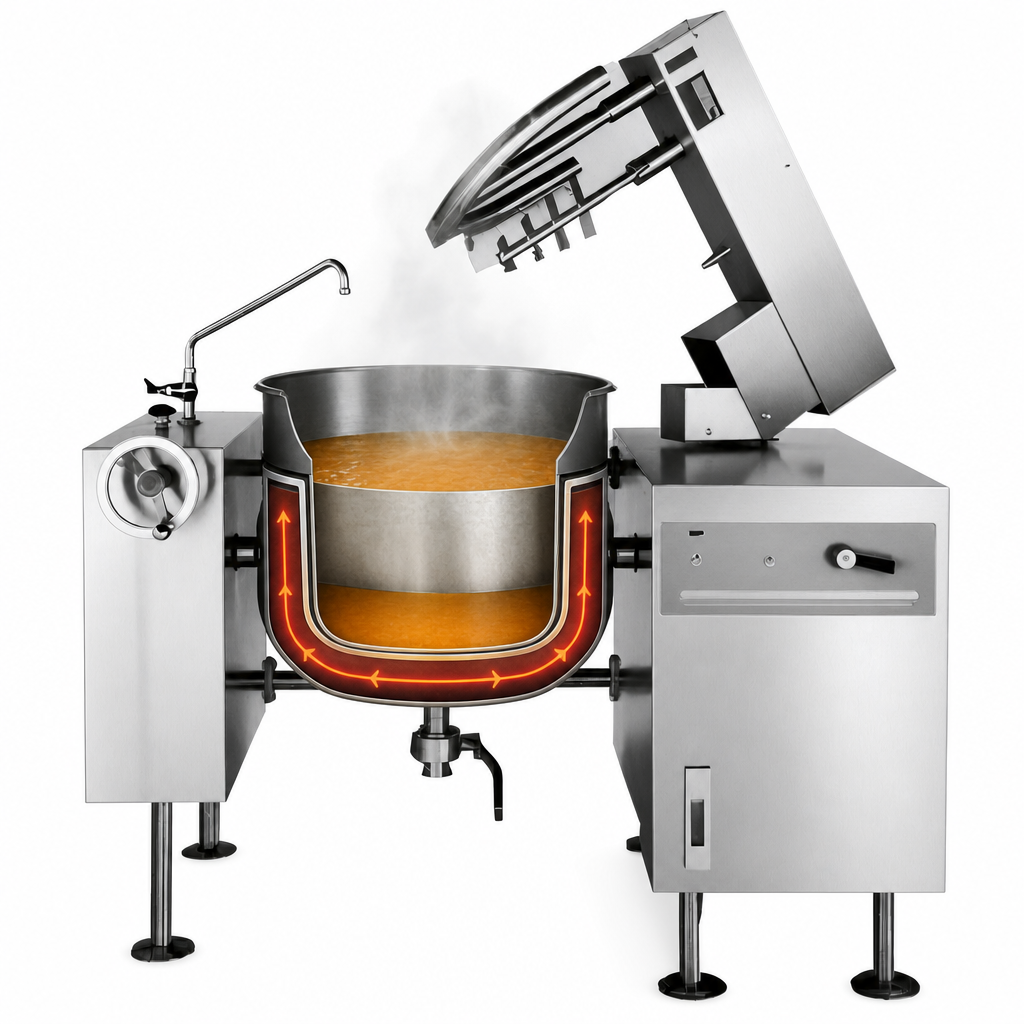

- 2/3 steam jacket with hemispheric bottom maximizes heat transfer & eliminates hot spots
- Acid-resistant 316 SS liner; 304 SS exterior, bridge & tubular legs
- Power tilt dumps a full 90° and locks securely for safe, complete emptying
- Hydraulic bridge lifts & swings 140° clear for kettle access and sanitation
- Dual variable-speed agitators:
- Primary scraper/sweep keeps product off sidewalls to prevent scorching
- Secondary high-speed agitator rapidly blends particulates
- No-tool removal for lightning-fast clean-ups
- 5 HP electric motor drives two heavy-duty hydraulic motors for unstoppable torque
- Floor console puts on/off, bridge lift & speed control right at the operator’s fingertips
- Certified cCSAus, UL & NSF for worry-free code compliance
Operator Benefits

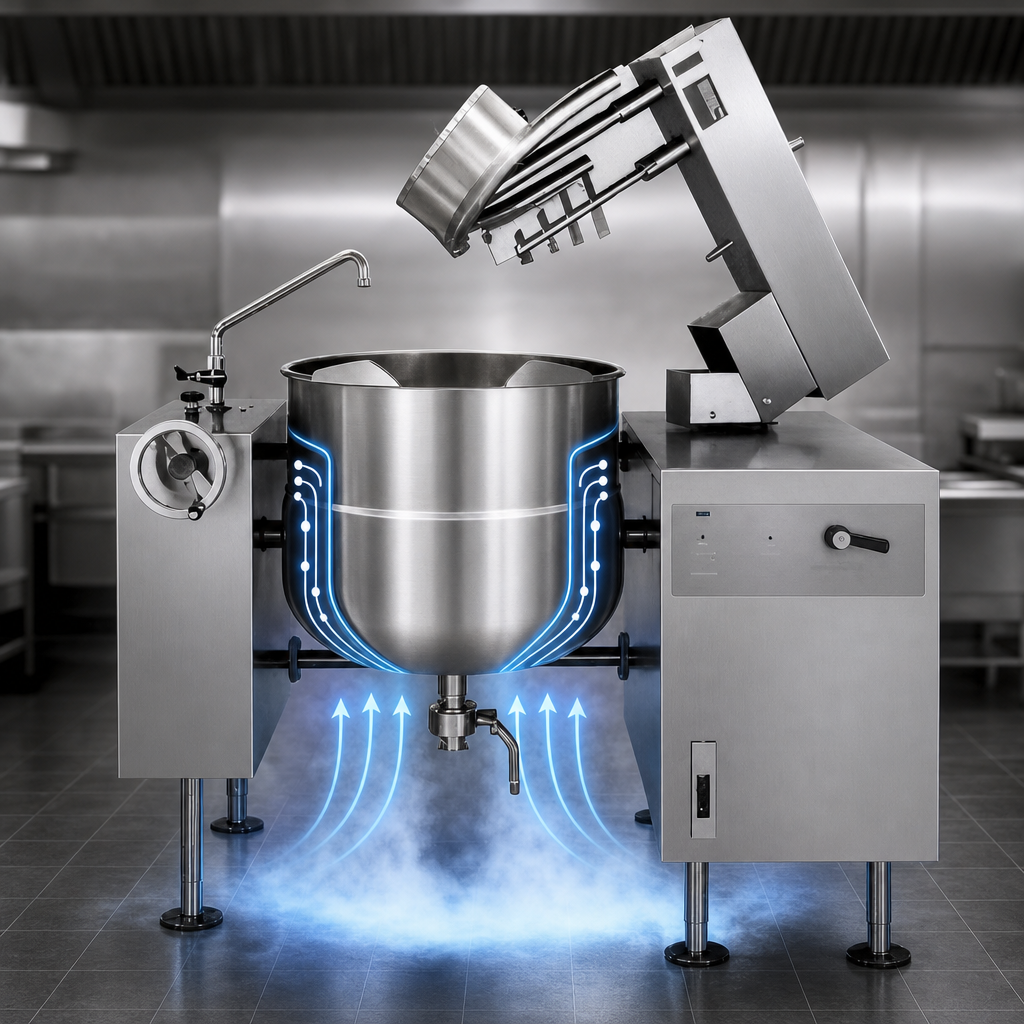

- Direct steam harnesses existing boiler energy for lower operating costs
- Automated mixing slashes manual labor and improves batch consistency
- Tough stainless build stands up to daily wash-down and acidic recipes
- 10-year hemisphere kettle warranty safeguards your investment
Technical Specifications
| Model | DLTM-100 |
|---|---|
| Capacity | 100 gal / 380 L |
| Kettle Liner | 316 stainless steel |
| Jacket Coverage | Lower 2/3 of kettle |
| Steam Pressure Range | 5 – 30 psi (34 – 207 kPa) |
| Agitation | Dual removable agitators, variable speed (hydraulic) |
| Tilt System | Hydraulic power tilt, 90° dump angle |
| Bridge Travel | Hydraulic lift & 140° swing |
| Steam Inlet | 3/4 in IPS |
| Condensate Return | 1/2 in IPS |
| Electrical | 208 / 3 / 60 Hz or 240 / 3 / 60 Hz (14 A/line); 480 V option (7 A/line) |
| Overall Dimensions | 70 in W × 49 in D × 85 in H (1778 × 1245 × 2159 mm) |
| Shipping Weight | ≈ 900 lb (410 kg) |
| Certifications | cCSAus, UL, NSF |
| Warranty | 1-year parts & labor • 10-year hemisphere kettle shell |
Direct steam source required (not included). For high-pressure operation up to 45 psi, specify option HP-50 at time of order.
Popular Factory Options
- Swing fill faucet (left console)
- Etched gallon or litre markings
- 2 in or 3 in manual butterfly draw-off valves
- Quick-chill system
- Kettle heat shield
