Crown (Middleby) DLTM-100-2 Steam Kettles
Description

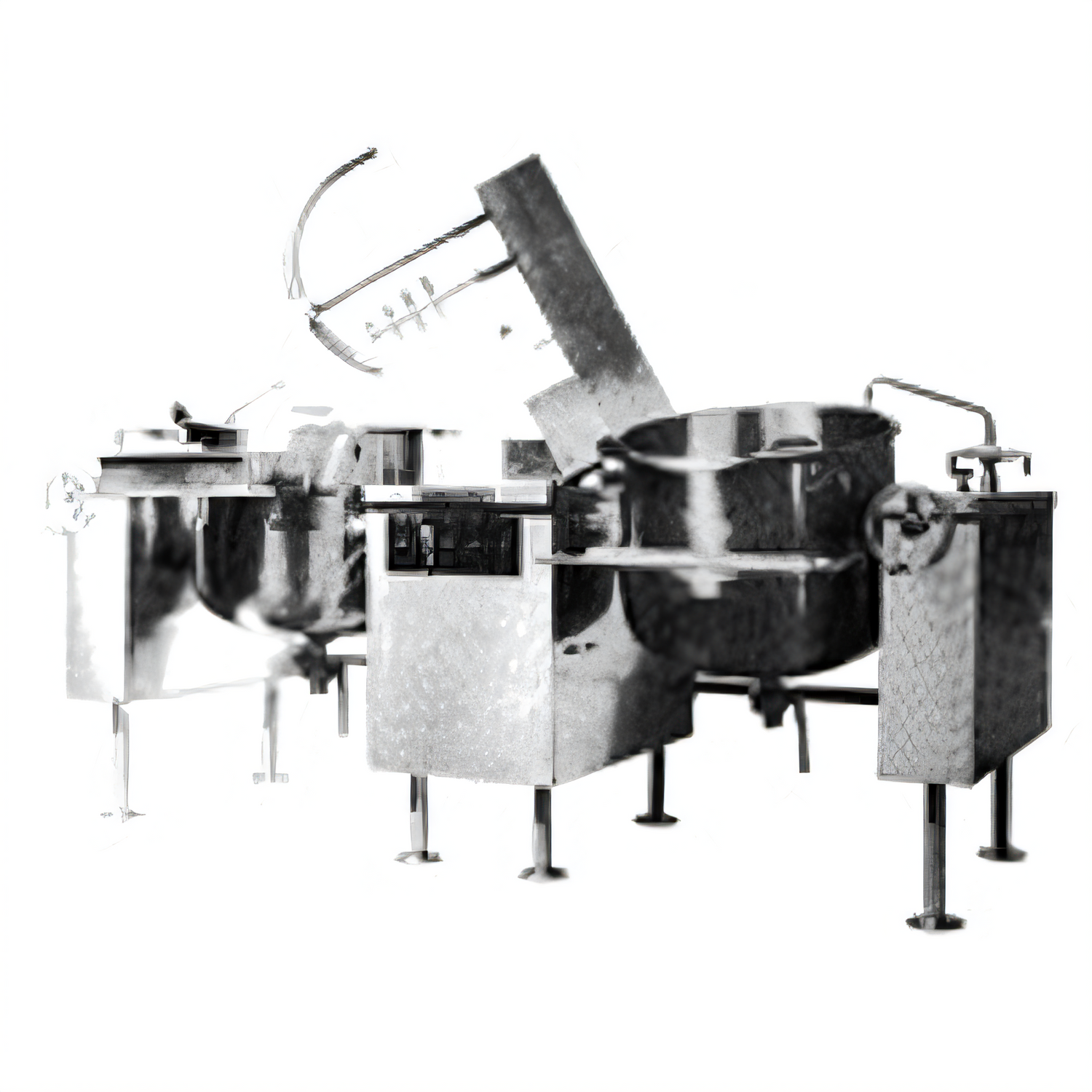

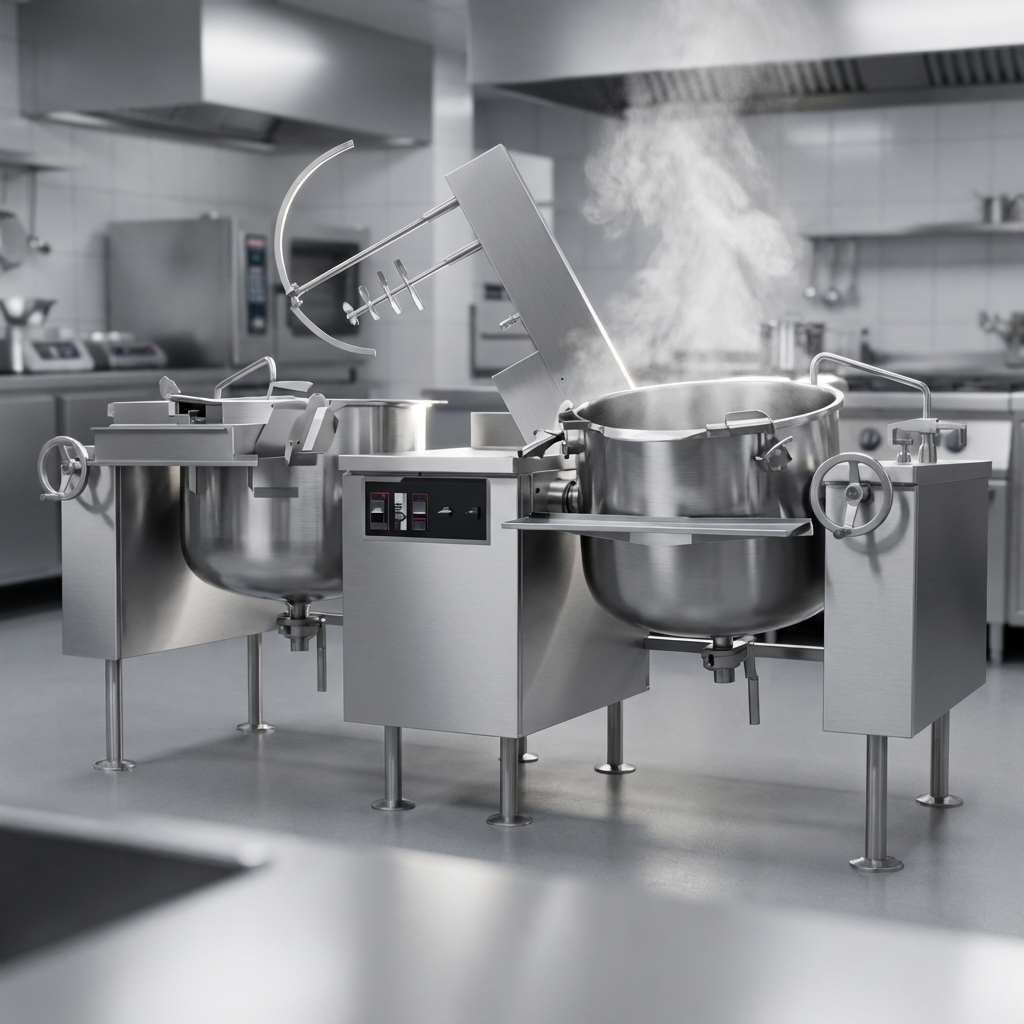

Crown DLTM-100-2 Twin 100 gal Direct-Steam Tilting Mixer Kettle Set
High-capacity cooking & mixing power for the busiest kitchensBuilt for operations that never slow down, the DLTM-100-2 combines two independent 100-gallon kettles with variable-speed agitation and effortless power tilt. Whether you’re simmering sauces, cooking soups or producing ready-to-eat meals, Crown’s direct-steam mixer kettles deliver the speed, consistency and reliability that large-scale production demands.
Key performance benefits

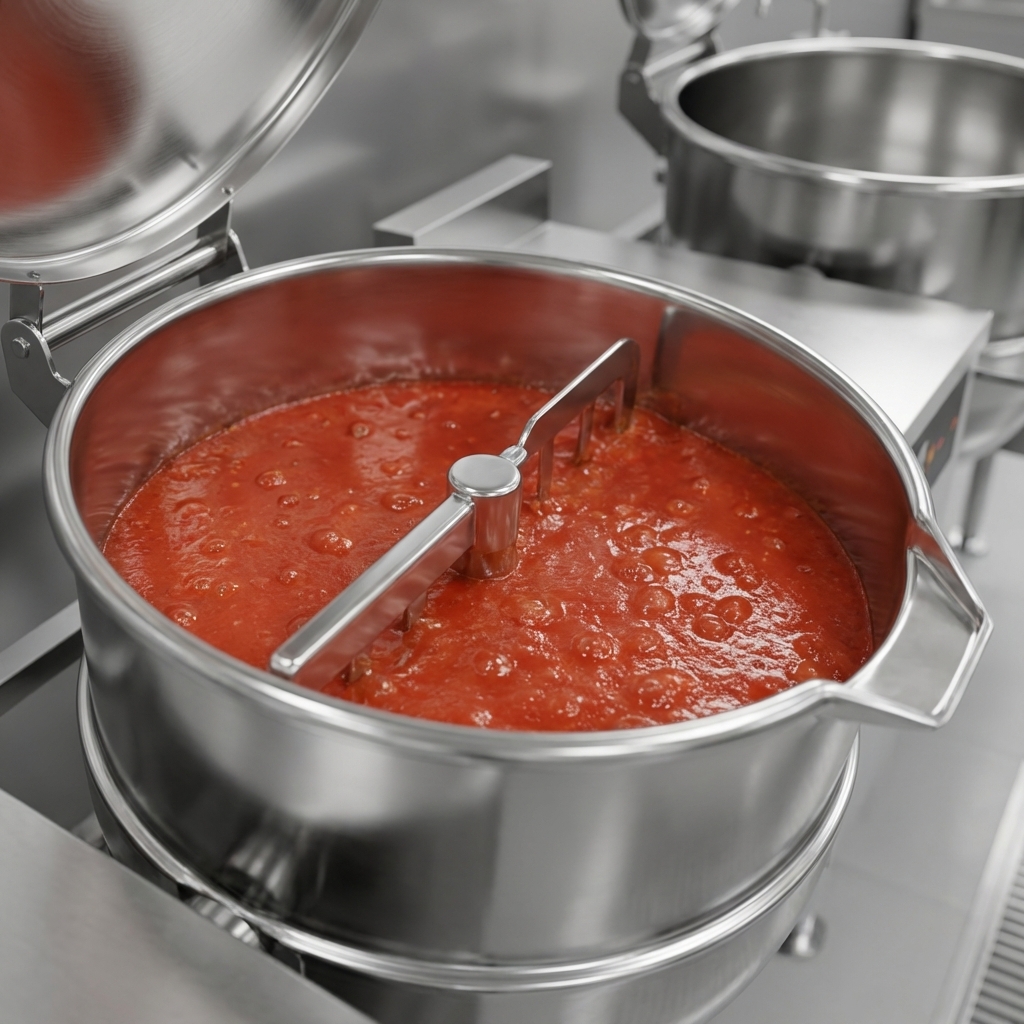

- Direct-steam ⅔ jacket with 316 SS liner handles high-acid recipes without corrosion.
- Hemispherical kettle bottoms maximise heat transfer for faster, more even heating.
- Two 5 HP variable-speed hydraulic drives—one per kettle—for precise mixing control.
- Primary scraper agitator continuously sweeps the sidewalls; secondary high-speed mixer keeps ingredients perfectly blended.
- Agitators remove without tools for lightning-fast change-overs and sanitation.
- Power tilt dumps a full 90°, and the bridge swings 140° clear for unobstructed kettle access.
- 304 SS welded frame, stainless tubular legs & adjustable flanged feet bolt securely to the floor.
- Floor-mounted console places main power, bridge lift and speed dial right where you need them.
- Uses existing plant steam (5–30 PSI) — no internal boiler to maintain.
- cCSAus & NSF certified; backed by Crown’s 10-year hemisphere warranty.
Technical specifications
| Capacity (each kettle) | 100 gal / 380 L |
|---|---|
| Total batch capacity | 200 gal / 760 L |
| Steam jacket rating | 5–30 PSI (34–207 kPa) direct steam |
| Construction | 304 SS exterior, 316 SS liner, satin finish |
| Agitators | Scraper + high-speed mixer (removable without tools) |
| Mixing drives | 2 × 5 HP variable-speed hydraulic motors |
| Tilt mechanism | Power tilt, sealed & self-locking, 90° pour |
| Electrical (hydraulic P/S) | 208 V or 240 V, 3 Ø, 14 A | optional 480 V, 7 A |
| Steam connection | ¾" IPS supply, ½" IPS condensate return |
| Overall width (B) | 121 in / 3073 mm |
| Overall height (E) | 85 in / 2159 mm |
| Shipping weight | Approx. 1,615 lb / 735 kg |
| Required clearance | Sides 0" | Back 4" (102 mm) |
| Certifications | cCSAus, NSF |
Perfect for
- Commissary & central production kitchens
- High-volume restaurants, hotels & banquets
- Institutional foodservice—hospitals, universities, correctional facilities
- Food processors & contract packers needing consistent, repeatable batches
Need gallon/litre etchings, butterfly valves, quick-chill or other factory options? Crown offers a full menu of accessories to customise the DLTM-100-2 for your workflow.
Warranty coverage
Enjoy one-year parts & labour protection and Crown’s industry-leading 10-year hemisphere warranty on the kettle body.
