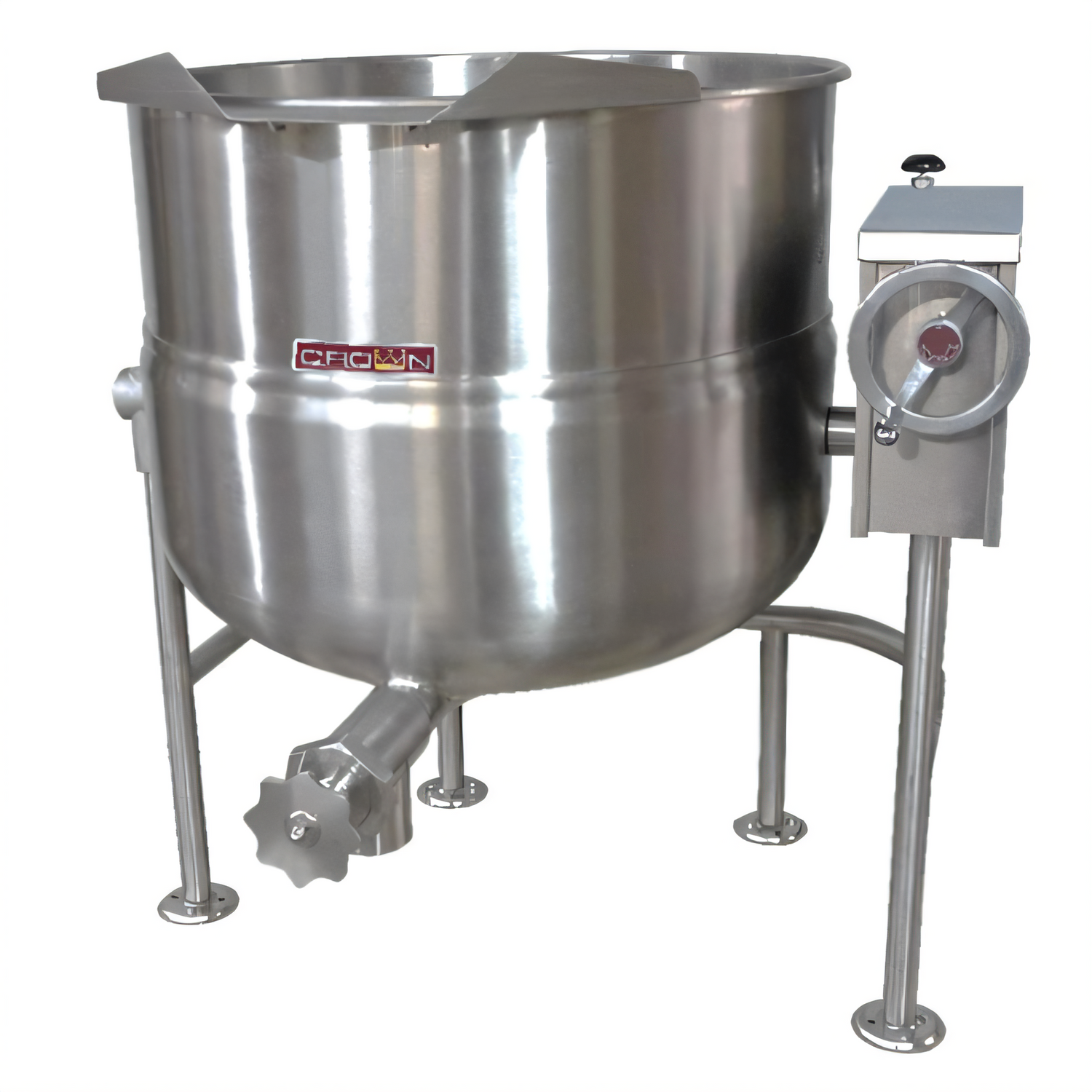

Crown DLT-80 80 Gallon Direct Steam 2/3 Jacketed Tilting Kettle with Quad-Leg Base
Crown DLT-80 80 Gallon Direct Steam 2/3 Jacketed Tilting Kettle with Quad-Leg Base
80 Gallon Capacity, Direct Steam, 2/3 Jacketed, Manual Crank Tilt
Experience superior heat circulation and robust construction with the Crown DLT-80 direct steam tilting kettle, designed for efficient high-volume cooking.
- 80-gallon capacity ideal for large-batch cooking in commercial kitchens.
- 2/3 steam jacket ensures even and efficient heat distribution.
- Durable 316 stainless steel interior liner is perfect for high-acid content foods.
- Self-locking crank tilt mechanism provides safe and complete emptying.
- Heavy-duty 304 stainless steel quad-leg base with adjustable flanged feet for stability.
- Faucet bracket included for convenient water access.
Overall Dimensions:
46.75"W x 37.75"D x 42.5"HProduct Weight:

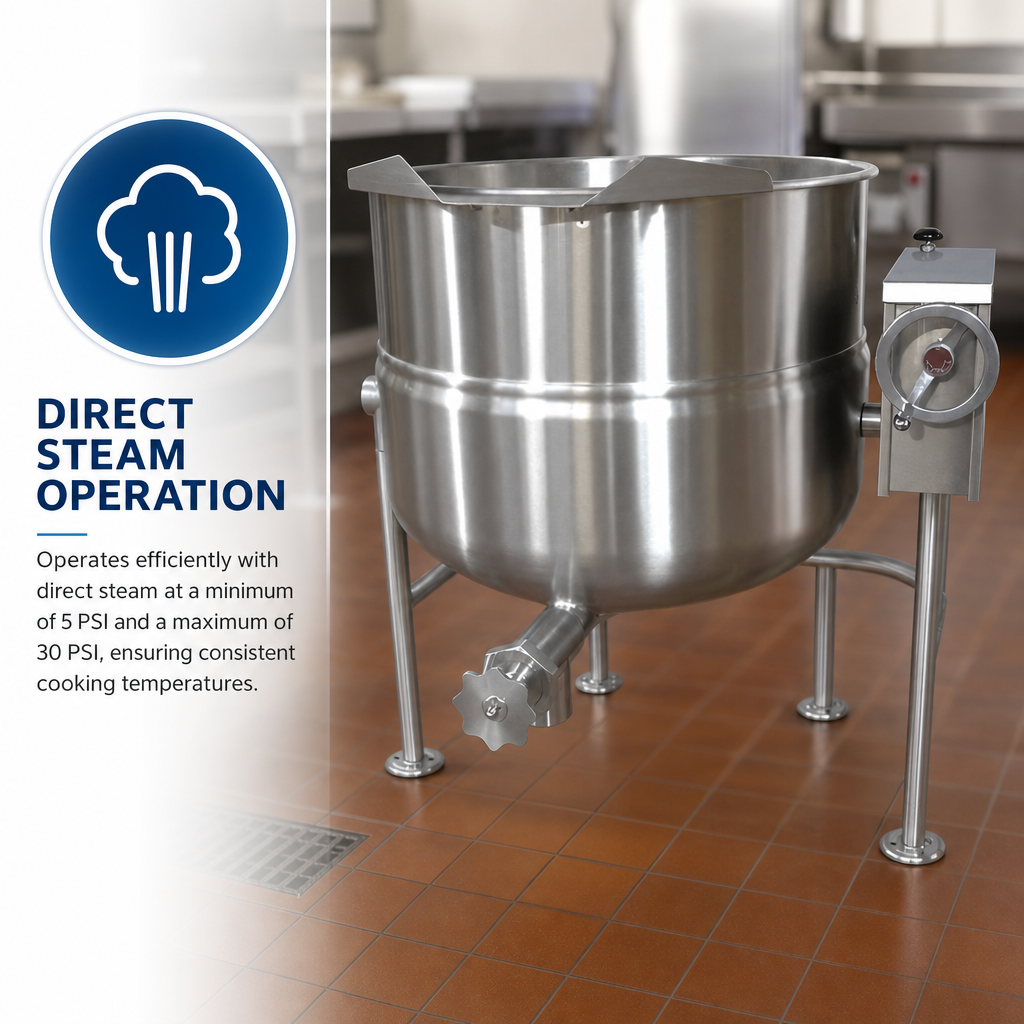

424.0 lbDirect Steam Operation
Operates efficiently with direct steam at a minimum of 5 PSI and a maximum of 30 PSI, ensuring consistent cooking temperatures.

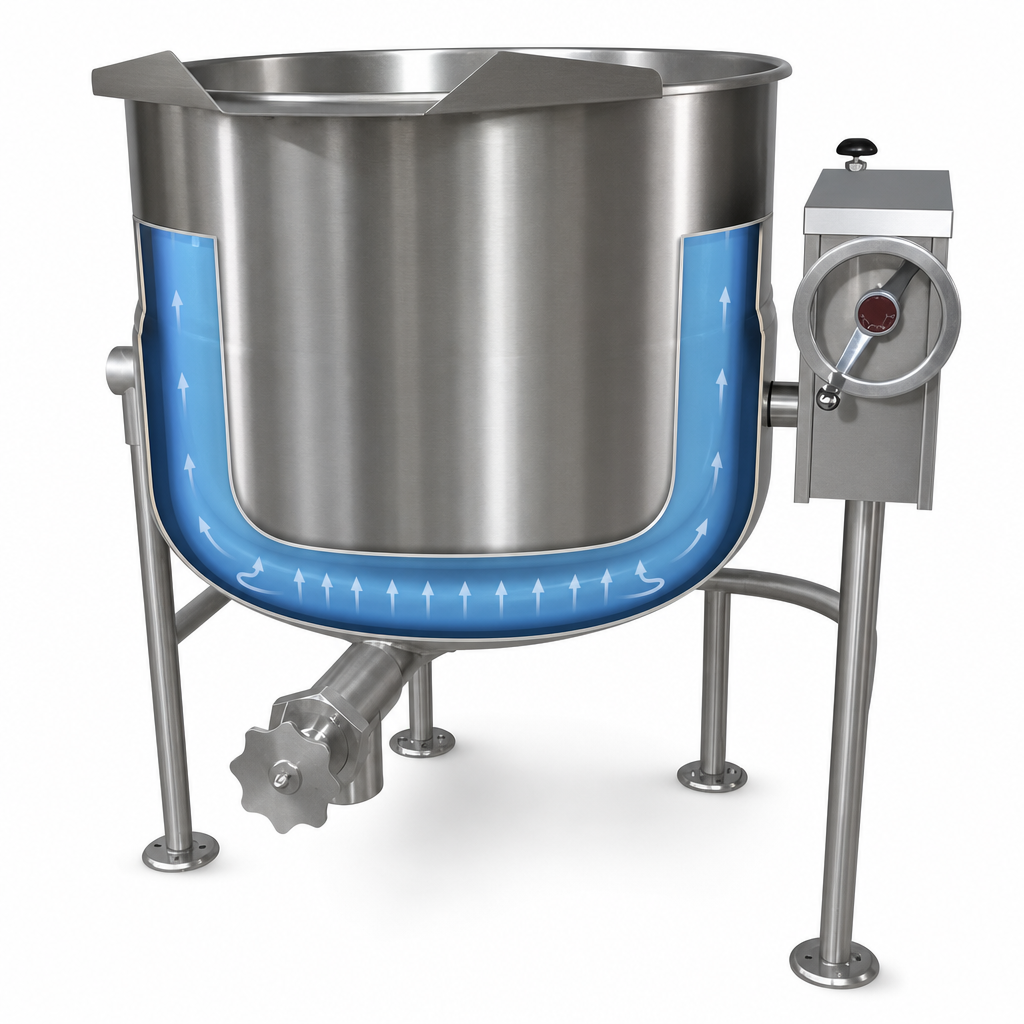

2/3 Steam Jacket
A double-wall kettle interior forms a steam jacket around the lower two-thirds of the kettle, providing excellent and even heat coverage.
Hemispherical Kettle Bottom
Designed with a hemispherical bottom for superior heat circulation, preventing hot spots and aiding in thorough stirring.
Quad-Leg Stainless Steel Base
Supported by a robust all-welded #4 finish 304 stainless steel quad-leg mounting frame, suitable for 60, 80, and 100 gallon models, concealing steam piping and housing the tilt mechanism.
Adjustable Flanged Feet
Each leg is fitted with a 4-hole adjustable flanged foot, allowing for secure and stable mounting to the floor.
90° Tilt Mechanism
Permits the kettle to tilt forward a full 90 degrees, enabling complete product emptying and simplifying cleaning procedures.
Self-Locking Positive Stop
The tilting mechanism is self-locking, ensuring positive stop action and secure positioning during operation and pouring.
316 Stainless Steel Interior Liner
The kettle's interior liner is constructed from high-grade 316 stainless steel, offering superior corrosion resistance for cooking high-acid content foods.
304 Stainless Steel Exterior
The exterior construction boasts an all-welded #4 finish 304 stainless steel for lasting durability, hygiene, and a professional appearance.
Included Faucet Bracket
A convenient faucet bracket is included as standard, facilitating easy integration of a water faucet (faucet is optional).
Zero Clearance Installation
Designed for installation with zero clearance at the sides and back, optimizing kitchen space.
