Crown (Middleby) DLT-60TC Steam Kettles
Description

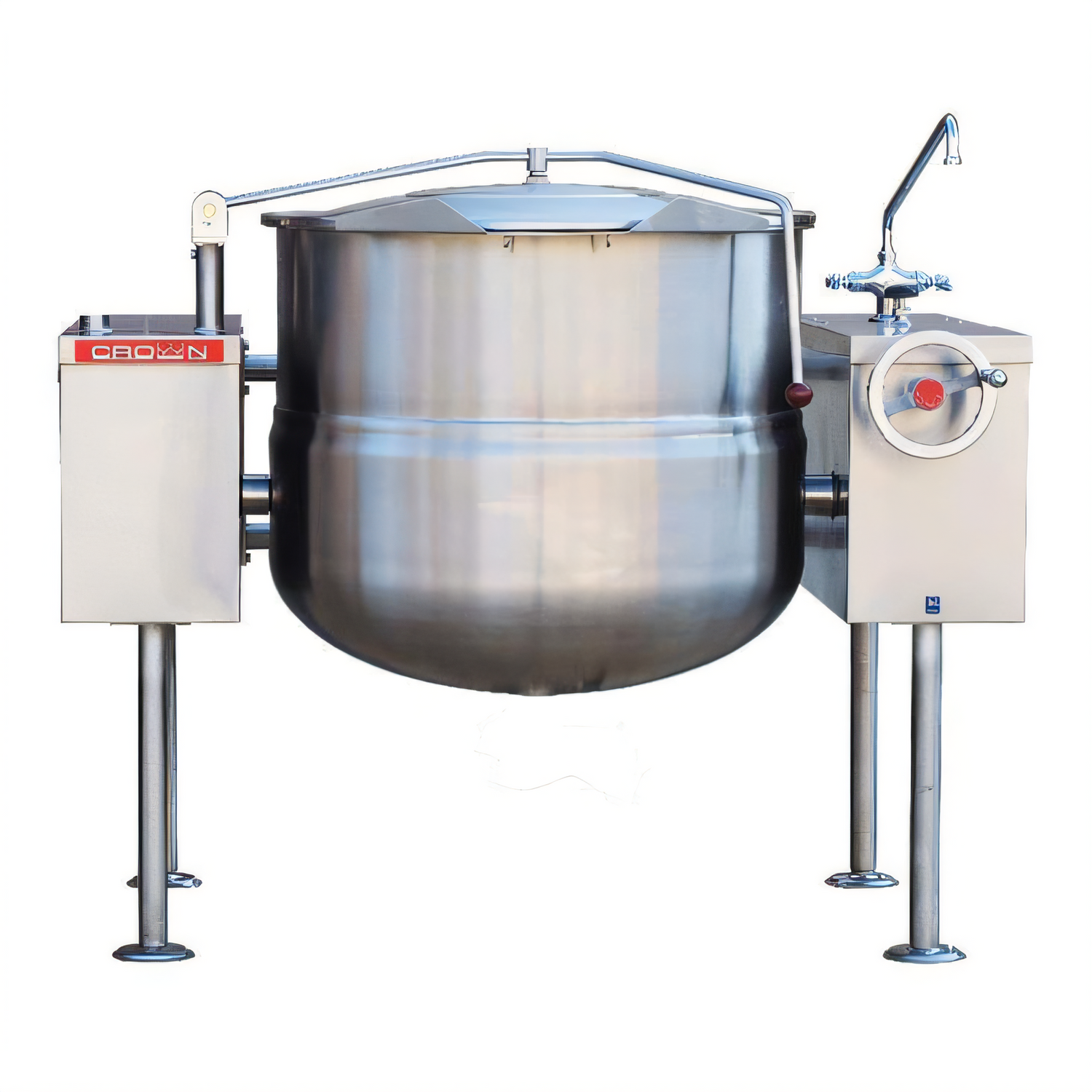

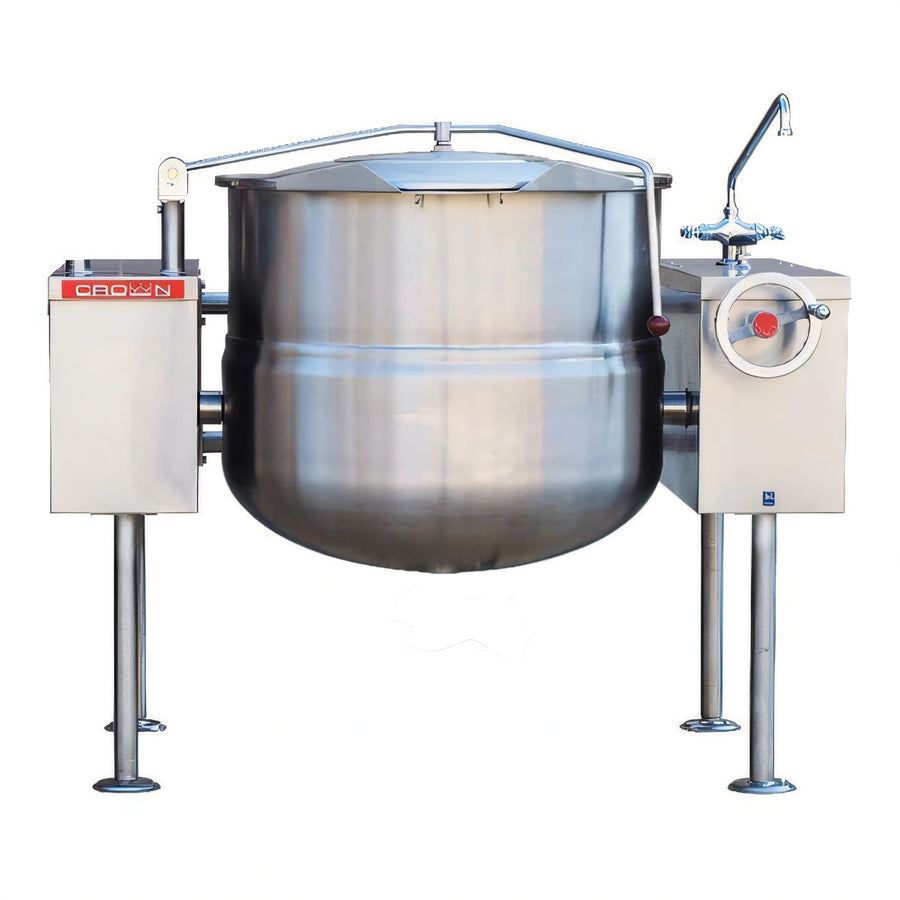

Crown DLT-60TC Direct-Steam Tilting Kettle
60-Gallon / 227-Liter • Twin-Console • NSFBuilt for high-volume commercial kitchens, the Crown DLT-60TC combines rapid direct-steam heating with a smooth crank-tilt design for safe, effortless pouring. Its 316 stainless interior handles acidic foods with ease, while the rugged 304 stainless exterior and quad-leg base stand up to daily punishment. From soups and sauces to one-pot entrées, this 60-gallon powerhouse delivers consistent results shift after shift.
Stand-Out Features
- 60 gal (227 L) working capacity – ideal for central kitchens & institutions.

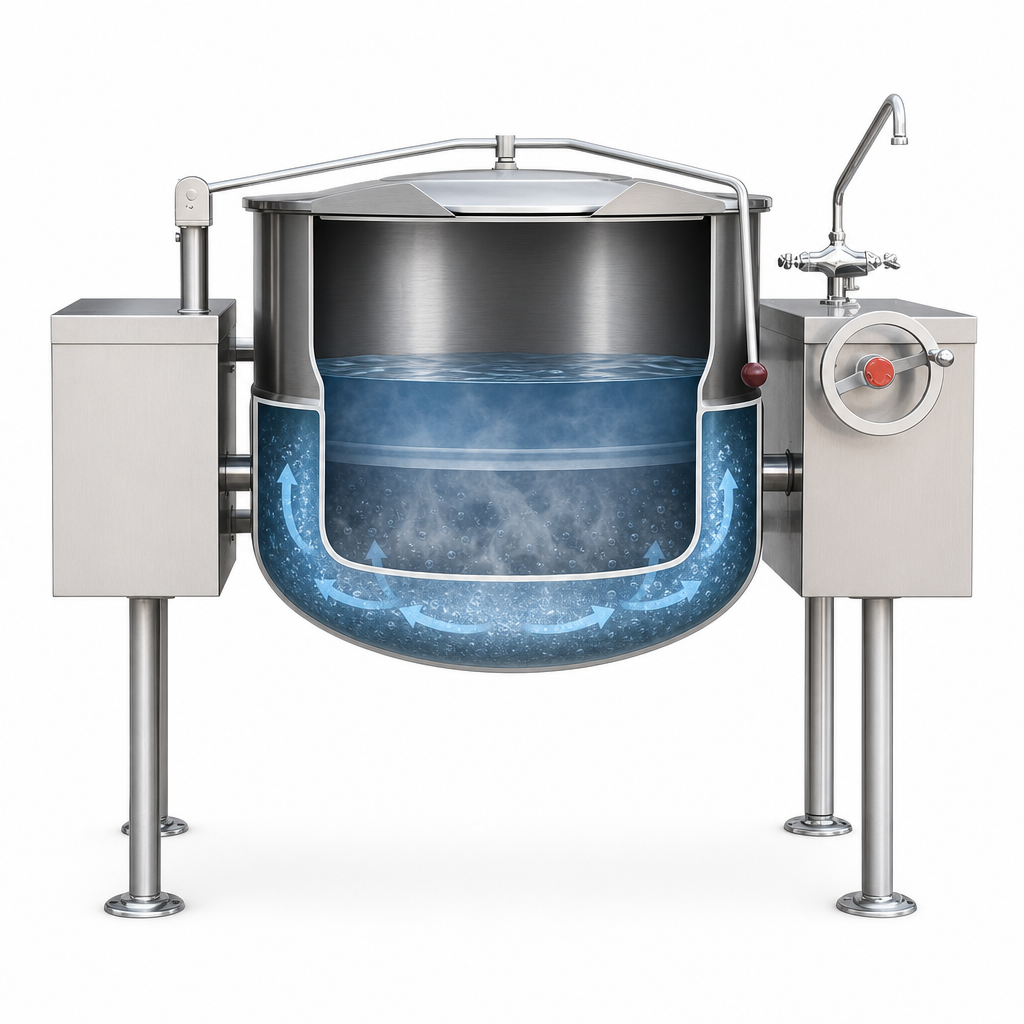

- 2/3-jacketed, double-wall construction for fast, even heat transfer.

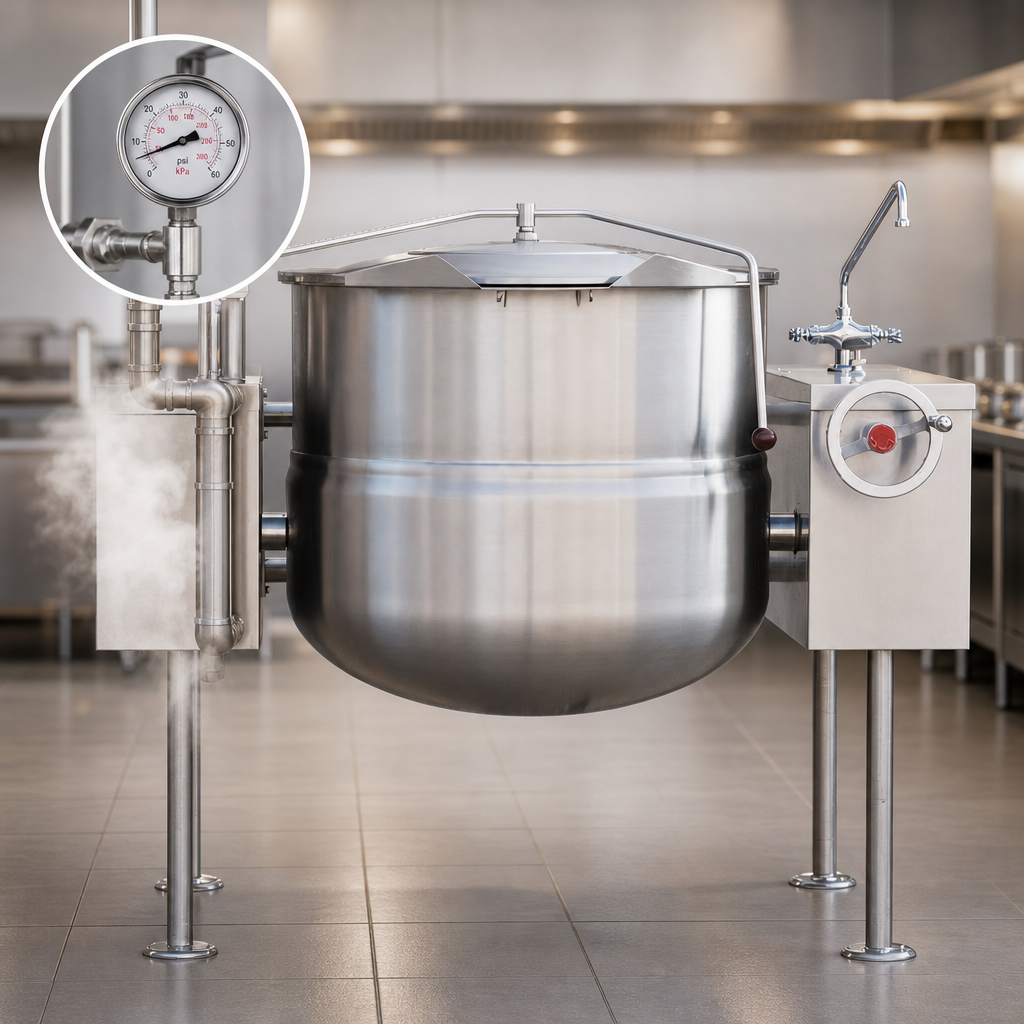

- Direct-steam operation 5–35 PSI (34–241 kPa) for energy-efficient cooking.
- Hand crank tilts kettle up to 90° with a self-locking positive stop for drip-free decanting.
- Premium 316 stainless-steel liner resists acidic foods and cleaning chemicals.
- All-welded #4 finish 304 stainless-steel shell – easy to clean, corrosion-resistant.
- Twin consoles hide steam plumbing; right console integrates the steam control valve.
- Quad-leg base with adjustable flanged feet for rock-solid floor anchoring.
- Hemispherical bottom maximizes heat circulation and simplifies stirring & scraping.
- NSF certified; intended for continuous commercial use.
Technical Specifications
| Model | DLT-60TC |
|---|---|
| Capacity | 60 gal / 227 L |
| Heat Source | Direct steam (external boiler) | 5–35 PSI |
| Jacket Coverage | Lower 2/3 of kettle body |
| Interior | 316 SS, polished |
| Exterior | 304 SS, #4 sanitary finish |
| Tilt Mechanism | Manual crank, self-locking, 90° pour |
| Steam Control | Manual valve, right console |
| Steam Inlet | 3/4" IPS |
| Condensate Return | 1/2" IPS |
| Overall Width (B) | 54.38" / 1381 mm |
| Overall Depth (H) | 41.13" / 1045 mm |
| Overall Height (J) | 75" / 1905 mm to safety valve |
| Kettle Diameter (A) | 29.5" / 750 mm |
| Ship Weight | Contact factory |
| Certifications | NSF, CSA (gas piping not required), 10-year hemisphere warranty |
Popular Accessories (sold separately)
- 2" or 3" draw-off valve with perforated or solid strainer
- Spring-assist hinged cover
- Kettle filler faucet (single or double pantry)
- Etched gallon or liter graduations
- Triple basket assembly or pan carrier
Warranty & Service
• 1-year parts & labor • 10-year hemisphere warranty on kettle body
Service must be performed by an authorized Crown Steam Group agency.
