Crown (Middleby) DLT-60F Steam Kettles
Description

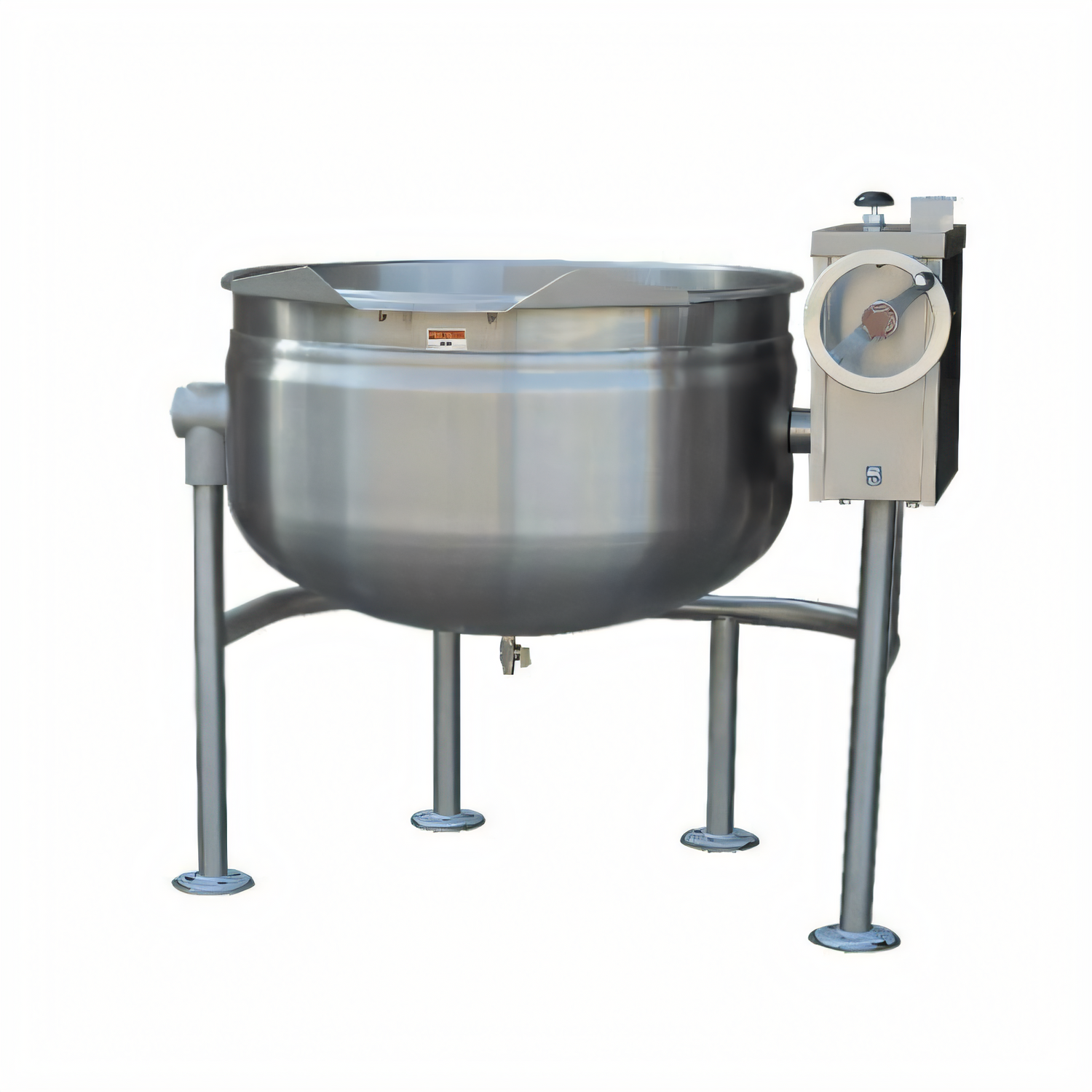

DLT-60F 60 Gallon Full-Jacketed Tilting Kettle
Direct-Steam | 316 SS Interior | Crank TiltEngineered for high-volume production kitchens, the Crown DLT-60F gives you a massive 60 gallon (227 L) cooking capacity with the speed and efficiency of direct steam. A full 316 stainless interior jacket, smooth crank tilt and NSF-listed construction make it the rock-solid centerpiece for schools, hotels, commissaries and hospitals that can’t compromise on performance or durability.
Why You’ll Love It

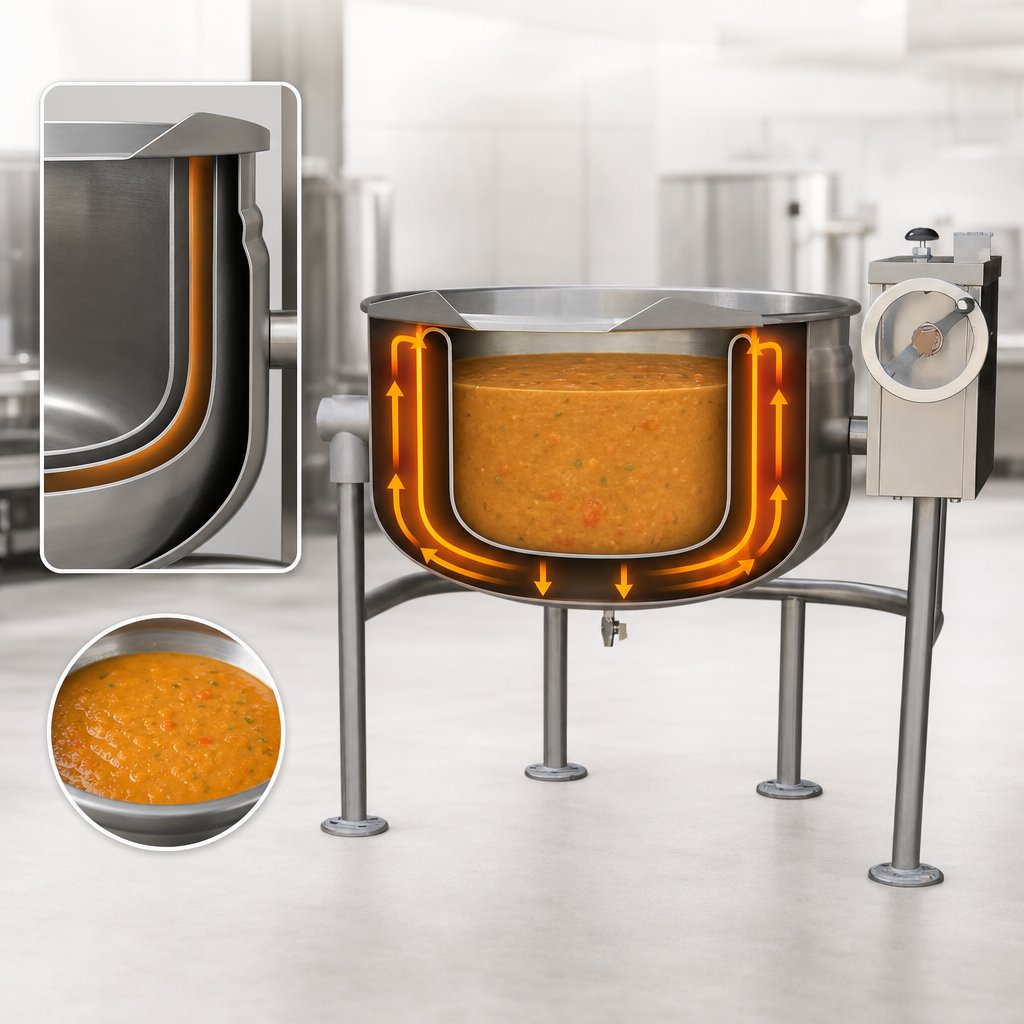

- Full 316 SS steam jacket envelops the kettle for uniform, scorch-free cooking.

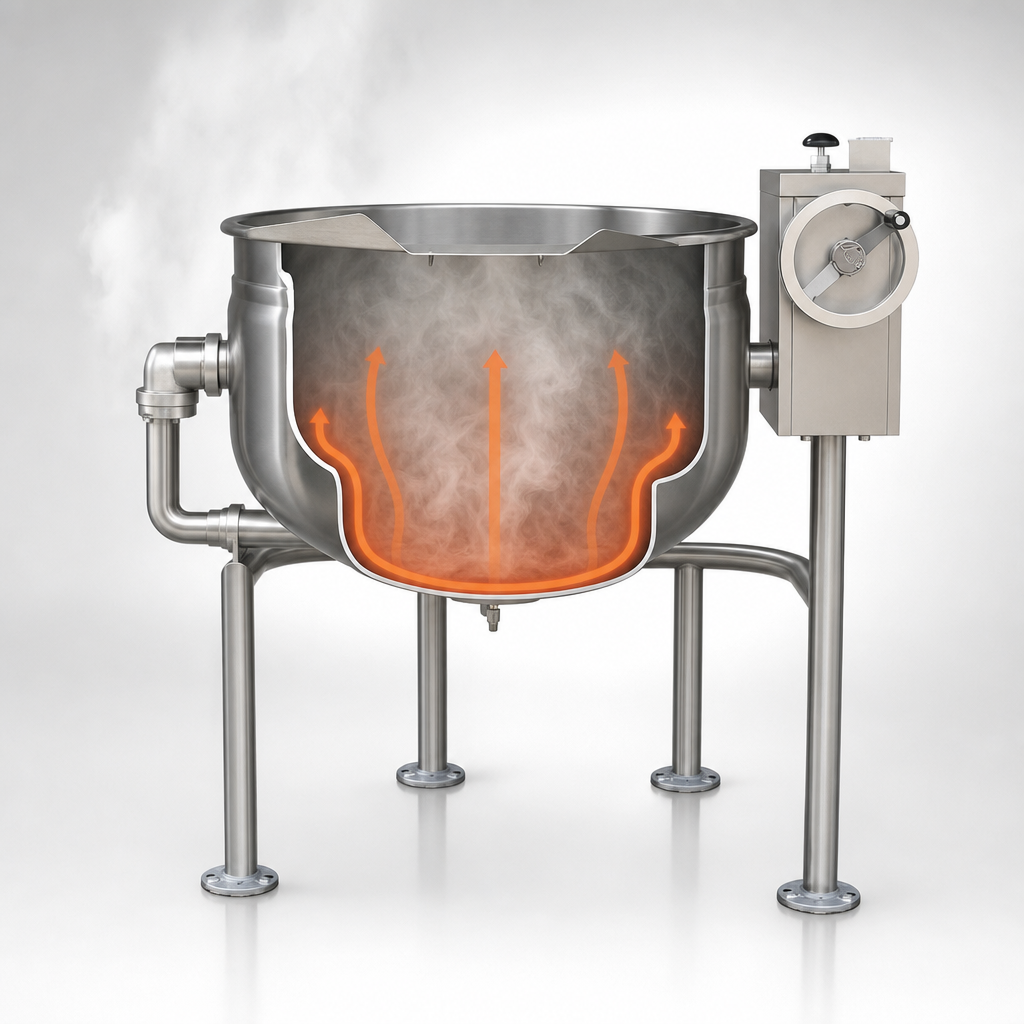

- 5–30 PSI direct-steam operation (optional 50 PSI kit) reaches temperatures up to 274 °F (135 °C) for rapid batch times.
- Manual crank tilt with self-locking positive stop—smooth, precise 90° pour control even at full capacity.
- Hemispherical bottom promotes superior heat circulation and complete product evacuation.
- All-welded 304 SS exterior in #4 finish resists dents, chemicals and everyday abuse.
- Four stainless tubular legs with 4-hole flanged feet—adjustable, drill-through and sealable to meet NSF floor-mount requirements.
- Factory-installed 35 PSI safety relief valve and steam control valve keep operation safe and simple.
- Zero side/back clearance needed—ideal for tight cookline layouts.
- NSF & cULus listed; built in North America by Crown, a Middleby brand.
Popular Options & Accessories
- 2" or 3" tangent draw-off valve with perforated strainer
- Spring-assist hinged cover
- Single or double pantry faucet with swing spout
- Triple basket assembly for pasta or veg
- Graduated gallon / litre etchings
- Kettle heat shield, pour-lip strainer, pan carrier & more
Technical Specifications
| Capacity | 60 gal | 227 L |
|---|---|
| Jacket Type / Material | Full jacket, 316 SS – double-wall, water-sealed |
| Exterior Material | 304 SS, #4 sanitary finish |
| Operating Steam Pressure | 5 – 30 PSI standard (50 PSI option) |
| Tilt Mechanism | Hand crank, self-locking worm & gear, 90° dump |
| Steam Supply Connection | 3/4" IPS |
| Condensate Return | 1/2" IPS |
| Shipping Weight | ≈ 439 lb (199 kg) |
| Overall Height | 76.25" (1 937 mm) |
| Floor Space (W × D) | 39.25" × 49.25" (997 mm × 1 251 mm) |
| Certifications | NSF, cULus, ASME Section VIII safety relief valve |
A pressure-reducing valve is required if incoming steam exceeds kettle rating. Unit must be bolted and sealed to floor per NSF guidelines.
