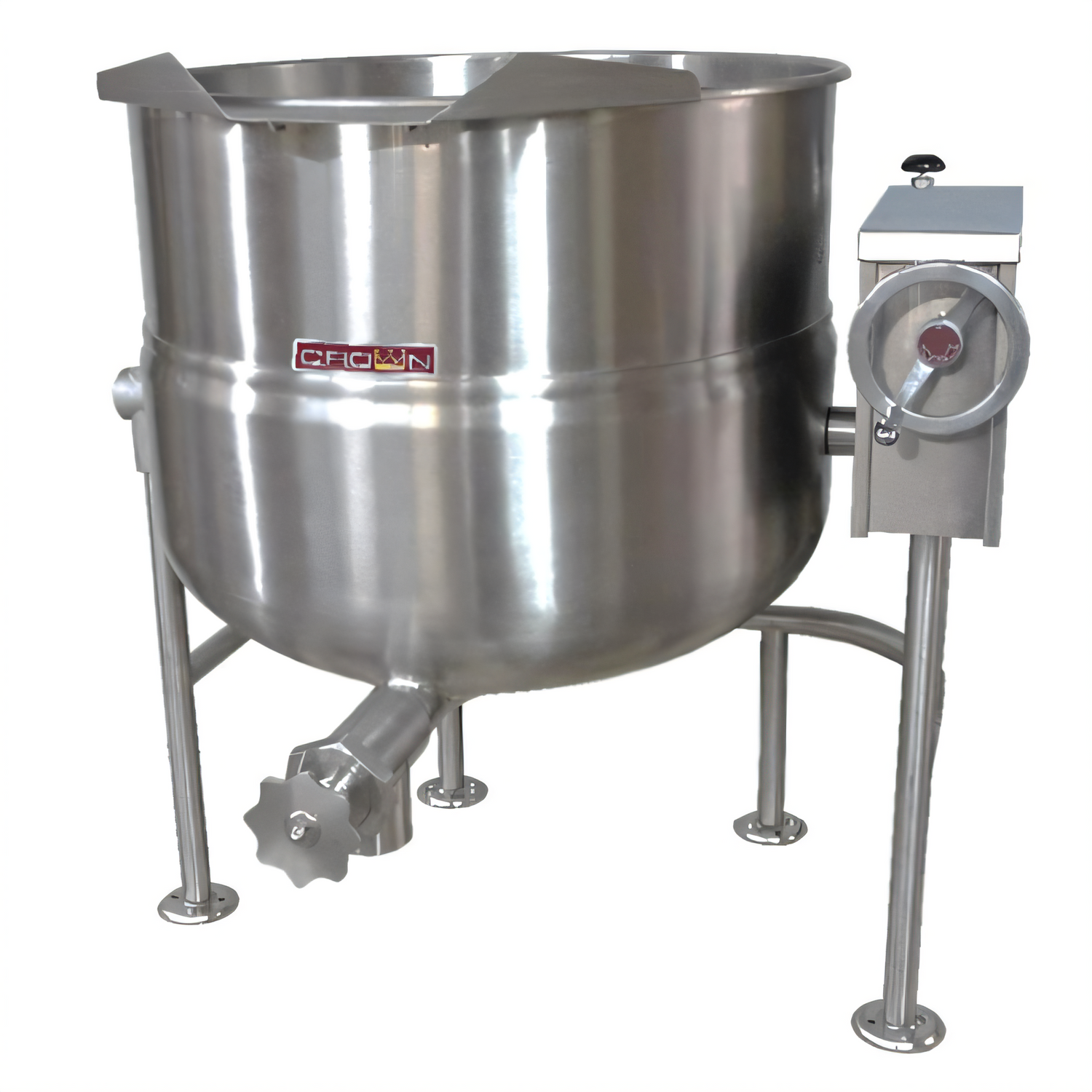

Crown DLT-60 60 Gallon Direct Steam Tilting Kettle
Floor Model, Quad-Leg Base, 2/3 Jacket, Manual Crank Tilt
Experience efficient, high-volume cooking with the Crown DLT-60 direct steam tilting kettle, featuring robust stainless steel construction and precise manual tilting.
- Generous 60-gallon capacity perfect for large batch cooking operations.
- Premium 316 stainless steel interior liner for exceptional durability and resistance to high-acid foods.
- Efficient 2/3 steam jacket design ensures uniform and superior heat circulation.
- Crank tilt mechanism with a self-locking positive stop for safe and complete emptying.
- Heavy-duty quad-leg base with adjustable flanged feet provides secure floor mounting.
- Standard inclusion of a faucet bracket offers convenient integration of optional water access.
- Constructed from all-welded #4 finish 304 stainless steel for lasting commercial performance.

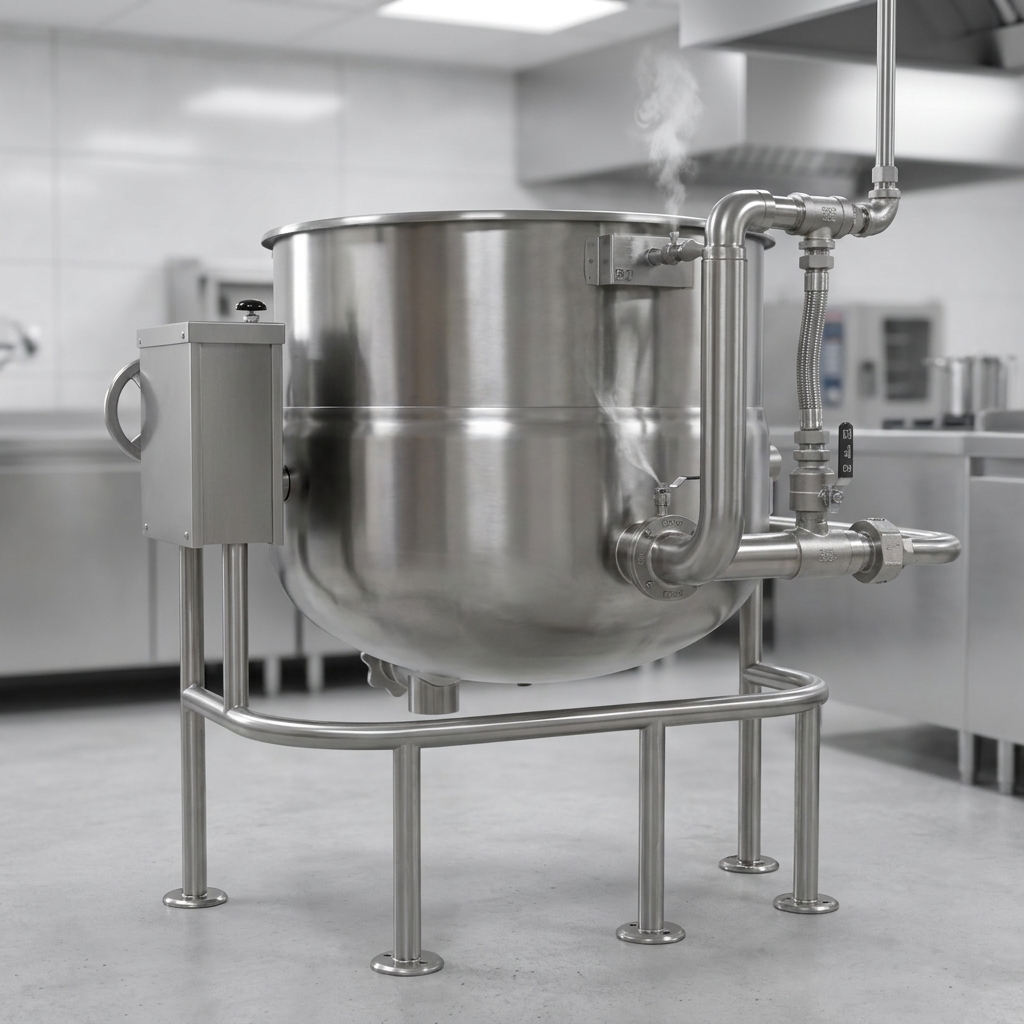

Direct Steam Operation
Designed for direct steam connectivity, operating efficiently at a minimum of 5 PSI (34 kPa) and a maximum of 30 PSI (206 kPa).
Hemispherical Kettle Bottom
The unique hemispherical design of the kettle's bottom ensures superior and even heat circulation throughout the cooking process.

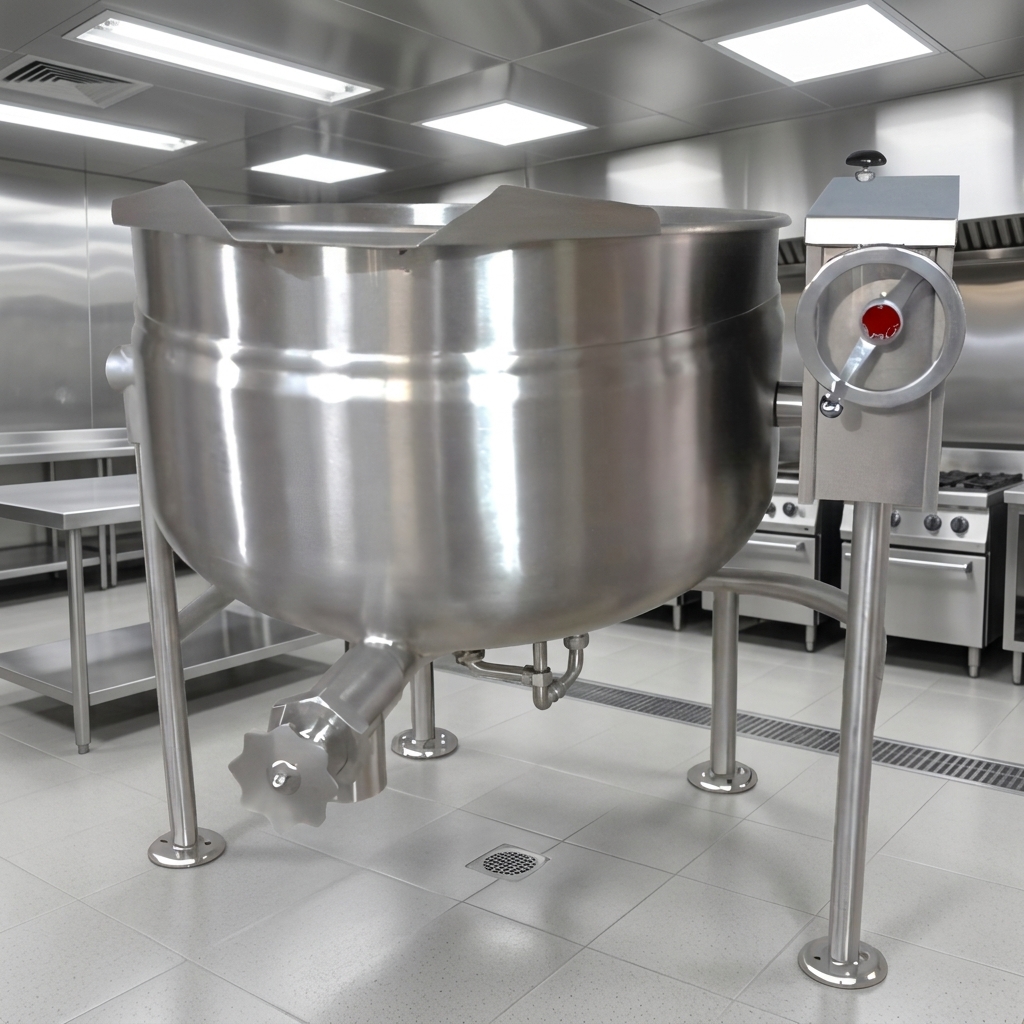

Heavy-Duty Stainless Steel Construction
Built with all-welded #4 finish 304 stainless steel for the exterior, ensuring robust durability and a professional appearance.
High-Acid Content Interior Liner
The interior liner is crafted from standard 316 stainless steel, making it ideal for cooking high-acid content foods without corrosion.
Full 90° Tilting Mechanism
The kettle can tilt forward a full 90 degrees, allowing for complete emptying and easier cleaning.
Self-Locking Crank Tilt
Features a reliable crank tilt mechanism that is self-locking, providing positive stop action and enhanced safety during operation.
Integrated Faucet Bracket
A faucet bracket is included as a standard component, providing a convenient mounting point for optional faucets.
Adjustable Flanged Feet
Each of the four support legs is fitted with an adjustable, 4-hole flanged foot, allowing for secure and stable attachment to the floor.
Specifications
| Type | Tilting Kettle |
|---|---|
| Style | Direct Steam |
| Installation Type | Floor Model (With Quad-Leg Base) |
| Capacity | 60 Gallons (227 Liters) |
| Kettle Jacket | 2/3 Jacket |
| Interior Finish | 316 Stainless Steel |
| Material | 304 Stainless Steel |
| Controls | Manual Crank Tilt |
| Gas Type | Steam |
| Steam Supply Connection Size | 3/4" IPS |
| Steam Supply Pressure | 5-30 PSI |
| Condensate Return Connection Size | 1/2" IPS |
| Shipping Width | 44 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 41 Inches |
| Shipping Weight | 385 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
43.25"W x 37.75"D x 40.5"HProduct Weight:
385.0 lbCertifications & Compliance
