Crown (Middleby) | SKU:
DLT-40TC
Crown (Middleby) DLT-40TC Steam Kettles
$22,082.50
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) DLT-40TC Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) DLT-40TC Steam Kettles
$22,082.50
Unit price
/
Unavailable
Description

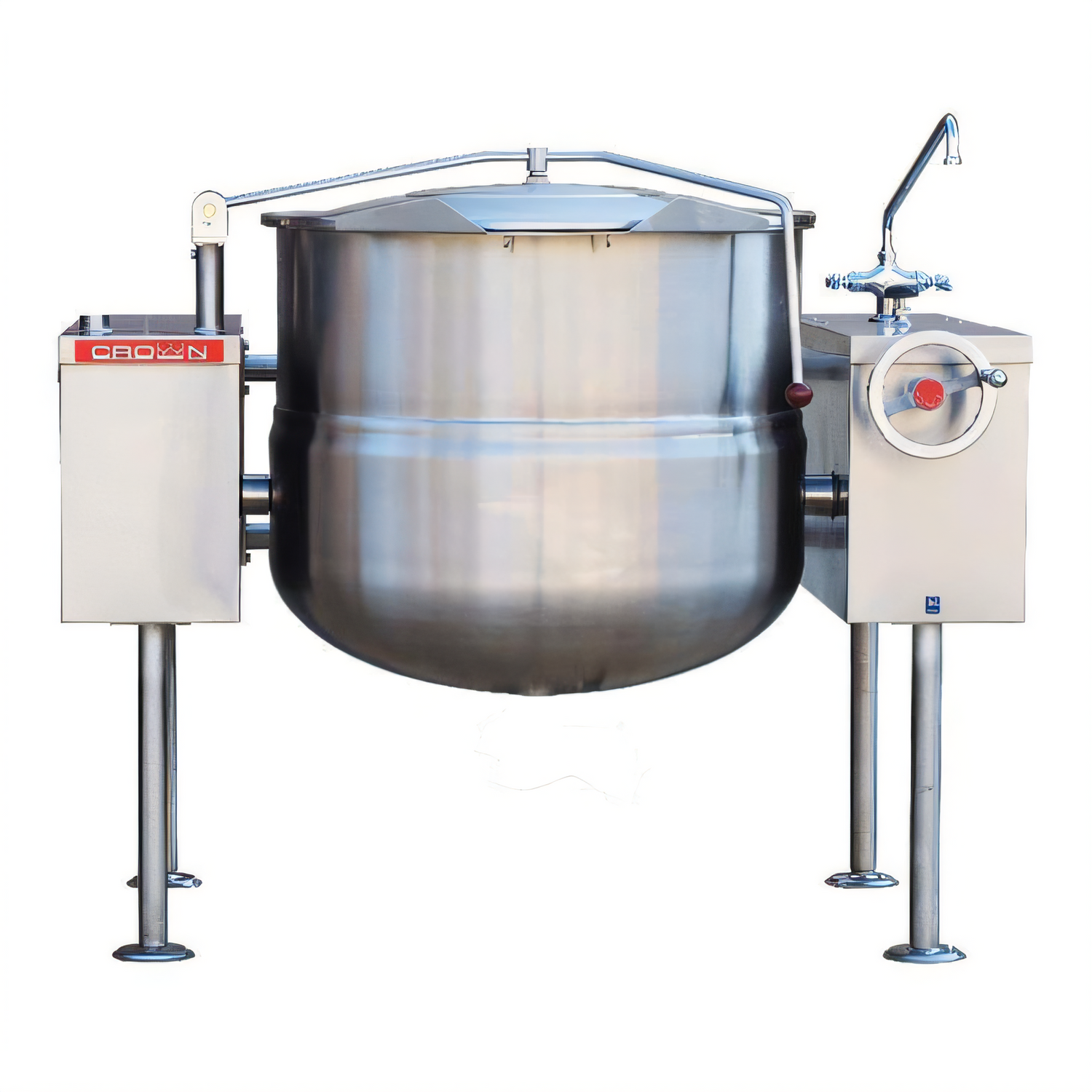

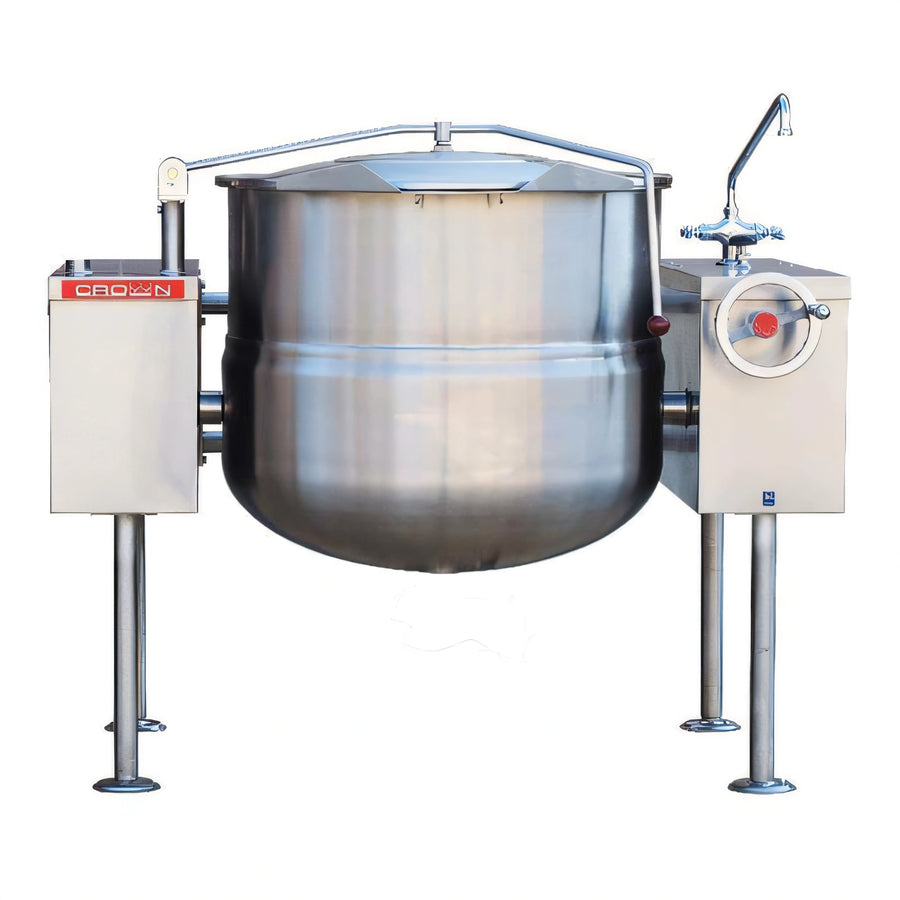

Crown DLT-40TC Direct-Steam Twin-Console Tilting Kettle – 40 gal
High-volume, 2/3-jacketed kettle engineered for maximum speed, safety & consistencyBoost batch capacity and slash cook times with Crown’s 40-gallon direct-steam kettle. The DLT-40TC pairs rugged stainless-steel construction with smooth hand-crank tilting, giving you precision control from first simmer to final pour.
Key Advantages

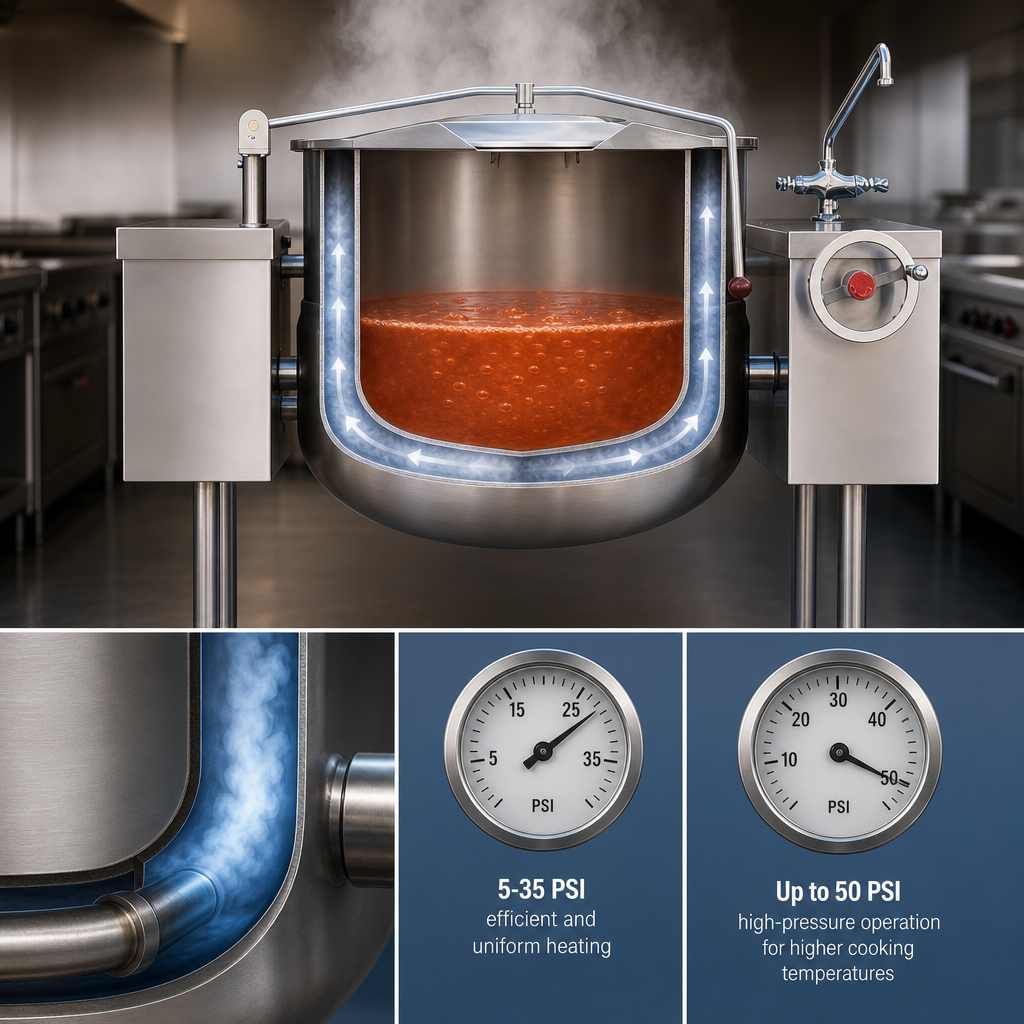

- Direct steam operation (5 – 35 PSI) delivers instant, even heat—no burners or elements to service.

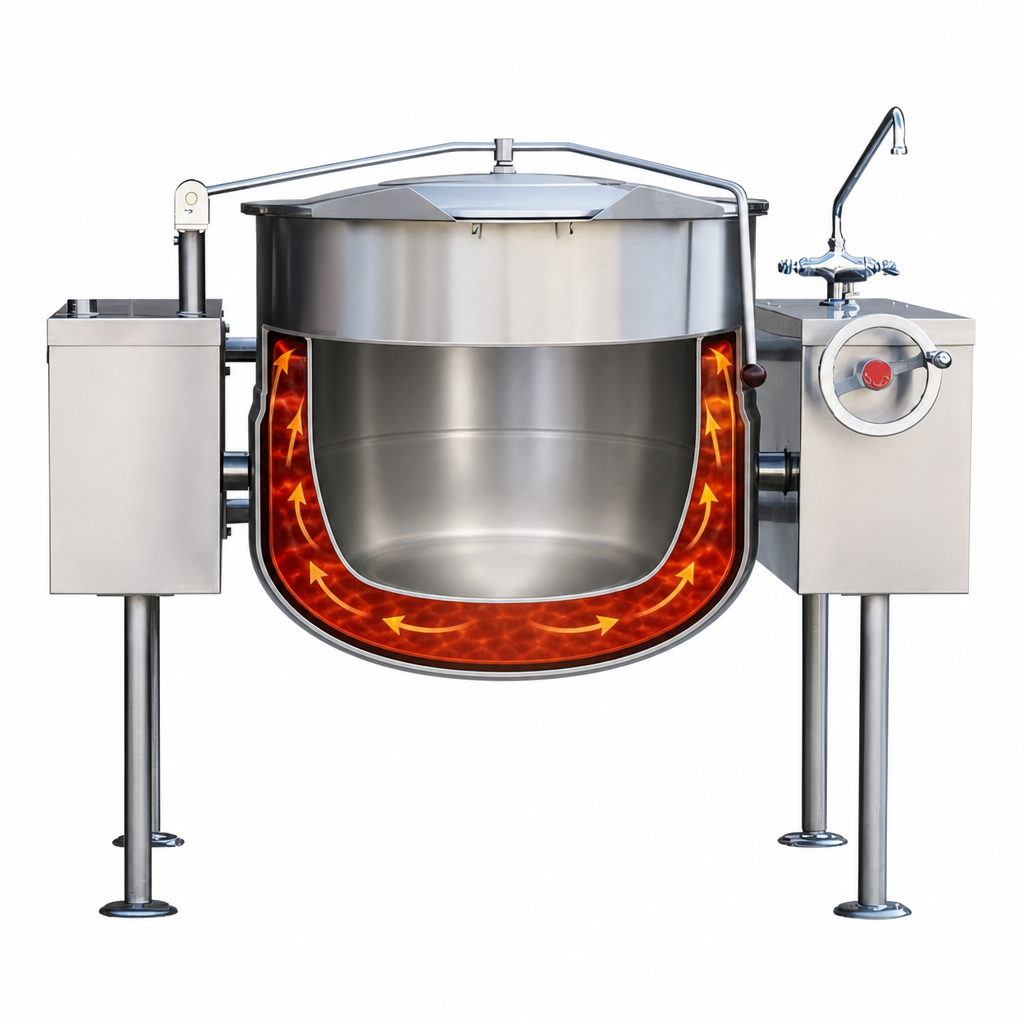

- 2/3 jacketed hemispherical bottom maximizes heat transfer and eliminates hot spots.
- Manual crank tilt with self-locking positive stop allows safe, drip-free 90° emptying.
- 316 stainless-steel interior liner stands up to acidic sauces, soups & stocks.
- All-welded 304 stainless-steel exterior (#4 finish) cleans quickly and resists corrosion.
- Twin consoles & quad-leg base with adjustable flanged feet bolt securely to the floor.
- Right-hand mounted steam control valve keeps operation intuitive and single-person friendly.
- NSF-listed, ASME-code stamped & cULus approved for demanding commercial kitchens.
Popular Factory Options (extra cost)
- 2" or 3" draw-off valve with solid or perforated strainer
- Spring-assist hinged cover or lift-off cover
- Etched gallon / liter markings or contoured measuring strip
- Single or double pantry kettle-filler faucet
- Quick-Chill system for rapid product cooling
- Triple basket assembly, pour-lip strainer, heat shield & more
Technical Specifications
| Model | DLT-40TC |
|---|---|
| Capacity | 40 gal | 152 L |
| Jacket Type | 2/3 jacketed, direct steam |
| Steam Pressure Range | 5 – 35 PSI (34 – 241 kPa) |
| Interior Liner | 316 stainless steel |
| Exterior | 304 stainless steel, #4 finish |
| Tilt Mechanism | Manual crank, 0-90° with self-locking stop |
| Overall Dimensions (W×D×H) | 26" × 51.13" × 66.88" (660 × 1 298 × 1 699 mm) |
| Steam Inlet | ¾" IPS |
| Condensate Return | ½" IPS |
| Floor Mounting | Quad-leg base with flanged, adjustable feet |
| Certifications | NSF, ASME, cULus |
Warranty: 1-year parts & labor plus 10-year hemispherical kettle body warranty from Crown Steam Group.
Installation Note: Unit requires a direct steam supply and must be bolted to a level floor.
Water quality must meet Crown specifications (TDS ≤ 60 ppm; hardness ≤ 35 ppm) to maintain warranty coverage.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF
Height
32.5in
Width
51.13in
Depth
39.5in
Tilt
manual tilt
Kettle Liner
316 stainless steel
Base
quad-leg
Kettle Jacket
partial jacket
Capacity
30 - 45 gallon
Specifications
Tilting Kettle, direct steam, 40 gallon capacity, 2/3 jacket, crank tilt with self-locking positive stop, steam control valve on right, 316 stainless steel interior liner, 304 stainless steel exterior, twin console & quad-leg base, adjustable flanged feet, NSF
