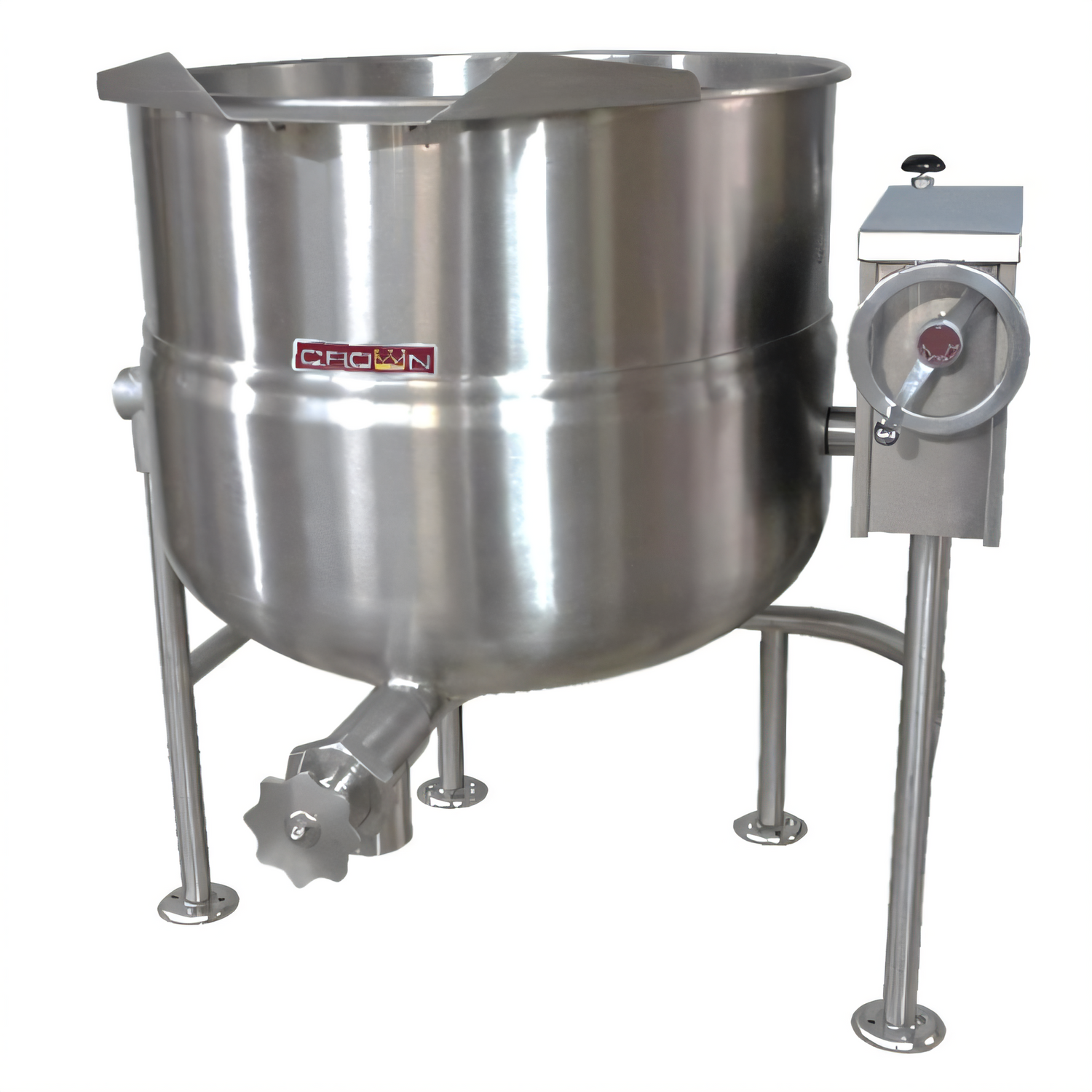

Crown DLT-40 Direct Steam 40 Gallon 2/3 Jacket Tilting Kettle
40 Gallon, Direct Steam, Tri-Leg Base, Crank Tilt
Designed for demanding commercial kitchens, the Crown DLT-40 direct steam tilting kettle offers efficient, precise cooking and easy emptying.
- Robust 40-gallon capacity suitable for a wide range of batch cooking tasks.
- Efficient direct steam operation with a 2/3 jacket for uniform heat circulation.
- Durable 316 stainless steel interior liner optimized for high acid content food preparation.
- Features a self-locking crank tilt mechanism for safe, complete 90° emptying.
- Built with a sturdy 304 stainless steel tri-leg base and adjustable flanged feet for stability.
- Includes a faucet bracket for convenient water access at the kettle.

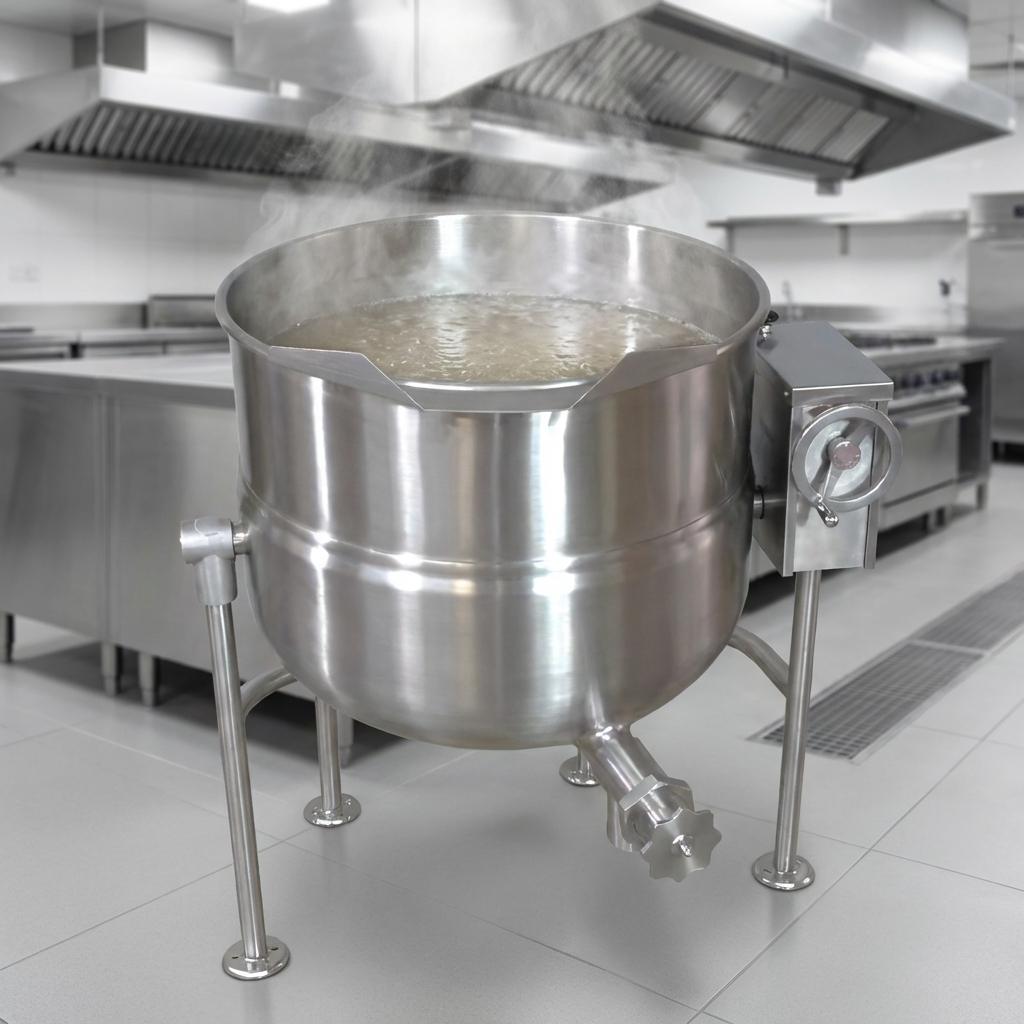

Direct Steam Operation
Utilizes direct steam at 5-30 PSI (34-206 kPa) for efficient and consistent heating.

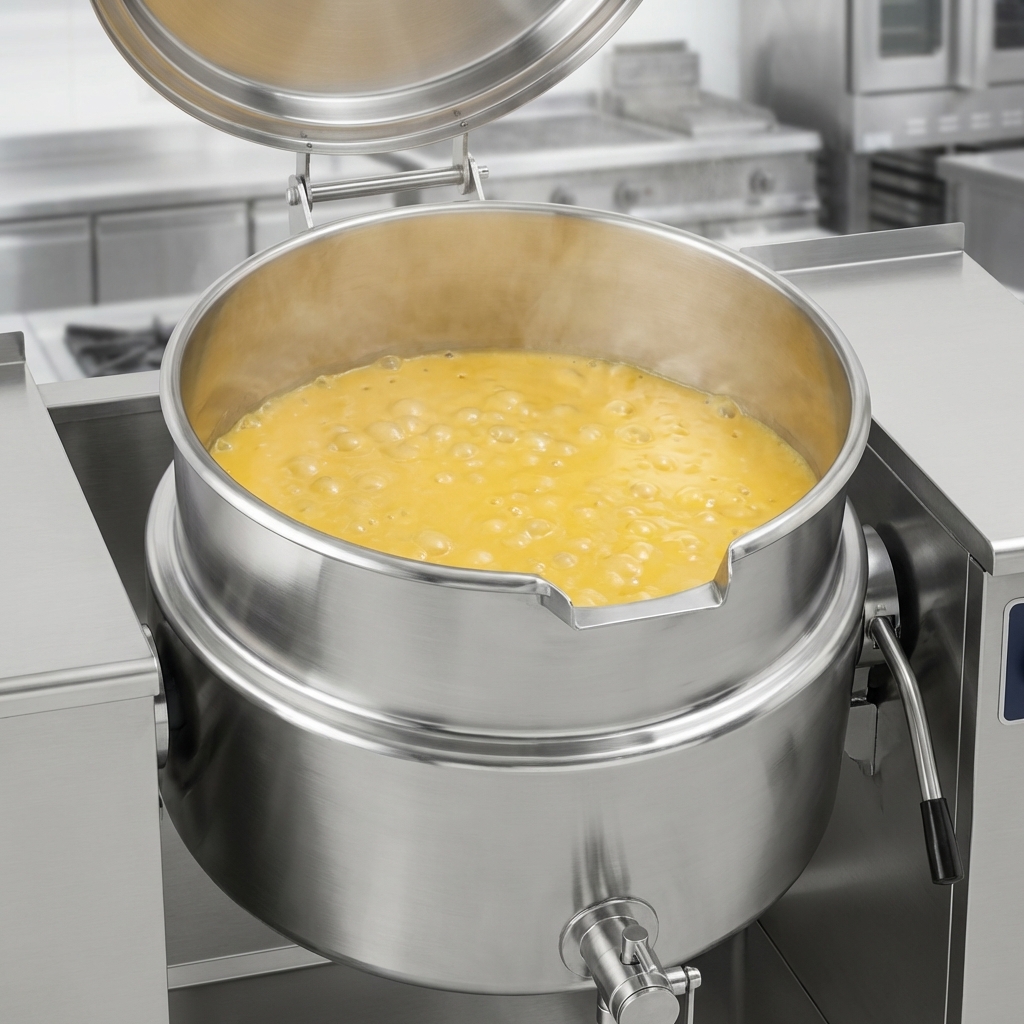

2/3 Jacket Design
A double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle for superior heat distribution.

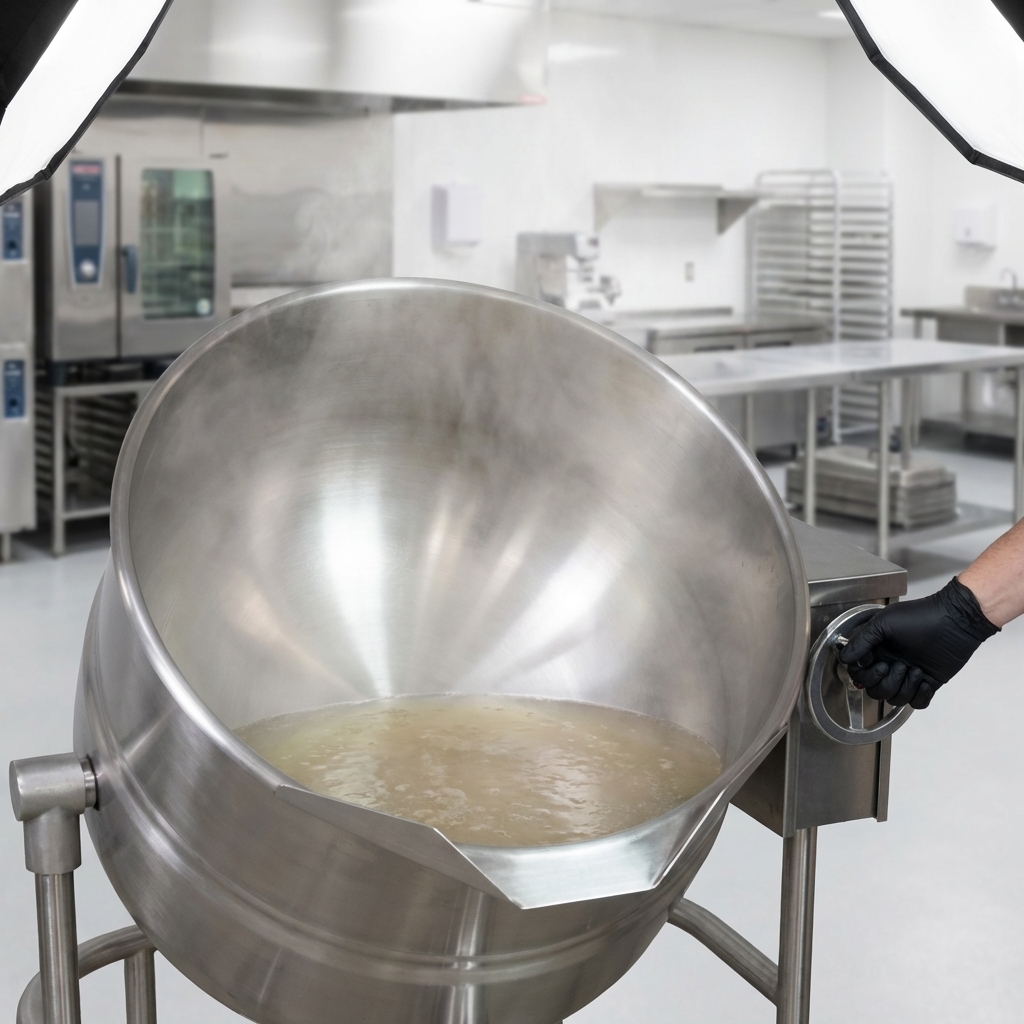

Hemispherical Kettle Bottom
The kettle's bottom is designed in a hemispherical shape to promote superior heat circulation and cooking performance.
316 Stainless Steel Interior Liner
Standard interior liner constructed from 316 stainless steel, ideal for cooking high acid content foods.
304 Stainless Steel Construction
All-welded #4 finish 304 stainless steel exterior, console, and tri-leg base ensure durability and ease of cleaning.
Tri-Leg Mounting Frame
The robust tri-leg stainless steel pipe frame supports the kettle and tilt console, concealing steam piping and housing the steam control valve and tilt mechanism.
Adjustable Flanged Feet
Each leg is fitted with a 4-hole adjustable flanged foot, allowing for secure and level installation to the floor.
90° Crank Tilt Mechanism
The manual crank tilt mechanism allows the kettle to tilt forward a full 90 degrees for complete product emptying, enhancing efficiency and cleaning.
Self-Locking Positive Stop
The tilting mechanism is self-locking, providing positive stop action for safety and control during pouring.
Faucet Bracket
A faucet bracket is included as standard, simplifying the installation of an optional faucet.
Specifications
| Type | Tilting Kettle |
|---|---|
| Style | Direct Steam |
| Installation Type | Floor Model (With Tri-Leg Base) |
| Capacity | 40 Gallons (152 Liters) |
| Kettle Jacket Type | 2/3 Jacket |
| Interior Finish | 316 Stainless Steel |
| Material | 304 Stainless Steel |
| Finish | #4 Finish Stainless Steel |
| Steam Supply Connection Size | 3/4" IPS (19 mm) |
| Steam Operating Pressure | 5-30 PSI (34-206 kPa) |
| Condensate Return Connection Size | 1/2" IPS (13 mm) |
| Controls | Crank Tilt with Self-Locking Positive Stop |
| Country of Origin | Canada |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Weight | 332 lb. |
| Shipping Width | 40 Inches |
| Shipping Depth | 35 Inches |
| Shipping Height | 37 Inches |
Overall Dimensions:
39.75"W x 34.75"D x 37.0"HProduct Weight:
332.0 lbCertifications & Compliance
