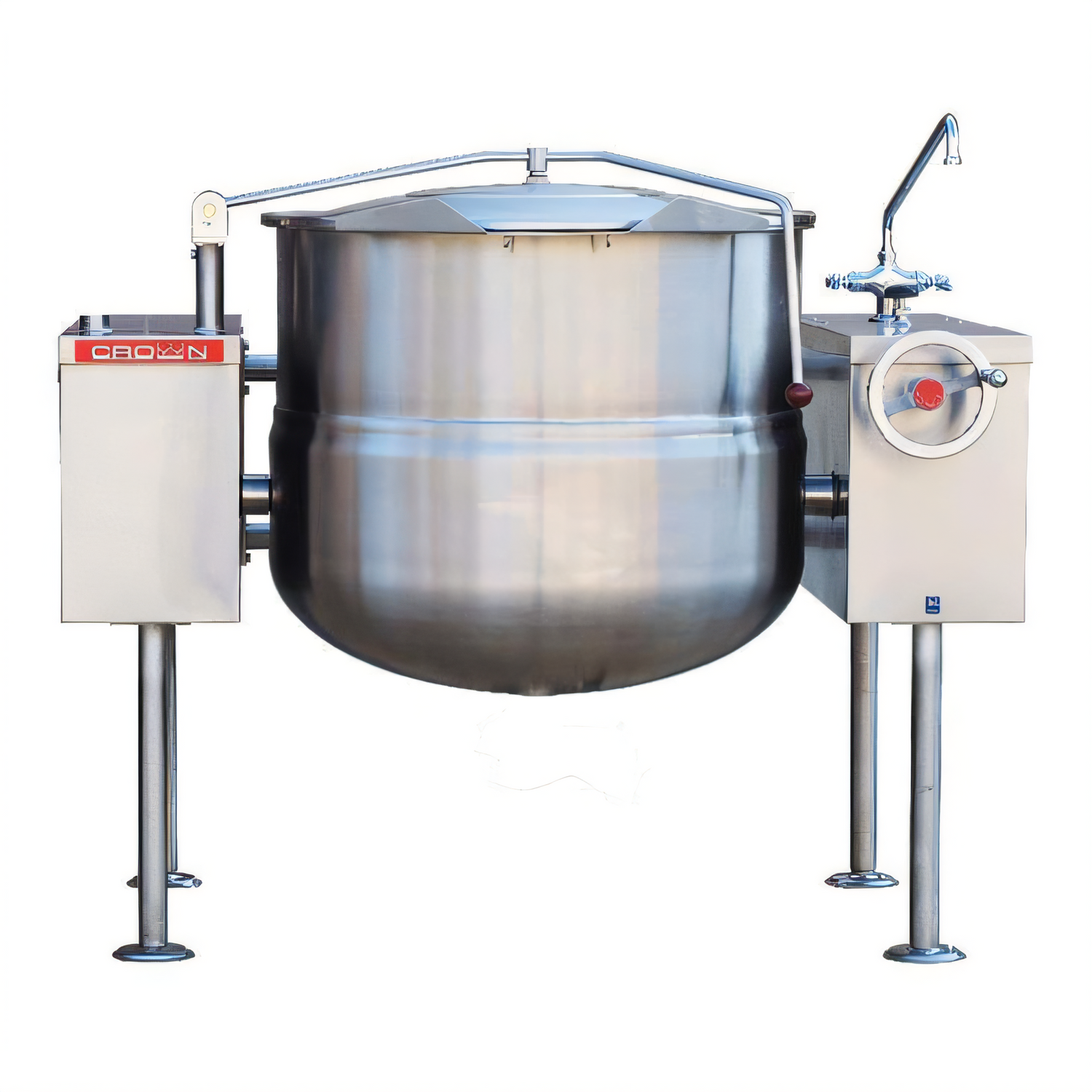

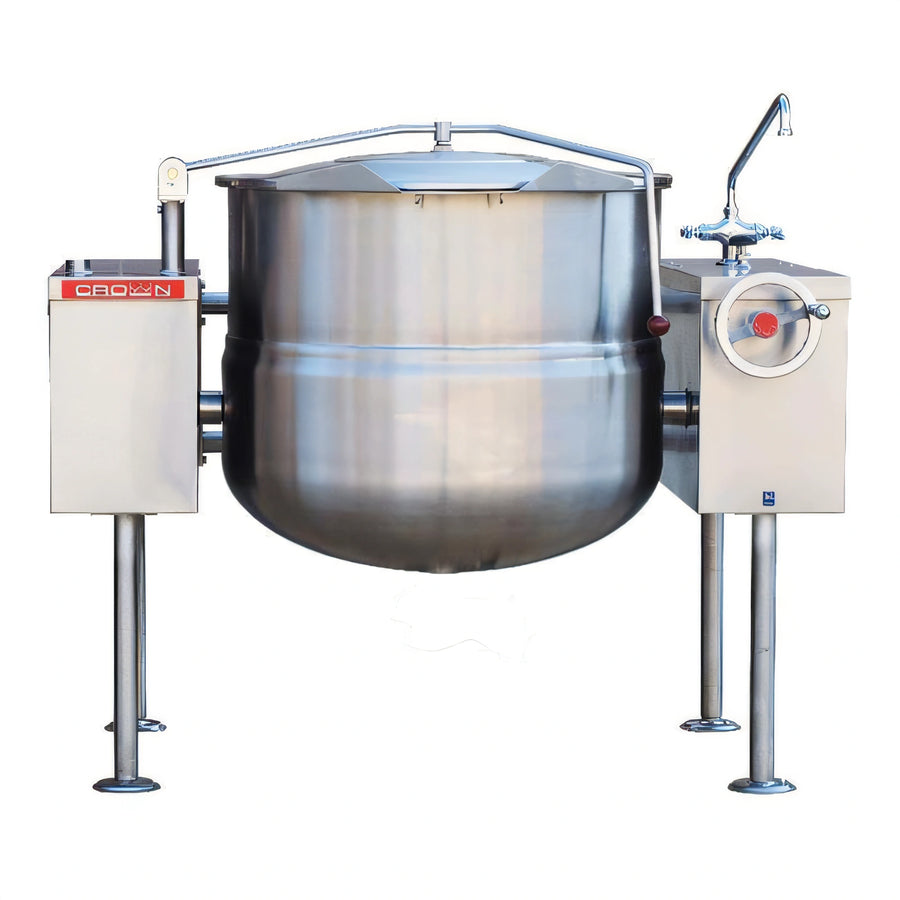

Crown DLT-30TC 30 Gallon Direct Steam 2/3 Jacketed Twin Console Tilting Kettle
Crown DLT-30TC 30 Gallon Direct Steam 2/3 Jacketed Twin Console Tilting Kettle
Floor Model, 316 Stainless Steel Liner, Quad-Leg Base
Designed for heavy-duty commercial kitchens, the Crown DLT-30TC tilting kettle offers efficient direct steam cooking with a durable 316 stainless steel liner and precise control.
- 30-gallon capacity ideal for large batch cooking in commercial settings.
- 2/3 jacketed design ensures superior heat circulation and even cooking for diverse menu items.
- Crafted with a 316 stainless steel interior liner, perfect for high-acid content foods.
- Features a crank tilt mechanism with a self-locking positive stop for safe and complete emptying.
- Twin console and quad-leg base provide stable floor-mounted installation and conceal plumbing.
- Equipped with a steam control valve on the right console for precise temperature management.
Overall Dimensions:
49.0"W x 38.63"D x 32.5"H2/3 Jacketed Design

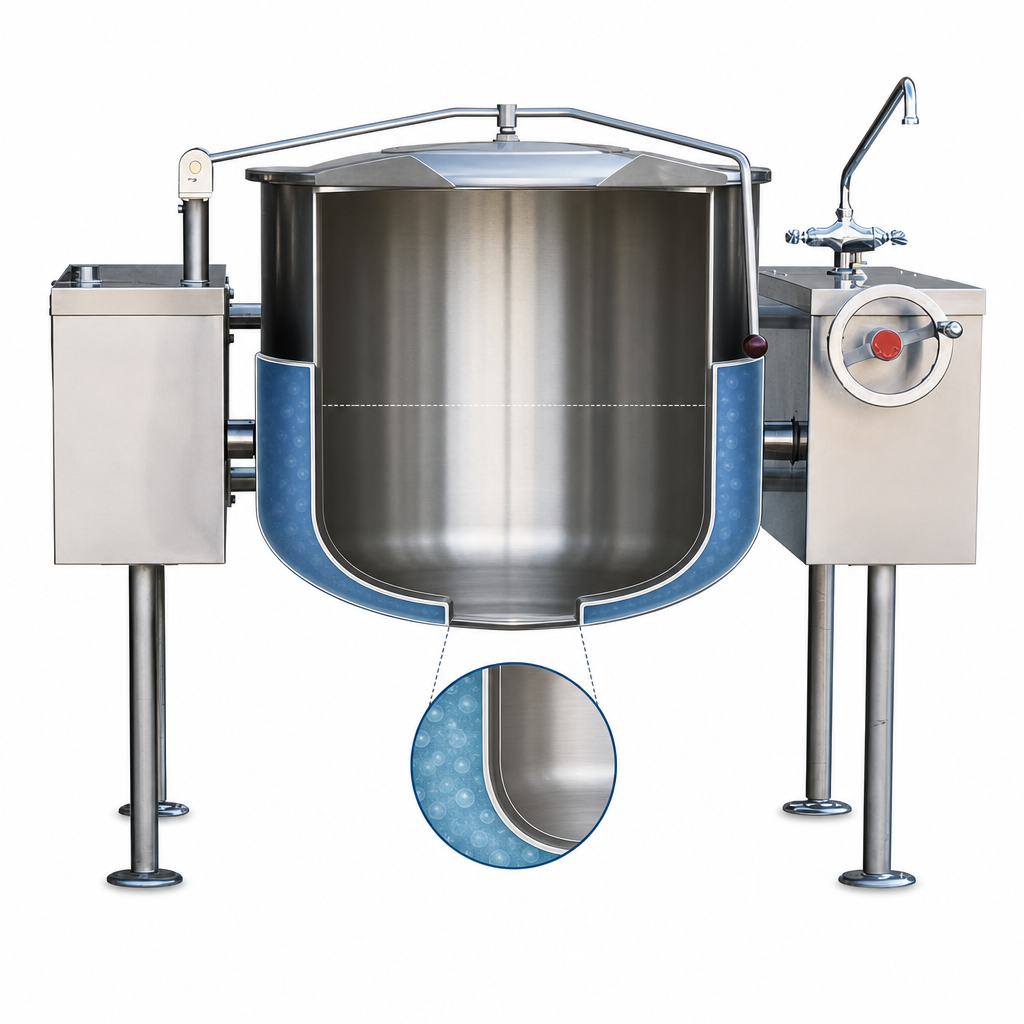

A double-wall kettle interior forms a steam jacket around the lower two-thirds of the kettle for superior heat distribution and even cooking.

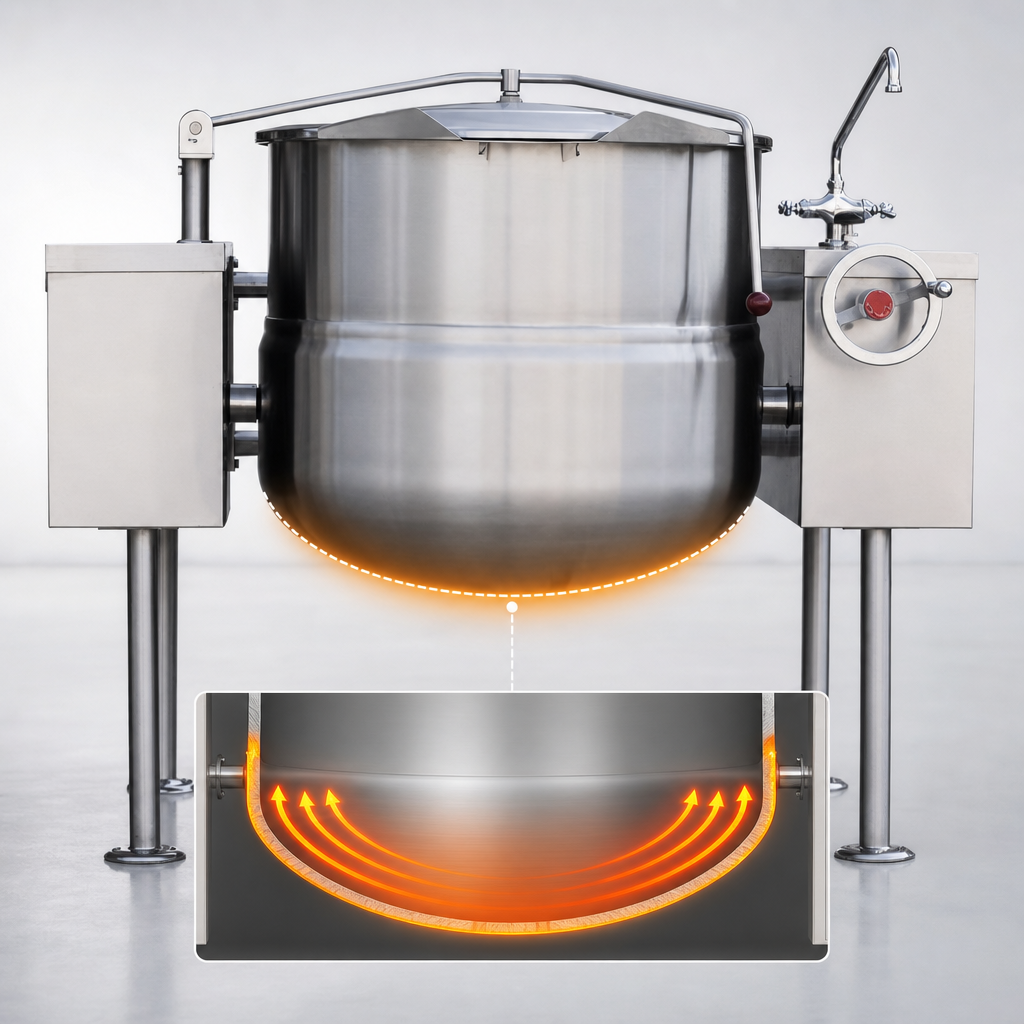

Hemispherical Kettle Bottom
The bottom of the kettle is designed with a hemispherical shape to promote superior heat circulation and cooking performance.
316 Stainless Steel Interior Liner
Standard interior kettle liner is constructed from Type 316 stainless steel, offering enhanced corrosion resistance, especially for high-acid content cooking.
304 Stainless Steel Construction
The entire unit is constructed from all-welded #4 finish Type 304 stainless steel for durability and ease of cleaning.
Twin Console & Quad-Leg Base
Each supporting console has two legs for secure bolting to the floor and effectively conceals steam and optional quick chill plumbing connections.
Crank Tilt Mechanism
Permits the kettle to tilt forward 90 degrees for complete emptying and features a self-locking positive stop for safe operation.
Steam Control Valve
A steam control valve is provided and conveniently mounted in the right console for easy adjustment of steam pressure.
Adjustable Flanged Feet
Equipped with adjustable flanged feet, allowing for secure installation and leveling on uneven floors.
Certifications & Compliance
Warranty & Protection
Please contact manufacturer for warranty details.
