Crown (Middleby) DLT-30F Steam Kettles
Description

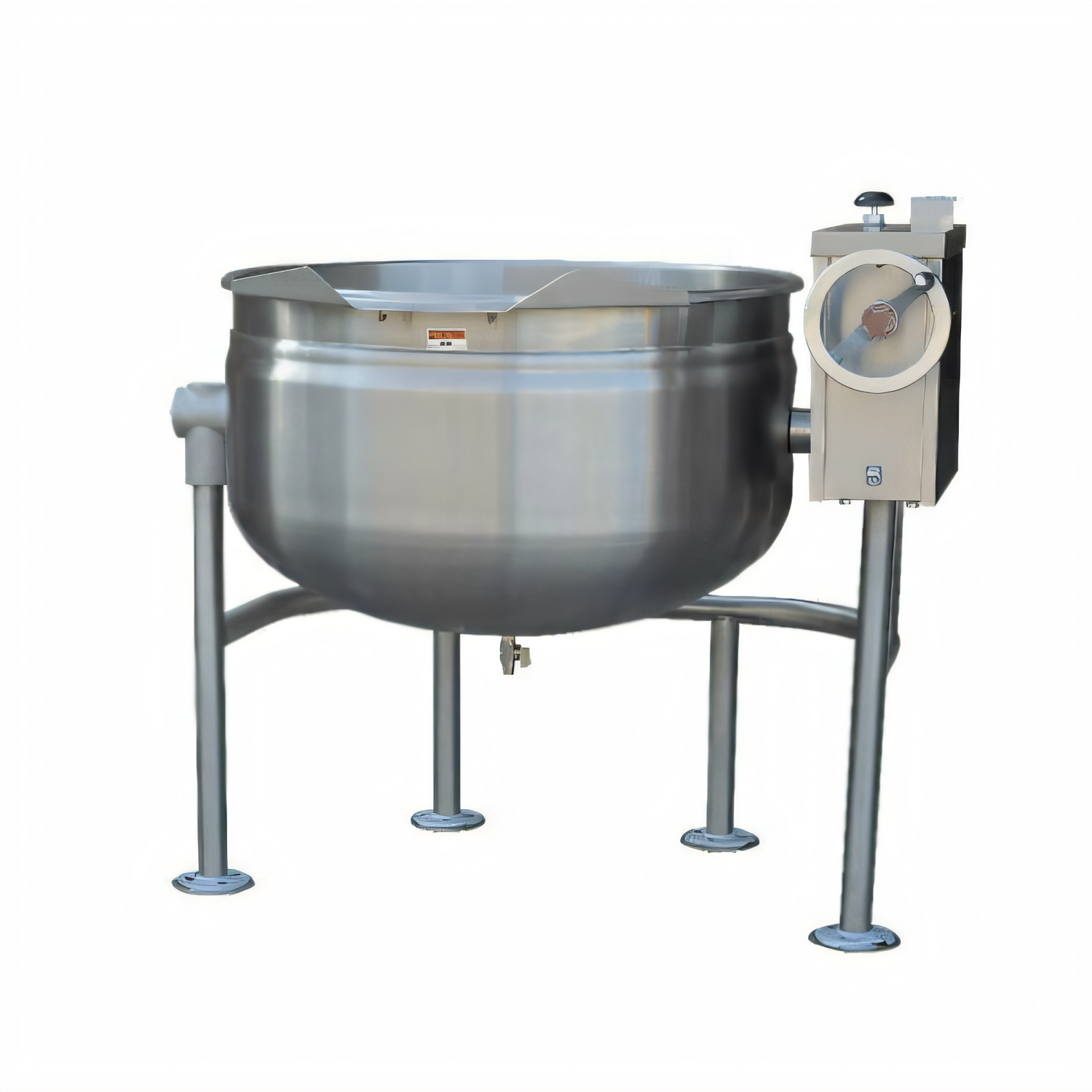

Crown DLT-30F | 30-Gallon Direct-Steam Tilting Kettle
Full-jacketed • 316/304 Stainless Steel • NSF CertifiedDesigned for demanding commercial kitchens, the Crown DLT-30F delivers fast, even heat and effortless product handling in a compact 30-gallon footprint. Its full steam jacket, rugged crank-tilt mechanism and all-stainless construction make it the go-to solution for soups, sauces, stocks and more.
Key Features & Benefits
- 30 gal (114 L) capacity—ideal for mid-volume production.

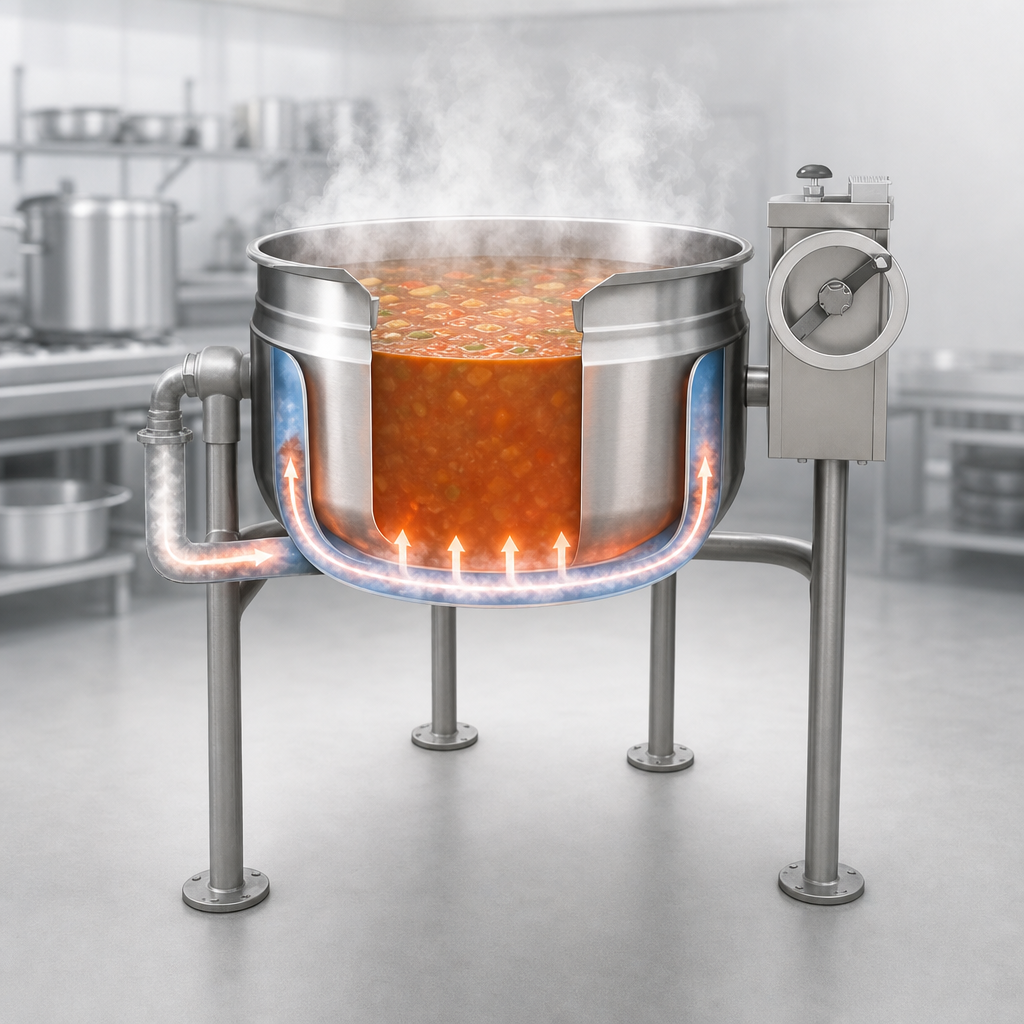

- Full 360° steam jacket (5–30 psi) surrounds kettle for consistent, rapid heating.
- Hemispherical bottom maximizes heat transfer and eliminates hot spots.
- Hand-crank tilt with self-locking positive stop—pours a full 90° for complete emptying.
- 316 SS interior resists acidic foods; 304 SS exterior with sanitary #4 finish.
- Stainless tubular legs with four-hole adjustable flanged feet for rock-solid floor mounting.
- Factory-installed faucet bracket simplifies adding single or double pantry faucets (optional).
- NSF listed and built for years of trouble-free, high-volume service.

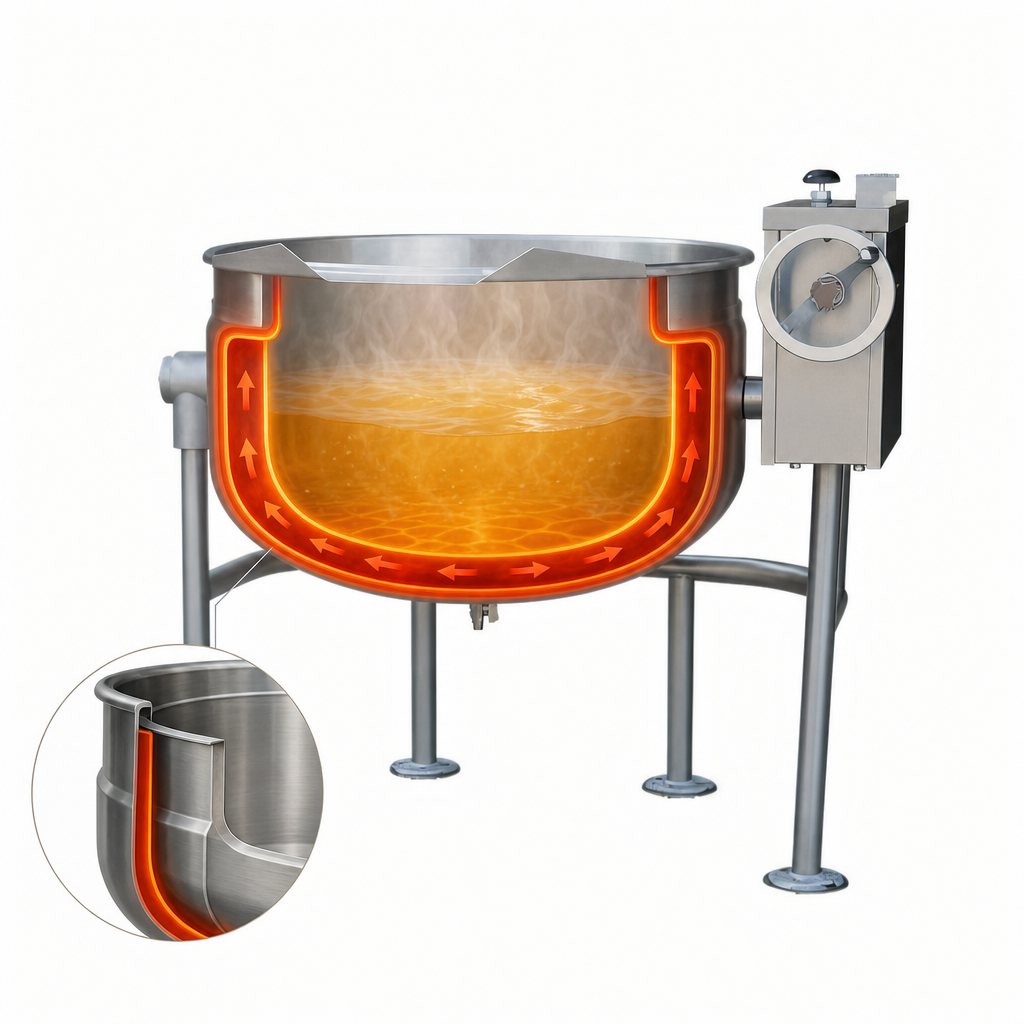

Why Choose a Full-Jacket Kettle?
Unlike partial-jacket models that heat only the lower third of the bowl, the DLT-30F’s double-wall jacket envelops the entire kettle body. The result is faster cook times, greater energy efficiency and virtually no scorching—even with delicate dairy or starch-based recipes.
Popular Factory Options (sold separately)
- 50 psi high-pressure jacket for higher cooking temperatures
- 2" or 3" tangent draw-off valve with perforated strainer
- Spring-assist hinged cover
- Triple basket assembly
- Etched gallon or litre markings
- Single or double pantry faucet with swing spout
- Pour-lip strainer & kettle heat shield
Specifications
| Model | DLT-30F |
|---|---|
| Capacity (to rim) | 30 gal / 114 L |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, #4 finish |
| Steam Jacket Rating | 5–30 psi standard (optional 50 psi) |
| Tilt Mechanism | Manual hand-crank, self-locking, 90° pour |
| Overall Dimensions (W × D × H) | 29.5" × 32" × 43.25" (750 × 813 × 1 098 mm) |
| Steam Supply | 3/4" IPS (19 mm) |
| Condensate Return | 1/2" IPS (13 mm) |
| Shipping Weight | 350 lb / 159 kg |
| Certifications | NSF, cULus |
Easy Cleaning & Maintenance
- Smooth stainless interior wipes clean—no harsh abrasives required.
- Open-leg base and full 90° tilt let you rinse debris directly into a floor drain.
- Accessible steam control and safety relief valve for quick routine checks.
Intended for commercial use only—Not for household use.
