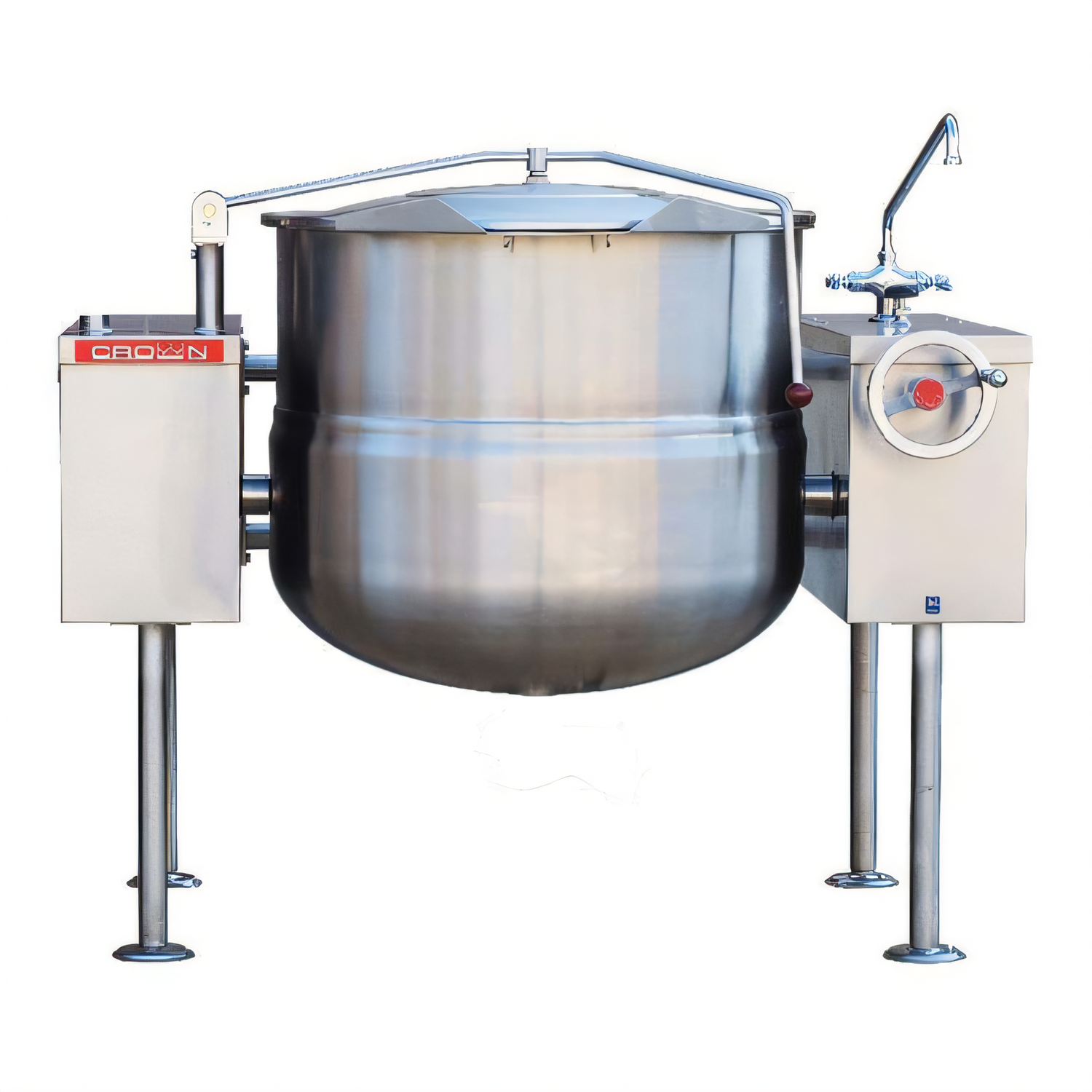

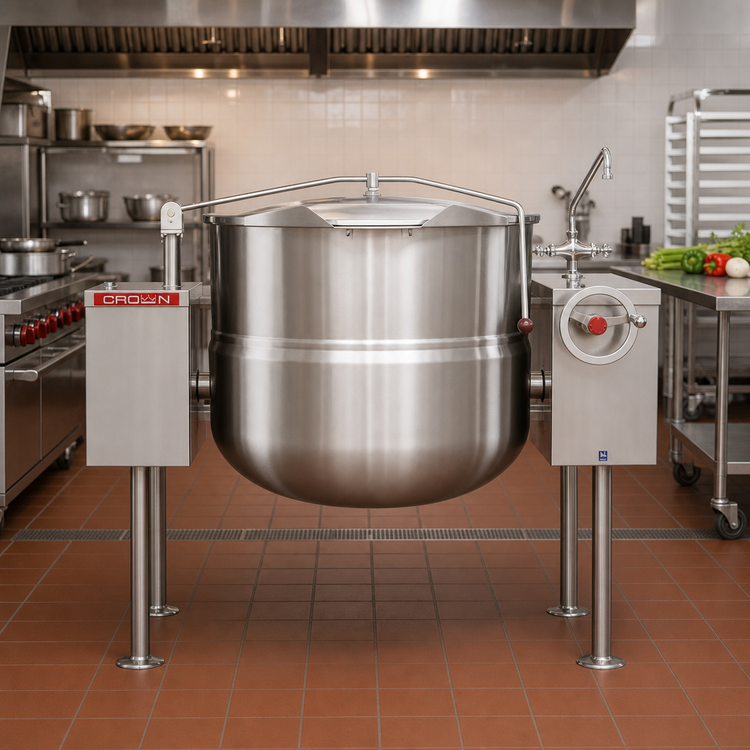

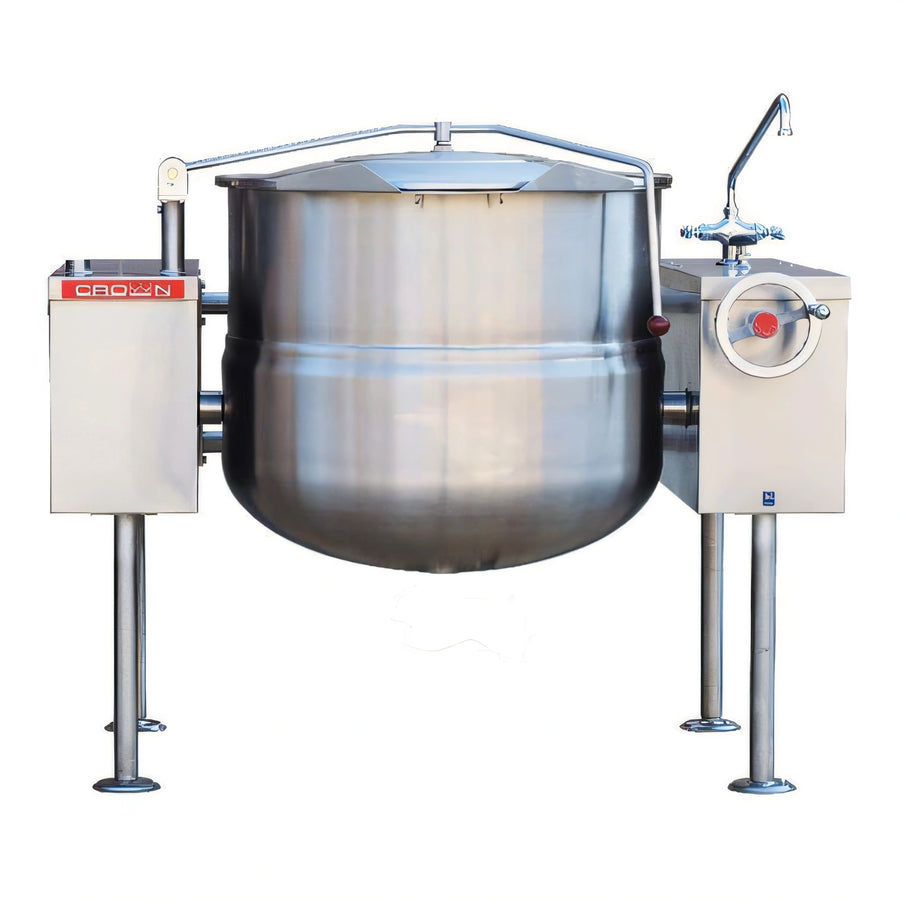

Crown DLT-100TC Direct Steam Tilting Kettle, 100 Gallon, 2/3 Jacket

Full-Size, Direct Steam, 316 Stainless Steel Interior, Manual Crank Tilt

Experience efficient and precise large-volume cooking with the Crown DLT-100TC direct steam tilting kettle, featuring robust stainless steel construction and a self-locking crank tilt mechanism.

  • Large 100-gallon capacity ideal for high-volume commercial kitchens and food preparation.
  • Durable 316 stainless steel interior liner is standard for high-acid content cooking applications.
  • Efficient 2/3 jacketed design ensures superior heat circulation and uniform temperature across the lower kettle.
  • Crank tilt mechanism allows for a full 90° forward tilt for complete emptying and easy cleaning, with a self-locking positive stop.
  • Robust twin console and quad-leg base construction provides stable floor mounting, concealing plumbing connections.
  • All-welded #4 finish 304 stainless steel exterior offers lasting durability and ease of maintenance.

Overall Dimensions:

60.25"W x 44.63"D x 40.5"H

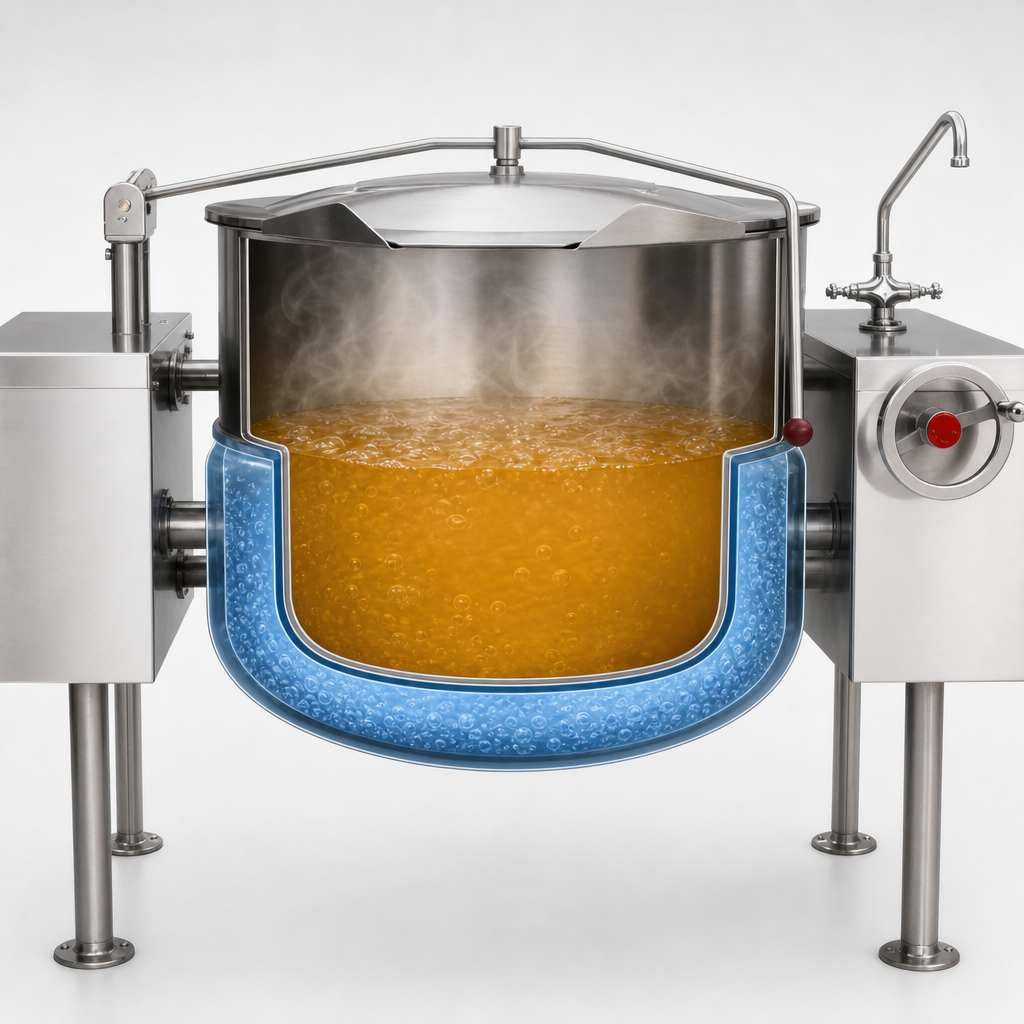

2/3 Jacketed Kettle Interior

A double wall kettle interior forms a steam jacket around the lower two-thirds of the kettle, ensuring efficient and even heat distribution.

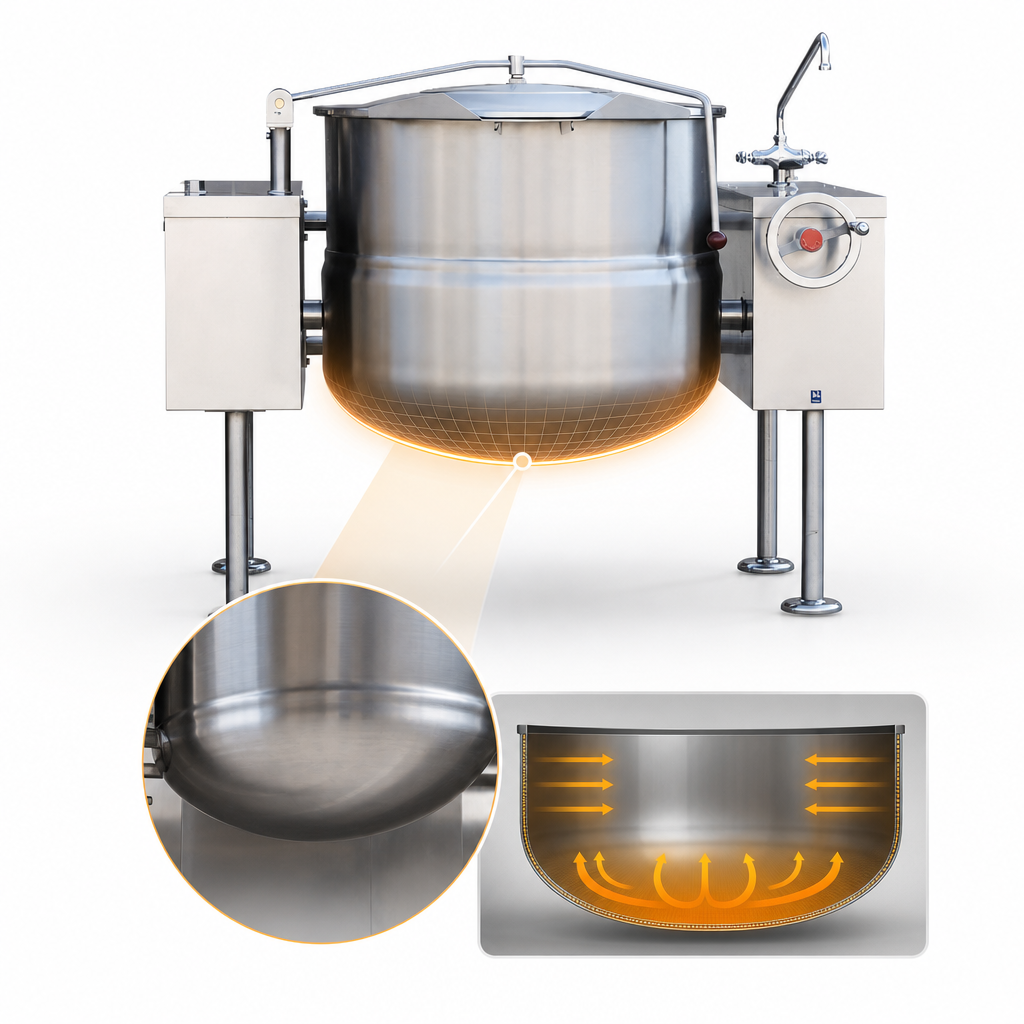

Hemispherical Bottom Design

The kettle's bottom is designed to be hemispherical, promoting superior heat circulation and consistent cooking.

316 Stainless Steel Interior Liner

Standard type 316 stainless steel is used for the kettle liner, providing excellent resistance to corrosion, especially when cooking high-acid content foods.

304 Stainless Steel Exterior Construction

The kettle is constructed from all-welded type 304 stainless steel with a #4 finish, ensuring durability, hygiene, and a professional appearance.

Twin Console & Quad-Leg Base

Each supporting console features two legs, allowing the unit to be securely bolted to the floor. The consoles also conceal steam and optional quick chill plumbing connections.

Crank Tilt Mechanism with Self-Locking Stop

The tilt mechanism allows the kettle to tilt forward 90 degrees for complete emptying and cleaning, with a self-locking positive stop action for safe operation.

Steam Control Valve

A steam control valve is conveniently provided and mounted within the right console for easy access and temperature regulation.

Adjustable Flanged Feet

The unit is equipped with adjustable flanged feet, allowing for stable and level installation on uneven floor surfaces.

Type Tilting Kettle
Style Direct Steam
Installation Type Floor Model (Quad-Leg Base)
Capacity 100 Gallons (379 Liters)
Kettle Jacket 2/3 Jacket
Interior Finish 316 Stainless Steel
Exterior Finish 304 Stainless Steel
Controls Manual (Steam Control Valve)
Operating Pressure 30 PSI
Steam Supply Connection Size 3/4" IPS
Condensate Return Connection Size 1/2" IPS
Tilt Manual Crank
Selling Unit Each
Units Per Case 1
Country of Origin North America
Shipping Width 61 Inches
Shipping Depth 45 Inches
Shipping Height 41 Inches
Shipping Weight null

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The DLT-100TC has a generous capacity of 100 gallons (379 liters), making it suitable for high-volume commercial cooking operations.
This is a direct steam kettle, requiring a minimum steam supply of 5 PSI (34 kPa) and a maximum of 35 PSI (241 kPa). It has a 3/4" IPS steam supply connection and a 1/2" IPS condensate return connection.
The kettle features a type 316 stainless steel interior liner, ideal for high-acid content cooking, and an all-welded type 304 stainless steel exterior with a #4 finish for durability and hygiene.
Yes, the DLT-100TC is equipped with a manual crank tilt mechanism that allows the kettle to tilt forward 90 degrees for complete emptying. It also includes a self-locking positive stop for safety during operation.
Yes, the DLT-100TC can be optionally configured for 50 PSI high-pressure operation for higher cooking temperatures (model HP-50) and can also integrate a Quick Chill System (model QCS-1) for rapid cooling.
The kettle is supported by a robust twin console and quad-leg base, designed to be bolted to the floor for maximum stability. The consoles also neatly conceal the plumbing.
