Crown (Middleby) DLT-100 Steam Kettles
Description

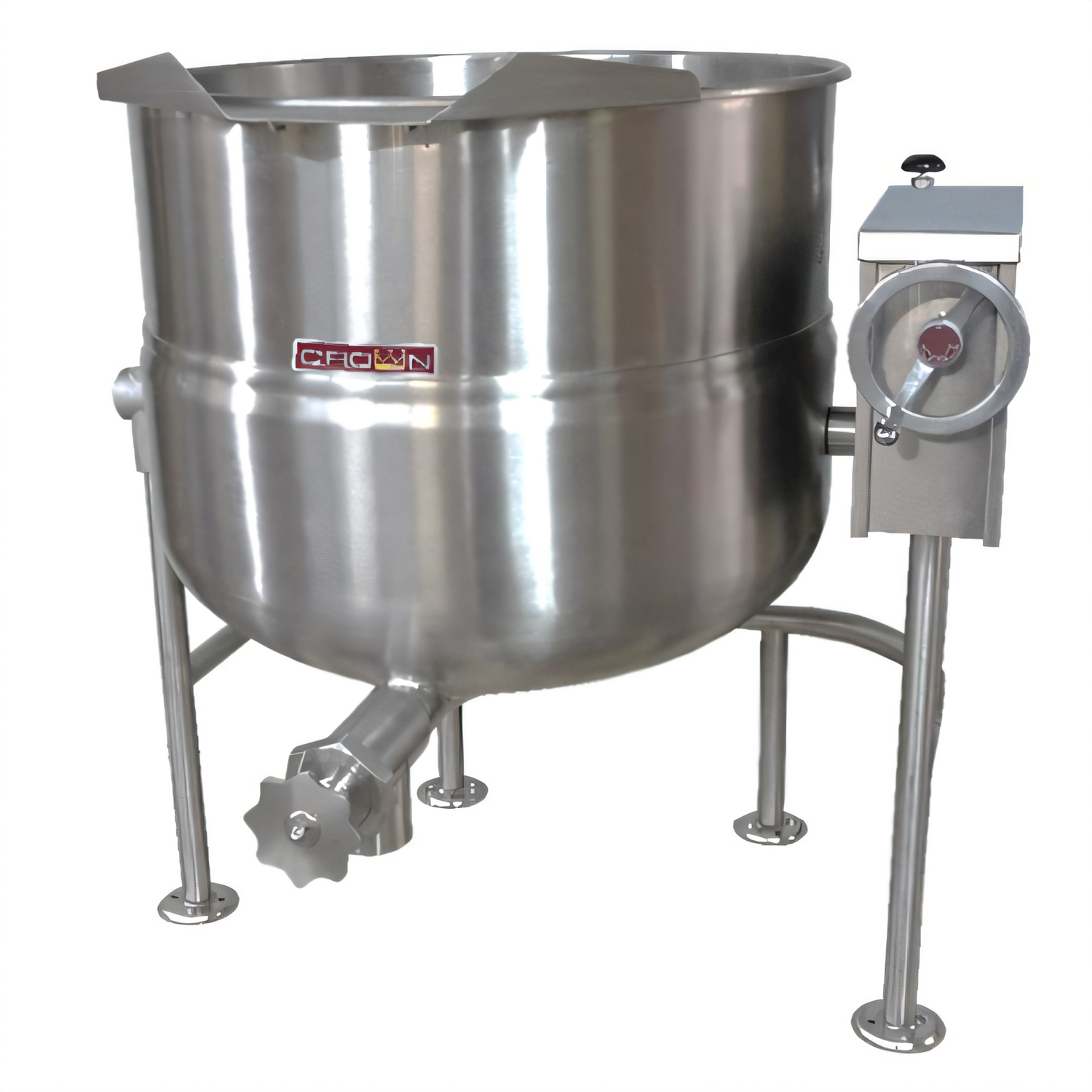

Crown DLT-100 Direct Steam Tilting Kettle – 100 Gal
2/3 Jacket • 316/304 Stainless • Quad-Leg BaseBuilt for high-volume kitchens that refuse to compromise on speed or quality, the Crown DLT-100 gives you 100 gallons (379 L) of even, steam-jacketed heat in a rock-solid package that’s ready to bolt to the floor and go to work. From scratch stocks to slow-simmered sauces, this crank-tilt kettle lets one operator cook, portion and clean up with total control.
Highlights
- Massive 100 gal / 379 L batch capacity.

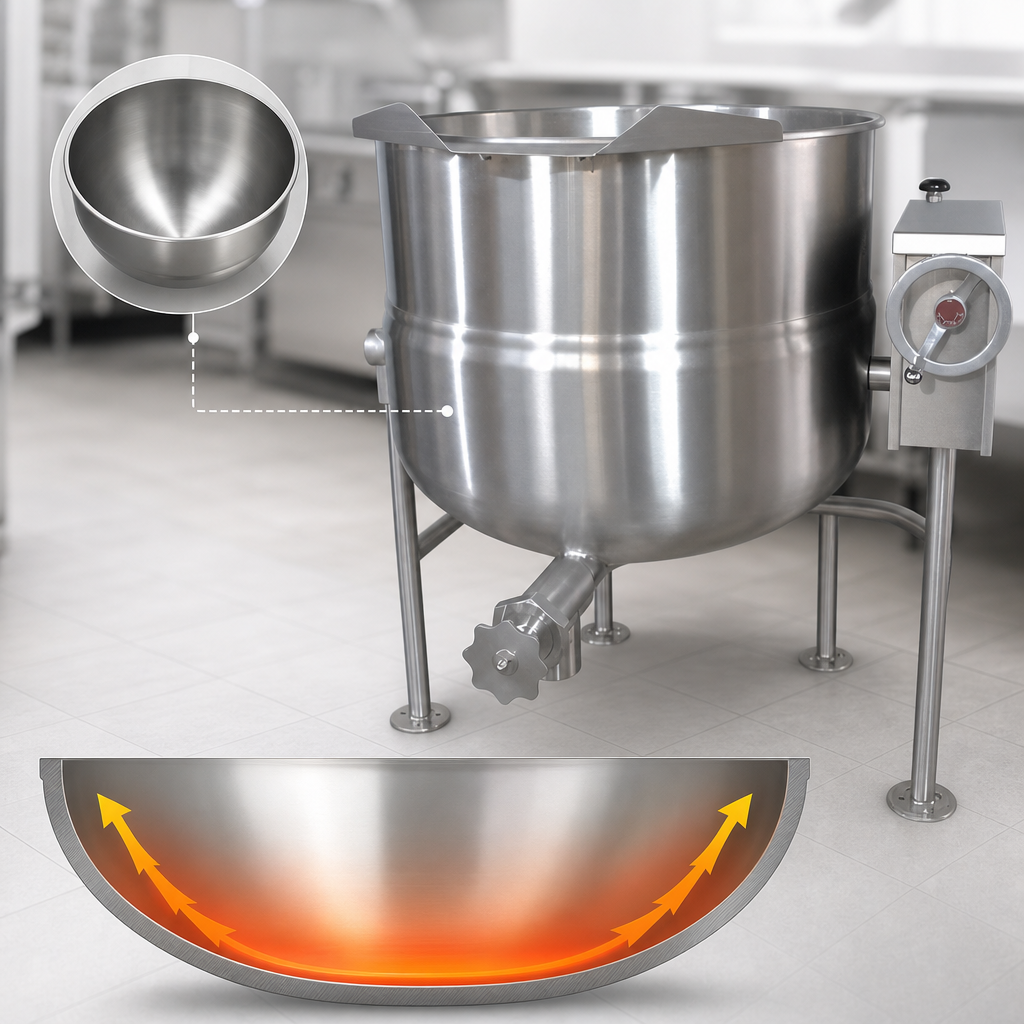

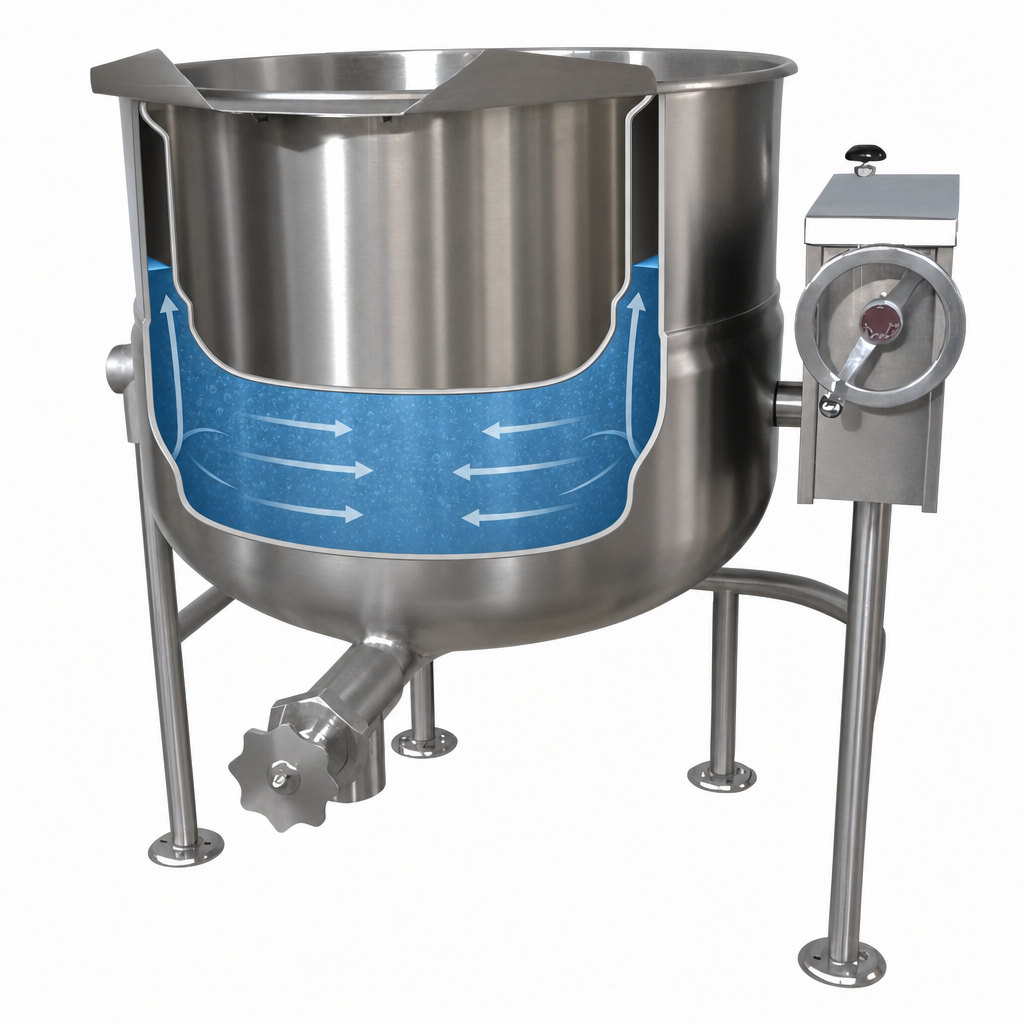

- 2/3 steam jacket with hemispherical bottom for rapid, uniform heating.
- Direct-steam operation, 5–30 PSI (206 kPa) standard; 50 PSI option available for higher cooking temperatures.
- Manual crank tilt with worm & segment gear provides smooth pour-control and a self-locking positive stop at any angle up to 90°.
- Food-contact surface: 316 stainless steel—ideal for acidic ingredients.
- Exterior & frame: all-welded 304 stainless, #4 sanitary finish.
- Quad-leg base with adjustable flanged feet for rigid, NSF-compliant floor mounting.
- Factory-installed faucet bracket—ready for optional single or double pantry faucets.
- Built-in 35 PSI safety relief valve and steam control valve.
- NSF listed; intended for commercial use.
Technical Specifications
| Model | DLT-100 |
|---|---|
| Capacity | 100 gal (379 L) |
| Jacket Coverage | Lower 2/3 of kettle |
| Working Steam Pressure | 5–30 PSI (standard) | 50 PSI optional |
| Steam Connection | 3/4" IPS |
| Condensate Return | 1/2" IPS |
| Overall Dimensions (W × D × H) | 35.5" × 42.5" × 79.25" (902 × 1080 × 2013 mm) |
| Interior Bowl Diameter | 30" (762 mm) |
| Tilt Clearance (pour height) | 18" to 20.25" outlet height, depending on valve size |
| Shipping Weight | 480 lb (218 kg) |
| Certifications | NSF |
Popular Accessories (sold separately)
- Spring-assist hinged cover
- 2" or 3" sanitary draw-off valve with perforated strainer
- Single or double pantry faucet with swing spout
- Etched gallon or litre markings
- Triple basket assembly for bulk pasta or vegetable cooking
- Pour-lip strainer & pan carrier
Requires connection to a steam supply (not included). Installation must comply with local codes and should be performed by qualified personnel.
