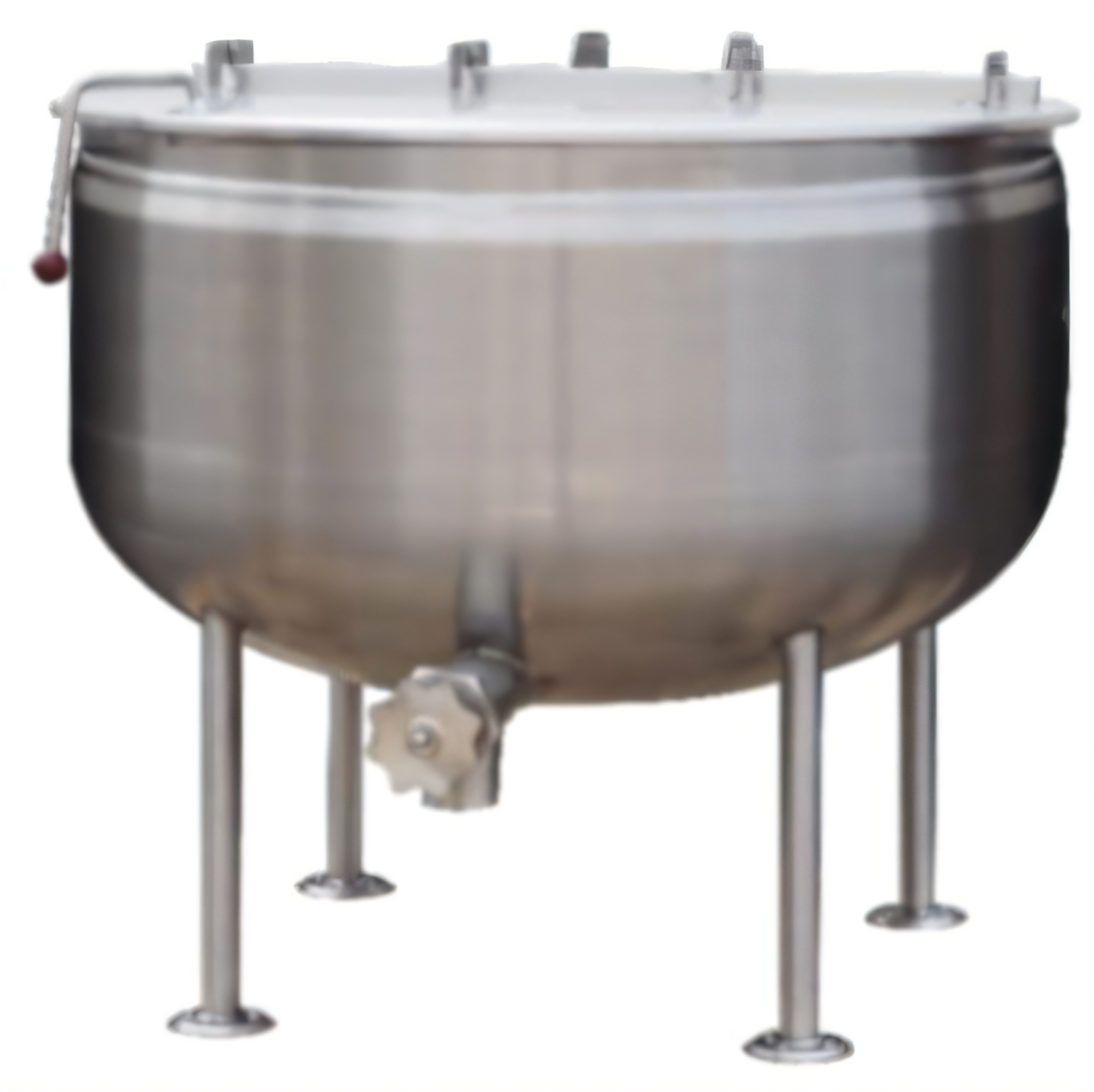

Crown DL-80F 80 Gallon Direct Steam Full Jacketed Stationary Kettle

SKU: DL-80F
$27,876.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Crown DL-80F 80 Gallon Direct Steam Full Jacketed Stationary Kettle

Full-Size, Direct Steam, Quad-Leg Base

Engineered for efficiency and durability, the Crown DL-80F stationary kettle delivers powerful direct steam cooking for high-volume commercial kitchens.

  • Large 80-gallon capacity ideal for mass food production in commercial settings.
  • Full jacket design ensures uniform heat distribution for consistent cooking results and prevents scorching.
  • Constructed with heavy-duty 304 stainless steel exterior and a 316 stainless steel interior liner for lasting commercial use.
  • Features a 2-inch sanitary draw-off valve with a perforated strainer for easy product dispensing and cleaning.
  • Equipped with a hinged flat split stainless steel cover and a faucet bracket for enhanced operational convenience.
  • Mounted on four sturdy tubular stainless steel legs with adjustable flanged feet for secure and stable floor installation.

Overall Dimensions:

43.88"W x 49.5"D x 40.5"H

Product Weight:

380.0 lb

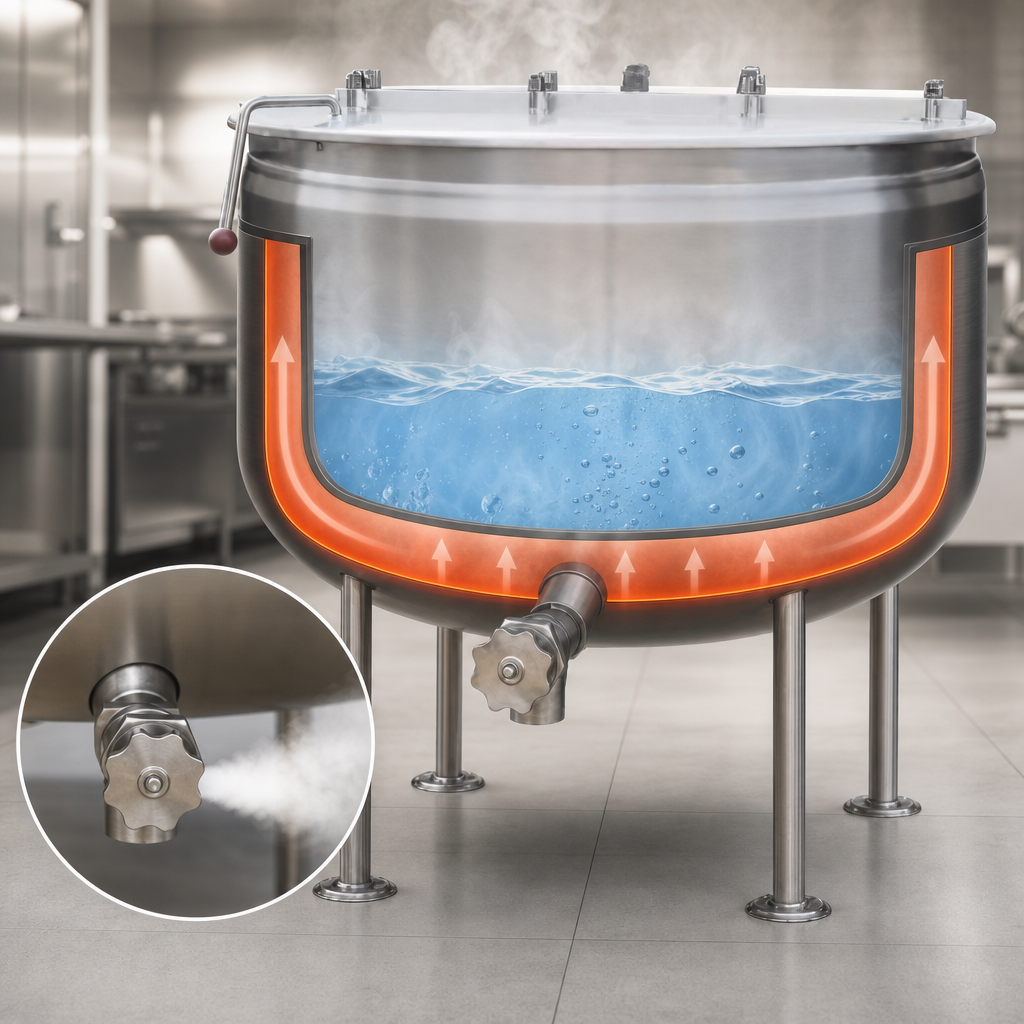

Direct Steam Operation

Requires direct steam at a minimum of 5 PSI (34 kPa) and a maximum of 25 PSI (172 kPa) for efficient heating.

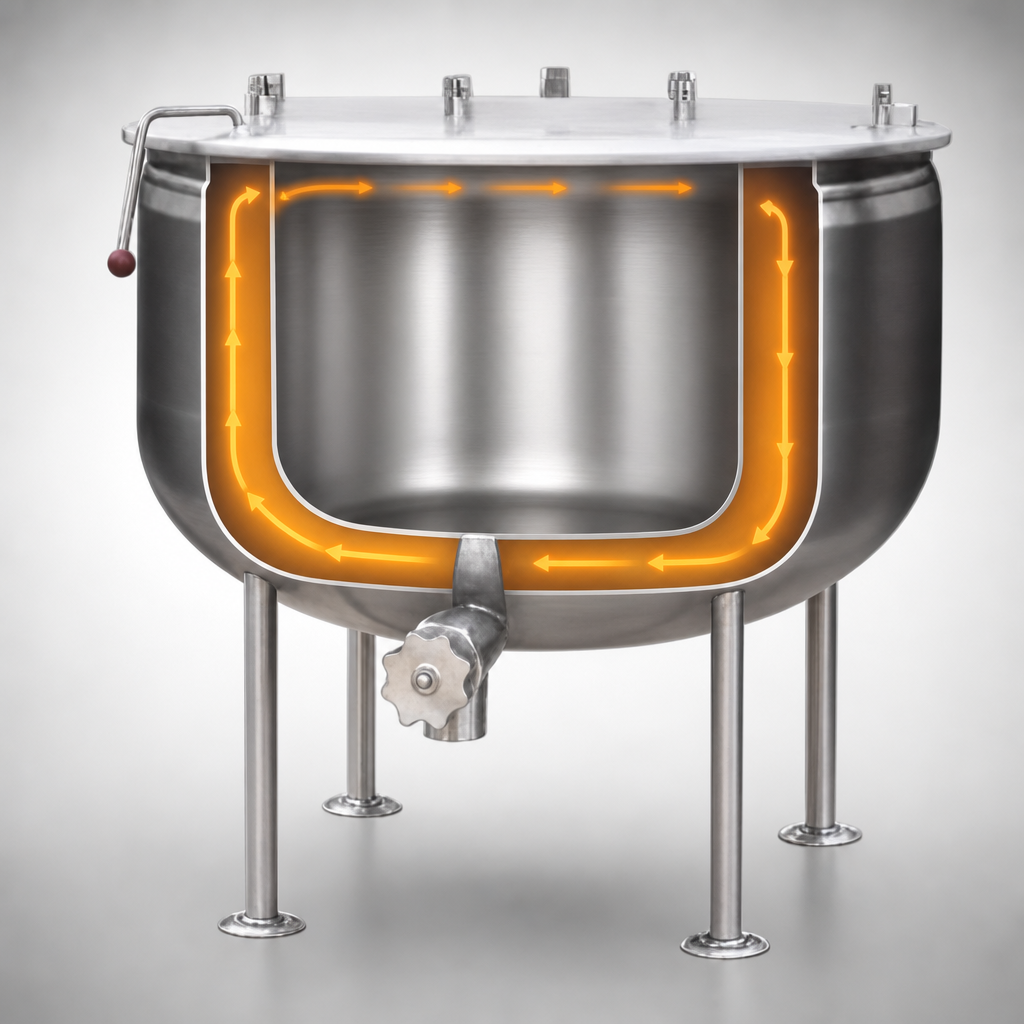

Full Steam Jacket

A double-wall kettle interior forms a full steam jacket around the kettle, ensuring superior, even heat circulation for consistent cooking.

Hemispherical Kettle Bottom

The bottom of the kettle is designed with a hemispherical shape to optimize heat circulation and cooking performance.

Durable Stainless Steel Construction

Entire kettle is constructed of all-welded, satin finish 304 stainless steel, with a 316 stainless steel interior liner for enhanced corrosion resistance.

Sanitary Draw-Off Valve

Includes a 2-inch (50 mm) sanitary draw-off valve complete with a perforated strainer for easy and hygienic product removal.

Hinged Flat Split Cover

Comes standard with a hinged flat split stainless steel cover for convenient access and heat retention.

Integrated Faucet Bracket

A faucet bracket is standard for easy integration of an optional water faucet or kettle filler.

Sturdy Leg Mount

The kettle is mounted on four stainless steel tubular legs, each fitted with a 4-hole adjustable flanged foot for secure floor attachment.

Type Direct Steam Kettle
Style Stationary Kettle
Kettle Jacket Full Jacket
Capacity 80 Gallons (303 Liters)
Installation Type Floor Model (On 4 Tubular Legs)
Minimum Steam Pressure 5 PSI
Maximum Steam Pressure 25 PSI
Material Stainless Steel
Interior Finish 316 Stainless Steel
Exterior Finish 304 Stainless Steel
Draw-off Connection Size 2 Inches
Steam Supply Connection Size 3/4 Inch IPS
Condensate Return Connection Size 1/2 Inch IPS
Shipping Weight 380 lb.
Shipping Width 44 Inches
Shipping Depth 50 Inches
Shipping Height 41 Inches
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The DL-80F kettle requires direct steam at a minimum of 5 PSI (34 kPa) and a maximum of 25 PSI (172 kPa) for proper operation.
The kettle's overall construction is made of all-welded satin finish 304 stainless steel. The kettle interior liner is specifically made of 316 stainless steel for enhanced durability and corrosion resistance.
The Crown DL-80F kettle comes standard with a 2-inch (50 mm) sanitary draw-off valve. A 3-inch draw-off valve is available as an optional accessory.
The DL-80F model is a floor model mounted on four stainless steel tubular legs. Each leg is equipped with a 4-hole adjustable flanged foot for securing the unit to the floor.
The Crown DL-80F stationary kettle is intended for commercial use only and is not designed for household applications.
