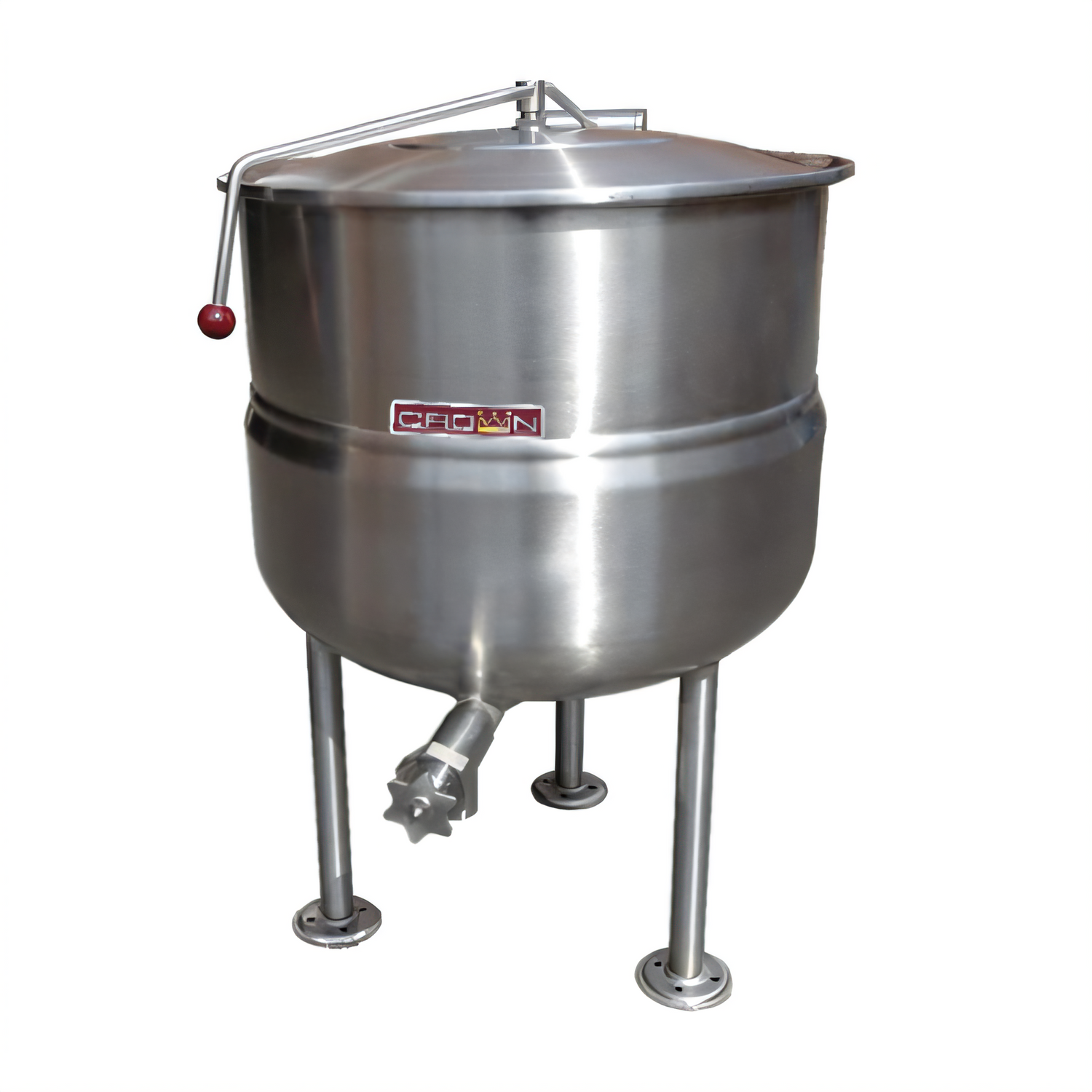

Crown DL-80 Stationary Direct-Steam Kettle – 80 gal

2/3-jacket • 316/304 Stainless • Spring-Assist Cover • 2" Draw-Off

Engineered for the demands of today’s high-volume kitchens, the Crown DL-80 delivers a full 80 gallons (303 L) of fast, even, direct-steam cooking power. Its rugged, all-stainless-steel construction and service-friendly design keep your line moving—batch after batch.

Why chefs choose the DL-80

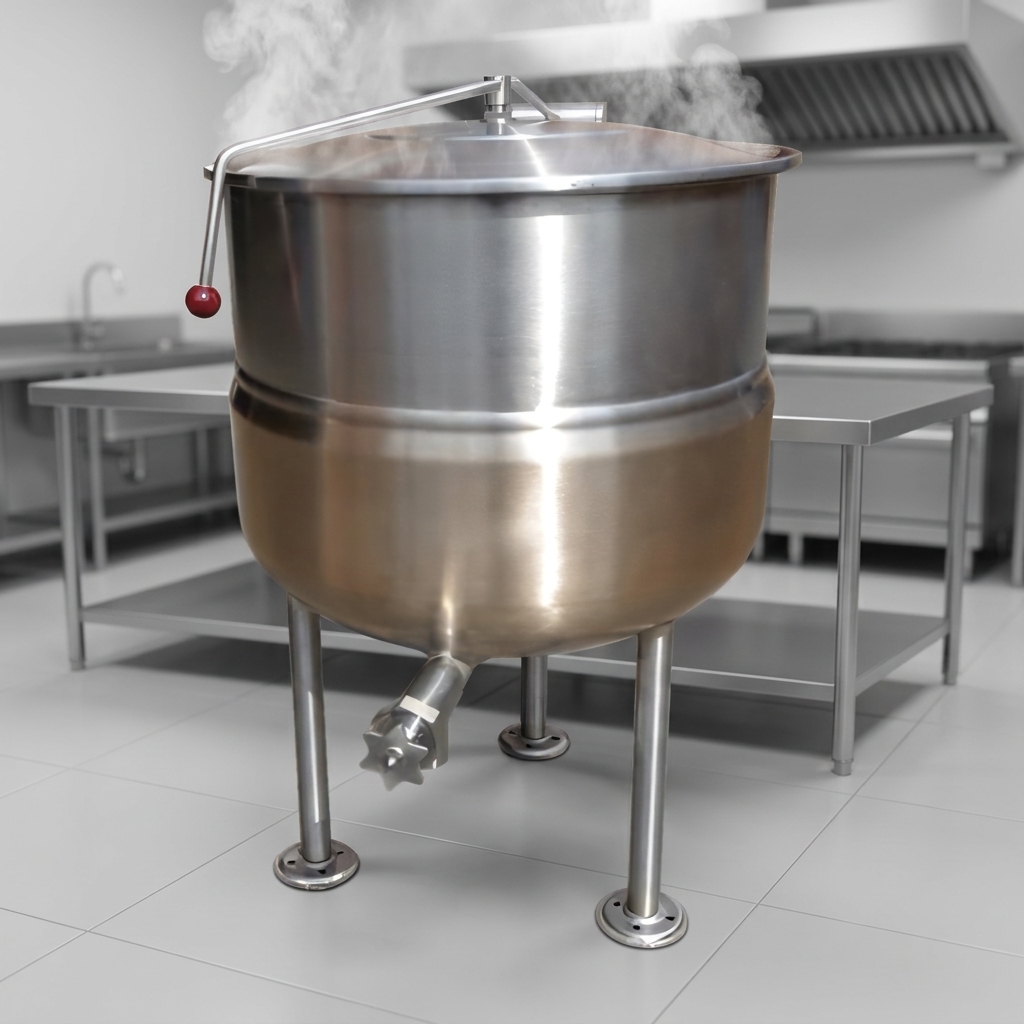

  • 2/3 jacketed bowl provides maximum heat transfer for faster heat-up & recovery.

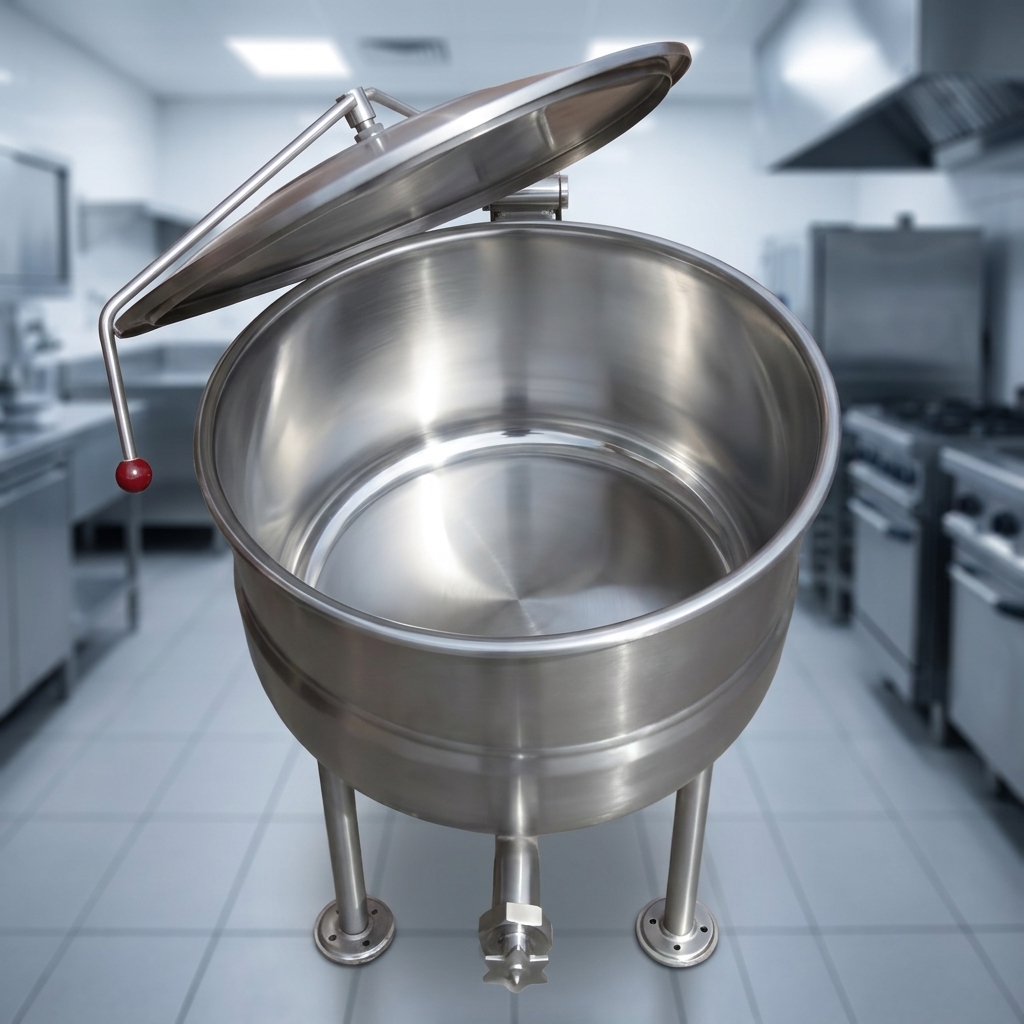

  • 316 SS interior liner stands up to acidic ingredients—perfect for tomato sauces & chowders.
  • Easy-clean 304 SS exterior maintains a professional finish in front- or back-of-house.
  • Factory-mounted 2" tangent draw-off valve with perforated strainer speeds portioning & draining.
  • Spring-assist hinged cover with built-in faucet bracket opens effortlessly and stays put.
  • (3) tubular stainless legs with adjustable flanged feet meet NSF floor-sealing requirements.

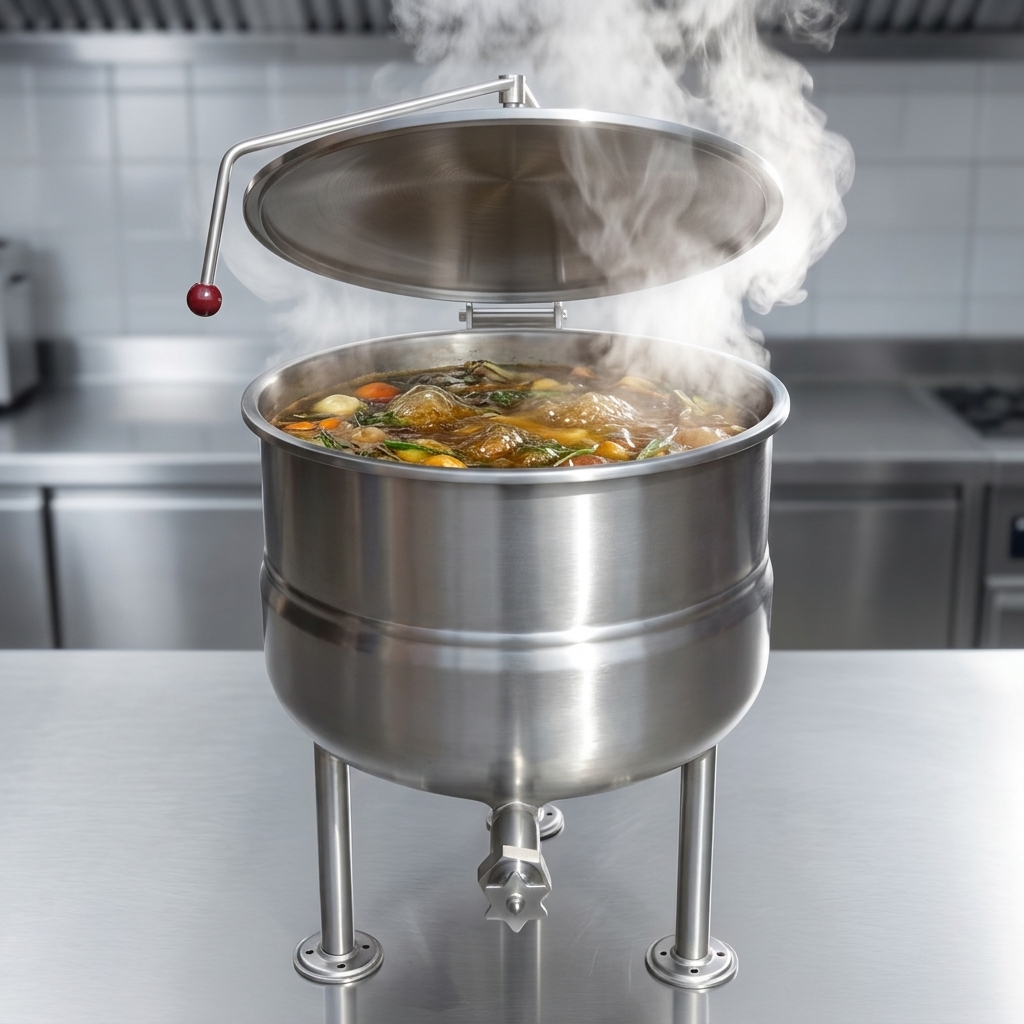

  • Direct steam operation—5-30 PSI standard (5-45 PSI optional) for ultimate energy efficiency.
  • NSF listed & UL certified for sanitation and safety peace of mind.

Technical Data (Model DL-80)

Capacity 80 gal / 303 L
Jacket Coverage Lower 2/3 of kettle body
Interior Liner 316 stainless steel
Exterior Finish 304 stainless steel
Steam Pressure Range 5–30 PSI (optional 5–45 PSI)
Steam Connection 3/4" IPS
Condensate Return 1/2" IPS
Draw-Off Valve 2" tangent, perforated strainer included
Overall Height (J) 75.25" / 1 911 mm
Overall Width (A) 33" / 838 mm
Overall Depth (B) 28" / 711 mm
Cooking Height (C) 40.5" / 1 029 mm
Shipping Weight 308 lb / 140 kg
Minimum Clearances 3" (76 mm) sides, 0.5" (13 mm) rear
Important: The DL-80 requires a clean, dry external steam supply and appropriate condensate return per local code. Install a pressure-reducing valve if inlet pressure exceeds 50 PSI.

Looking for a different size? Crown offers the same dependable design in 20, 30, 40, 60 & 100-gallon capacities.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF

Height

40.5in

Width

34.75in

Depth

37.0in

Shipping Weight

308.0lbs

Kettle Liner

316 stainless steel

Kettle Jacket

partial jacket

Base

tri-leg

Capacity

80 - 150 gallon

Specifications

Stationary Kettle, direct steam, 80 gallon capacity, 2/3 jacket, 2" draw-off, includes: perforated strainer, spring assist cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior finish, (3) stainless steel tubular legs with adjustable flanged feet, NSF
