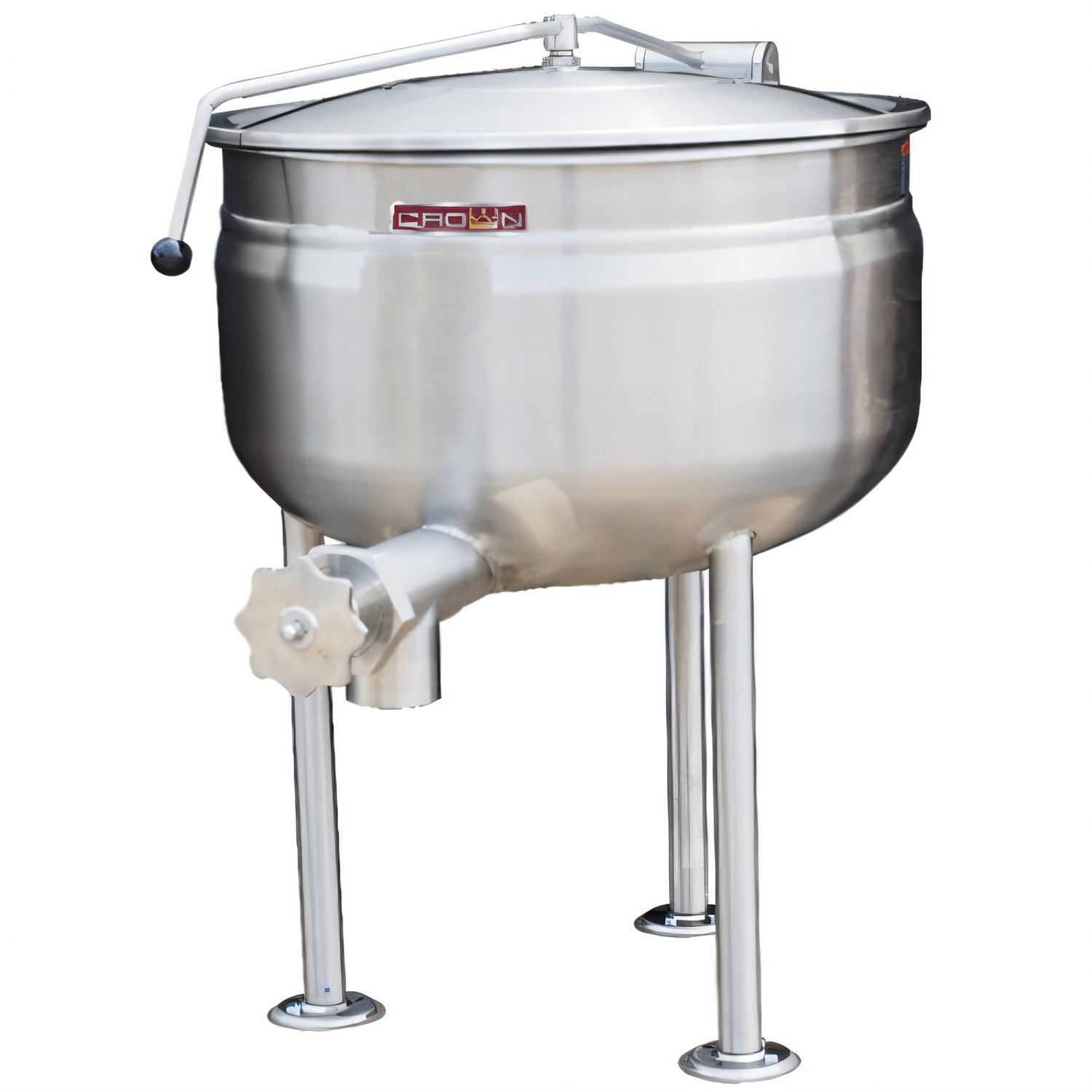

Crown DL-60F 60 Gallon Direct Steam Full Jacket Stationary Kettle

SKU: DL-60F
$22,880.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Crown DL-60F 60 Gallon Direct Steam Full Jacket Stationary Kettle

Tri-Leg, 316 Stainless Steel Interior

Experience superior heat circulation and durability with the Crown DL-60F 60 Gallon Direct Steam Stationary Kettle, designed for high-volume commercial cooking.

  • 60 gallon capacity ideal for high-volume cooking operations.
  • Direct steam operation for efficient and precise temperature control.
  • Durable 316 stainless steel interior liner perfect for high-acid content foods.
  • Full jacket design ensures uniform heat distribution.
  • Mounted on sturdy stainless steel tubular tri-legs with adjustable flanged feet for stability.
  • Convenient spring-assist hinged stainless steel cover and 2-inch sanitary draw-off valve.

Overall Dimensions:

31.38"W x 33.25"D x 40.5"H

Product Weight:

320.0 lb

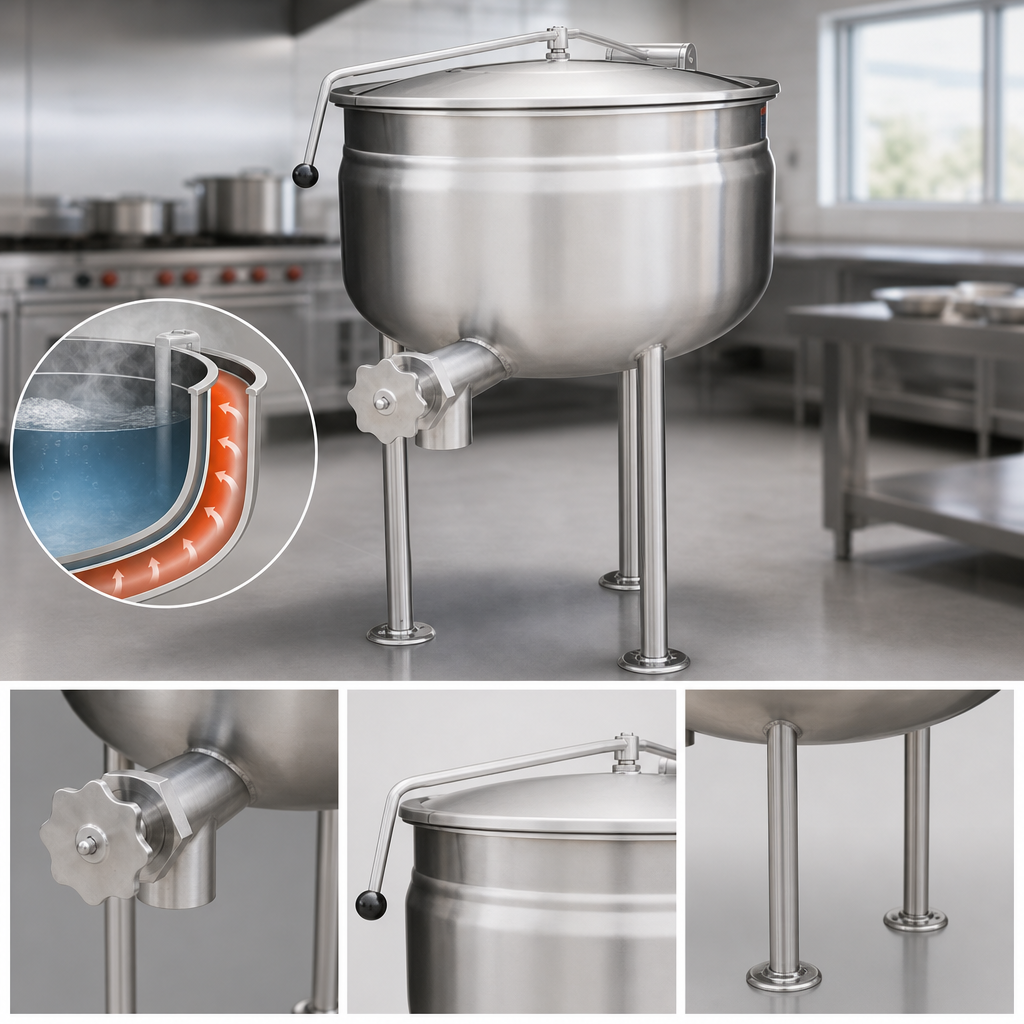

Direct Steam Operation

Operates efficiently using direct steam at a standard pressure range of 5-35 PSI (34-241 kPa).

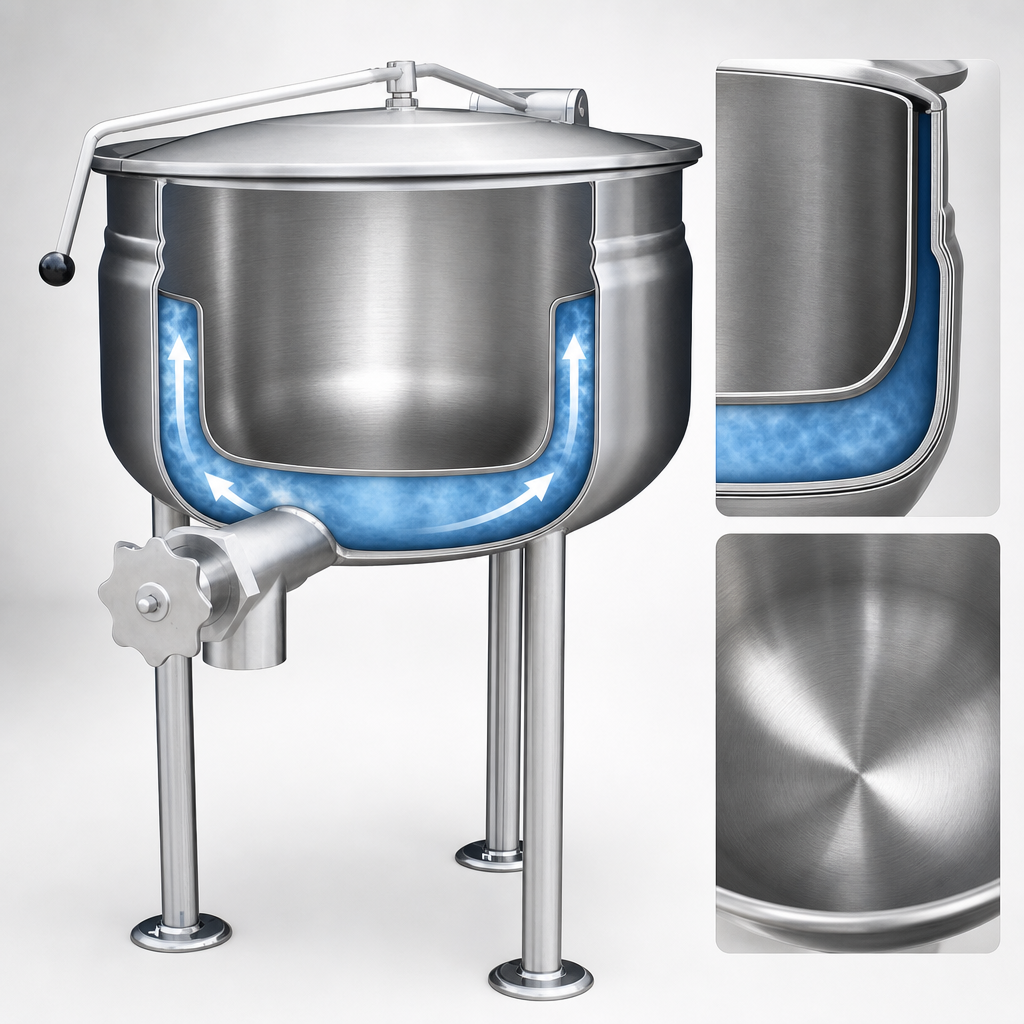

Full Jacket Kettle

A double wall kettle interior forms a steam jacket around the lower two-thirds of the kettle, ensuring uniform heat distribution.

Hemispherical Kettle Bottom

Designed with a hemispherical bottom for superior heat circulation, promoting even cooking.

Heavy-Duty Construction

Features all-welded satin finish 304 stainless steel exterior for durability and easy cleaning.

316 Stainless Steel Interior Liner

The interior liner is made of type 316 stainless steel, offering excellent corrosion resistance, especially suitable for high-acid content cooking.

Tri-Leg Mounting

Unit is mounted on three stainless steel tubular legs, each fitted with a 4-hole adjustable flanged foot for secure installation and floor mounting.

Spring Assist Hinged Cover

Includes a hinged stainless steel cover with a spring assist mechanism for easy and safe opening and closing.

2" Sanitary Draw-Off Valve

Equipped with a 2-inch (50mm) sanitary draw-off valve, complete with a perforated strainer, for convenient and clean product dispensing.

Faucet Bracket

A faucet bracket is included as a standard feature, allowing for easy integration of a water faucet.

Type Stationary Kettle
Style Full Jacket
Installation Type Floor Model (With Tri-Legs)
Capacity 60 Gallons (227 Liters)
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Gas Type Direct Steam
Steam Supply Connection Size 3/4" IPS
Steam Supply Pressure 5-35 PSI
Condensate Return Connection Size 1/2" IPS
Draw-off Connection Size 2 Inches
Controls Manual
Country of Origin North America
Shipping Weight 320 lbs.
Shipping Width 32 Inches
Shipping Depth 34 Inches
Shipping Height 41 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown DL-60F kettle has a capacity of 60 gallons (227 liters), making it suitable for high-volume cooking.
The kettle requires a direct steam supply with a 3/4" IPS connection, operating at a pressure range of 5-35 PSI (34-241 kPa).
The interior liner of the DL-60F kettle is made from high-quality 316 stainless steel, which is ideal for cooking foods with high acid content.
Yes, the DL-60F kettle comes standard with a spring-assist hinged stainless steel cover and a 2-inch sanitary draw-off valve with a perforated strainer.
Yes, an optional 50 PSI (345 kPa) high pressure operation (HP-50) is available for higher cooking temperatures.
The kettle is mounted on three stainless steel tubular tri-legs, which include adjustable flanged feet for stability and securing to the floor.
