Crown (Middleby) DL-60 Steam Kettles
$15,084.00
Unit price
/
Unavailable
Description

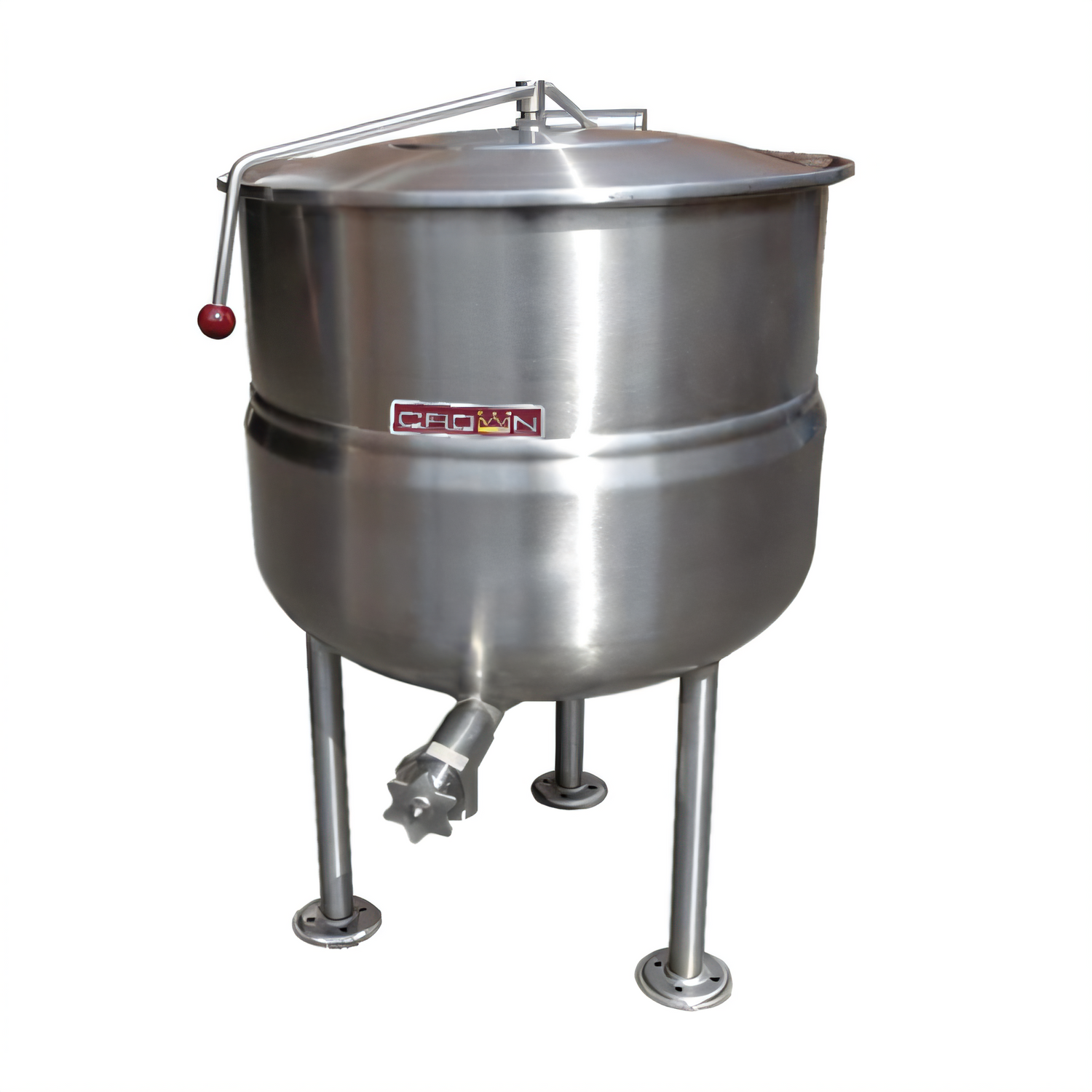

Crown DL-60 60 Gallon Direct-Steam Stationary Kettle
2/3 jacket • 2″ draw-off valve • 316/304 stainless steel • NSFEngineered for high-volume, high-margin production, the Crown DL-60 delivers 60 gallons (227 L) of perfectly even heat in a compact, floor-mounted footprint. Its rugged 316 SS liner takes on acidic sauces with ease, while a 2/3 steam jacket eliminates hot spots, slashing cooking times and labor costs.
Key features & benefits

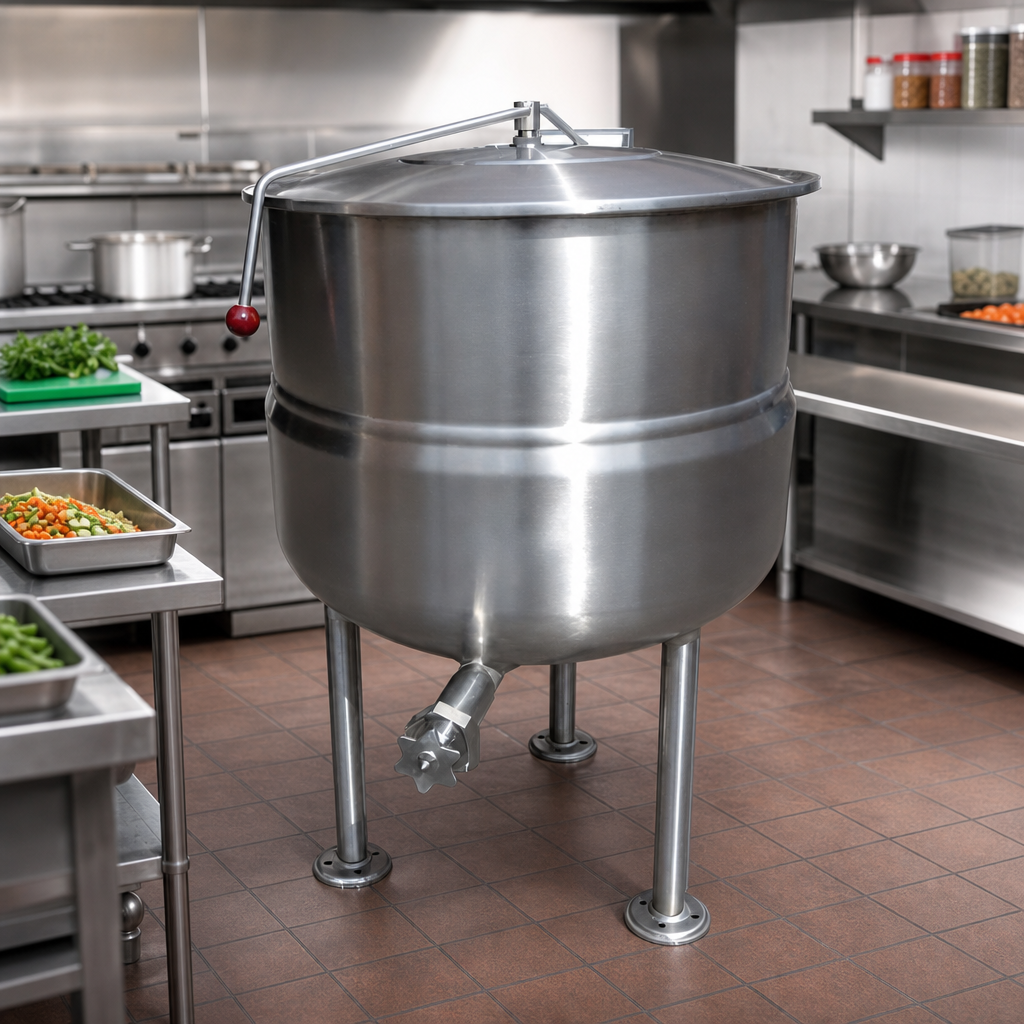

- 60 gal / 227 L working capacity—ideal for stocks, soups, sauces, pasta, oatmeal, chili & more.

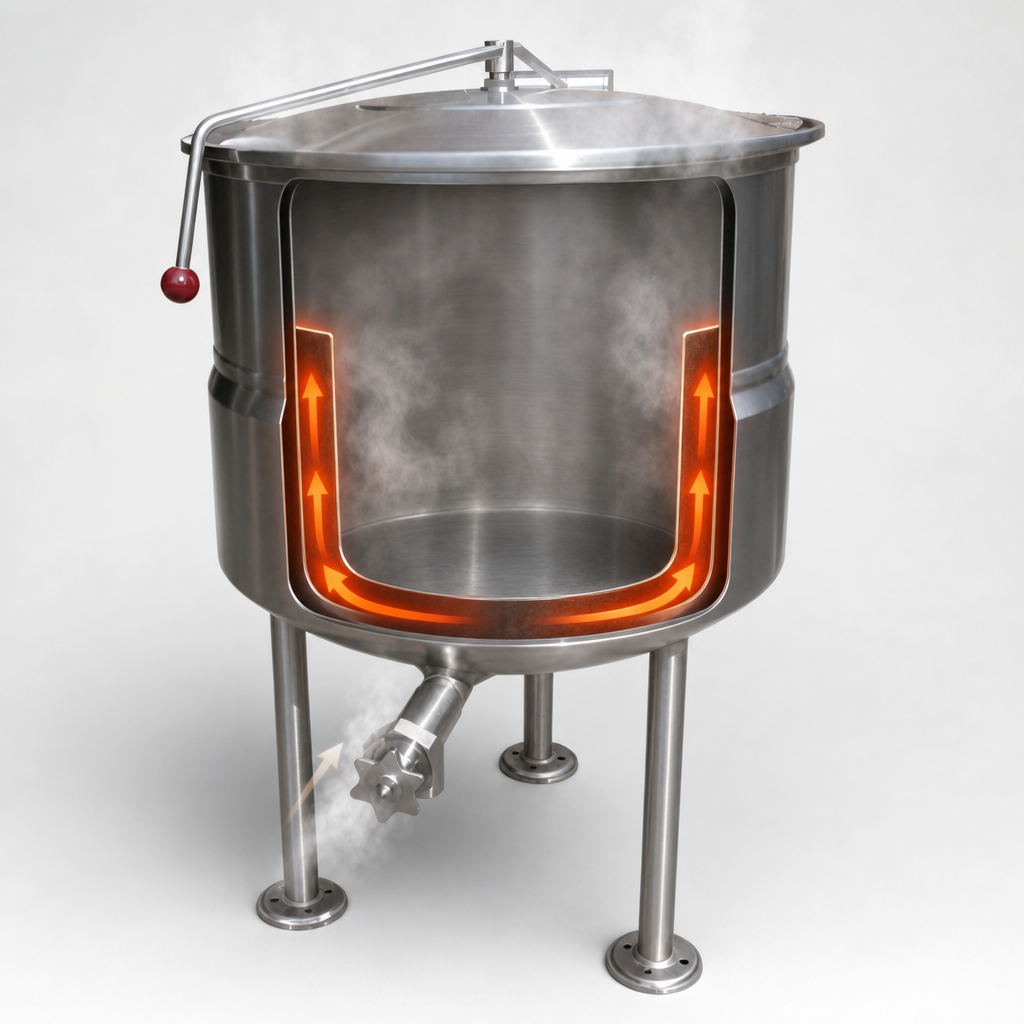

- 2/3 jacketed design surrounds product with saturated steam for fast, uniform heating.
- 316 SS interior liner resists pitting & corrosion from salt, tomato and citrus-based recipes.
- 304 SS exterior with satin finish—durable, easy to wipe down and keeps its showroom shine.
- Heavy-duty 2″ tangent draw-off valve with perforated strainer for quick, mess-free portioning.
- Spring-assist cover opens effortlessly and stays put at any angle, reducing operator fatigue.
- Factory-welded faucet bracket lets you mount a fill faucet exactly where you need it (faucet not included).
- (3) tubular stainless steel legs with adjustable flanged feet anchor securely to the floor and level the kettle.
- NSF certified and equipped with a 35 PSI safety relief valve for worry-free compliance.
What’s included
- Crown DL-60 stationary kettle, fully assembled
- Spring-assist hinged stainless steel cover
- Perforated stainless steel draw-off strainer
- Welded faucet bracket
- Installation & operation manual
Technical specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Jacket | 2/3 steam jacket, direct steam |
| Interior material | 316 stainless steel |
| Exterior material | 304 stainless steel |
| Draw-off valve | 2″ tangent, stainless steel |
| Steam supply | 3/4″ IPS, 5–30 PSI (34–207 kPa) (5–45 PSI optional) |
| Condensate return | 1/2″ IPS |
| Overall height | 72.88″ (1851 mm) with cover raised |
| Shipping weight | ≈ 265 lb / 120 kg |
| Floor clearance | Sides 3″ (76 mm) | Back 0.5″ (13 mm) |
| Leg footprint (A × B) | 29.5″ × 26″ (749 mm × 660 mm) |
| Certifications | NSF, ASME pressure vessel |
Ideal applications

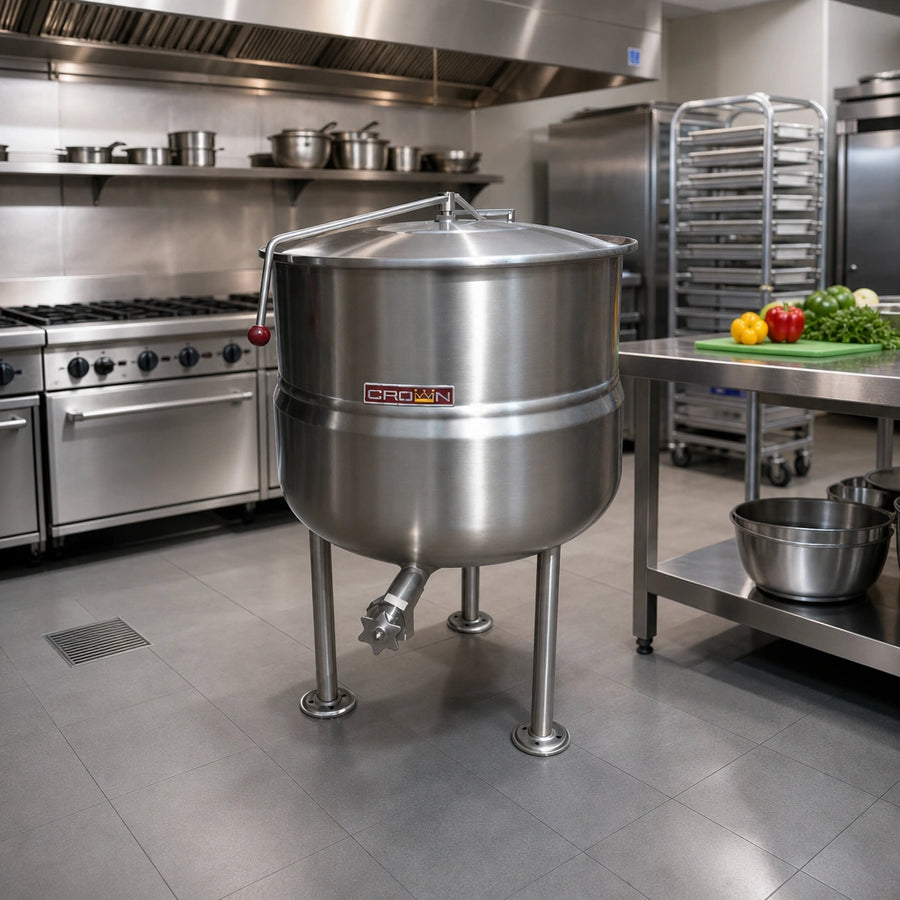

- Commercial & institutional kitchens
- Central commissaries & ghost kitchens
- School, hospital & correctional facilities
- Batch production for canning or sous-vide prep
Installation required: Unit must be connected to a
regulated direct-steam source and condensate return by qualified personnel.
Not for household use.
Looking to preserve cash flow? Ask about flexible equipment financing through Middleby.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF
Height
40.5in
Width
31.38in
Depth
33.25in
Shipping Weight
265.0lbs
Capacity
50 - 70 gallon
Kettle Jacket
partial jacket
Base
tri-leg
Kettle Liner
316 stainless steel
Specifications
Stationary Kettle, direct steam, 60 gallon capacity, 2/3 jacket, 2" draw-off, includes: perforated strainer, spring assist cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior finish, (3) stainless steel tubular legs with adjustable flanged feet, NSF
