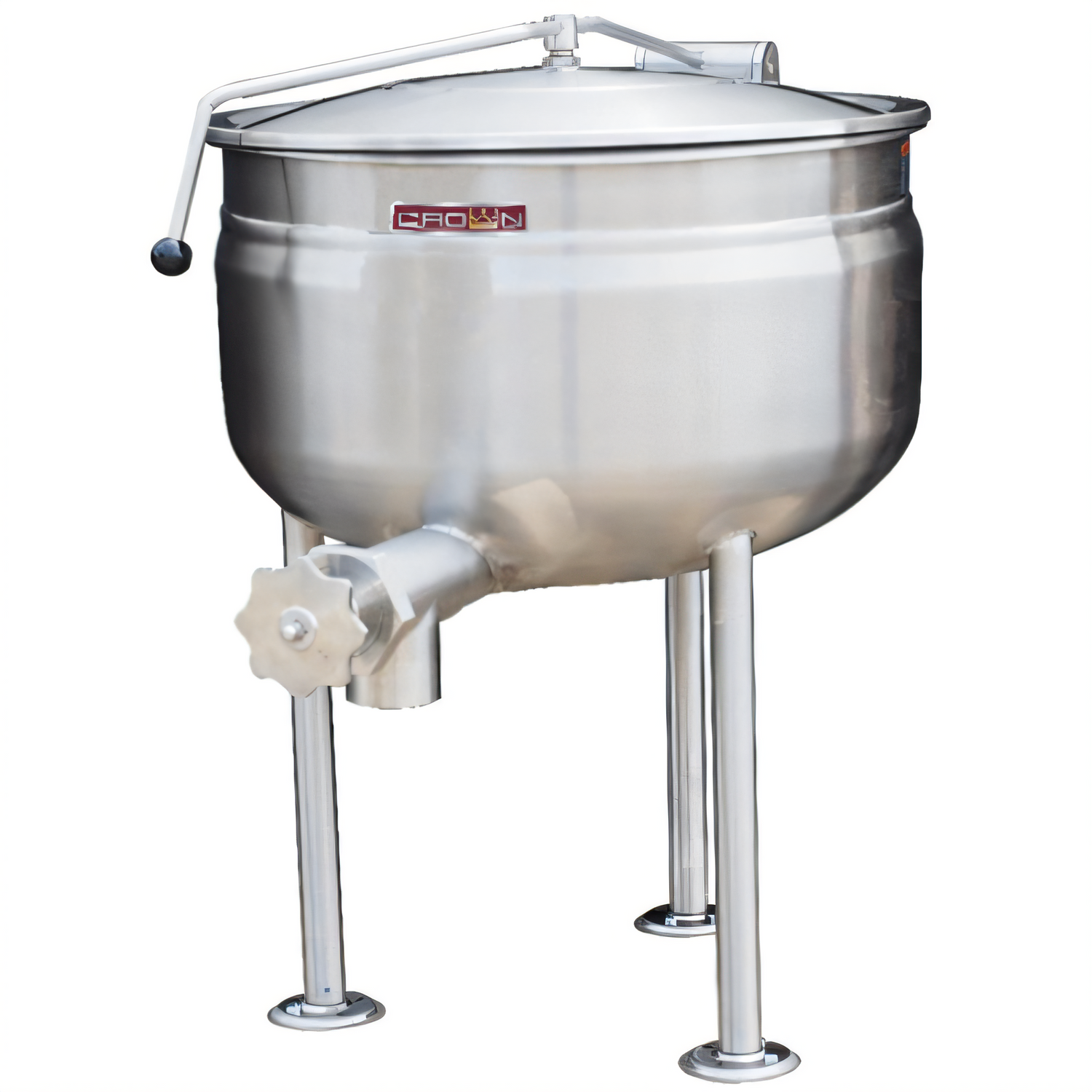

Crown DL-40F 40 Gallon Direct Steam Full Jacket Stationary Kettle

Floor Model, 316 Stainless Steel Interior Liner, Tri-Leg Base

Designed for demanding commercial kitchens, the Crown DL-40F provides efficient direct steam cooking with a durable 316 stainless steel interior and a robust tri-leg base.

  • 40-gallon capacity ideal for high-volume cooking applications.
  • Full jacket design ensures superior and even heat distribution for consistent results.
  • Constructed with a 316 stainless steel interior liner, perfect for high-acid content foods.
  • Features a convenient 2-inch sanitary draw-off valve with a perforated strainer.
  • Spring-assisted hinged cover makes operation safe and effortless.
  • Mounted on sturdy stainless steel tubular tri-legs with adjustable flanged feet for stability.

Overall Dimensions:

27.88"W x 32.75"D x 37.0"H

Product Weight:

280.0 lb

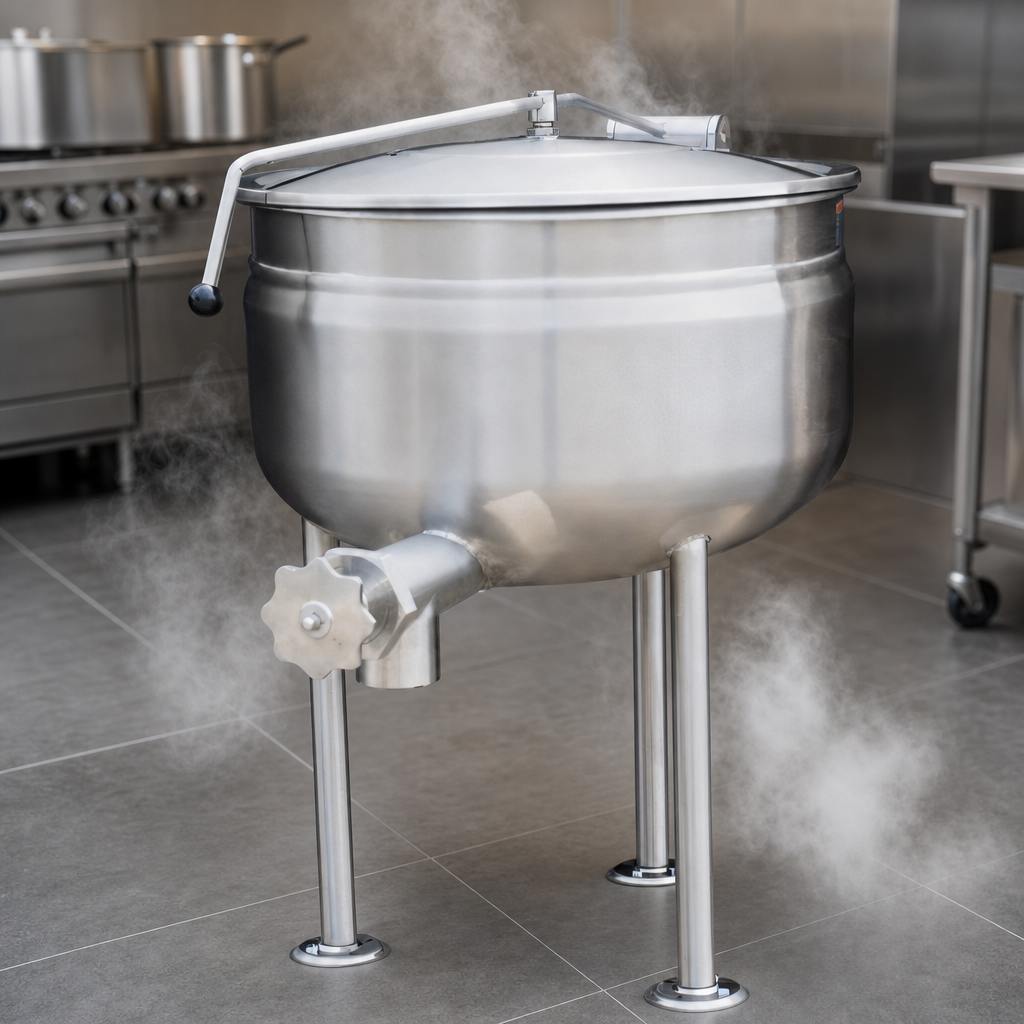

Direct Steam Operation

Utilizes direct steam from 5 PSI to 35 PSI for efficient and powerful cooking.

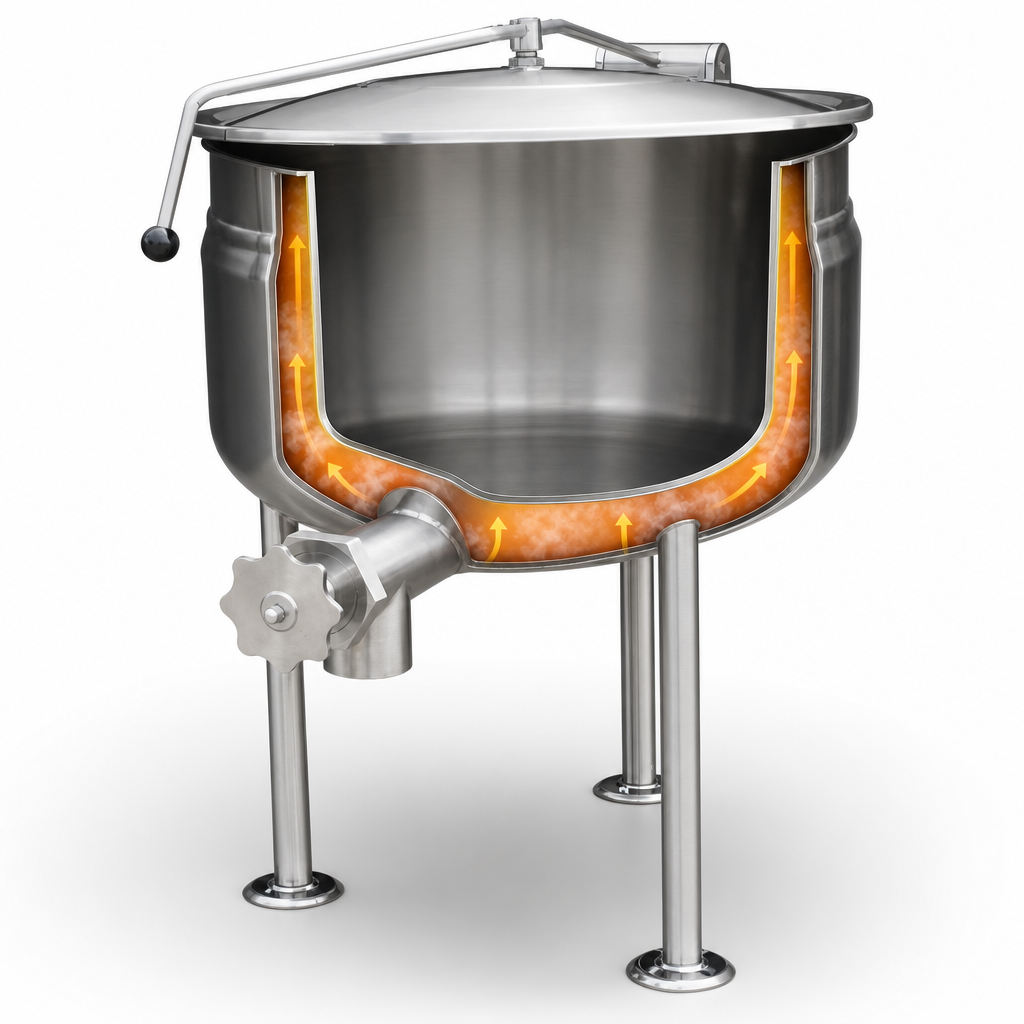

Full Steam Jacket

A double-wall kettle interior forms a steam jacket around the lower 2/3 of the kettle for uniform heating.

Hemispherical Kettle Bottom

Designed for superior heat circulation and efficient cooking.

Heavy-Duty Construction

All-welded satin finish 304 stainless steel exterior ensures durability and hygiene.

316 Stainless Steel Interior

Interior liner made from Type 316 stainless steel, specifically designed to resist corrosion from high acid content foods.

Integrated Draw-Off Valve

Equipped with a 2-inch (50mm) sanitary draw-off valve and a perforated strainer for easy product discharge.

Spring-Assist Hinged Cover

Stainless steel cover with spring assist for safe and easy opening and closing.

Faucet Bracket

Standard faucet bracket included for convenient water access.

Adjustable Flanged Feet

Three stainless steel tubular legs fitted with 4-hole, adjustable, flanged feet for secure floor mounting.

Type Stationary Kettle
Style Direct Steam, Full Jacket
Installation Type Floor Model (With Tri-Legs)
Capacity 40 Gallons (152 Liters)
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Gas Type Direct Steam
Gas Inlet Pressure 5-35 PSI
Steam Supply Connection Size 3/4 Inch IPS
Condensate Return Connection Size 1/2 Inch IPS
Drain Connection Size 2 Inches
Shipping Width 28 Inches
Shipping Depth 33 Inches
Shipping Height 37 Inches
Shipping Weight 280.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Not specified in the provided documentation.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown DL-40F direct steam kettle has a capacity of 40 gallons (152 liters).
This kettle requires a direct steam supply connection of 3/4 inch IPS operating at a minimum of 5 PSI and a maximum of 35 PSI. It also requires a 1/2 inch IPS condensate return connection.
Yes, the interior liner of the DL-40F kettle is made from Type 316 stainless steel, which is specifically designed for high acid content cooking to ensure durability and prevent corrosion.
The kettle comes standard with a 2-inch (50mm) sanitary draw-off valve equipped with a perforated strainer for easy and clean product dispensing.
Yes, an optional 50 PSI high-pressure operation (HP-50) is available for higher cooking temperatures, which can be purchased at an additional cost.
