Crown (Middleby) DL-40 Steam Kettles
$12,302.50
Unit price
/
Unavailable
Description

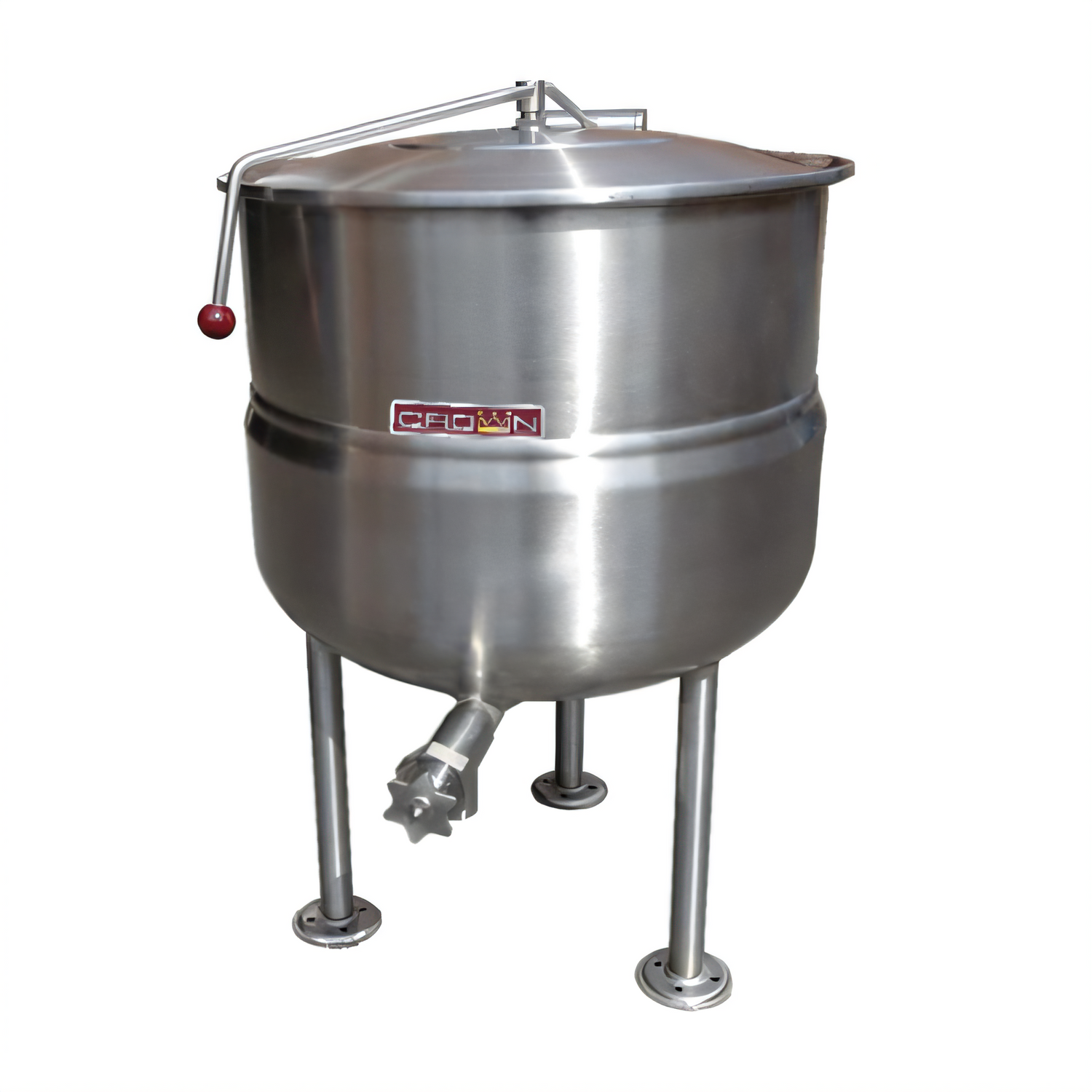

Crown DL-40 | 40-Gallon Direct-Steam Stationary Kettle
2/3 Jacket • 2 in. Draw-Off • 316/304 Stainless • NSFEngineered for high-volume kitchens, the Crown DL-40 delivers rapid, even heating through its 2/3-jacketed design while its rugged stainless-steel construction stands up to the most demanding production schedules.
Why Choose the DL-40

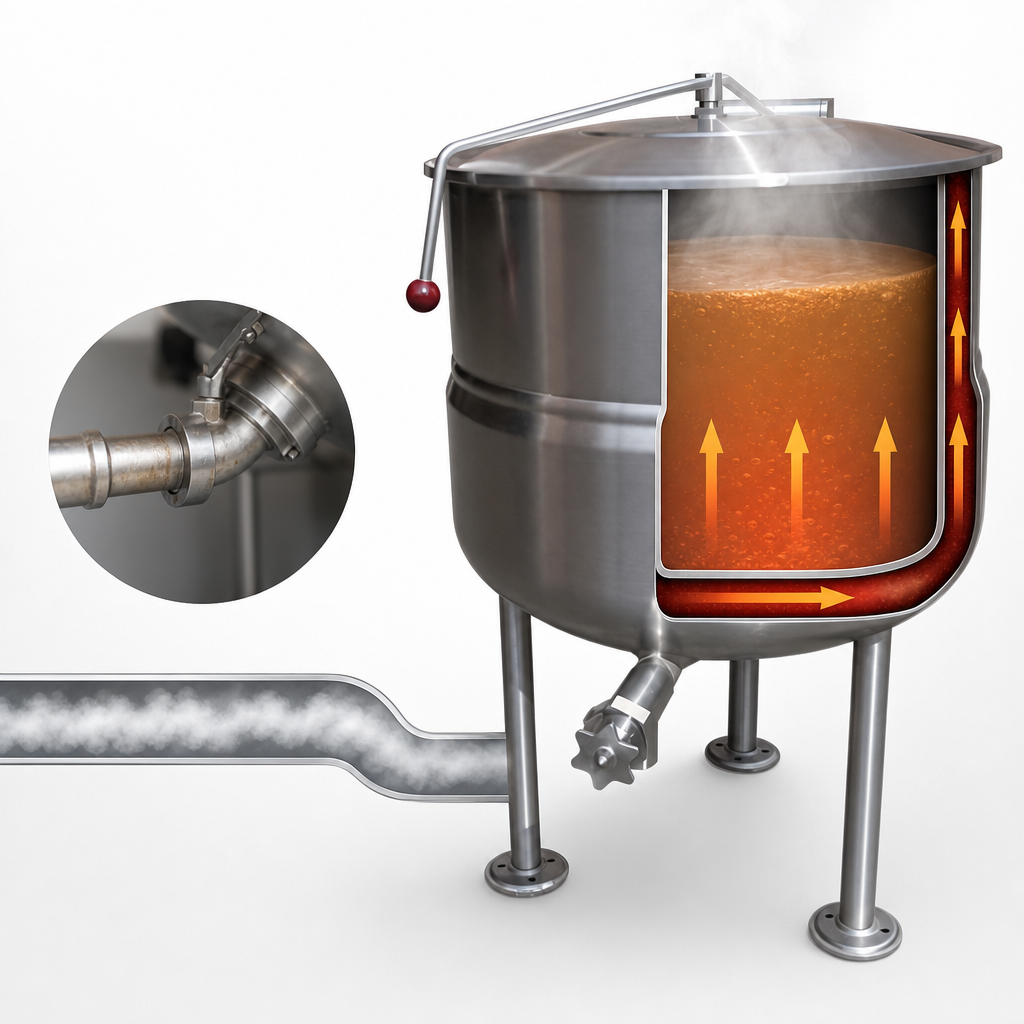

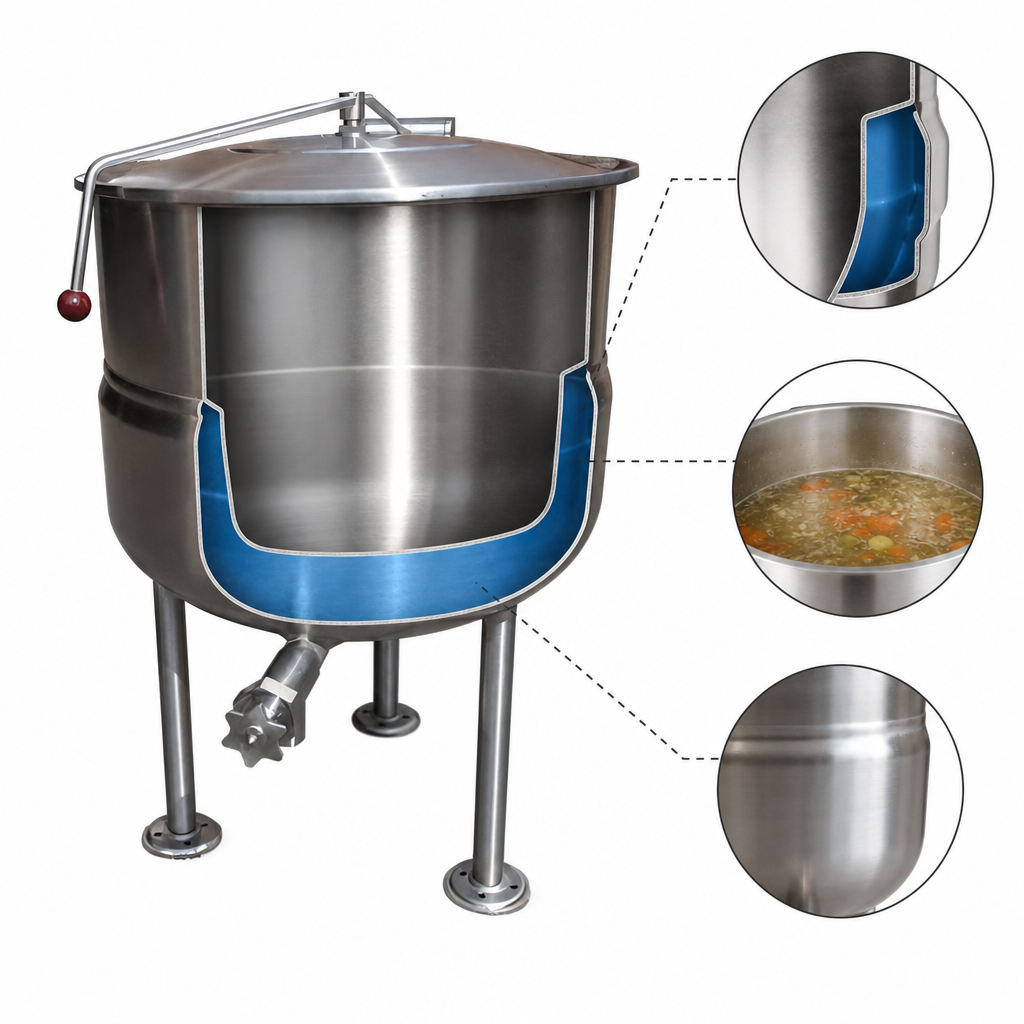

- 2/3-jacketed sidewall & bottom for uniform cooking with no hot spots.
- Corrosion-resistant 316 SS liner — ideal for salty, acidic or alkaline recipes.
- Sleek 304 SS exterior wipes clean and maintains a professional appearance.
- Large 40 gal (152 L) capacity produces up to 640 eight-ounce servings per batch.
- 2 in. tangent draw-off valve with perforated strainer for effortless portioning of liquids while retaining solids.
- Hinged stainless cover with built-in faucet bracket keeps the cookline organized.
- (3) tubular stainless legs with adjustable flanged feet meet NSF floor-sealing requirements.
- Factory-installed safety relief valve and easy-access steam/condensate connections streamline installation.
Technical Specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Kettle Type | Stationary, direct steam (floor-mounted) |
| Jacket Coverage | 2/3 (bottom & sidewall) |
| Operating Steam Pressure | 5 – 30 PSI — optional 5 – 45 PSI |
| Steam Inlet | 3/4 in. IPS |
| Condensate Return | 1/2 in. IPS |
| Draw-Off Valve | 2 in. stainless tangent valve with perforated strainer |
| Interior Material | 316 SS (food-contact) |
| Exterior Finish | 304 SS, satin |
| Mounting | (3) stainless tubular legs, adjustable flanged feet |
| Shipping Weight | Approx. 190 lb / 86 kg |
| Certifications | NSF, ASME code stamped |
What’s in the Box
- Crown DL-40 stationary kettle (40 gal)
- Hinged stainless-steel cover
- Perforated draw-off strainer
- Faucet mounting bracket
- Factory-mounted 2 in. draw-off & safety relief valves
Requires a regulated external steam supply and condensate return line.
Installation must conform to local codes and manufacturer guidelines.
Upgrade your production line with the durability, efficiency and cleanability that only a Crown kettle can provide.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF
Height
37.0in
Width
27.88in
Depth
32.75in
Shipping Weight
190.0lbs
Kettle Jacket
partial jacket
Kettle Liner
316 stainless steel
Capacity
30 - 45 gallon
Base
tri-leg
Specifications
Stationary Kettle, direct steam, 40 gallon capacity, 2/3 jacket, 2" draw-off, includes: perforated strainer, hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior finish, (3) stainless steel tubular legs with adjustable flanged feet, NSF
