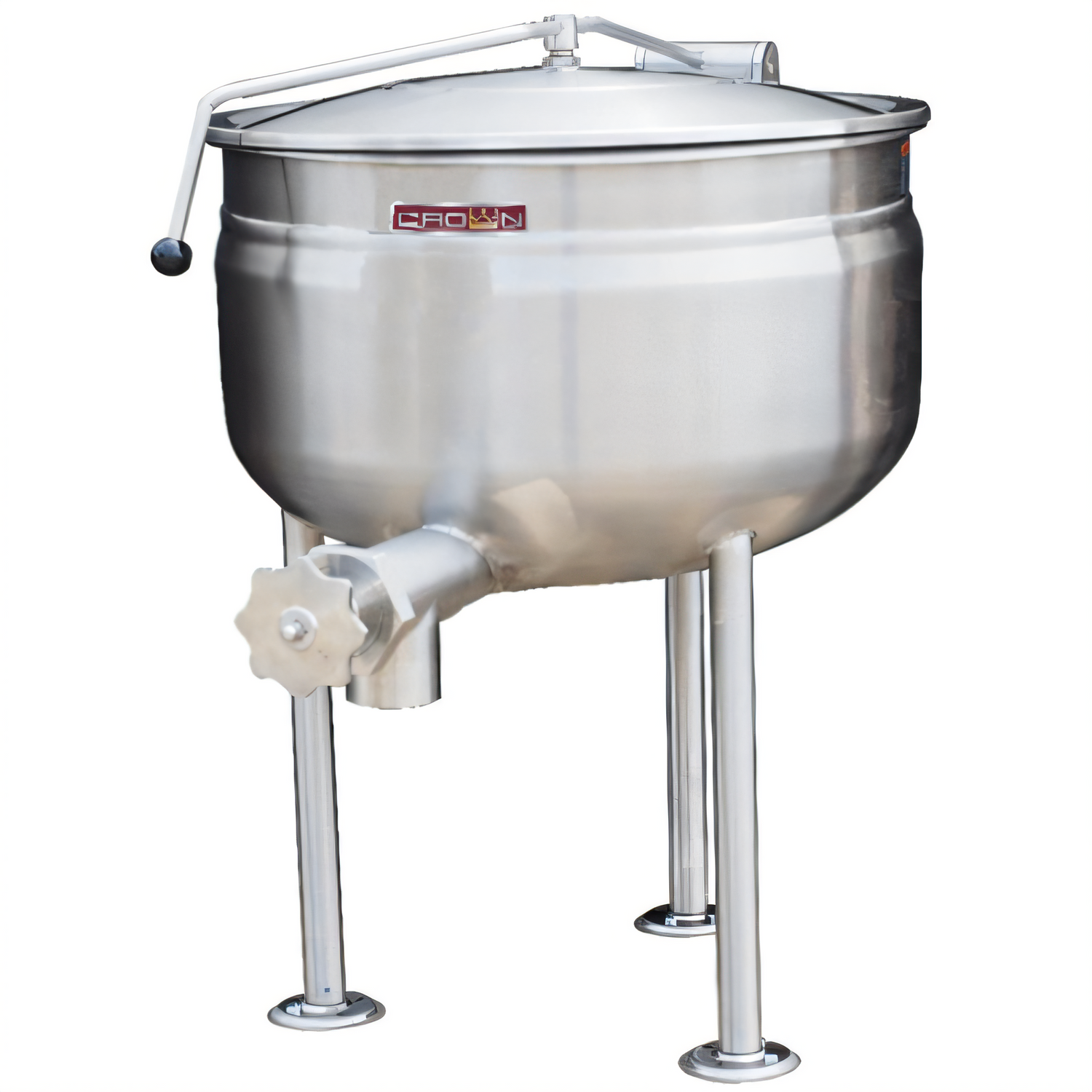

Crown DL-30F 30 Gallon Direct Steam Full Jacket Stationary Kettle
Full-Size, Direct Steam, Tri-Leg, 316 Stainless Steel Interior
Designed for high-volume commercial kitchens, the Crown DL-30F 30-gallon direct steam kettle offers efficient cooking and robust, sanitary construction.
- 30-gallon capacity, ideal for soups, stews, sauces, and more.
- Direct steam operation with a full steam jacket for even and efficient heat distribution.
- Constructed with a 316 stainless steel interior liner for high acid content cooking and a 304 stainless steel exterior.
- Features a hemispherical kettle bottom for superior heat circulation and ease of cleaning.
- Equipped with a 2" sanitary draw-off valve and a perforated strainer for easy product dispensing.
- Spring-assist hinged stainless steel cover and faucet bracket come standard for convenience.
- Mounted on durable stainless steel tubular tri-legs with adjustable flanged feet for stability.

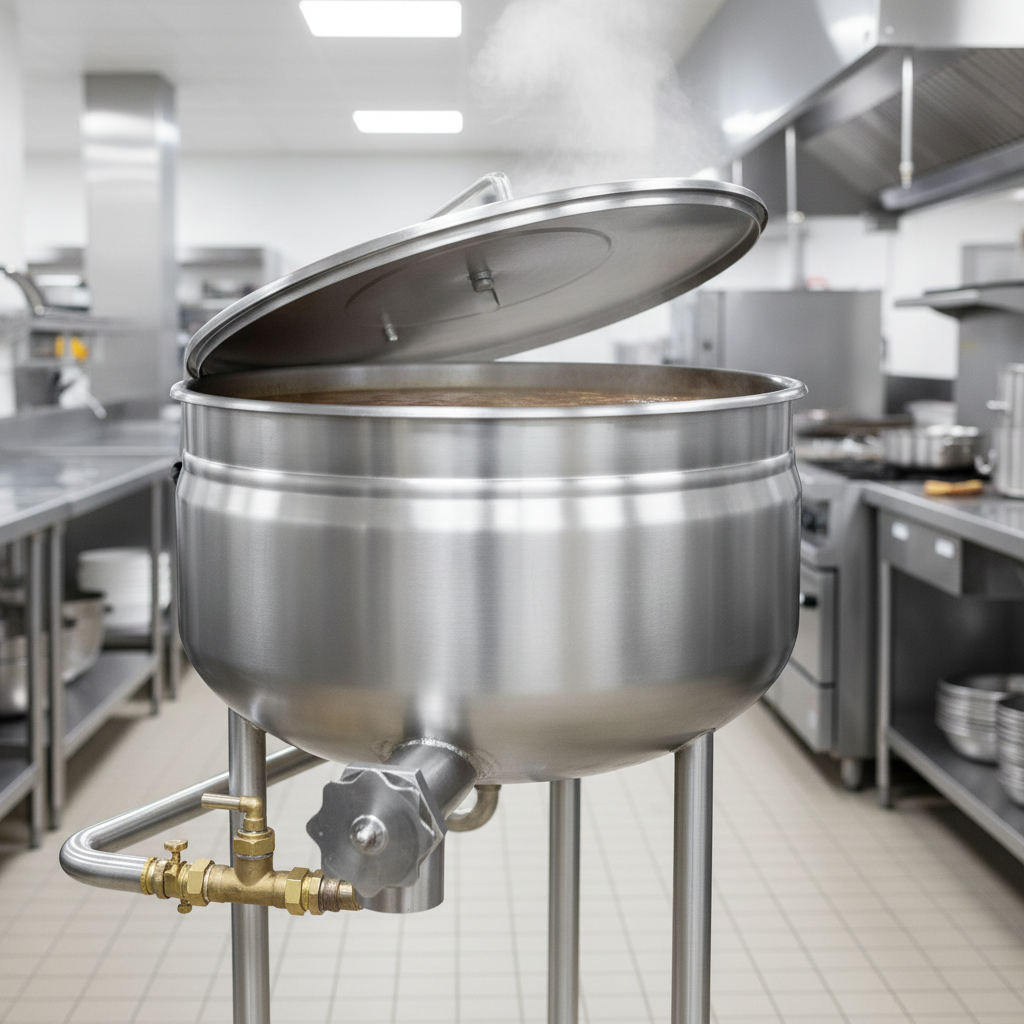

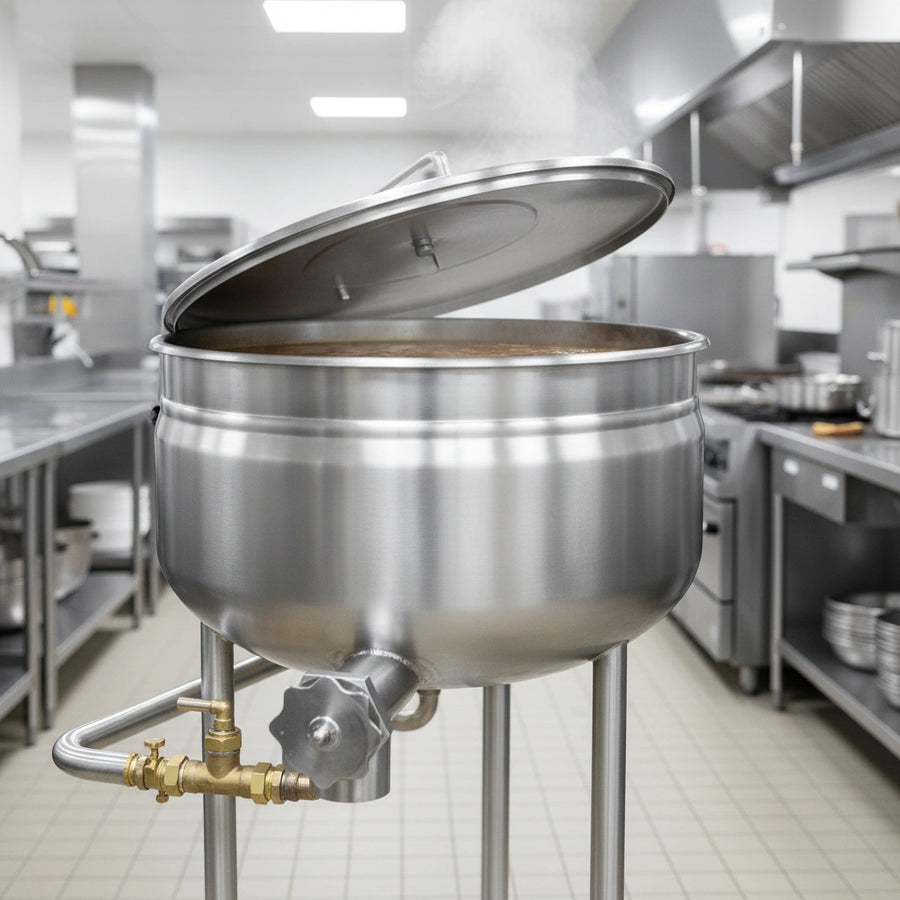

Direct Steam Operation
Requires a minimum of 5 PSI (34 kPa) and a maximum of 35 PSI (241 kPa) standard steam pressure for efficient cooking.

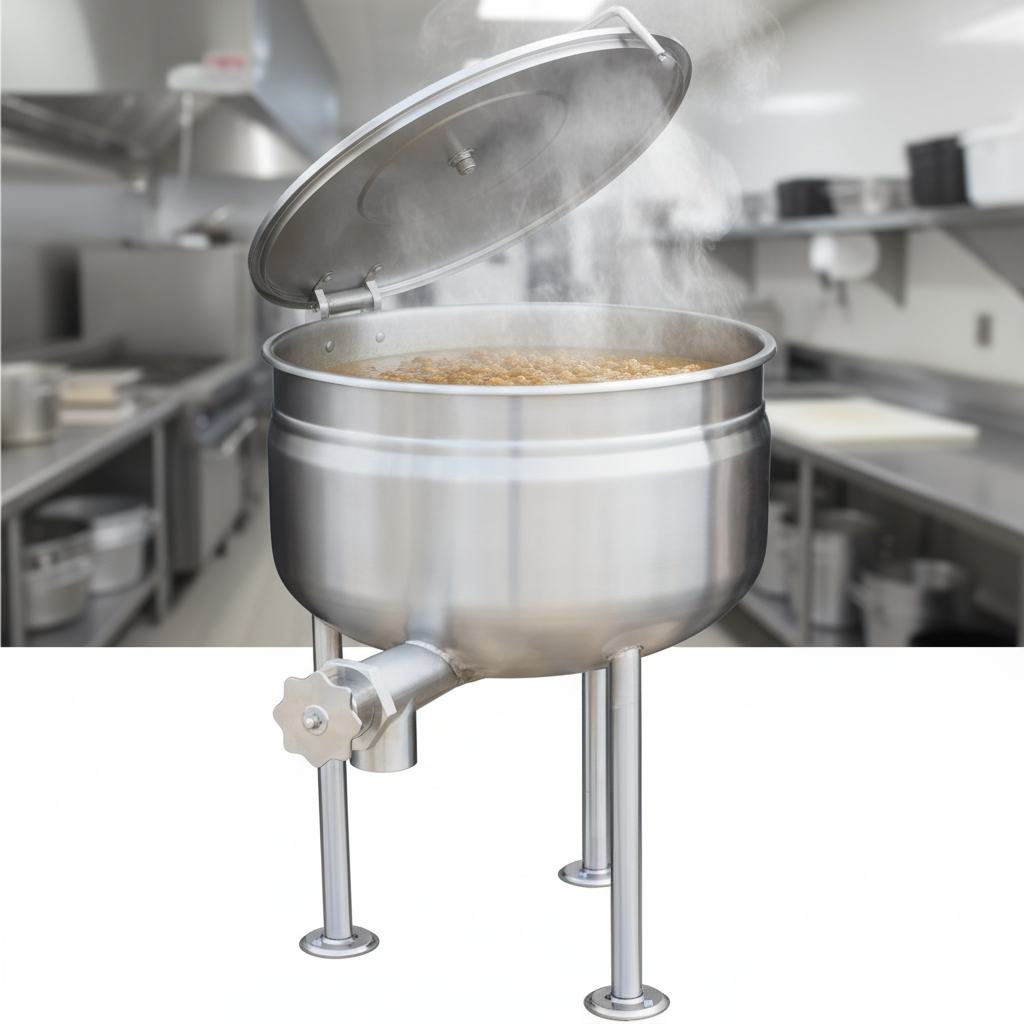

Full Steam Jacket
A double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle for superior heat distribution.

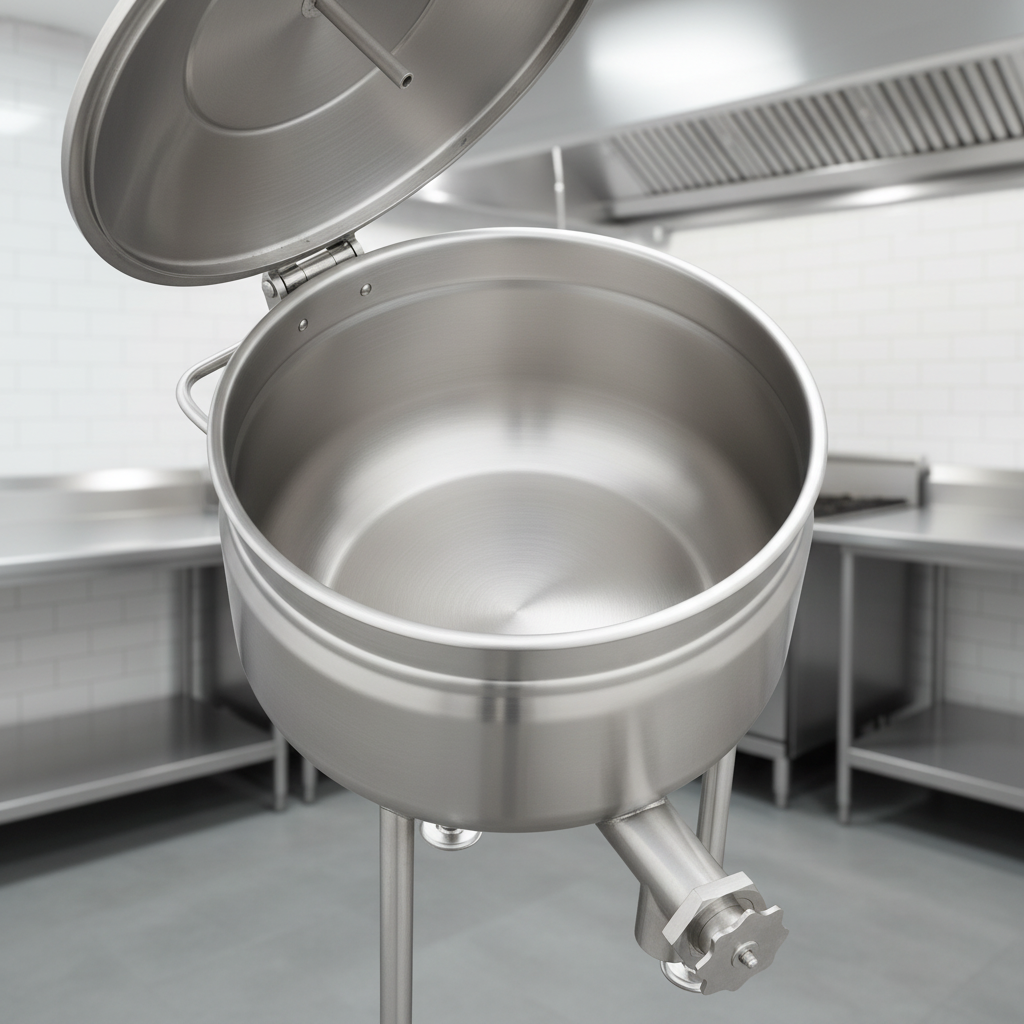

Hemispherical Bottom
The kettle's bottom features a hemispherical design, ensuring superior heat circulation and simplified cleaning.
Durable Stainless Steel Construction
All-welded satin finish 304 stainless steel exterior provides durability and a professional appearance.
High-Grade Interior Liner
The interior liner is made from standard type 316 stainless steel, suitable for cooking high acid content foods.
Tri-Leg Mounting
Unit is mounted on robust stainless steel tubular tri-legs, each fitted with a 4-hole, adjustable, flanged foot for secure floor attachment.
2" Sanitary Draw-Off Valve
Includes a 2" (50mm) sanitary draw-off valve with a perforated strainer for easy and clean product dispensing.
Spring Assist Hinged Cover
A spring-assist hinged stainless steel cover comes standard, offering convenience and ease of use.
Faucet Bracket
A faucet bracket is included as a standard feature.
Specifications
| Capacity | 30 Gallons |
|---|---|
| Type | Stationary Kettle |
| Style | Direct Steam |
| Installation Type | Floor Model (With Tri-Legs) |
| Interior Finish | 316 Stainless Steel |
| Material | 304 Stainless Steel |
| Kettle Jacket | Full Jacket |
| Drain Connection Size | 2 Inches (Draw-off Valve) |
| Steam Connection Size | 3/4 Inch IPS |
| Steam Inlet Pressure | 5-30 PSI |
| Drain Connection | 1/2 Inch IPS (Condensate Return) |
| Shipping Weight | 240 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
25.88"W x 31.0"D x 37.0"HProduct Weight:
240.0 lbCertifications & Compliance
